Fan Hub Controller/Splitter for 4-Pin & 3-Pin PC Cooling Fans, PWM Addressable RGB Fan Controller,Powering Up to 14 Fans, with SATA Interface Power Supply, Reset Button line, FH14-5V

Sorry! This product is not available.

Product Overview

Highlights

The Fan Hub FAN1 connector has a detection function to identify PWM, extract the PWM signal and feed back the fan speed to the motherboard.
Direct computer power supply to reduce the mainboard loading pressure, and PWM temperature control line separated from mainboard to achieve both of power supply and temperature control.
The fan hub supports the connection of 6*PWM fans, each port contains PWM function, which can adjust the speed, supports 8*5V 3PIN ARGB fans, and the motherboard controls the lighting effect.
Share a SATA power port, realize the simultaneous operation of up to 14 fans, solve the problem of player expansion, and perfect heat dissipation for the PC.

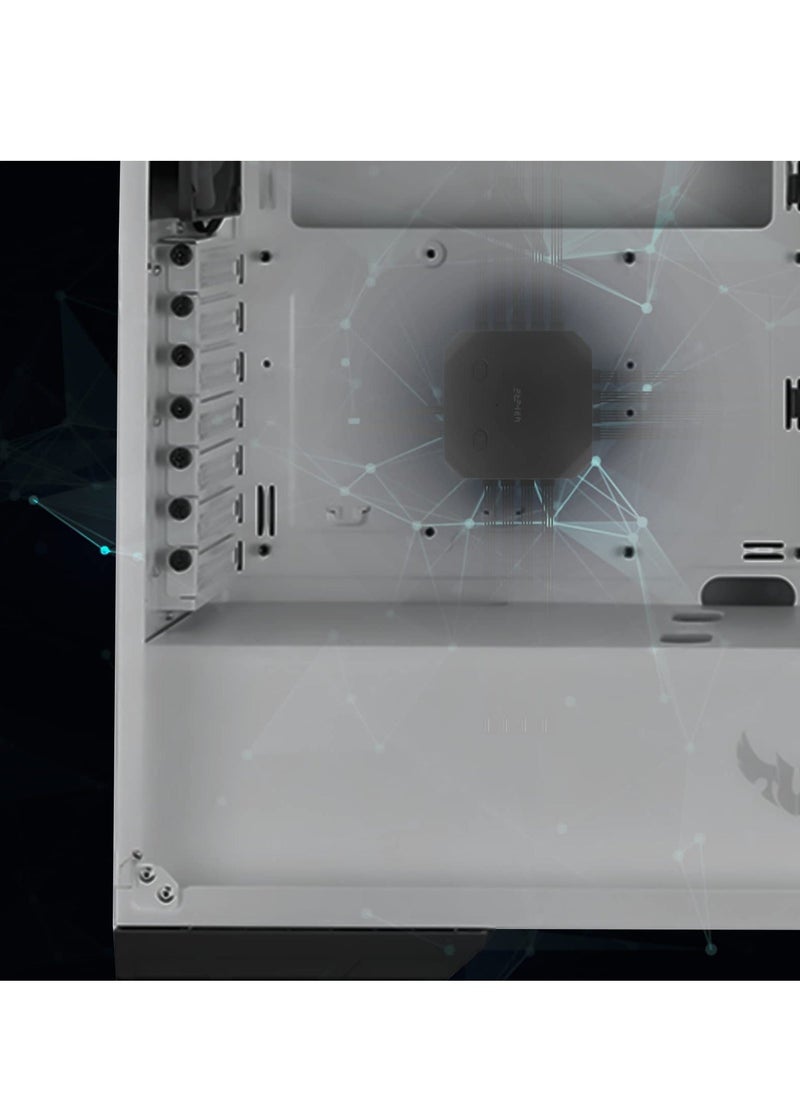

Square and compact design, small size and easy to install, and use double-sided tape can be easily installed on the back of the PC case,saving space and making the wires more tidy.

Overview

► ► Welcome to our shop ◄ ◄

? Why choose our Fan Hub?

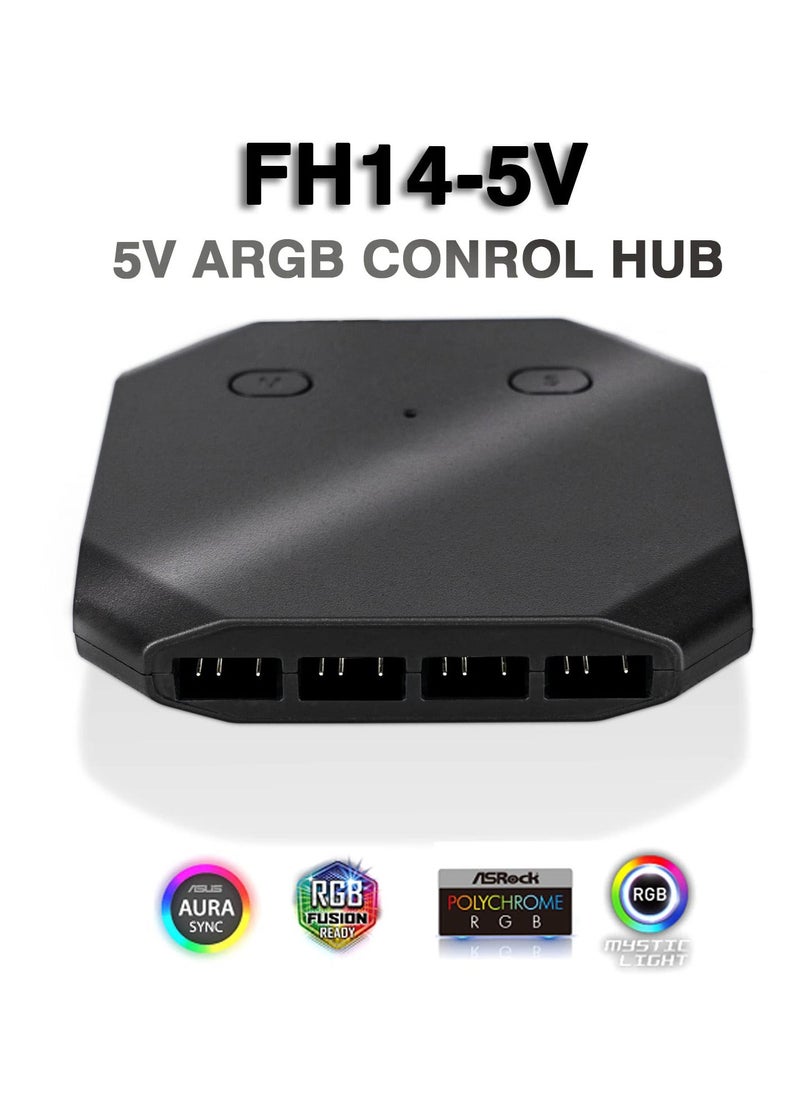

FH14-5V PWM 4PIN&5V 3PIN Addressable RGB Fan Hub/Fan Controller：

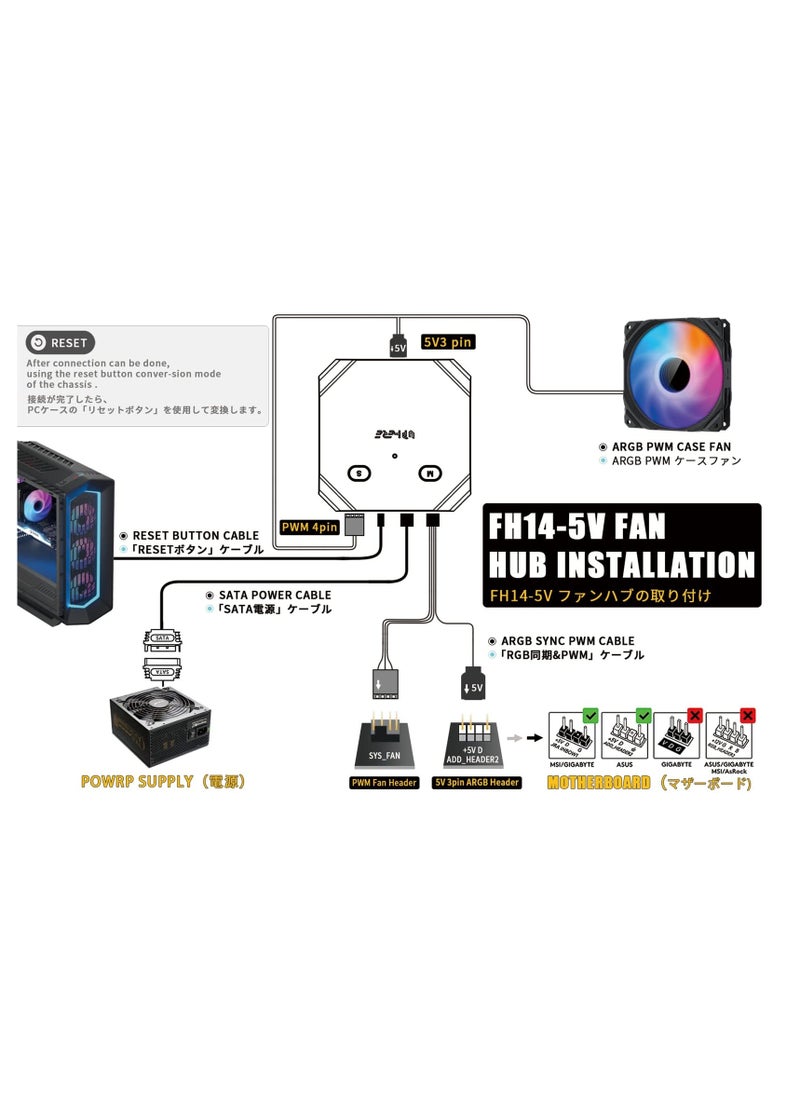

✅ Connection: SATA power supply port +5V 3PIN +PWM 4PIN interface connection can realize the control hub work and save the port.

✅ PWM function: Support connecting PWM 4PIN fans (must be connected to Fan1 interface to identify the detection speed).

✅ Mainboard control function: Support connecting 5V 3PIN ARGB fans, the mainboard controls and adjusts the fans.

✅ Small size: Save the internal space of the chassis and optimize the internal structure of the chassis.

✅ Installation and placement: Carry adhesive on the back of the control box and support paste it inside the chassis.

◉ Specifications

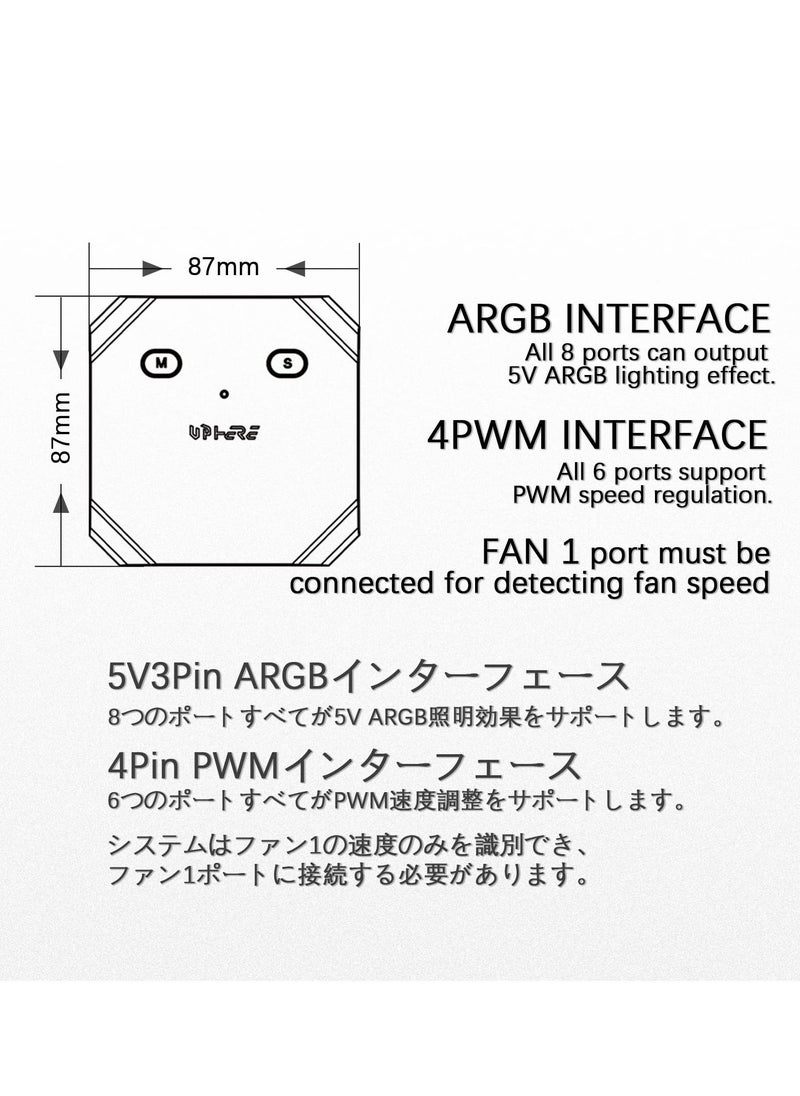

Size: 3.38*3.38*0.59in(86mm W x 86mm L x 15mm H)

Weight: 50g

Power Input: SATA

Output: 8*5V 3PIN ARGB + 6*PWM 4PIN

Fan Speed Identified: Fan 1

ARGB Motherboard Control: 5V 3PIN ARGB

◉ Note

- Please allow 1-2 mm error due to manual measurement. Thanks.

- The colors may be a little different as the difference display. Please understand

- Wish you have a good shopping experience in here.
