Rainbird - Rain Bird New Esp 9V Battery Controller Timer 1 Station F48373 - Image 1

Rainbird

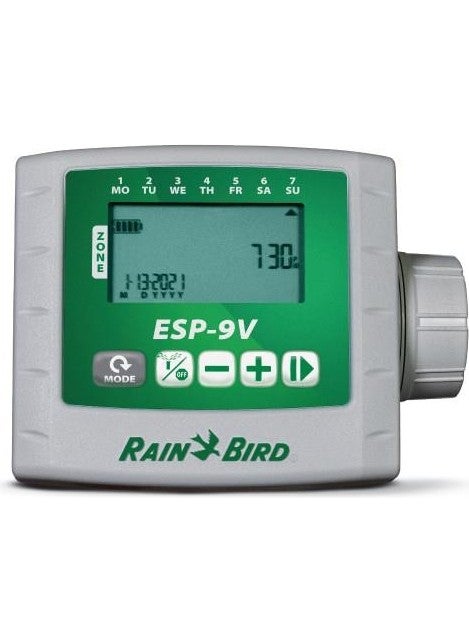

Rain Bird New Esp 9V Battery Controller Timer 1 Station F48373

726.50

(Incl. VAT & Import duty)

Coupons

Explore other bestsellers in
Irrigation Accessories

BANK OFFERS

SELLER

Item as Described

Partner Since

This item is eligible for free returns

Product Overview

Overview

Color

White

ESP-9V Control Unit with DVF valve and DC latching solenoid in 1" inch standard inline configuration,
Unique easy-to-turn patented pressure-assisted flow control mechanism,
Double filter pilot external design for maximum reliability
Balanced pressure diaphragm for long life,
External air filter to manually clean the system of dirt and debris during installation and system startup,
Internal discharge for manual operation that does not require spraying,
WPX Series Battery Controller
Differences Between WPX Series-WP Series:
While the WP Series must operate with two batteries, the WPX Series stationary battery control unit can operate with both a single battery and two batteries.
WPX Series has a much longer battery life than WP Series. (Up to 3 Seasons)
WPX Series has much easier programming feature than WP Series.
While 4 start times can be entered in the WP Series, 6 start times can be entered in the WPX Series.
A waterproof black cover comes with the WPX Series. This cover ensures that the control unit is not affected by water.
Thanks to the apparatus at the bottom of the WPX Series, it can be mounted directly on the solenoid valve.
WATER SAVING TIPS
The water budget feature allows you to make easy irrigation program adjustments in line with seasonal needs.
Allows the system to remain off for a certain period of time with automatic restart in case of prolonged rain
If a rain sensor is connected, the watering program is stopped immediately when it rains.
With the TBOS-II™ System, the Water budget can be a monthly seasonal adjustment and/or a water budget via schedule.
You can easily interrupt your irrigation schedule using the Rain Delay feature (available on the WP1, WP, WPX series and now in the TBOS-II control system)
Central control IQ Cloud software can be used to remotely program or adjust TBOS™ and TBOS-II™ control modules
FEATURES
A convenient, durable option that provides uninterrupted watering when AC power is not used.
Its waterproof housing ensures long service life when installed inside the valve box.
It is IP68 certified for protection against dust and water ingress.
Common programming features are easily accessible from a single screen, making programming quick and easy.
At-a-glance programming eliminates confusion by showing irrigation start times and watering days for each zone.
Special manual watering button for easy operation.
Automatic zone stacking allows only one valve to irrigate at a time. If zones are programmed to water at the same time, WPX will automatically water the zone with the lower number first.
Contractor Rapid Programming™ automatically copies start times and watering days from zone 1 to all other zones during initial setup.
Watering times, start times, and watering days are customized by region.
Save/restore Contractor Default™.
Rain sensor bypass for all zones or single zone bypass.
Manual watering of individual areas or single areas when desired.
One-touch manual start.
Large LCD screen with easy-to-navigate user interface.
Sensor input with skip override.
Master valve / pump starting circuit (multi-zone units only).
Permanent (100 years) program memory.
The solenoid is mounted to the valve box using a mounting bracket or two screws that secure the valve box.
OPERATING FEATURES
It works for one full year with a 9-volt alkaline battery, or for two years with two 9-volt alkaline batteries.
Station Timing: 1 - 240 minutes per start time.
6 independent boot times per zone
4 watering day options per zone: custom weekdays, rotating (every 1 - 30 days), odd calendar days and even calendar days.
Watering delay: 1 - 9 days
Seasonal adjustment: 10% - 200%

Specifications

Colour Name

White
