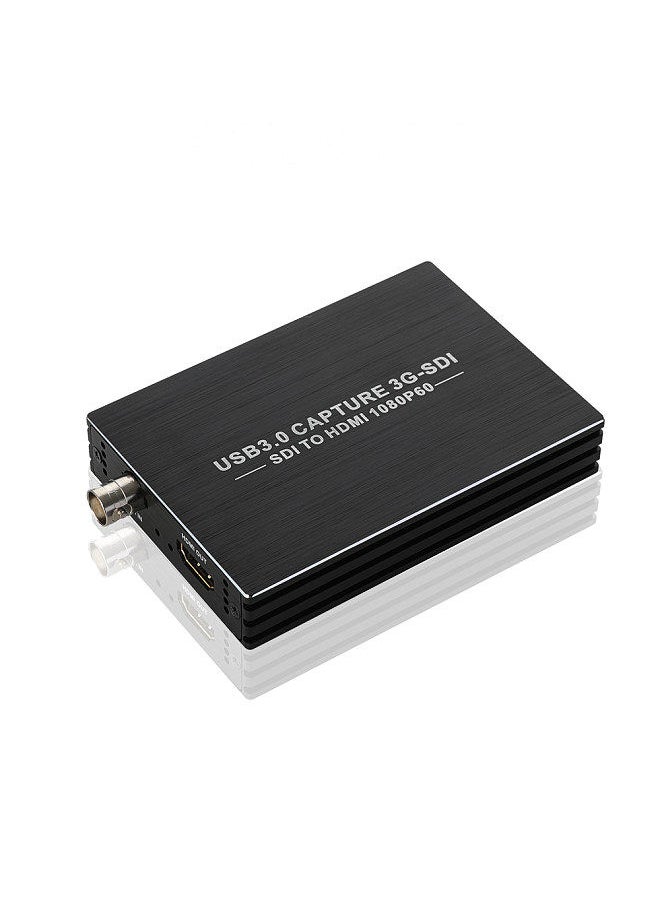

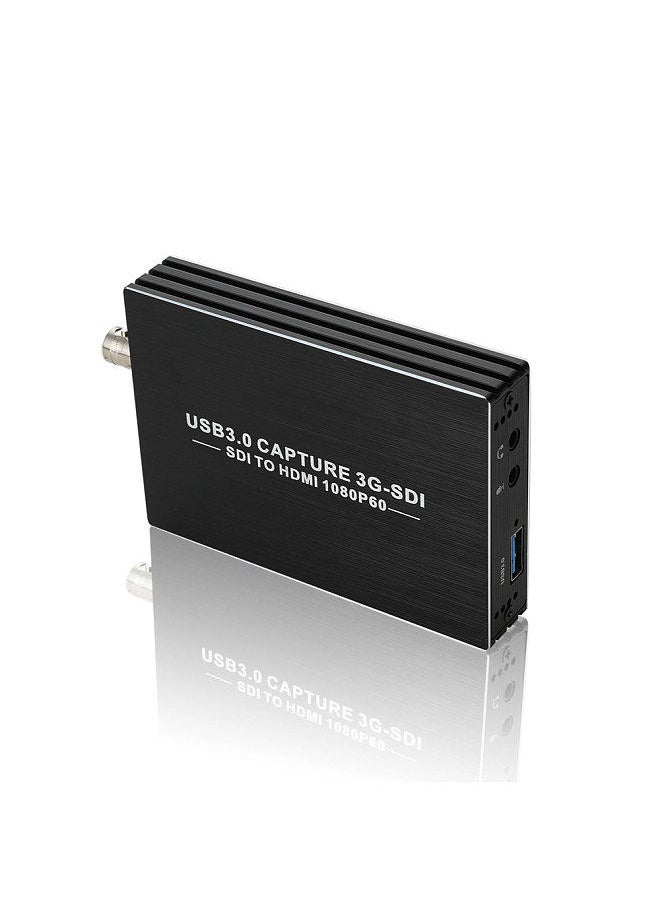

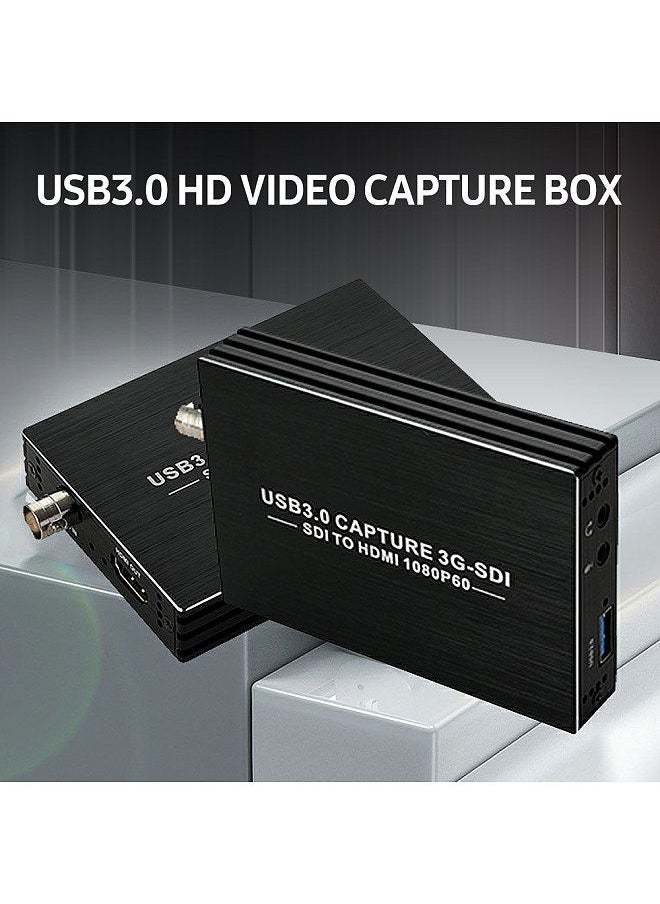

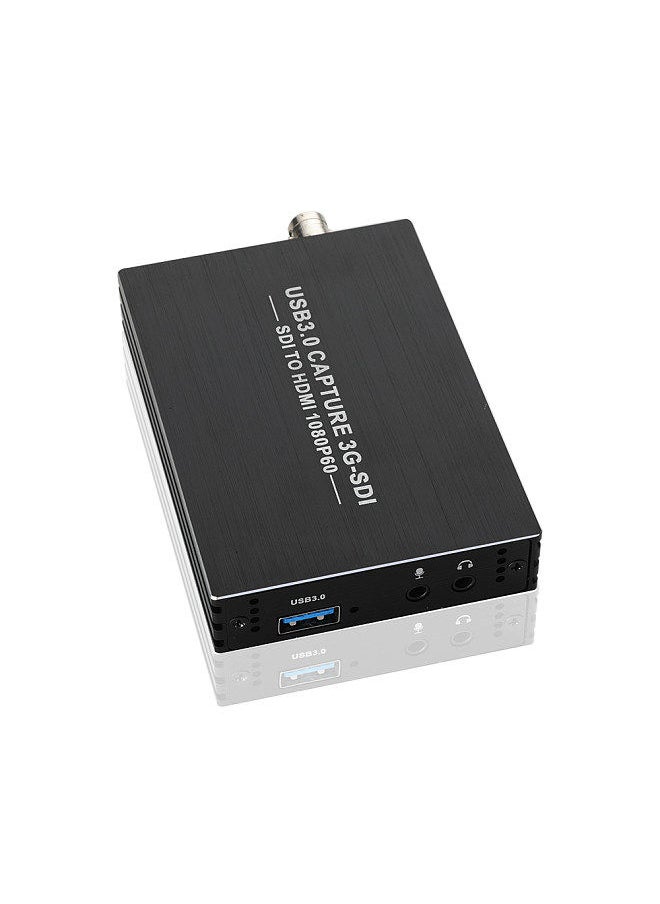

NK-M006 3G-SDI Video Capture Card USB3.0 HD 1080P Video Capture Box SDI to HDMI Adapter Converter Driver-free Design

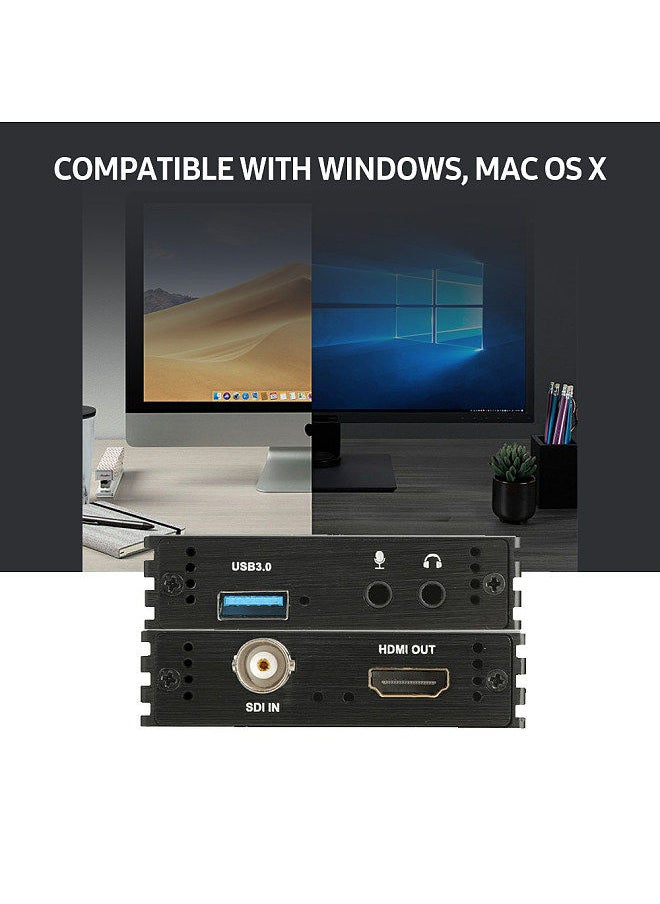

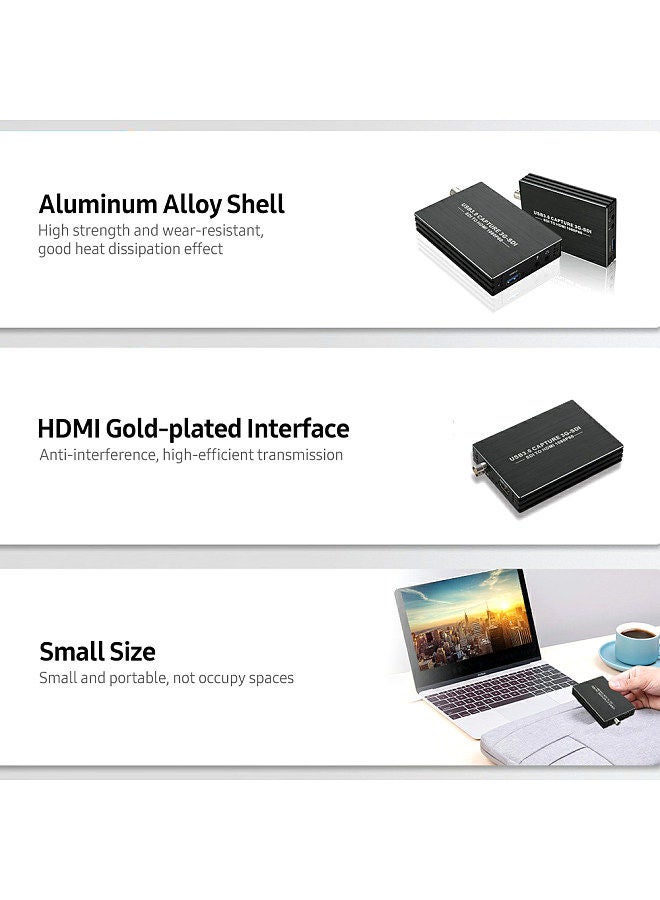

OverviewFeatures: It can capture one 3G-SDI input, output HDMI 1080P and USB 1080P@60fps signals, the picture is clear and smooth with low latency. The SDI video capture meets UVC and UAC standard, no need to install drivers and settings, easy to use. Aluminum alloy shell, high strength and wear-resistant, good heat dissipation effect. HDMI gold-plated interface, anti-interference, high-efficient transmission. Small and portable, not occupy spaces. Wide compatibility, compatible with phone, game console, set-top box, video camera, projector, laptop, desktop computer, etc. Specification: Model: NK-M006 Computer connection type: USB3.0 Input port: 1*HD/3G-SDI video signal SDI input format: SD/HC/3G-SDI, fit SMPTE-259/274/296/372/424/425/292 standard HDMI ouput format: Fit HDMI1.4A standard, support 1080P/60Hz 8-bit(RGB, YUV) Transmission speed: HDMI: 165MHz, SDI: 3G Video capture: Fit UVC(USB VIDEO CLASS) standard Audio capture: Fit UAC(USB AUDIO CLASS) standard Supported system: Windows, Linux, Mac OS X Operating temperature: 0~50℃ Storage temperature: -20~70℃ Item size: 11.3 * 7 * 1.8cm /4.45 * 2.76 * 0.71in Item weight: Approx. 129g /4.55oz Packing list: 1 * USB3.0 capture box 1 * USB3.0 cable 1 * HDMI cable 1 * User manual
