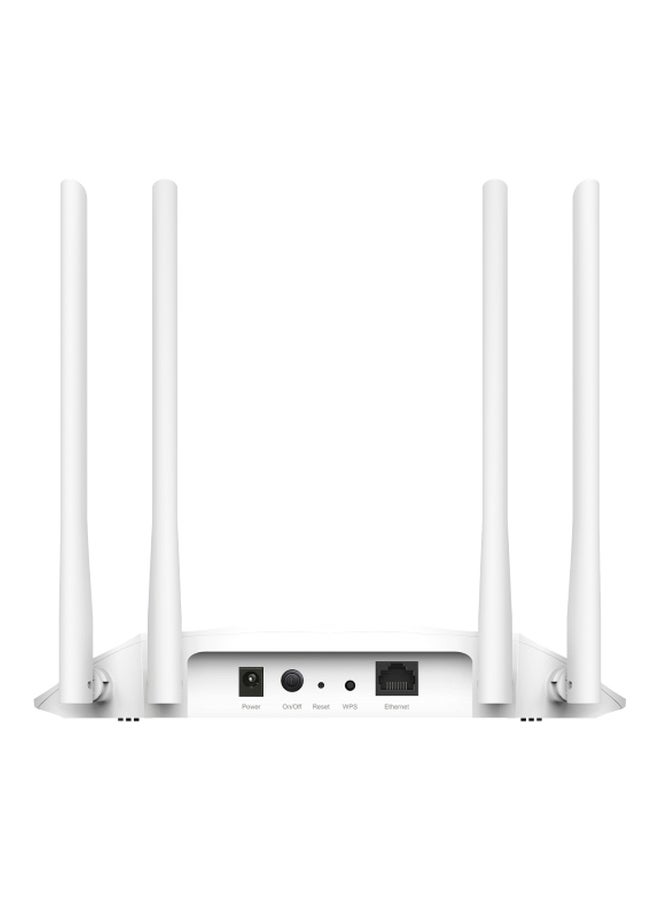

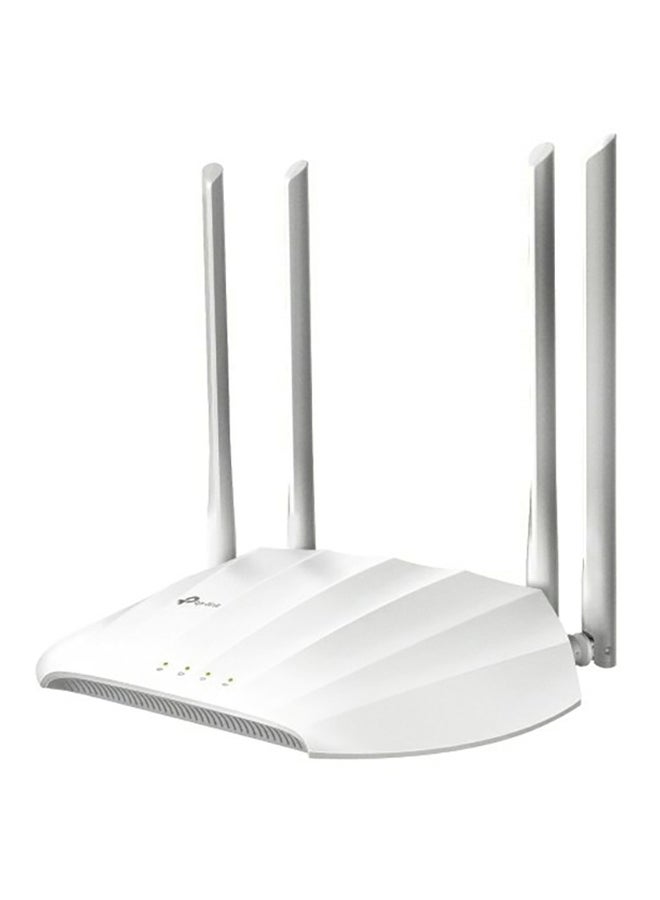

TL-WA1201 AC1200 Wireless Access Point, Dual-Band Wi-Fi (867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz), MU-MIMO, 4 Fixed Antennas, Passive PoE, Multiple Modes (Access Point, Range Extender, Client, Multi-SSID), Captive Portal, WPS, Ethernet Port, PoE Injector, 12V/1.5A Power Supply | TL-WA1201 White

OverviewMU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance. Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.Interface 1× 10/100/1000 Mbps Ethernet Port (Supports Passive PoE) Button Power On/Off Button, WPS Button, Reset Button External Power Supply 12V/1.5A Wireless Standards IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz Antenna Type 4 Fixed High Performance Antennas, Frequency 2.4 GHz and 5 GHz Signal Rate 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz Reception Sensitivity 5 GHz: 11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm 11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm 11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm 11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm 2.4 GHz: 11g 54Mbps: -78 dBm 11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm 11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm Transmit Power CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz) FCC: <30dBm(2.4GHz&5GHz) Wireless Modes Access Point, Range Extender, Client, Multi-SSID Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions DHCP Server, DHCP Client List Quality of Service WMM Advanced Functions Captive Portal OTHERS Certification CE, FCC, RoHS Package Contents Wireless Access Point TL-WA1201 Power Adapter RJ45 Ethernet Cable Quick Installation Guide PoE Power Injector System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Environment Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Protocol Support IPv4, IPv6
