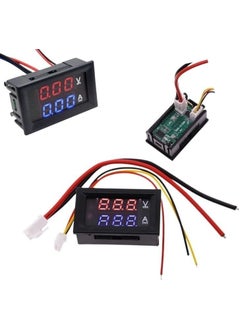

Overview0-100V / 0-10A Digital Voltmeter Ammeter DSN-VC288
It is a panel type voltmeter - ammeter that allows you to measure DC voltage between 0-100V and amperage between 0-10A.

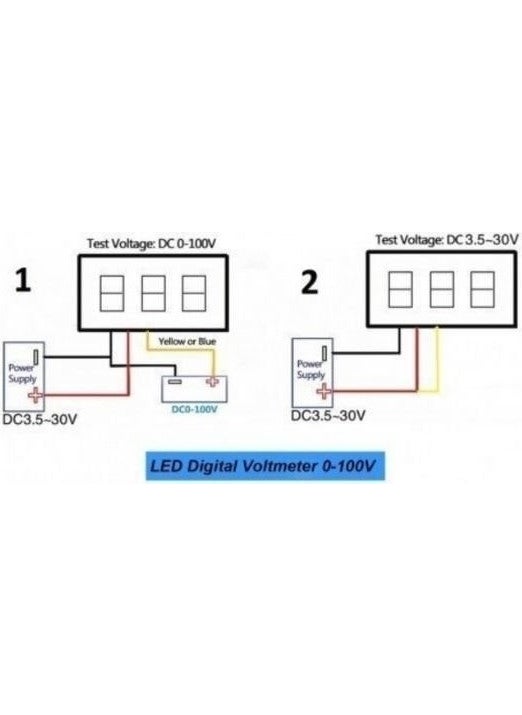

The device can measure between 0-100V. However, the operating range of the device is 0-30V. Therefore, care should be taken when making connections. As shown in the 2nd image, red and yellow cables can be fed from the device to be measured for measurements between 0-30V. In this case, applying voltage higher than 30 Volts will destroy the device. For higher measurements, an external 0-30V source must be supplied from the yellow cable.
Features:
- Voltmeter working voltage: DC 4.5 - 30V (If you apply voltage more than 30V, the product will break.)
- Voltmeter measuring range: DC 0 - 30V DC 0 - 100V
- Current measurement range: DC 0 - 10A
- Voltage sensitivity: 0.1V
- Current sensitivity: 0.01A
- Display precision: 1% (± 1 digit)
- 2 pieces of 3 digits 0.28” 7 segment displays
- Refresh Rate: 300ms
- Dimensions: 48mm x 29mm x 18mm
