03962A 18650 Lithium Battery 3.7V Charging Card 1A Protection Mini USB Output

03962A 18650 Lithium Battery 3.7v Charging Board 1A Protection Mini USB Output

R1455Li

Explanation

 Module name: lithium battery charging board

 Material: electronic components

 Color: shown as the picture

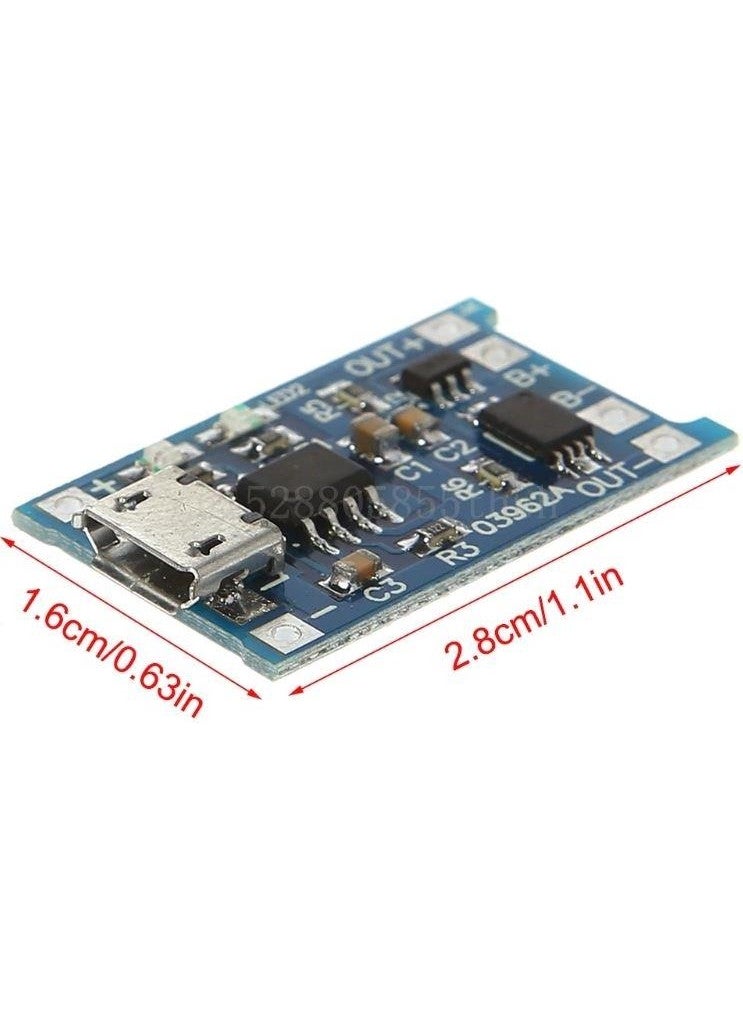

Size: 2.8×1.6cm/1.10×0.63in (approx.)

Charging mode: linear charging

Charging current: 1A (adjustable: change the fixed resistors in the circuit board, you can change the output to 100mA-1000mA)

Maximum output current (OUT +,OUT-): 2.3A

Charging accuracy: 1.5%

Input voltage: 4.5V-5.5V

Full charge voltage: 4.2V (4.1-4.2)

Charging indicator: red light charging blue (green) lamp full charge

Input interface: micro USB

Operating temperature: -10℃to +85℃

Quantity: 1 piece

 Package Included

1 * 3.7V Mini USB 1A 18650 Lithium Battery Charger Charging Module

It will be sent in OPP bag packaging.
