15 Amp Miniature Circuit Breaker for DC Solar Systems, 12-400V, DIN Rail Mount, Universal AC/DC Disconnect Switch

DC 12-400V Protection Circuit Breaker

Specifications

Working Voltage: DC 12V-400V or AC 90-400V

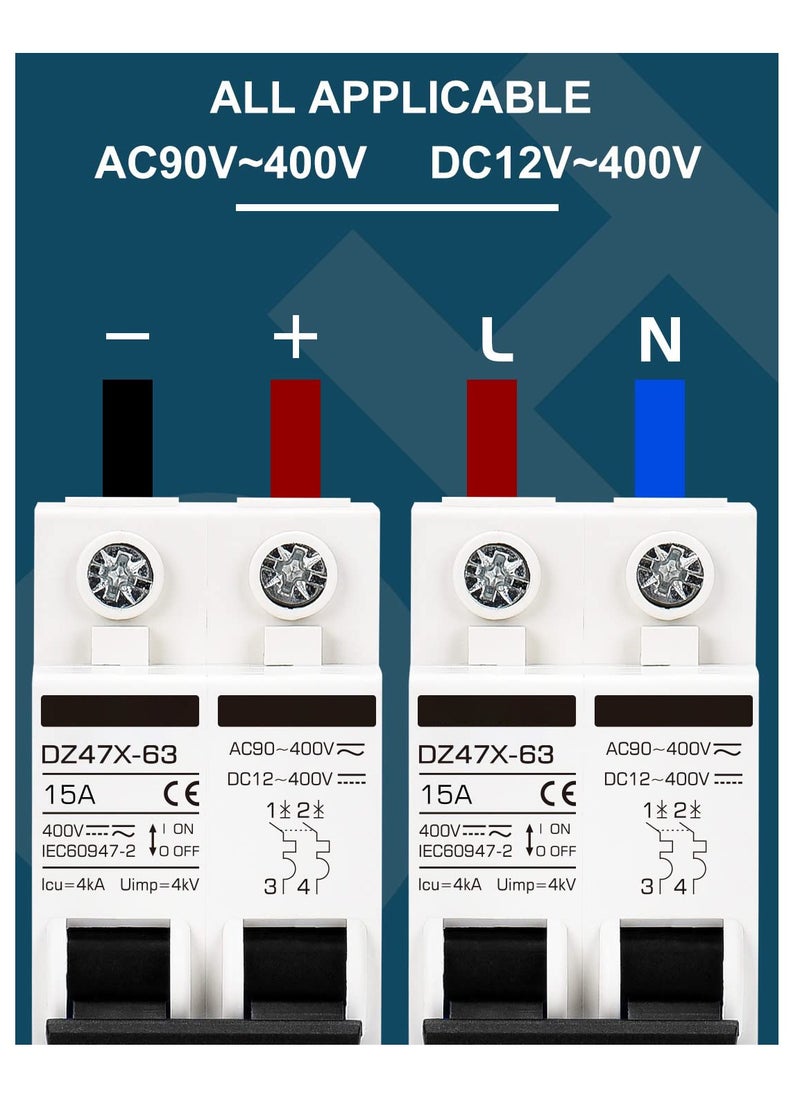

Poles: 2P (for L and N pole or + and - pole)

Rated Current: 15A, 20A, 25A, 30A, 40A, 50A, 60A, 100A, 120A

Breaking Capacity: 4 kA Ics=Icu

Trip Curve: B

Mechanical Life: 10,000 times

Electrical Life: 4,000 times

Standards: IEC60947-2

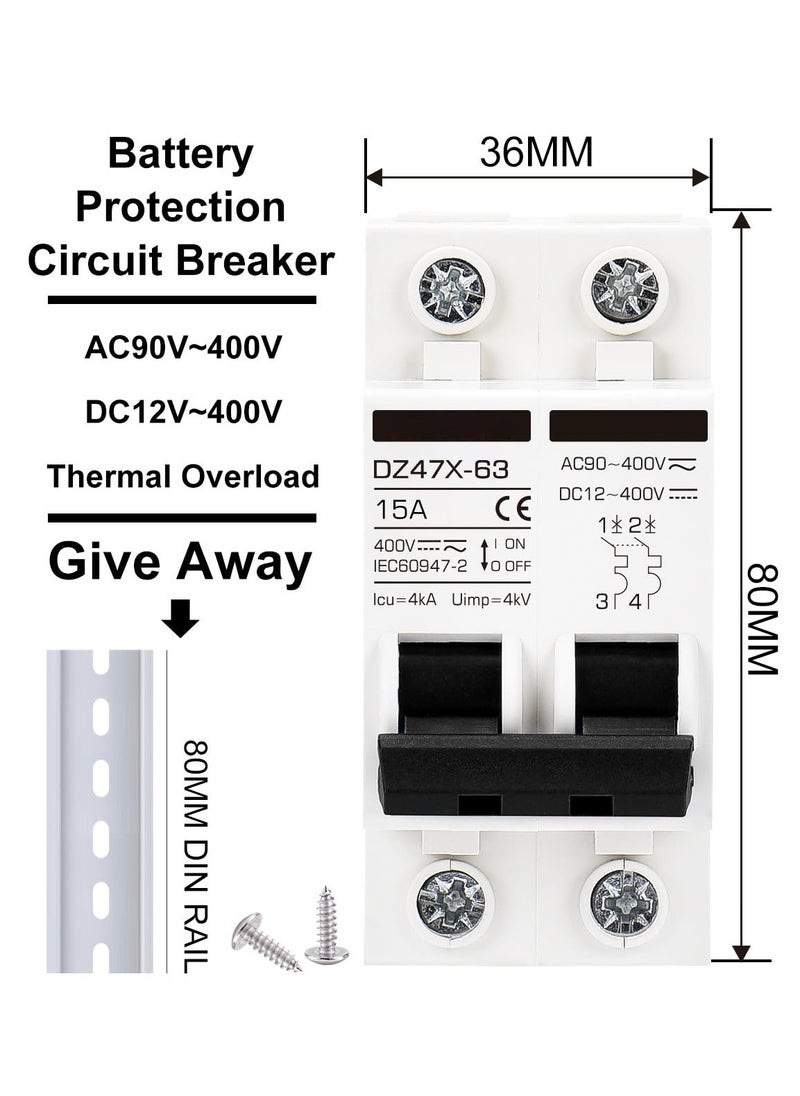

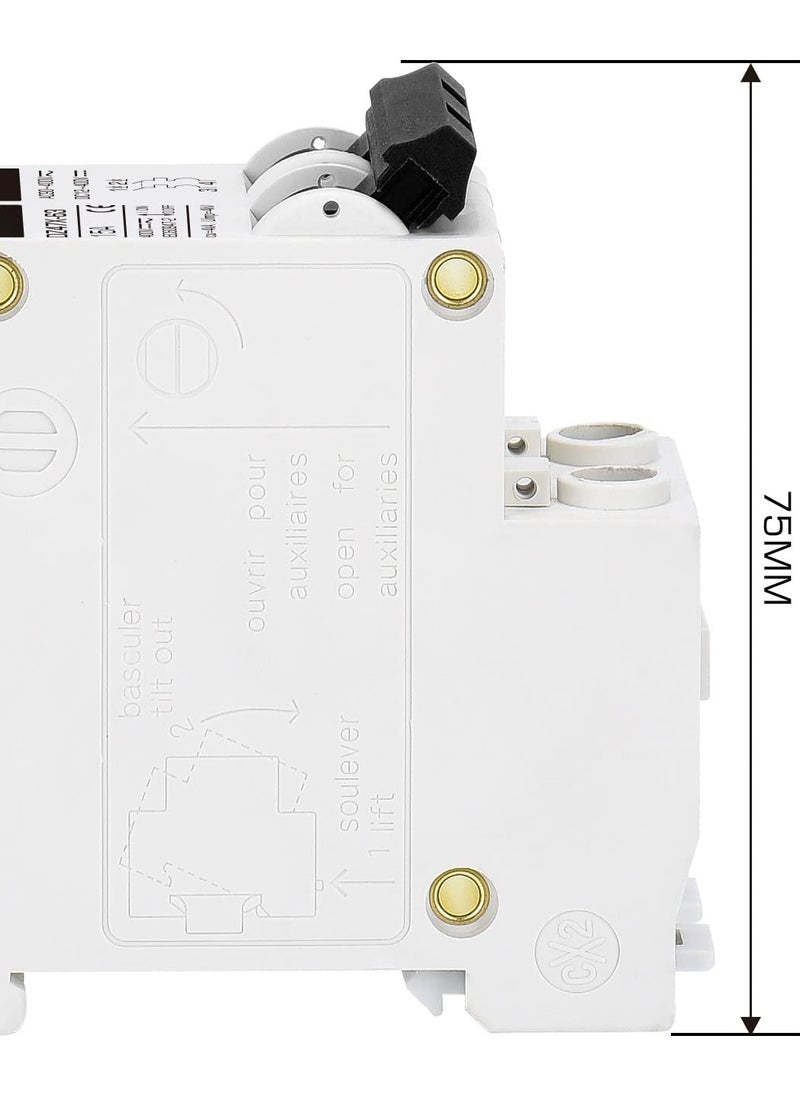

Dimensions: 36MM x 80MM x 75MM

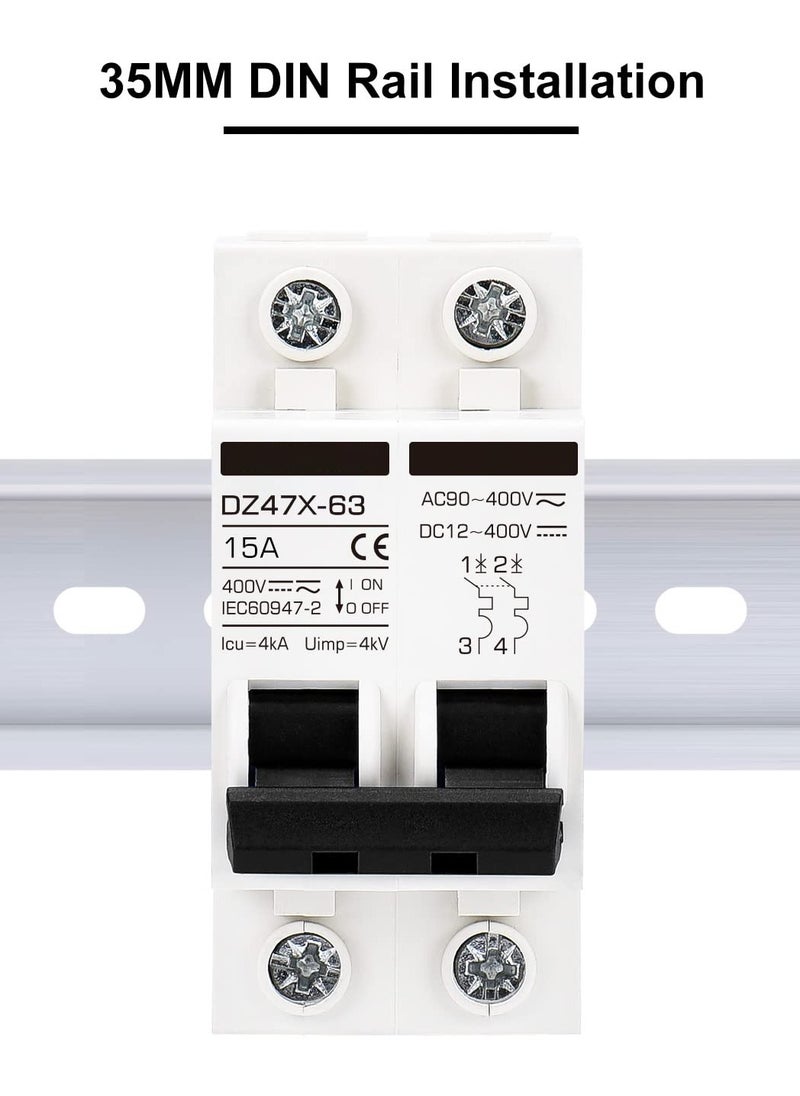

Installation: Fits standard 35mm DIN rail

Features

Overload Protection: Safeguards circuits from excessive current due to overload.

Short Circuit Protection: Prevents damage from short circuits.

On and Off Circuit: Facilitates easy circuit control.

Isolated Circuit: Provides circuit isolation.

Arc Extinguishing: Magnetic system assists in extinguishing DC arcs, which are more challenging than AC arcs.

Application Environment

Ideal For:

Protecting solar panels

UPS systems

12V-400V batteries

DC motors

Home lighting

Power switches

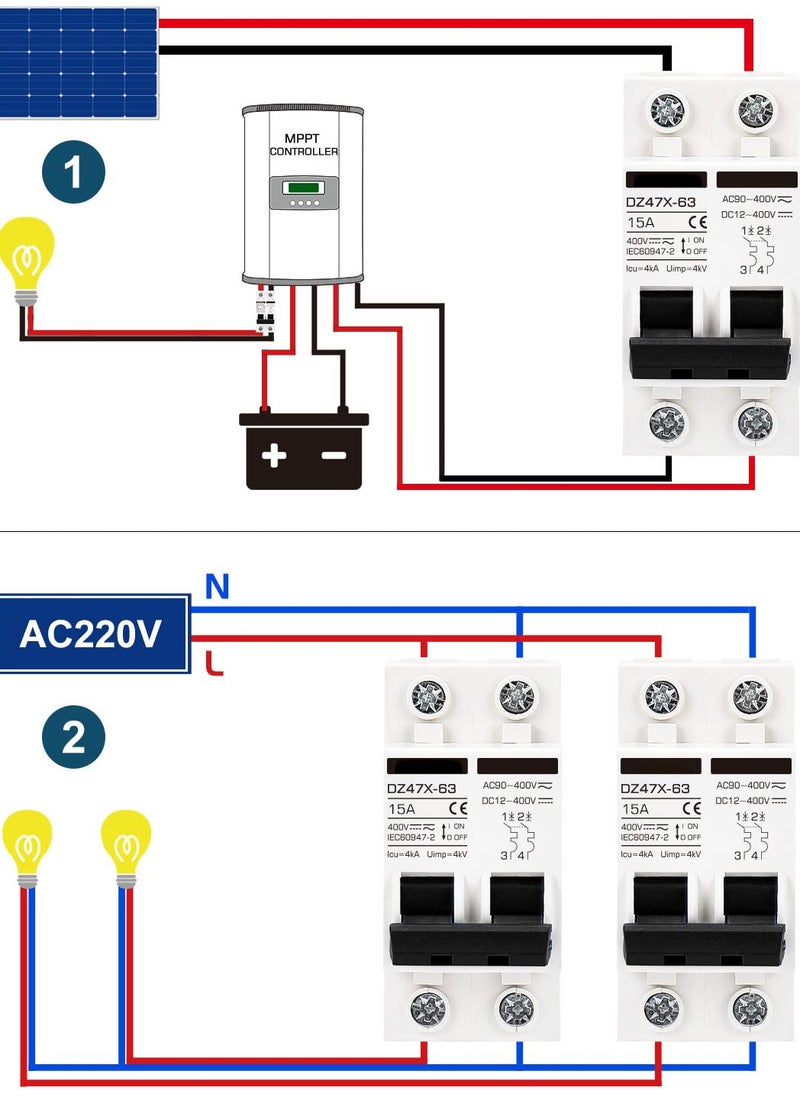

Versatile Use

Solar Panel Grid Systems: Prevents damage from overcurrent due to overload or short circuits.

Household Circuits: Suitable for on-off control of AC 120V/240V circuits.

Important Note

Secure Installation: Ensure the screw part of the circuit breaker is tightly secured to prevent burning, as loose screws cause 99% of such issues.

Attention Notes

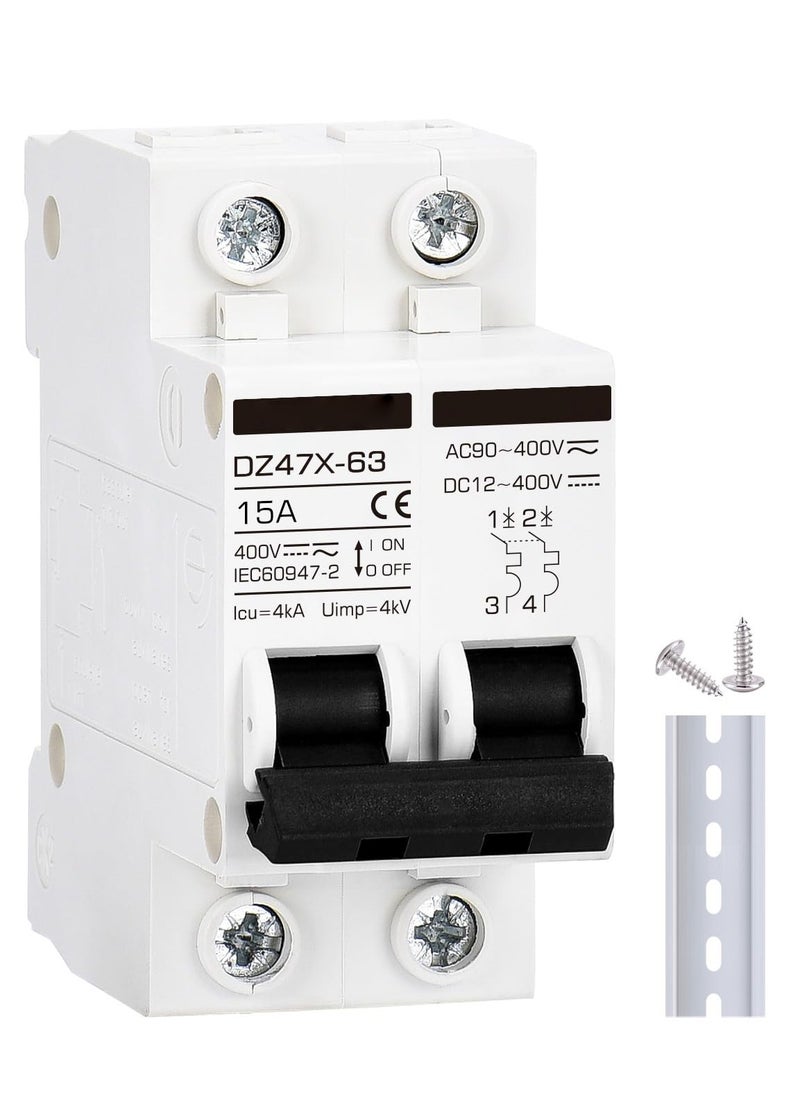

Package Includes: One DC 12-400V protection circuit breaker

Care Instructions: Ensure proper installation and secure connections

Usage Tips: Ideal for safeguarding various electrical setups from overcurrent and short circuits
