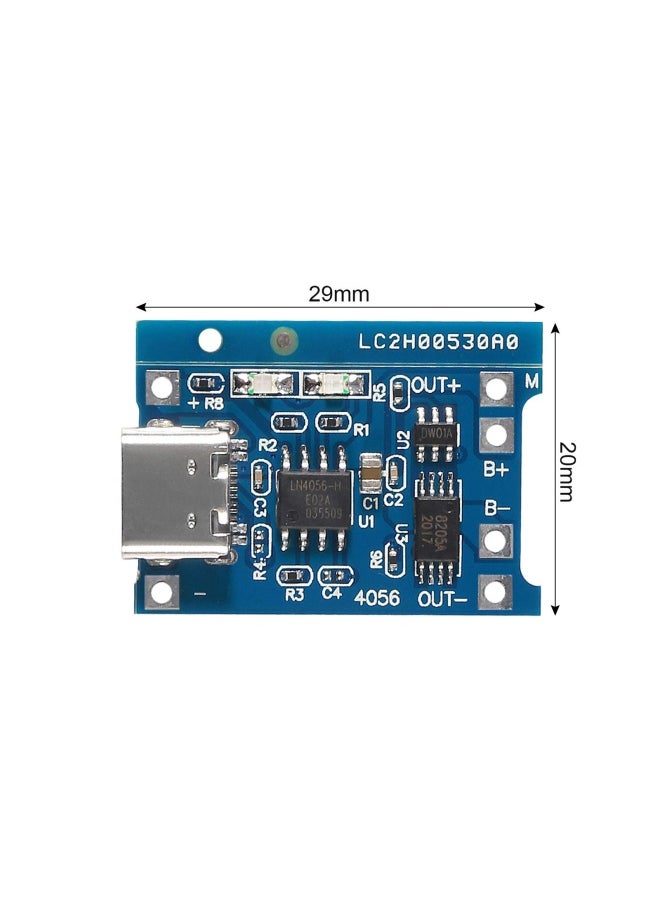

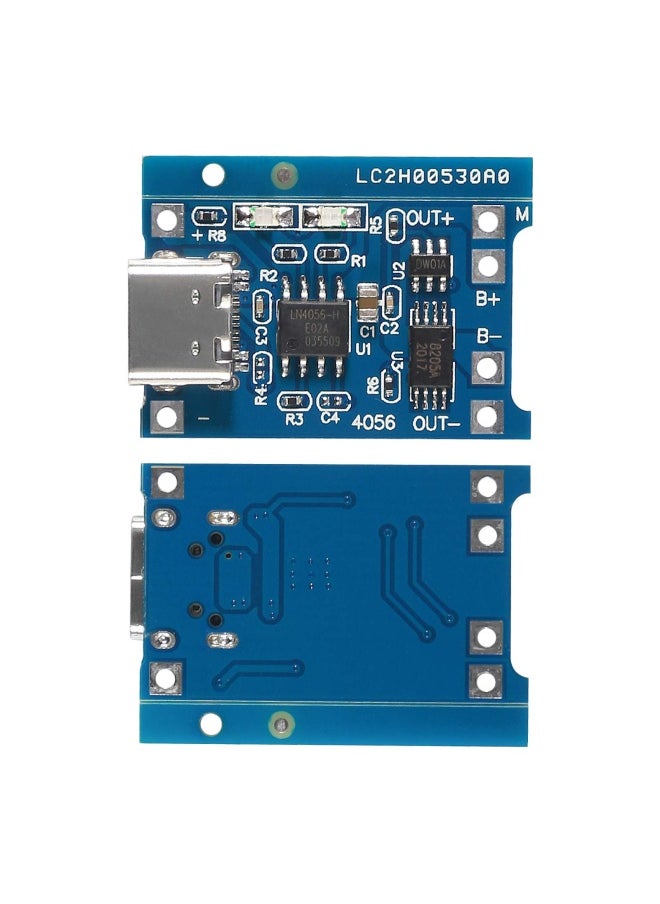

Highlights- Input Voltage: 5V; Max output current: 1A; Charging cut-off voltage: 4.2V ± 1%; Input interface: Type-C USB

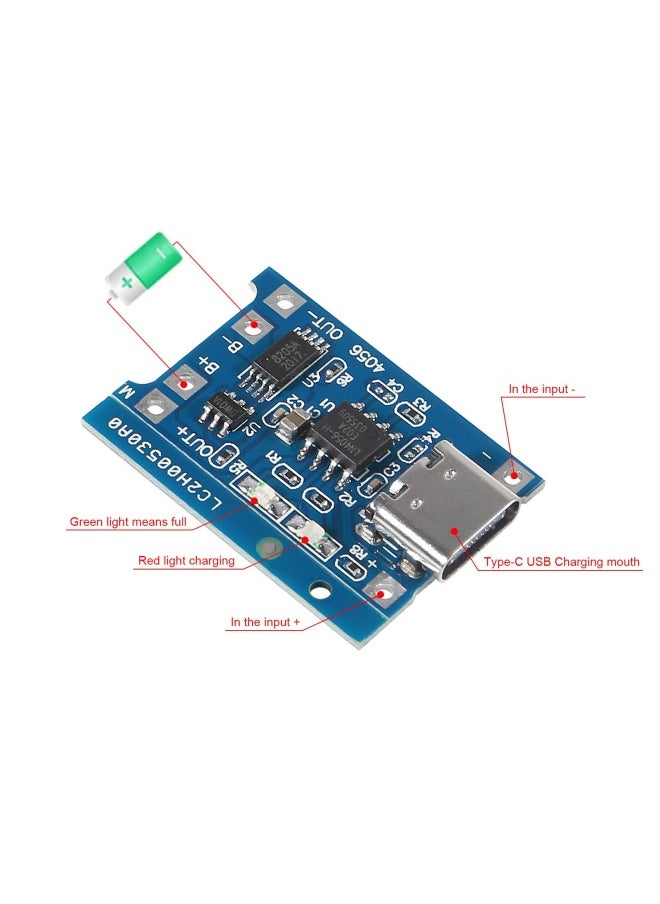

- Power Indicator: Red is charging, Green is fully charged.

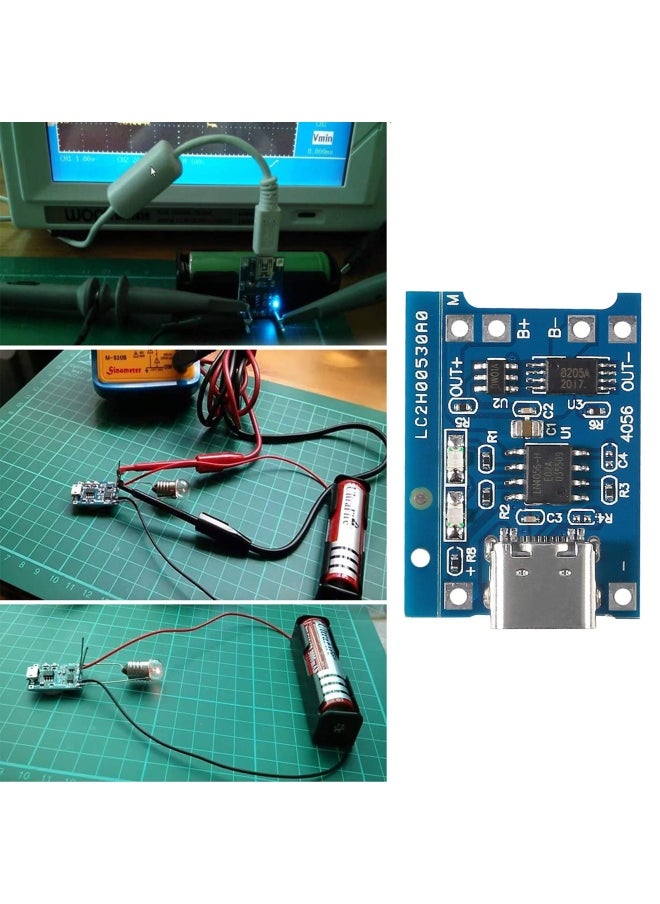

- Application:It can charge for single-cell lith ium battery or multi-section parallelled lith ium batteries, can be powered by USB ports; The module with usb port, can be directly input to do with rechargeable lith ium battery as a phone charger, and
- Note:Please check all connections before charging, it will be damaged if the load OUT terminal on the positive and negative with wrong polarity. There is not included instruction.If you are the first time to do this job, we suggest you can watch rel

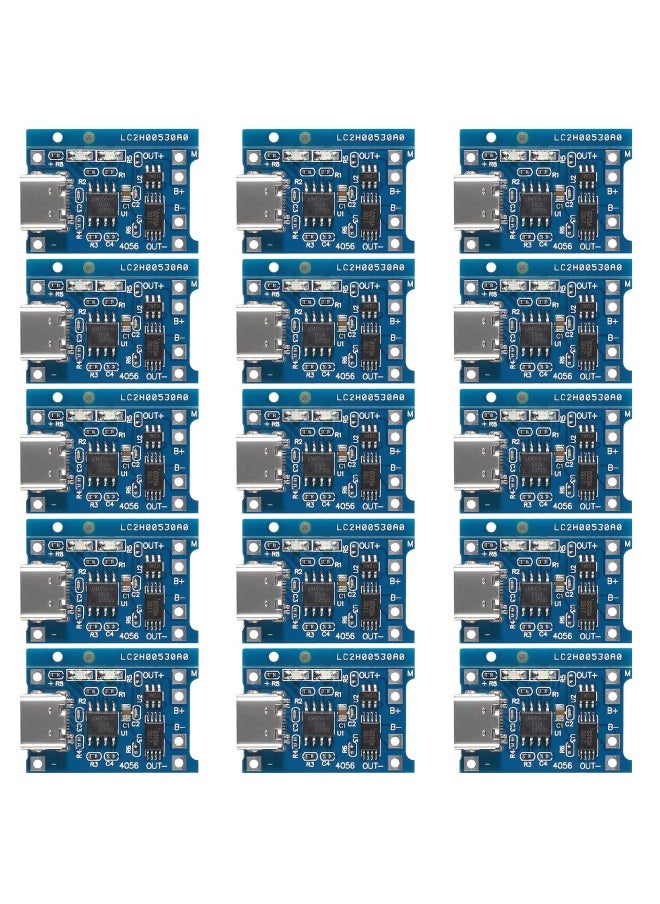

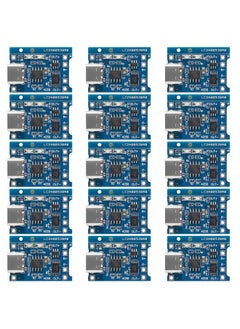

- Package includes:15*TP4056 Type-C USB Charging Module

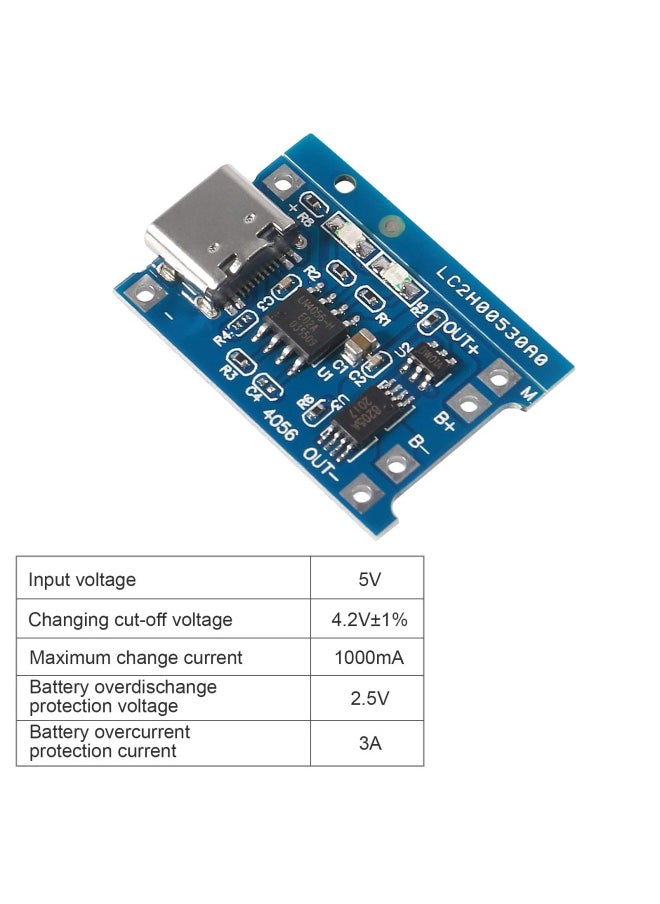

OverviewSpecifications:Input voltage: 5VCharging cut-off voltage: 4.2V ± 1%Battery over-discharge protection voltage: 2.5VBattery overcurrent protection current: 3AMax output current: 1ACharge precision: 1.5%.Power Indicator: Red for charging, Green for fully charged.Maximum charge current: 1000mAInput interface: Type-C USBHigh voltage protection: when the voltage is higher than 5V, the current will be lower than 1000mAh. It subtracts the charging current automatically to avoid burn damage to chip.Application:The module with usb port, can be used directly as a phone charger protection, and still retains voltage input wiring pads, which is convenient for DIY.It can charge for single-cell lithium battery or multi-section parallelled lithium batteries, can be powered by USB ports.It can be used for voltage 3.6, 3.7V, etc. polymer and other lithium battery charge and discharge protection.Note:There is not included instruction.
