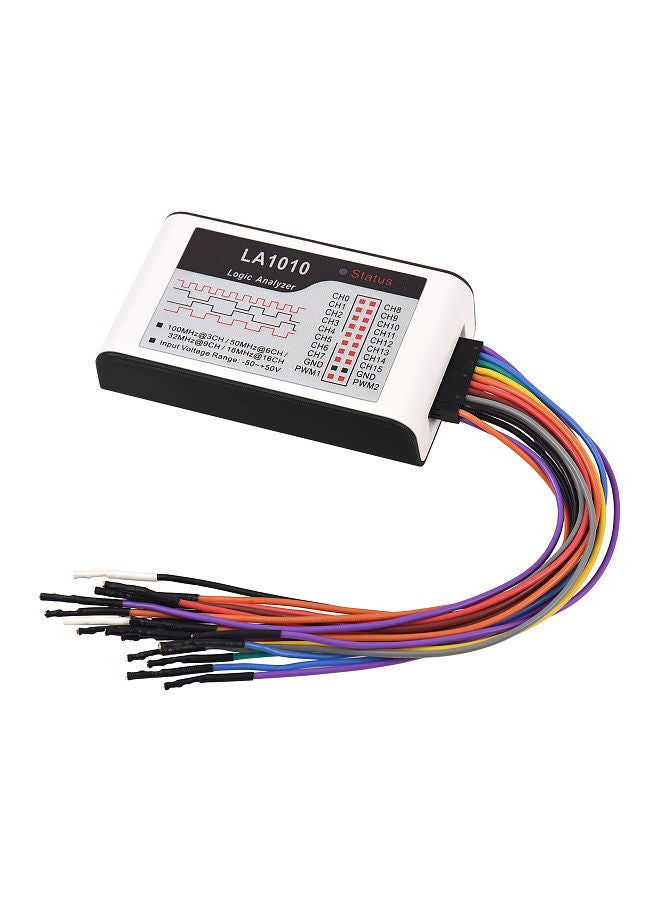

16 Channels Logic Analyzer USB 2.0 Interface 100MHz Sampling Rate Supports PC Software for Timing Judgment and Analysis

Highlights

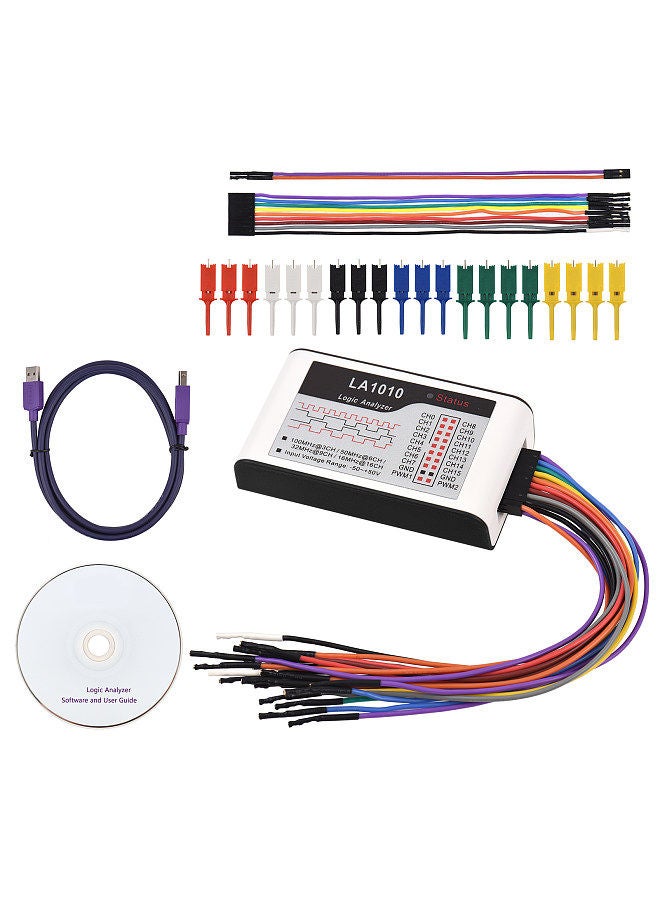

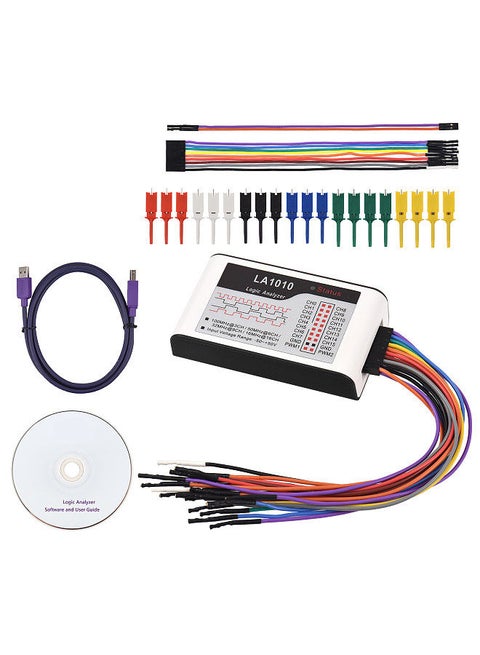

• The kit includes a logic analyzer with 20P cable, 9P cable, 2P cable, 20 connectors, a 1.5m USB 2.0 cable, a software CD and an user manual.

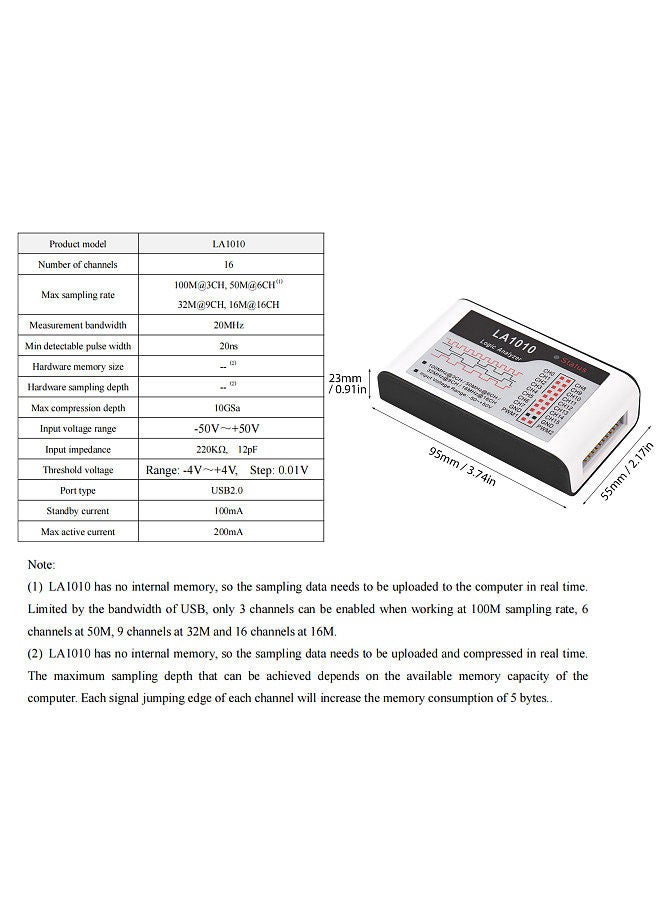

• The input voltage range is -50V to +50V, with adjustable threshold of -4V to +4V. Compatible with various level standards: 5V TTL, 5V/ 3.3V/ 3.0V/ 2.5V/ 1.8V/ 1.5V/ 1.2V/ 0.9V CMOS and etc..
• USB 2.0 data transmission, real-time upload of sampling data to the computer, the higher the sampling rate, the less the channel number.

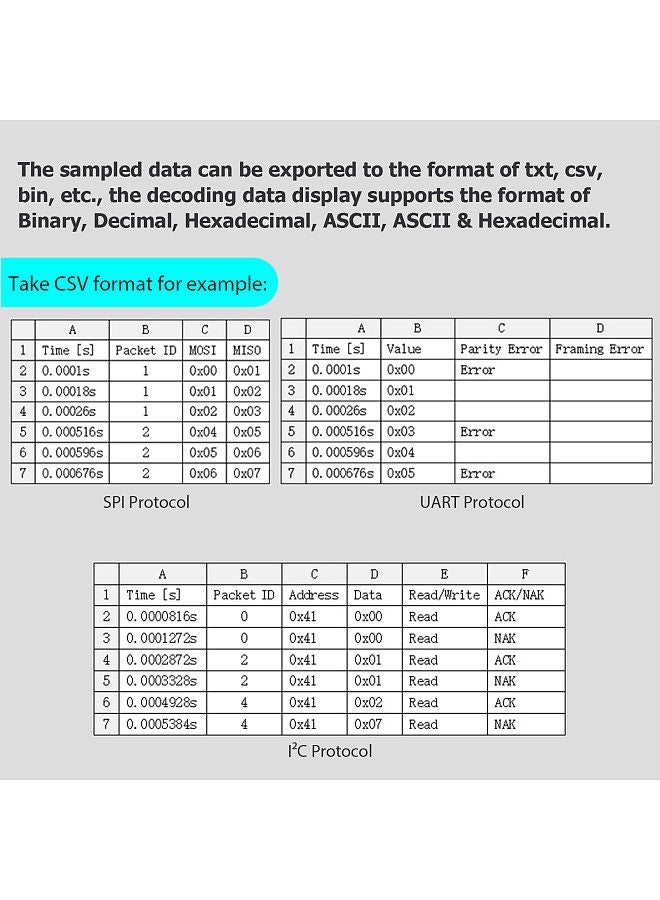

• The sampled data can be exported to the format of txt, csv, bin, etc., the decoding data display supports the format of Binary, Decimal, Hexadecimal, ASCII, ASCII & Hexadecimal.

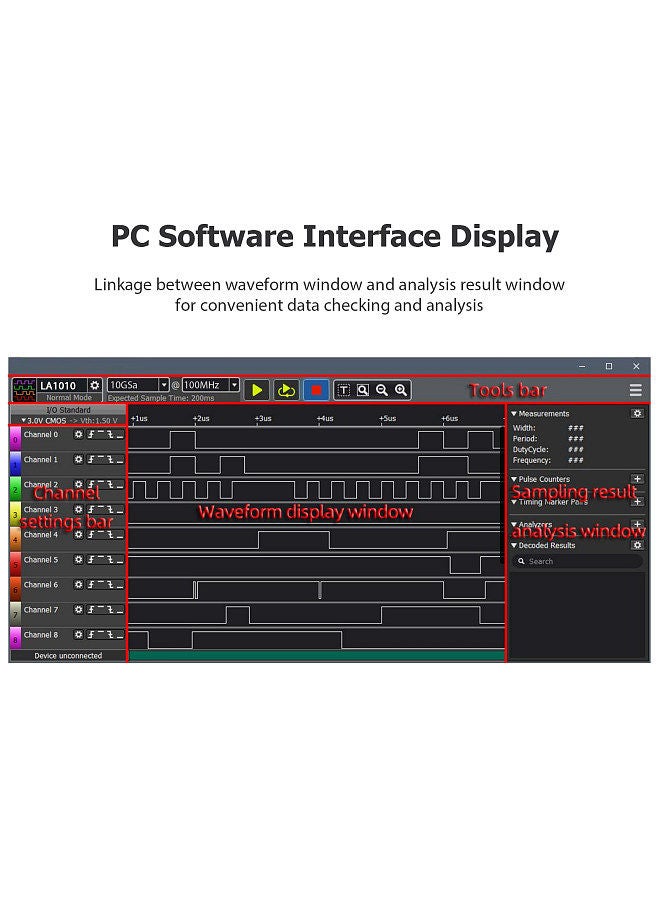

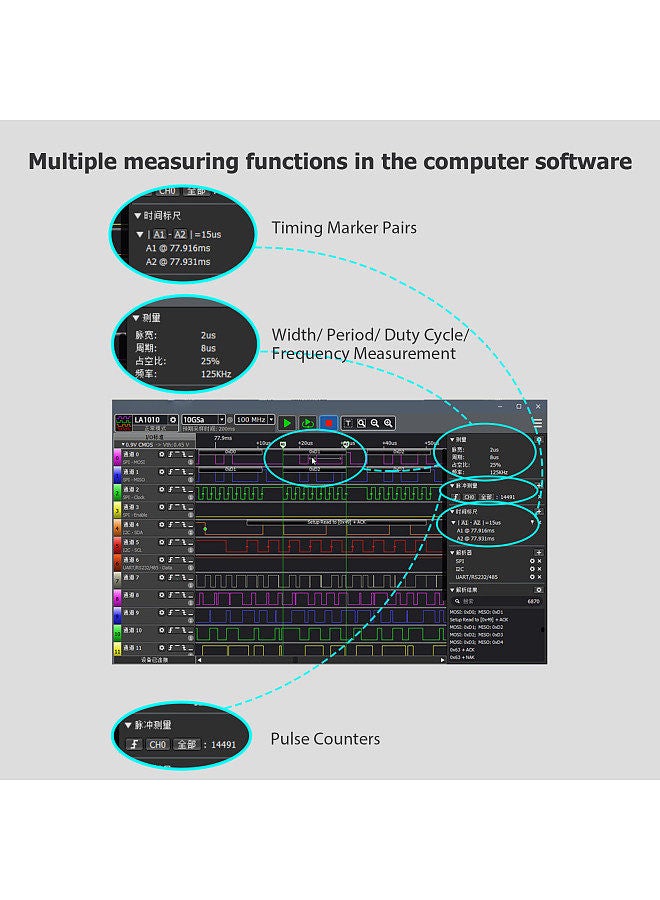

• Multiple measuring functions in the computer software; linkage between waveform window and analysis result window for convenient data checking and analysis.
