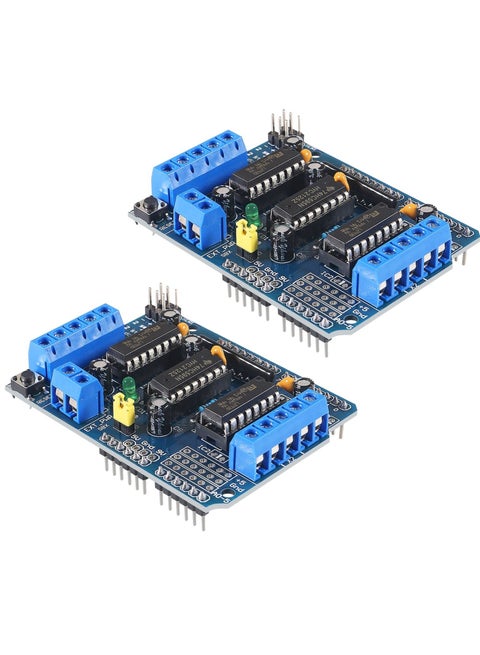

2 Pcs DC Motor Drive Expansion Boards, L293D Motor Drive Shield Stepper for Arduino
placeholder
2 Pcs DC Motor Drive Expansion Boards, L293D Motor Drive Shield Stepper for Arduino
placeholder
2 Pcs DC Motor Drive Expansion Boards, L293D Motor Drive Shield Stepper for Arduino
placeholder
2 Pcs DC Motor Drive Expansion Boards, L293D Motor Drive Shield Stepper for Arduino
placeholder
2 Pcs DC Motor Drive Expansion Boards, L293D Motor Drive Shield Stepper for Arduino
placeholder
2 Pcs DC Motor Drive Expansion Boards, L293D Motor Drive Shield Stepper for Arduino
placeholder
2 Pcs DC Motor Drive Expansion Boards, L293D Motor Drive Shield Stepper for Arduino
magnifyZoom

2 Pcs DC Motor Drive Expansion Boards, L293D Motor Drive Shield Stepper for Arduino

37.20

Coupons

decorative
Up to 250 SAR off
Product Overview

Specification:

To 4 bidirectional DC motors and 4 PWM speed controllers (approximately 0.5% resolution)

Up to 2 stepper motor forward and reverse control, single / double step control, staggered or micro-step and rotation angle control.

4-way H-bridge: The L293D chip provides 0.6A (peak 1.2A) current per bridge with thermal shutdown protection, 4.5Vto36V.

The pull-down resistor ensures that the motor remains stopped at power-up.

Large terminal blocks make wiring easier (10-22AWG) and power.

With reset button

2 large terminal external power terminals, to ensure logic and motor drive power separation.

Download Easy to use software library for rapid project development.

Highlights

  • ★2 interface for 5V Servo connected to the Arduino's high-resolution dedicated timer and no jitter.
  • ★Using a small current 293 chip DC motor driver chip, it is a commonly used DC motor drive module.
  • ★Using this chip, you can use DC motors and power supplies of up to 10 Volts, that some pretty big motors and the chip can supply a maximum current of 600mA per channel.
  • ★Tested to be compatible with Arduino Mega, Diecimila & Duemilanove.
  • ★Multi-function, easy to operate, strong driver library support and feature updates.
