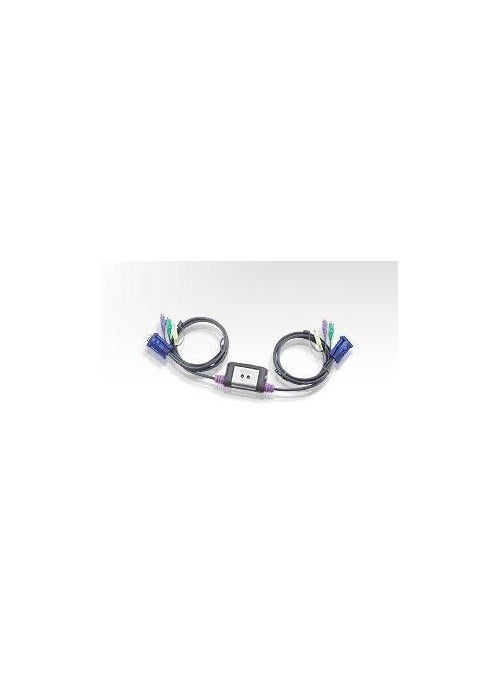

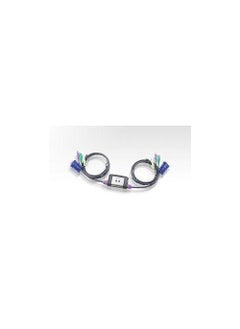

2 Port PS2 Vga Kvm Switch ATEN-CS62AZ

Sorry! This product is not available.

Product Overview

OverviewDigitus 2 Port PS2 Vga Kvm Switch ATEN-CS62AZ

2-port PS/2 VGA KVM (Keyboard/Video Monitor/Mouse) Switch, Speaker connection available

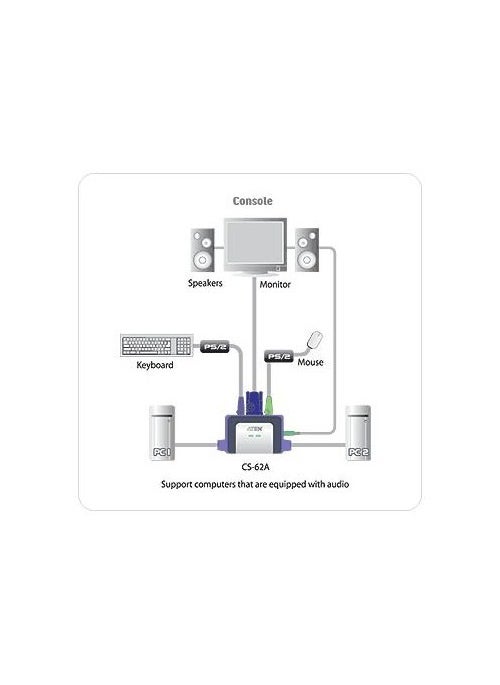

It allows 2 computers to be controlled by 1 keyboard (PS/2), 1 mouse (PS/2) and 1 monitor.

Thanks to the PS/2 keyboard and mouse emulation, the connected PCs work smoothly.

Access to PCs is done by the following method.

PC selection is made via Hot-Key key combinations from the keyboard.

PC selection is made through the Auto Scan feature.

There is no need to turn the Switch on or off for PC connection. Connections made to the Switch can be disassembled and mounted during operation.

It works compatible with PS/2 type mouse products on the console side. IntelliMouse supports scroll wheel mouse types.

Supports SVGA, VGA and Multisync monitors.

Resolution: 2048 x 1536 dpi.

Thanks to the LEDs, it is controlled which PC is active.

No external power adapter required. It gets its electricity from computers.

Speaker connection can be made.

It does not require any additional software for configuration.

Case Type: Plastic

Scan Interval: 3, 5, 10, 20 seconds.

Console Ports (Input): 1 x Monitor DB15HD female, 1 x Keyboard MiniDIN6 female (PS/2), 1 x Mouse MiniDIN6 female (PS/2), 1 x Speaker Mini Stereo Jack female

PC Connectors (Output): 2 x Monitor DB15HD male, 2 x Keyboard MiniDIN6 male (PS/2), 2 x Mouse MiniDIN6 male (PS/2), 2 x Speaker Mini Stereo Jack male (Keyboard, mouse, monitor and speaker connections are made via a built-in 1.20 meter double octopus cable channel embedded in the device case.)

- DOS, Windows 98, Windows ME, Windows 2000, Windows 2003, Windows NT, Windows XP, Linux, MAC OS 8.6/9/10 and * SUN Solaris 8/9 (* Additional converter must be provided for Keyboard / Monitor / Mouse connection .)
