The best value entry-level desktop printer
OS-214EX / OS-200- is the next generation OS series printer. OS series- has been Argox's best selling printers for 22 years. With over two million users worldwide, the OS series- are internationally known for their stability and durability.
Print Method | Direct Thermal and Thermal Transfer |
Print Resolution | 203dpi (8 dots/mm) |
Print Speed | Max. 6 ips |
Print Length | Max. Number of fields 100 ”(2540 mm) |
Print Width | Max. 4-25" (108mm) |
Memory | 32MB SDRAM - 16MB Flash ROM |
CPU Type | 32-bit RISC microprocessor |
sensors | reflective sensor |
Operation Interface | LED indicator x 2- Button (Feed) x 1 |

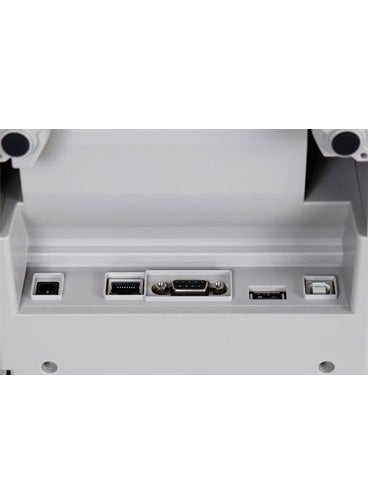

Communication interface | OS-214EX: Ethernet- USB device- RS-232- USB host OS-200: USB device |
Fonts | Internal character sets Between 0.049”H ~ 0.23”H (1.25mm ~ 6.0mm) standard 5 alphanumeric fonts Internal fonts expandable up to 24x24 4-way 0 ~ 270 rotation Soft fonts are available for download Ability to easily print any Windows True Type font. Support scalable font |
1D Barcodes | UPC-A- UPC-E- JAN / EAN- CODE39- CODE93- CODE128- GS1-128 (UCC / EAN128)- CODABAR (NW-7)- ITF- Industrial 2of5- MSI- UPCadd-on code- POSTNET- GS1 DataBar Versatile- GS1 DataBar Truncated- GS1 DataBar Stacked- GS1 DataBar Stacked Versatile- GS1DataBar Limited- GS1 DataBar Expanded- GS1DataBar Extended Stacked |
2D Barcodes | QR Code - PDF417 (including MicroPDF) - DataMatrix (ECC200) - GS1 DataMatrix - MaxiCode |
Graphics | PPLA: PCX- BMP- IMG- HEX- GDI PPLB: PCX- BMP- Binary scan- GDI PPLZ: GRF- Hex- GDI |
emulation | PPLA- PPLB- PPLZ |
Software tag Editing | Seaguall Scientific Supports BarTender® ODBC Database Connection from Argobar Pro: Excel- CSV- MS Access- MS SQL- Oracle MySQL- dBASE (* .dbf) |
software utility | Printer Tool |
driver tools | Argox Seaguall Driver (Windows Vista / Win7 / Win8 / Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver |
Media type | Roll feed- die cut- continuous- fan-fold- black mark- labels- ticket in thermal paper or plain paper |
Media | Max. Number of areas width: 4-3”(110mm). Min. width: 0-8”(20mm). Thickness: 0-0025”~ 0-01” (0-0635mm ~ 0-254mm) Max roll capacity (OD): 5” (127 mm) Core size: 0-5” (12-7 mm) Max roll capacity (OD): 5” (127 mm) Core size: 1” (25-4 mm) Max roll capacity (OD): 5” (127 mm) Core size: 1-5” (38-1 mm) |
Ribbon | Strip Width: 1”~4” (25.4mm ~ 102mm)- Ribbon roll - max OD: 1.45” (37mm)- Strip Length: Max. 92m. Core size - ID: 0-5” (12-7 mm) notched- Wax- Wax / Resin- Resin (Outer and Inner Strip) |
Printer Dimensions | W 182-5mm x H 173-5mm x D 282mm |
Printer Weight | 3-4 lb (1-54 kg) |
Power source | Universal Switching Power supply. AC input voltage: 100 ~ 240V- 50 ~ 60Hz. DC Output: 24V- 2.4A |
Operational Environment | Operating Temperature: 40°F ~ 100°F (4°C ~ 38°C)- 0% ~ 90% non-condensing- Storage Temperature: -4°F ~ 122°F (-20°C ~ 50°C) |
Agency List | CE- FCC- cULus- CCC- BIS- BSMI- RoHS |
optional items | Cutter- External media stand- Label rewinder |
Attention | * Argox- reserves the right to develop and change features without prior notice. For the most up-to-date technical specifications, please check with the Argox sales representative. |
