-2321 Bnc To Vga Video Converter TV To PC

OPAX-2321 BNC to VGA Converter, Video Signal Converter, also used as AV to VGA..

This Product converts AV, BNC or RCC (d) RCA(e) outputs to VGA. For example, you can connect a DVR Recorder without VGA Output to the Monitor, or you have the opportunity to connect a CCD Camera Directly to the Monitor...

OPAX-2321 Composite Video and S-Video VGA Converter supports both normal 4:3 screen and 16:9 & 16:10 widescreen with output VGA resolution 1680x1050! It is suitable for connecting CDD CCTV Camera, DVR, to PC monitor. 3D video processing technology is applied. The converted picture is rich in color and outputs high definition without any distortion.

The rear connection of DVR and CDD camera is OPAX-2321W and BNC Input-BNC is to be connected to BNC female. The output video quality is better than direct VGA output from DVR.

Main Features

Composite Video Input Interface with RCA interface: BNC, model: OPAX2321W

- Inputs: 1 x Composite Video, 1 x S-Video and 1 x VGA;
- Output: 1 x VGA;
- Switch between 3 inputs to any of them VGA output;
- VGA input pass up to VGA output without any operation;
- PAL/NTSC supported;
- Supports widescreen LCD to also meet wider applications.

VGA Resolution:

800x600/60Hz, 800x600/75Hz, 1024x768/60Hz, 1280x720/60Hz, 1440x900/60Hz, 1600x900/60Hz, 1680x1050/60Hz
- Lightness, color, contrast, color saturation, hue, etc. can be adjusted via button and automatic - store time closing.
We are in the situation of composite video and S-Video.

- 1680x1050 and 3D Video scale processing technology is applied to make the output picture more vivid.

- Turns any VGA Monitor into CCTV monitor
- Small and convenient structure, plug and play feature
- Brightness, Contrast adjustment, Color NTSC settings

VGA Resolution:

800x600/60Hz, 800x600/75Hz, 1024x768/60Hz, 1280x720/60Hz, 1440x900/60Hz, 1600x900/60Hz, 1680x1050/60Hz
- 1 BNC video input
- 1 S-video input
- 1 VGA signal input
- 1 VGA signal output
- DC-5V outside power supply included
-Image freeze

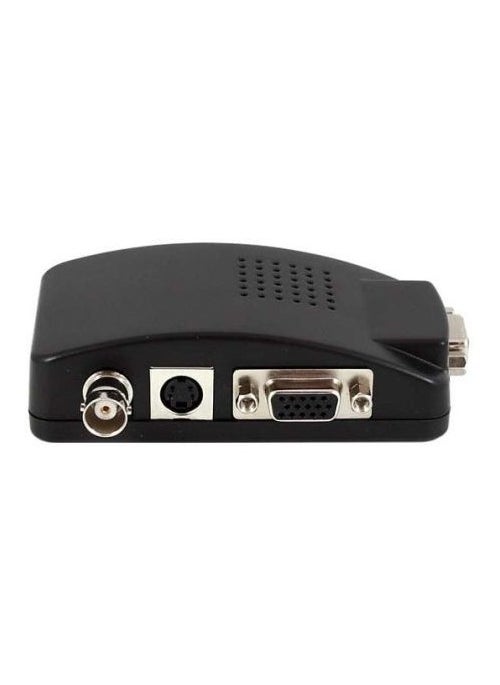

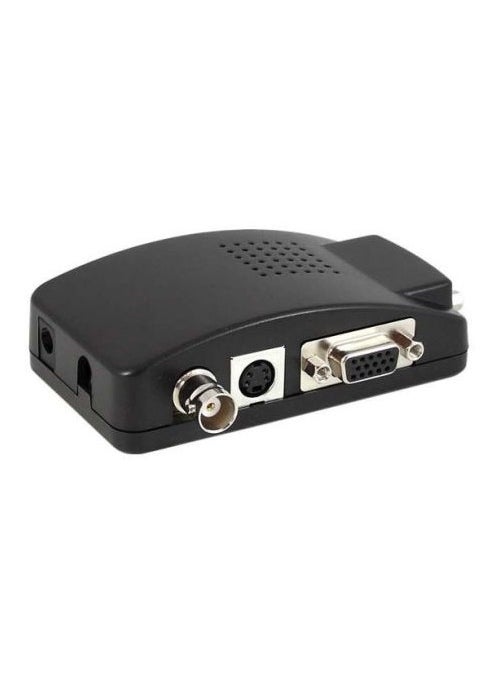

BNC to VGA Converter Connections

(1) VGA Output for connecting VGA display (Computer monitor or LCD)
(2) To connect Video In Composite Video devices (for example: DVR, CDD Camera, etc.)
(3) S-Video In For Connecting S-video devices
(4) VGA PC Input for connecting PC computer
(5) To connect DC 5V Power supply
(6) Indication LED Indicates the operating status.

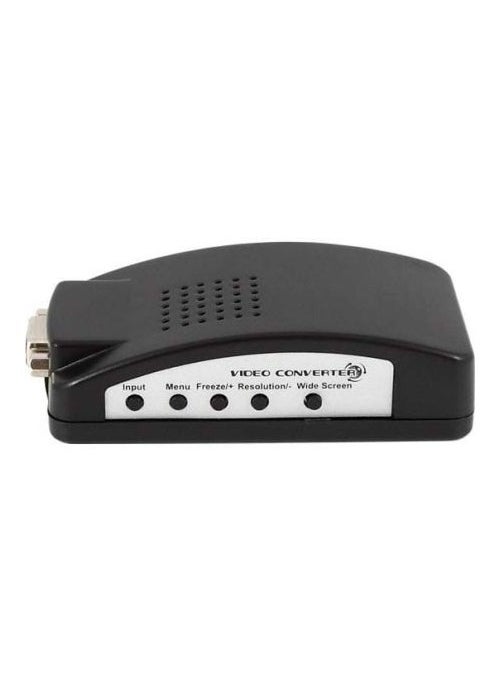

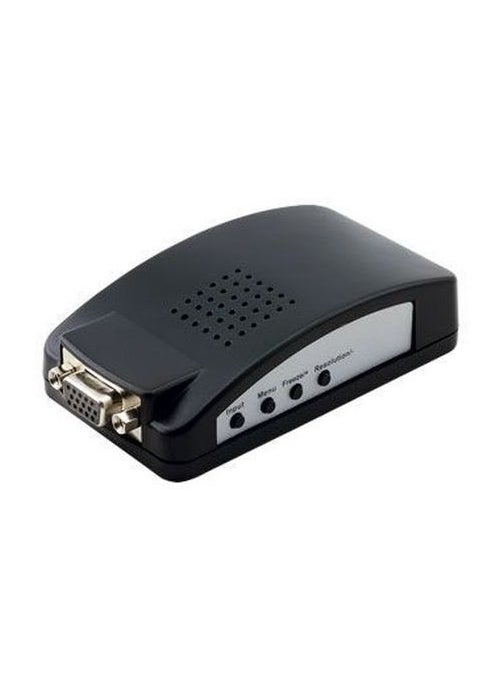

BNC to VGA Converter Video Controls

(1) Input Switch between input sources: Composite Video >> S-VIDEO >> VGA
(2) Menu Click to adjust lightness, contrast, saturation and hue
(3) Freeze / +
(4) Resolution / -- BRI-Menu under the lightness and, "Freeze / +": increase value; "Solution / -": reduce value.

Contrast under "CON" Menu, "Freeze/+": increase value; "Resolution / contrast -": reduce value
"COL" saturation under Menu, "Freeze/+saturation": increase value, "Solution/-": decrease value
-"Hue" with hue under Menu, "Freeze/+": increase value; "Solution / color and -": reduce value
-When off press the Menu key: "Freeze/+" the image output will freeze the video;
-When menu is closed: Press: "Resolution/-" to select output resolution;
Press "Input" and "Solution/-" simultaneously: Default Setting.

(5) Wide Screen Click to switch between normal 4:3 screen and wide screen output.
