OverviewThis telephoto lens launched a new mobile phone photography telephoto lens, a full set of patented design magnification 28 times, full metal body, optical glass coating + BK4 prism combination, high-definition resolution, relative illumination is clear, the large through the prism transmittance effect is good. Universal removable screw-fixed patented clip design, suitable for most smart phones, simple and convenient operation.
Lens parameters:
Brand: apexel
Model: APL-JS28X
Material: glass optics + aluminium alloy metal lens body
Applicable: Compatible with 98% of mobile phones
Number of lenses:6 pieces 4 groups
Prism Type:Schmidt Roof Prisms
Coating:Multi-layer coating
Focusing range:5m~∞
Lens connector:M17*P0.75
Lens Length:160mm
Optical Magnification:28X

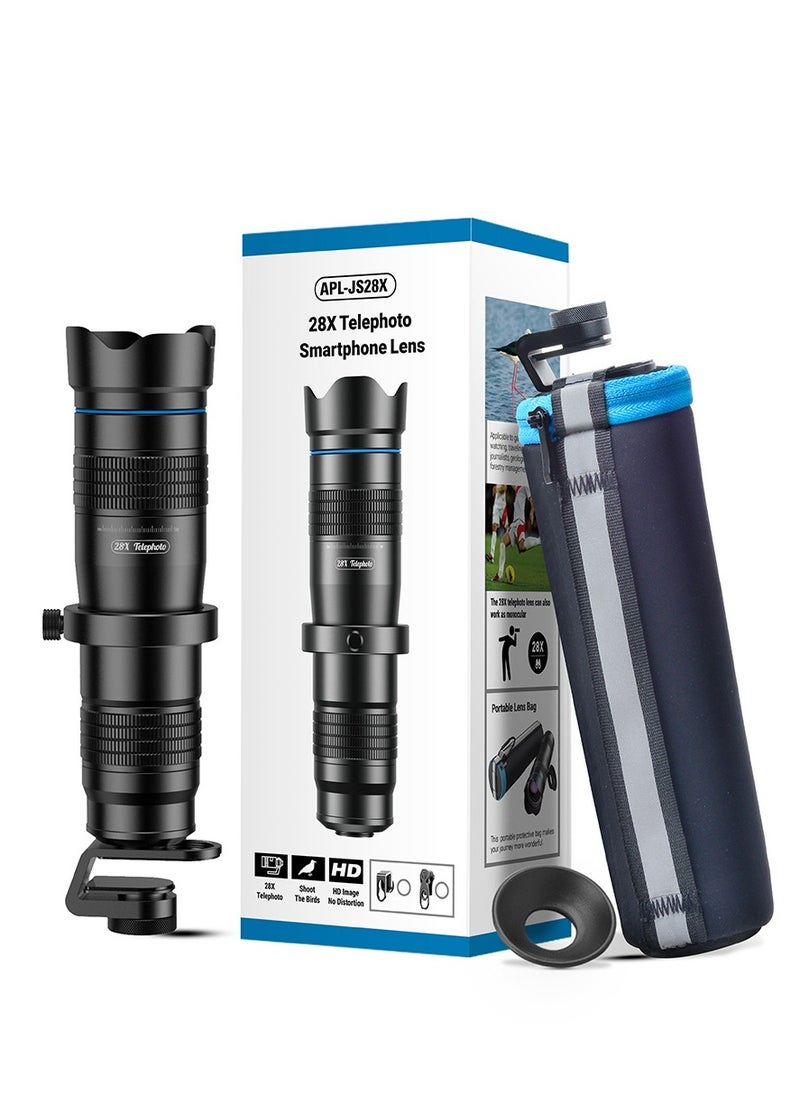

Package content:
1* 28X telephoto lens
1* Fixed ring
2* Lens cap
1* Eyecup
1* Metal Lens Clip
1* Storage Bag
1* Instruction manual
1* Lens Cloth
1* Packed in a sky lid box
Usage:

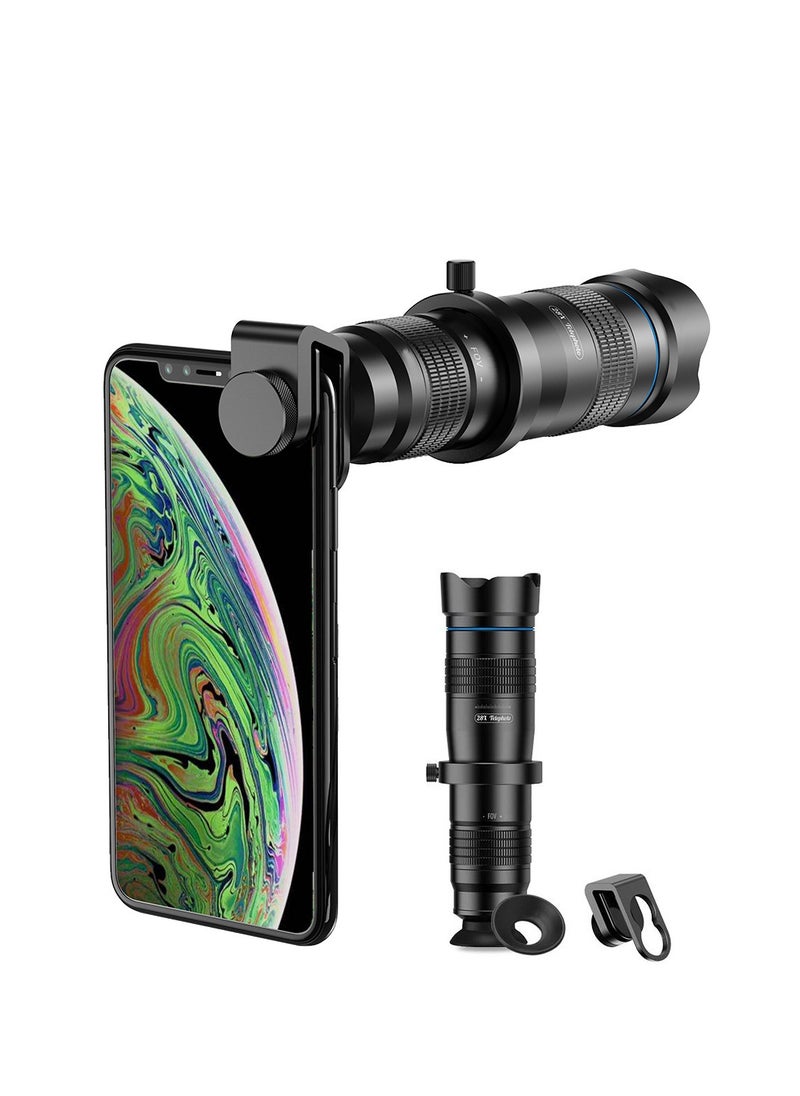

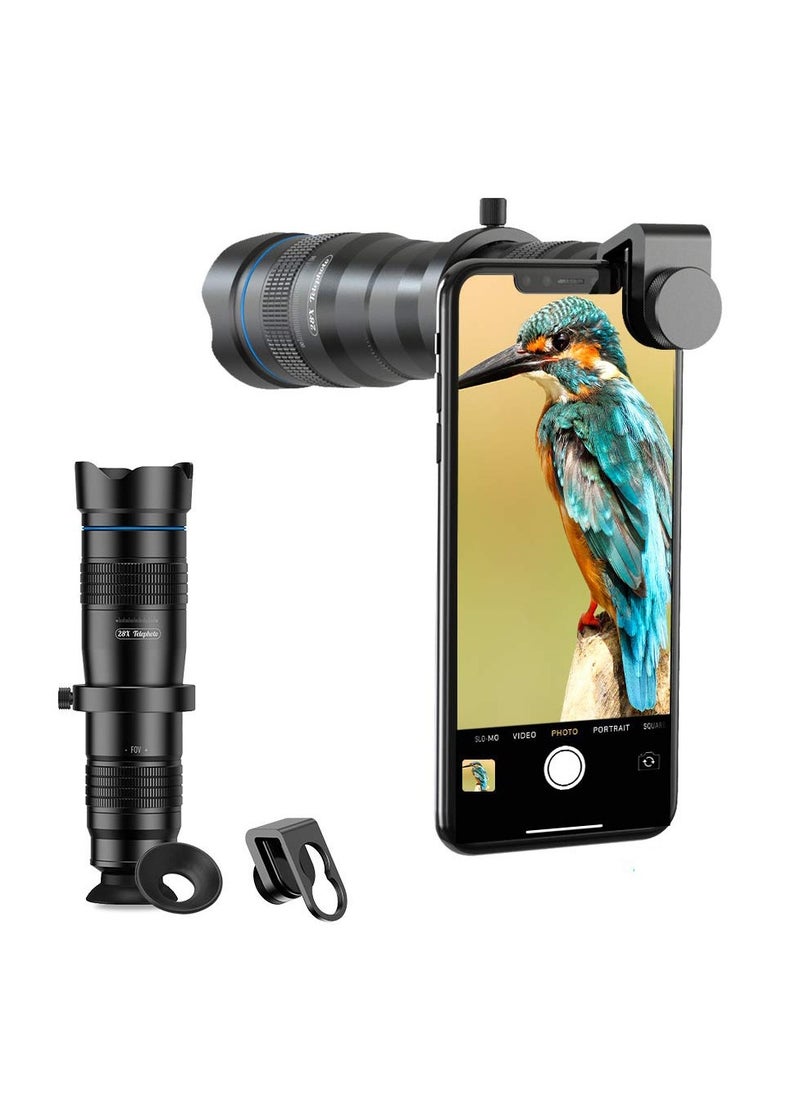

Step 1: Align the threads on the back of the lens with the metal part of the dual-lens patent clip and rotate and twist it to stabilise the lens.
Step two:
Separate the dual-lens patent clip with the lens mounted, and separate the black washer from the back of the lens to the usable width of the mobile phone, so that the clip can be firmly fixed on the mobile phone.
Step Three:
After the lens is fixed on the mobile phone, you need to manually adjust the focus of the lens and the mobile phone, to effectively ensure the quality of the image, in order to take pictures you are satisfied with. (Note: This step requires the patience of the pro oh!)
Notes for use:
Dear customers, thank you for your support of the mobile phone lens! In view of the previous users of this product do not understand the operation of the use of the method, thus shooting the effect is not ideal, to make this product for the answer:
Myth 1: about the telephoto lens, some customers respond that the telephoto lens shaking, shooting is not clear. The reason is still customers are not familiar with the use of the product, telephoto front end between the blue line can be turned to focus, according to the shooting object near and far to adjust the imaging effect until the optimal.
Myth 3: Because the telescope product multiples higher, a slight shaking will also lead to blurring of the shooting effect (careful if you mind). We recommend you to use it with Bluetooth wireless remote shutter. (Support Android, IOS) As we all know, the telescope's flux of light, determined by the calibre of the objective lens, brightness enough is very important, mobile phone photos, if the light is not enough, the camera automatically raises the ISO value, that is, the manic point of the enhancement, the quality of the picture becomes worse, to achieve the shutter speed in 1/60, so that you can avoid the jitter of the hand-held shooting, so it's very important to take photos with good picture quality, flux of light.
