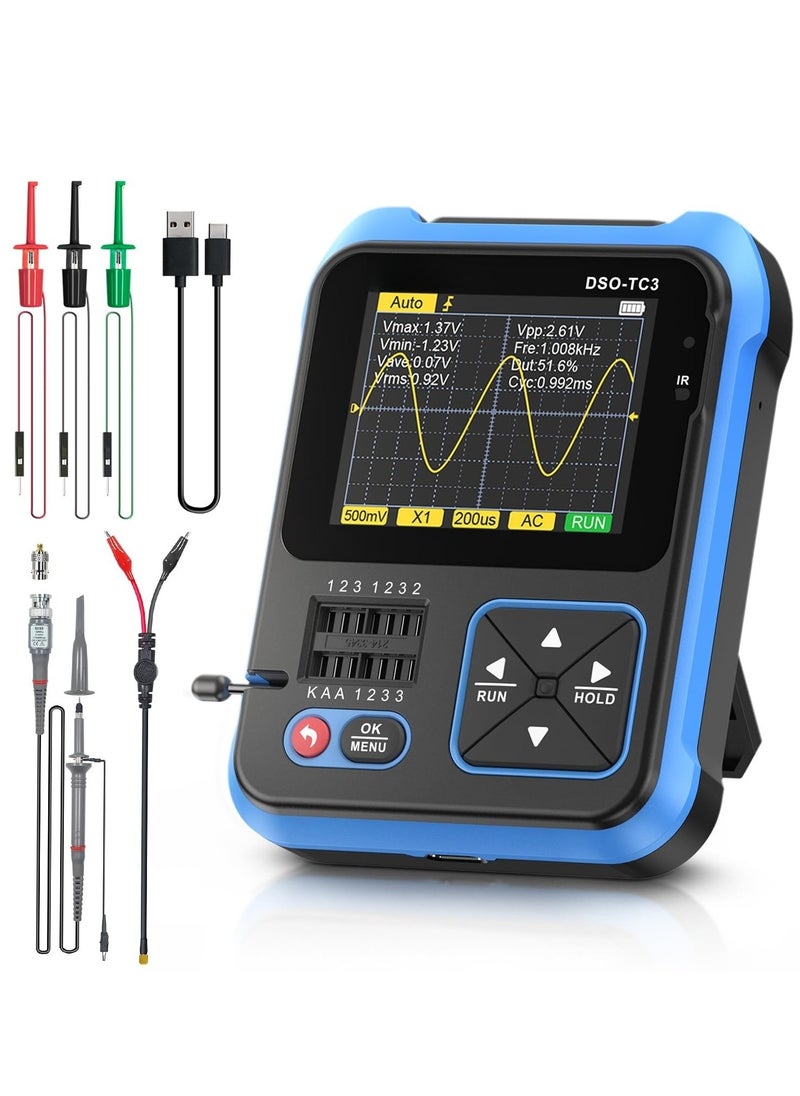

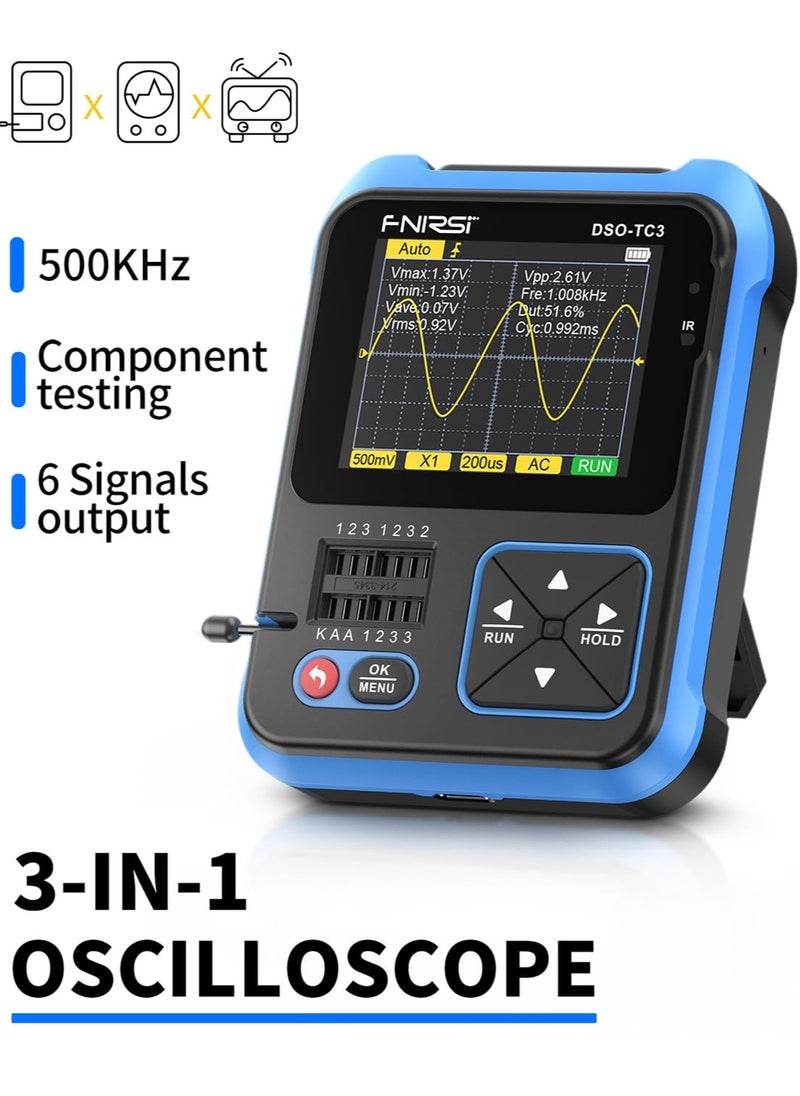

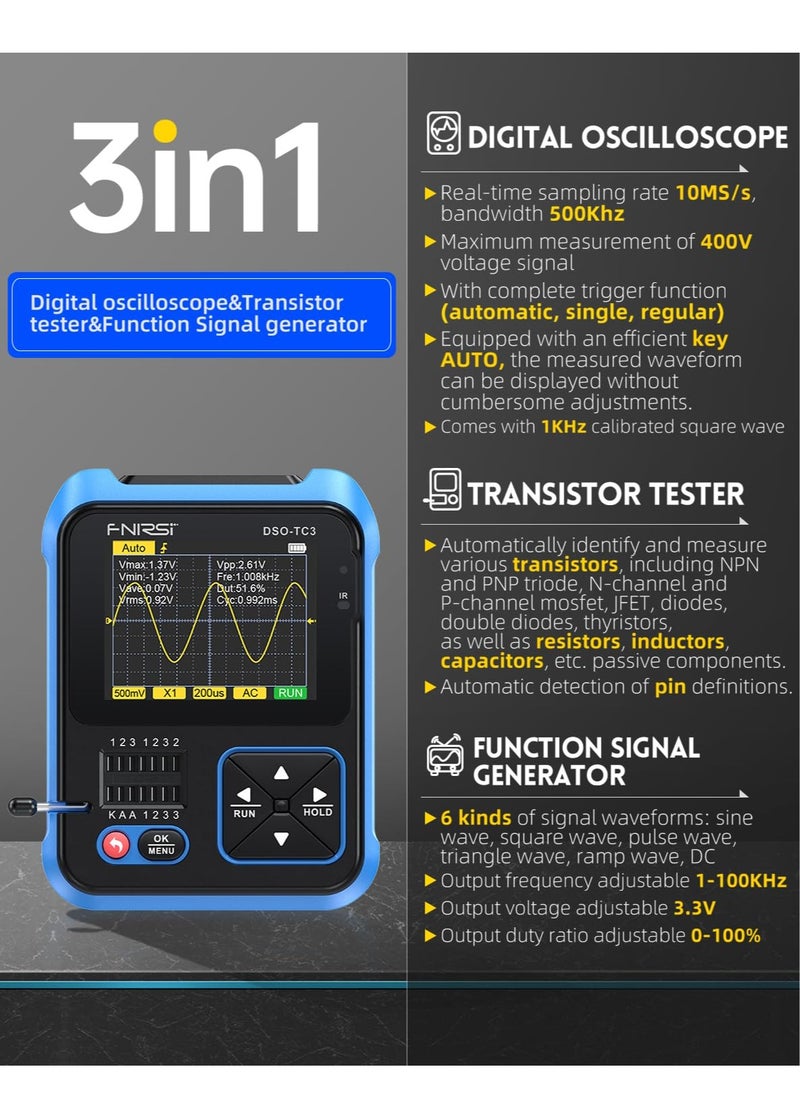

Highlights- 【3 in 1 Multifunctional Oscilloscope】This oscilloscope integrates functions such as digital oscilloscope, transistor tester, electronic component tester, signal generator, continuity test, voltage measurement, temperature and humidity measurement, infrared decoding, etc.

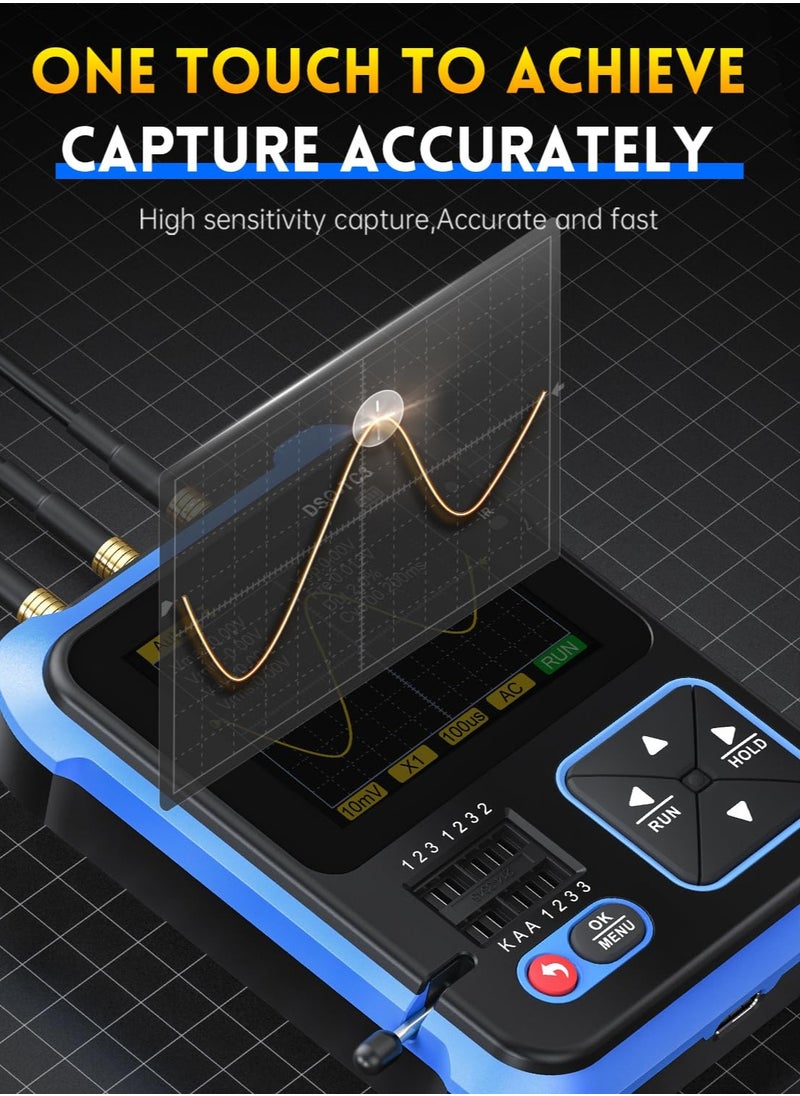

- 【Powerful Functions】The DSO-TC3 handheld oscilloscope has a real-time sampling rate of 10MS/s and a bandwidth of 500kHz. It has complete triggering function (single, normal, automatic) and can be freely used for periodic analog signals and non periodic digital signals. Can measure voltage signals up to 400V. Equipped with efficient AUTO key, the measured waveform can be displayed without cumbersome adjustments.

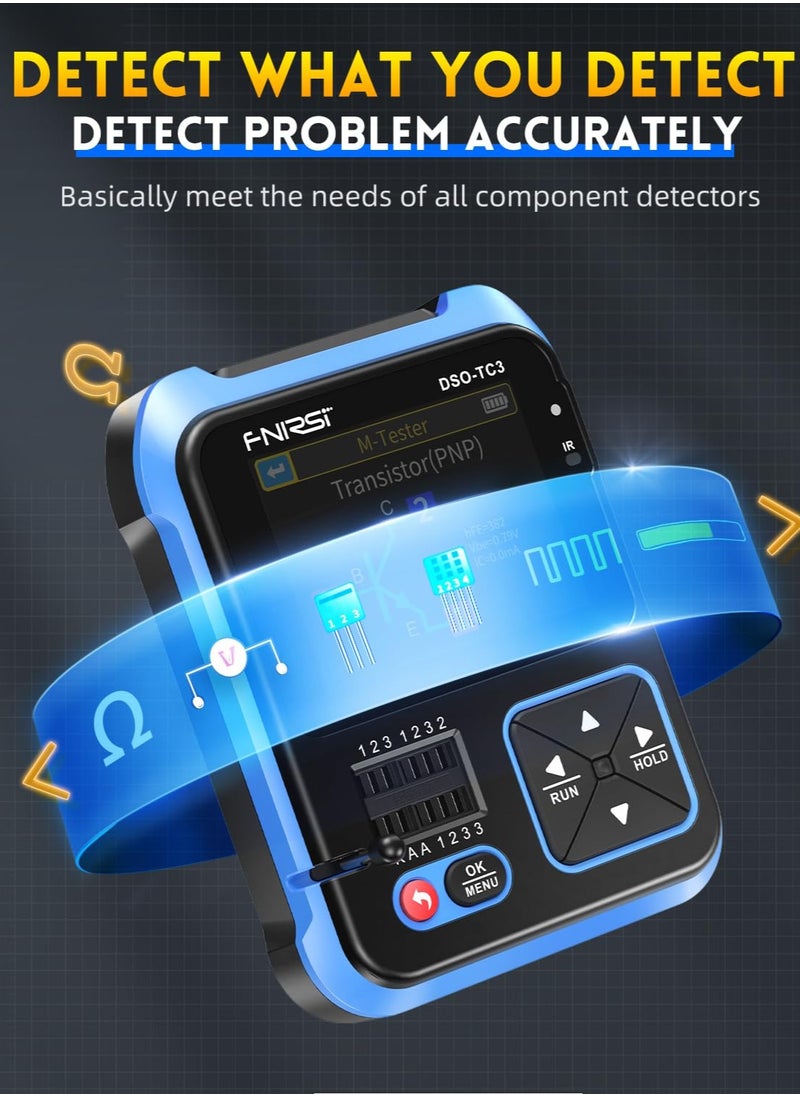

- 【Comprehensive Functionality】Transistor tester can automatically identify and measure various transistors, including NPN PNP triode, N-channel and P-channel mosfet, junction mosfet, diodes, double diodes, thyristors, and resistors, inductors, capacitors and other passive components. The output frequency of the signal generator can be adjusted from 1-100KHz, the output voltage can be adjusted to 3.3V, and the output duty cycle can be adjusted to 0-100%. 6 signal waveforms: sine wave, square wave, pulse wave, triangle wave, pamp, and DC.

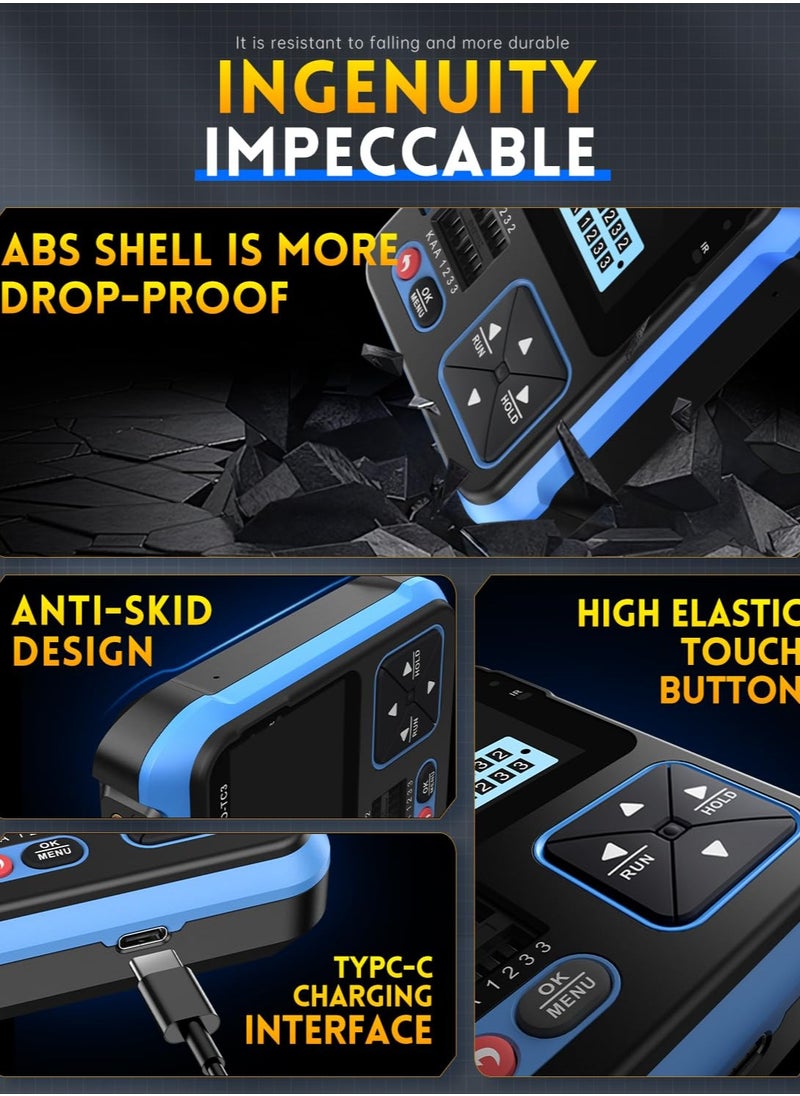

- 【High End Practical Design】The DSO-TC3 transistor tester has a 1500mah lithium battery, which can provide a long endurance of 240 minutes. During continuous operation, there is no need to isolate a transformer, making it safer to use. 2.4-inch high-resolution display screen that can read clearly even under strong light. ABS anti drop shell for safer use. The concave anti slip design on the side makes it easier to use. High elasticity touch buttons provide a good press experience. 90 ° hidden bracket, which can free hands and has good portability.
OverviewTransistor tester
Triodes：β is greater than 10 and less than 600
Diodes：Forward voltage drop <4.5V
Reglulated diode：0.01~32V
MOSFET：JFET，IGBT，MOSFET
SCRs：Turn-on voltage <5V, gate Pole trigger current <6mA
TRIAC：Turn-on voltage <5V, gate Pole trigger current <6mA
Capacitor：25pF~100mF
Resistor：0.01Ω~50MΩ
Inductor：10uH~1000mH
Battery：0.1~4.5V
Input voltage：0~40V
DS18B20：0-85℃
DHT11：0-60℃/5-95%
Infrared remote decoding：NEC protocol infrared cod
Oscilloscope
Real-time sample rate：10MSa/s
Analog Bandwidth：500Khz
Input resistance：1MΩ
Coupling method：AC/DC
Test voltage range：400V
Vertical Sensitivity (x1)：10mV-10V
Horizontal time base range：1us-10s
Trigger mode：Auto / Normal / Single
Trigger type：Rising edge / Falling edge
Waveform Freeze：Yes
Automatic measurement：Yes
Tool box:
Automatic detection of pin definition.
Automatically analyze NEC protocol infrared code.
Other functional modes: Including circuit continuity test, 0~40V input voltage measurement, PWM output,0~32V regulated diode measurement, DS18B20 temperature sensor measurement, DHT11 temperature and humidity sensor measurement, etc.
Function Signal Generator
sine wavel：1-100KHz/0-3.3V/50%
Square wave：1-100KHz/3.3V/50%
Pulse wave：1-100KHz/3.3V/0-100%
Triangle wave：1-100KHz/0-3.3V/50%
Ramp：1-100KHz/0-3.3V/0-100%
DC：0-3.3V

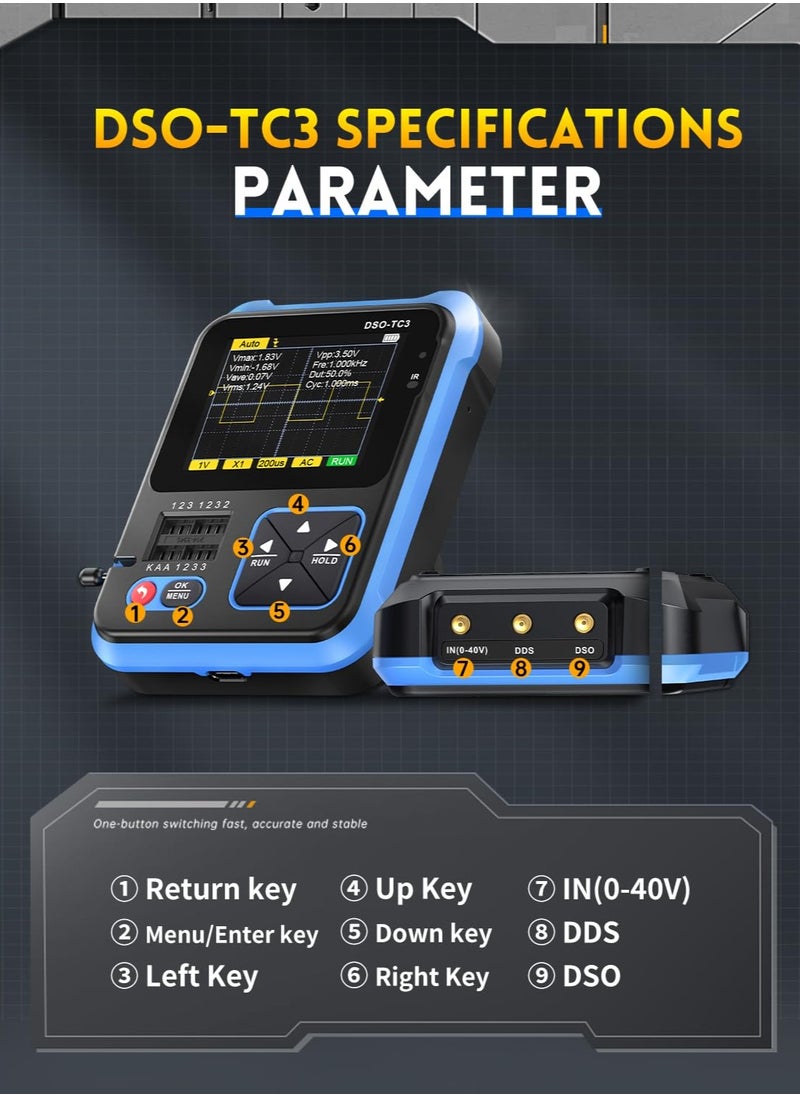

Basic Parameters:
Display screen：2.4 inch TFT color screen, LED backlight
Supply voltage：Rechargeable lithium battery
Charging specififications：USB Type-C，+5V
Product volume：79*103*31mm
Bracket specififications：All-in-one foldable stand
【PS】:
Chromatic Aberration Controversy:
1.Because of different camera lens and light environments, the real item color which you receive maybe little vary from the listing picture. I sincerely hope that you can understand! Thank you!
【Size】:
1.The product size is measured manually, there will be a little error, but it is within the normal range.
2.The size of the product is manually measured. Due to different measuring methods, there will be an error of 1-3cm. If you cannot confirm it, please check the listing again.
