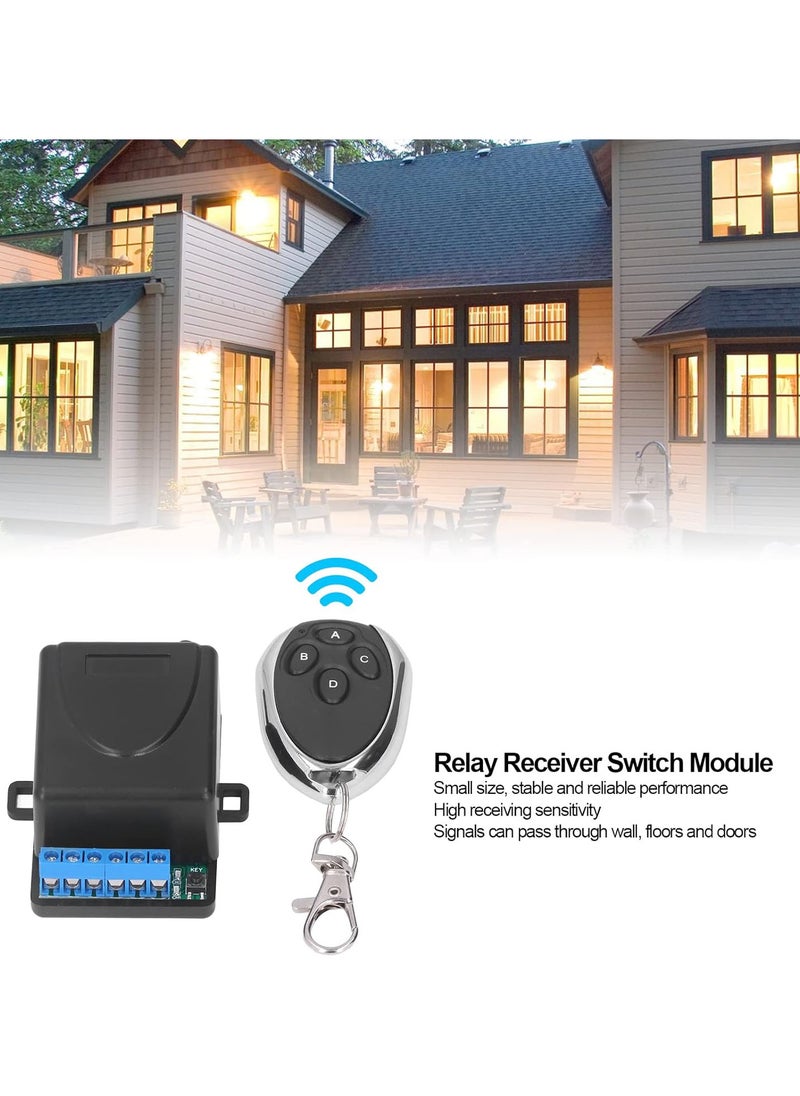

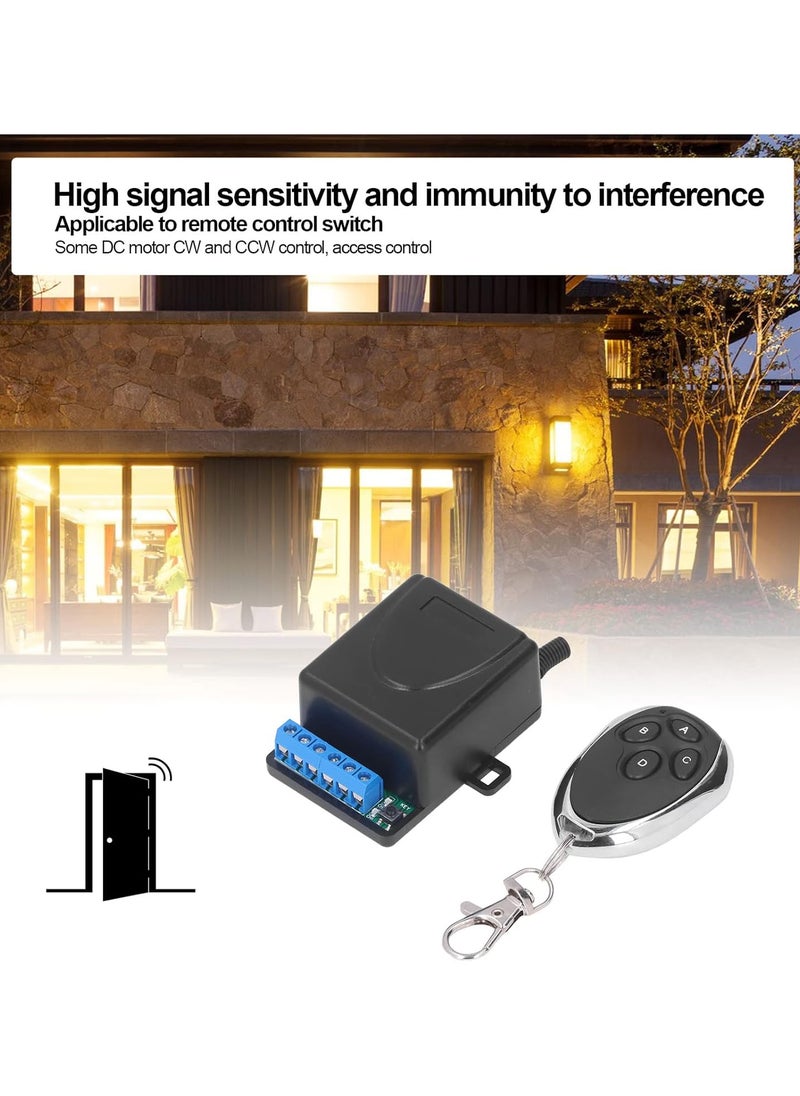

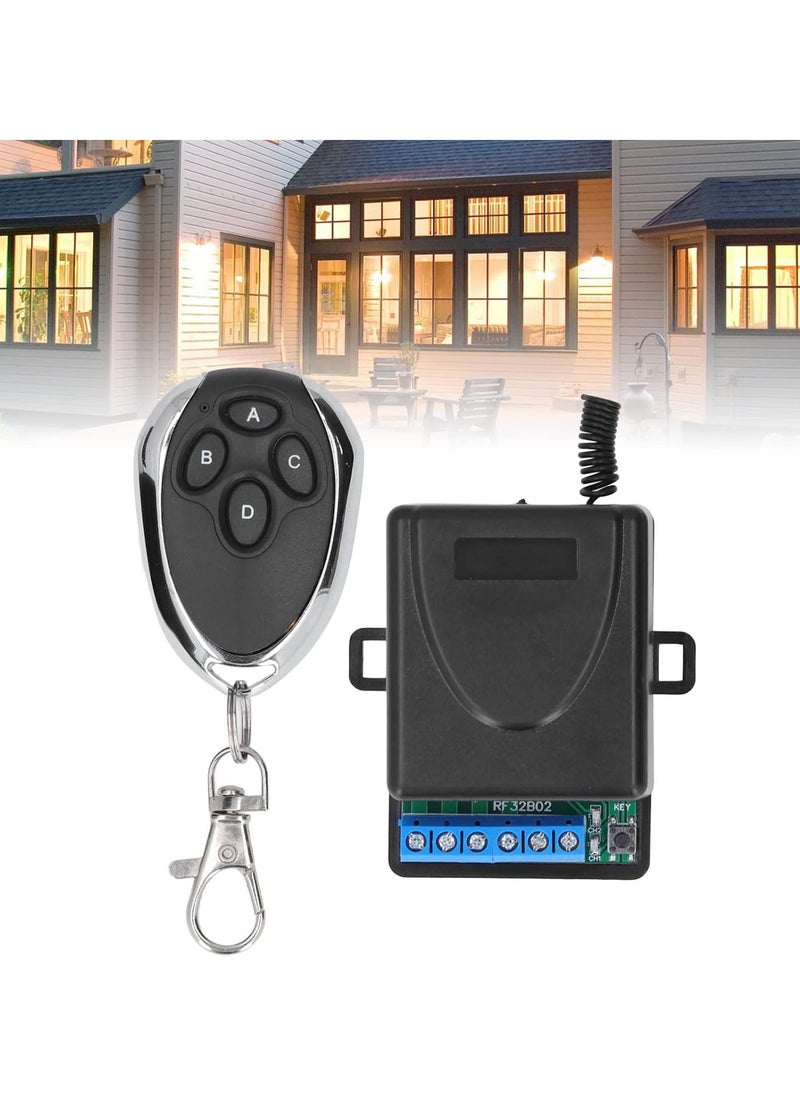

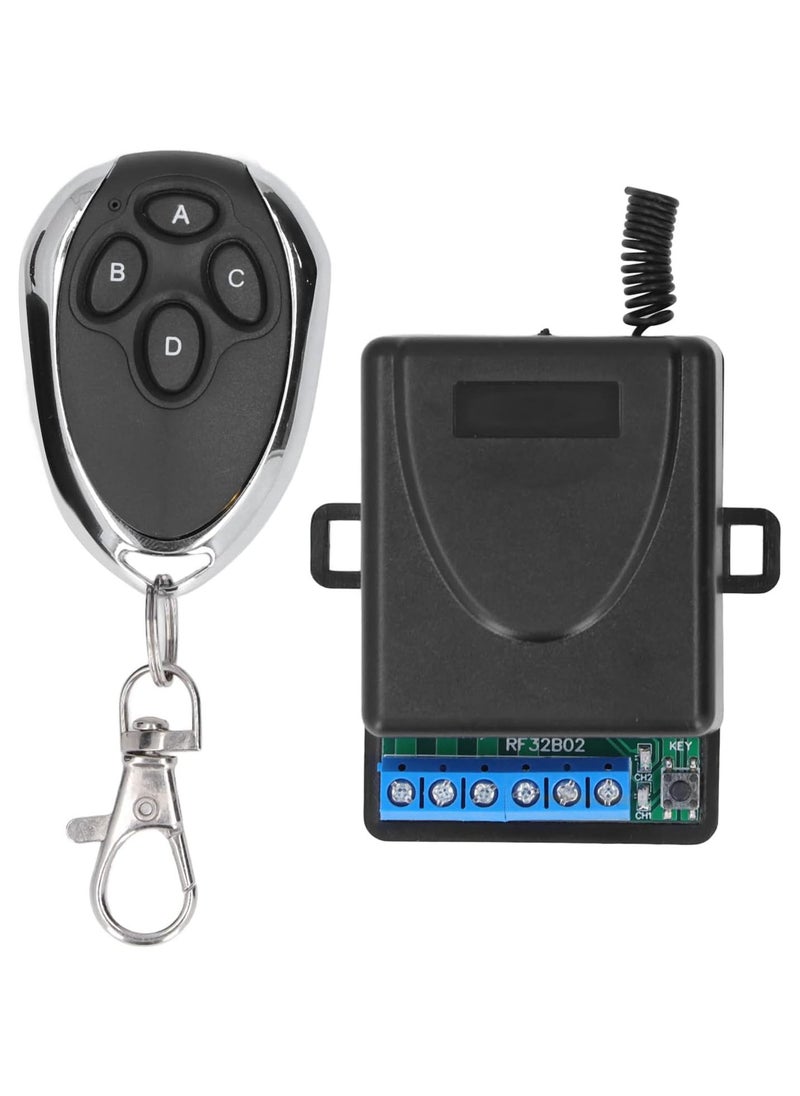

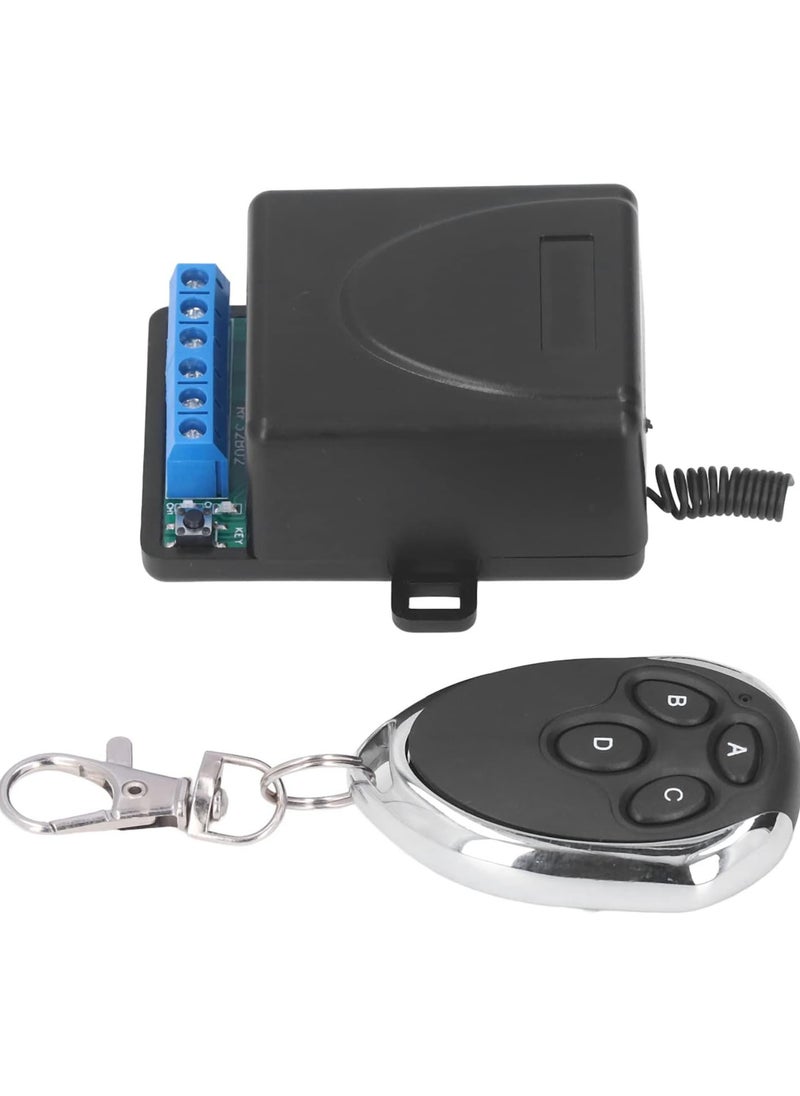

433M 2 Channel Relay Module Switch Remote Control Transmitter Kit for Garage Door Opener Gate

Specification:
Item Type: Relay Receiver Switch Module
Model: RF32B02+RC43A04
Material: ABS, PCB
Relay Board Module Parameters:
Working Voltage: DC 12V;
Working Current: Standby current (all relays closed) 13MA, 1 relay open 41MA, 2 relays open 68MA;
Wireless Receiving Frequency: 433.92M;
Wireless Receiving Sensitivity: -108dBm;
Decoding Method: Rolling code, only suitable for RC43A04 (HCS301 remote control) remote control, can store up to 32 RC43A04 remote control;
Working Mode: Non locking (Momentary is defult), self locking (Toggle), interlocking (Latch), delay; delay time can be 5 seconds, 10 seconds, 120 seconds;
Relay Maximum Load (recommended <5A): 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDC.
Remote Control Transmitter Parameters:
Power Supply: 12V 27A alkaline battery (not include)
Working Current: ≤9mA;
Oscillation Mode: SAW resonator;
Modulation Method: ASK;
Working Frequency: 433.92MHz;
Frequency Deviation: ±150Hz (maximum);
Coding Format: Rolling code (HCS301).

How to Use:

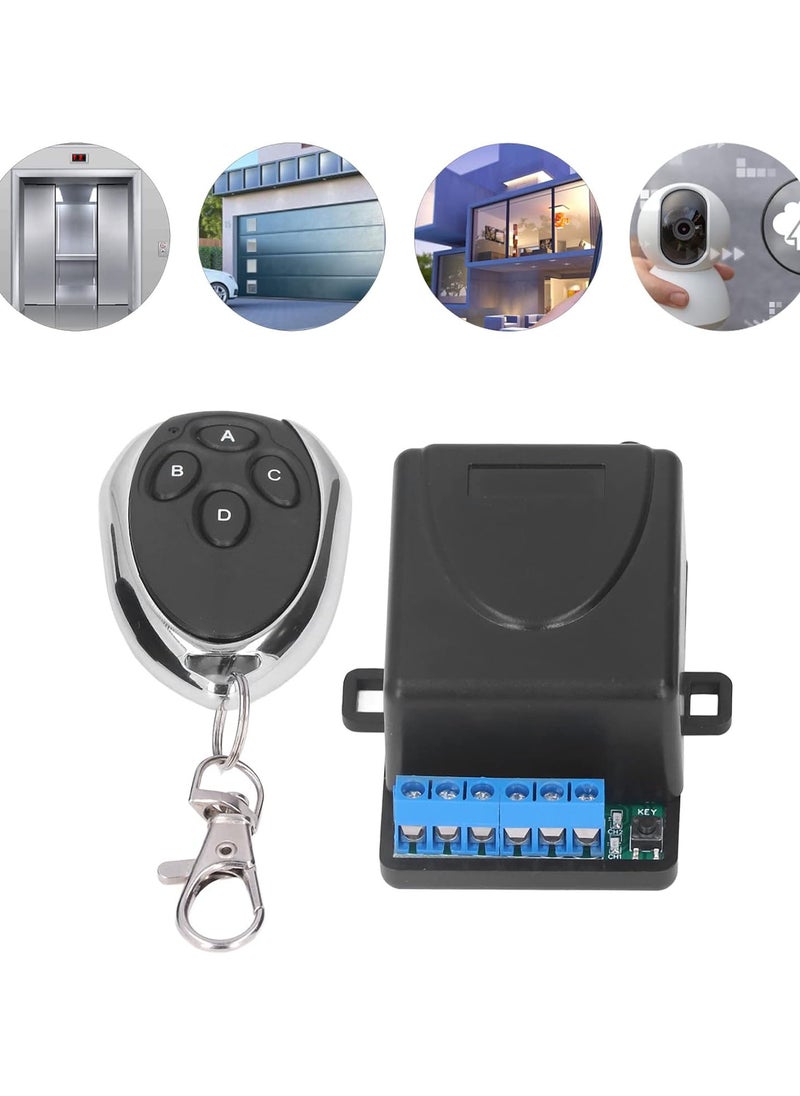

Typical Application:
Remote control, telemetry system;
DC 12V home lighting system;
Garage door;
Elevator;
Motor CCW control;
Remote control;
Smart home or home automation;
LED light;
Fluorescent lamp;
DC12 DC motor;
For RS360 PTZ Camera

Package List:
1 x Relay Board Module
1 x Remote Control Transmitter
