433Mhz DC 12V 6CH Channel Universal 10A Relay Wireless RF Remote Control Switch Receiver Module and 1PCS 6 Key RF 433 Mhz Transmitter Fixed Code (2262 Chip) Remote Controls Smart Home Automation

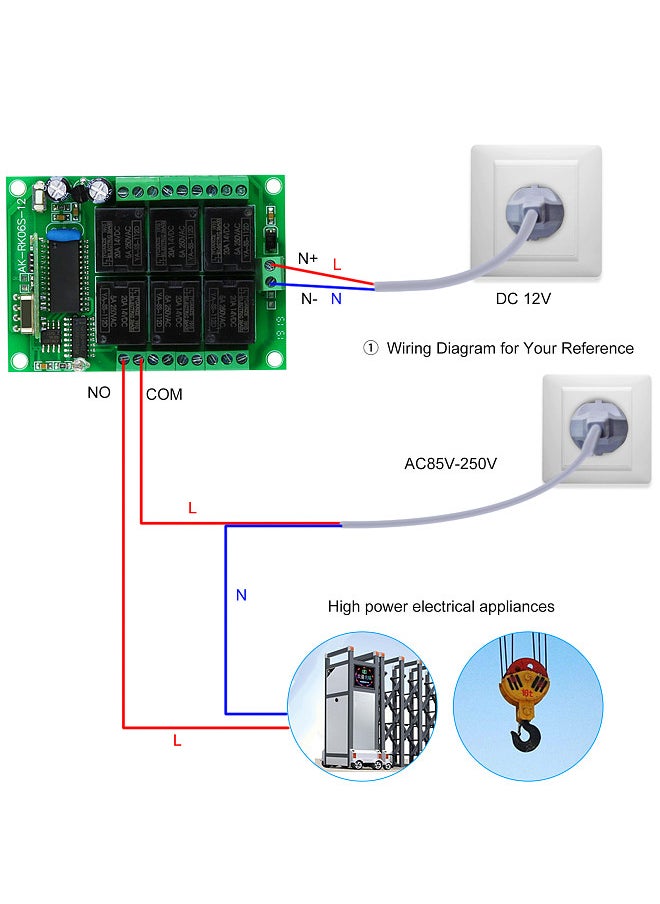

OverviewFeatures: *Very convenient to use, simple wiring diagram connection way. RF Remote Control Switch, can through walls. *Support remote control up to 16 pieces. It can connect to the electronic control lock, intercom doorbell, garage door, light, electric curtain, household appliances, motor control, lifting equipment, security system, etc. So that it can remote unlock the door, close the light, open or close the curtain,etc.  *Low power consumption, stable performance. Super small body, occupying less space.  *The working mode can be changed by yourself: you can switch to Momentary, Latched dual modes as you need. *Pair with Fixed Code: it can work with any remote control with the same frequency (433MHz 2262 Chip), so you needn't worry about losing remote control any more. (If the remote control is lost, buy one and pair with the PCB board is OK.) Receiver Specifications: Channels: 6 Input Power: DC12V Standby Current: ≤10mA  Output Current: ≤10A  RF Frequency: 433MHz Output Power: DC/AC Optional RF working mode: superheterodyne reception Coded System: Fixed Code (2262 Chip)  Decoding mode: 2272 Chip decoding  Receive sensitivity: -105dbm Remote control storage: up to 16 PCS Working mode: Momentary, Latched Wiring type: fixed terminal Output Terminal: NO , NC , COM Receiver Board Size: Approx. 7 x 5 x 1.8cm / (2.7 x 2 x 0.7”) Fuse Box Size: Approx. 7.5x 5.5 x 2.8cm / (2.9 x 2.2 x 1.1”)   Remote Control Specifications: Frequency: 433MHz  2262 Chip Range: >1000m (open area) Battery: 1*12V 23A (included) Working Current: ≤15mA  Shock Resistance: 4.7 Quantity: 1PCS Remote Control Size/Per: 10.1 x 3.8 x 1.7cm / (4 x 1.5 x 0.7”) Package Information:  Package Size: Approx. 17 * 11 * 3.5cm / 6.7 * 4.3 * 1.4in  Package Weight: Approx. 124g / 4.4oz           Package List: 1* Receiver Board 1* Fuse Box  1* Remote Control
