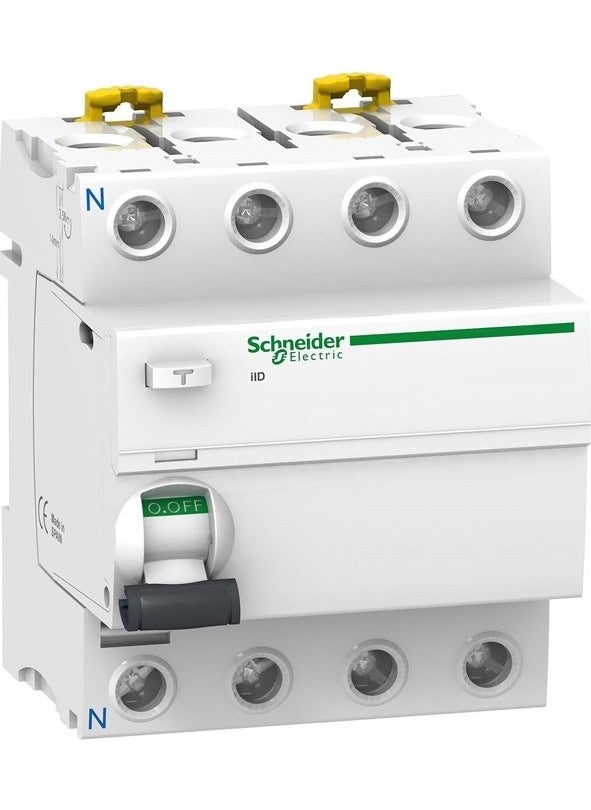

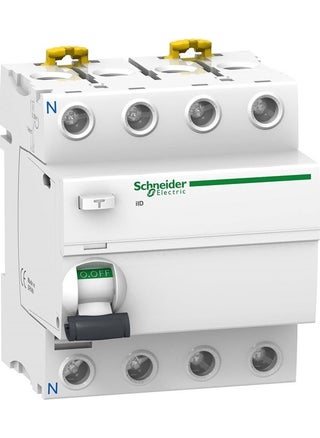

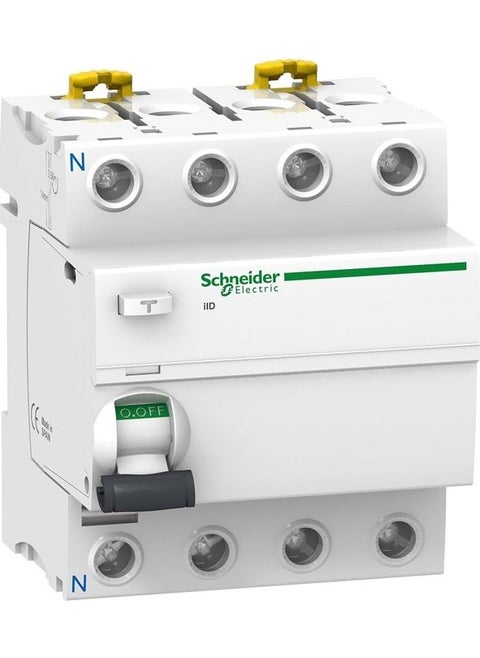

4P 80A 30Ma A9R11480 Residual Current Relay

Schneider Electric 4P 80A 30Ma A9R11480 Residual Current Relay

Main seriesActi 9product nameActi 9 iIDproduct or component typeResidual current circuit breaker (RCCB)device short nameIIDpole description4Neutral positionLeft[In] nominal current80 Anetwork typeACearth leakage sensitivity30 mAearth leakage protection time delayInstantaneous earth leakage protection classType ACComplementarylocation of the device in the systemOutput network frequency50/60 Hz[Ue] nominal operating voltage380 ...415 V AC 50/60 Hz residual current switching technology Voltage independent hominal breaking and closing capacity Im 1500 A
Idm 1500 Nominal conditional short circuit current10 kA[Ui] nominal insulation voltage500 V AC 50/60 Hz[Uimp] nominal impulse withstand voltage6 kVcontact position indicatorYescontrol typeTransitional local signalingTrip indicatormounting modeAttachablemounting supportDIN rail9 mm screw pitch8height91 mmwidth72 mmdepth73.5 mmproduct weight0.37 kgcolorBe writemechanical durability20000 cycleselectrical durability10000 cycles AC-1locking options descriptionlocking deviceconnections - terminalsSingle terminal, top or bottom flexible with ferrule wire(s) 1...25 mm² max
Single terminal, upper or lower rigid cable(s) 1...35 mm² max
Single terminal, top or bottom flexible cable(s) 1...25 mm² max. stripping length14 mm (top or bottom)tightening torque3.5 N.m (top or bottom)EnvironmentstandardsEN/IEC 61008-1product certificationsSNIIP degree of protectionIP40 for modular enclosure conforming to IEC 60529
IP20 conforming to IEC 60529pollution degree3electromagnetic compatibility8/20 µs impulse withstand, 250 A conforming to EN/IEC 61008-1ambient air temperature for operation-5...60 °Cambient air temperature for storage-40...85 °CSustainability OfferSustainable offer statusGreen Premium product RoHSU compliant sincenbsp; 0627 nbsp;-nbsp; Schneider Electric declaration of conformitybsp;Schneider Electric declaration of conformityREAChReference does not contain SVHC above thresholdProduct environmental profileAvailableProduct end-of-life instructionsNo special recycling procedures required
