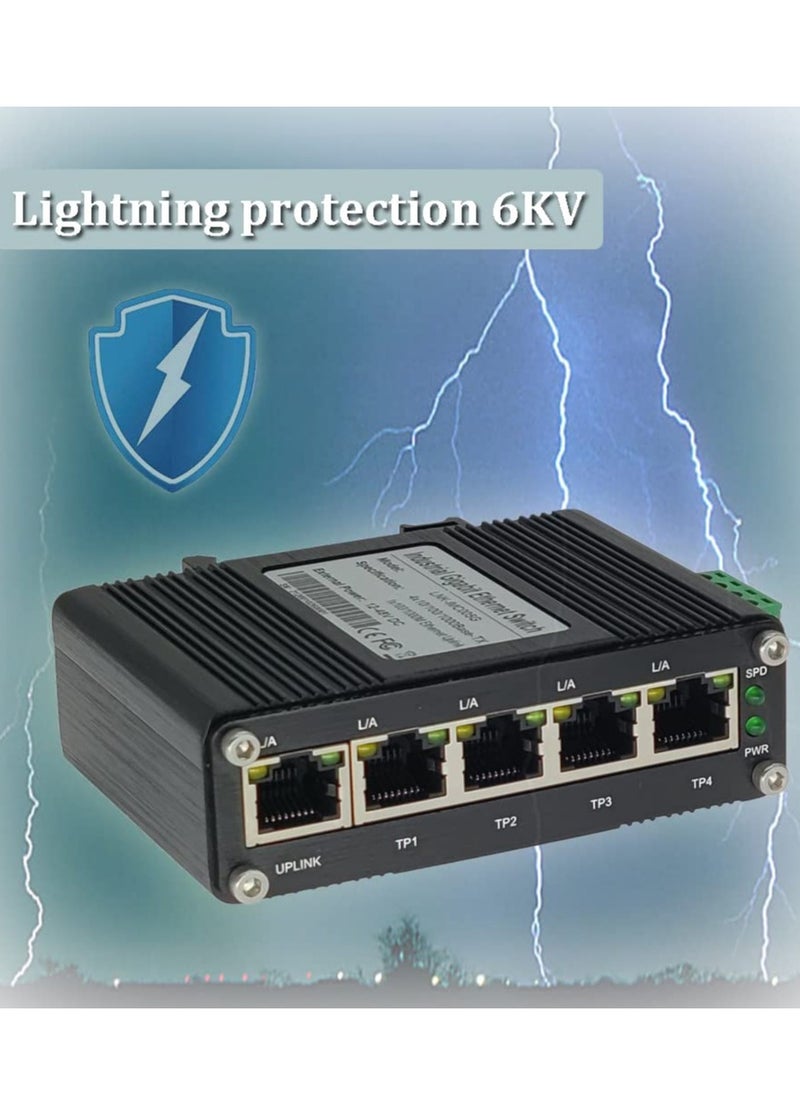

5 Port Gigabit Ethernet Switch Din Rail Mount Ethernet Switch with Wall Mounts High Speed Ethernet Switch with Mounting Options Hardened 5 Port RJ45 10 100 1000Mbps Surge Protection

Features:

5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function

Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

Supports 802.3x Flow control

Industry standard design, dustproof and close design IP40, rugged high-strength metal case

Standard: IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE 802.3x flow control

Regarding the choice of power supply:

The wattage of the 5 ports switch during operation is relatively small, the power supply of 12V/0.5A and above can be selected within the input voltage range of 12~48V. However, for the stability of the work, 12V/1A power supply and above are recommended.

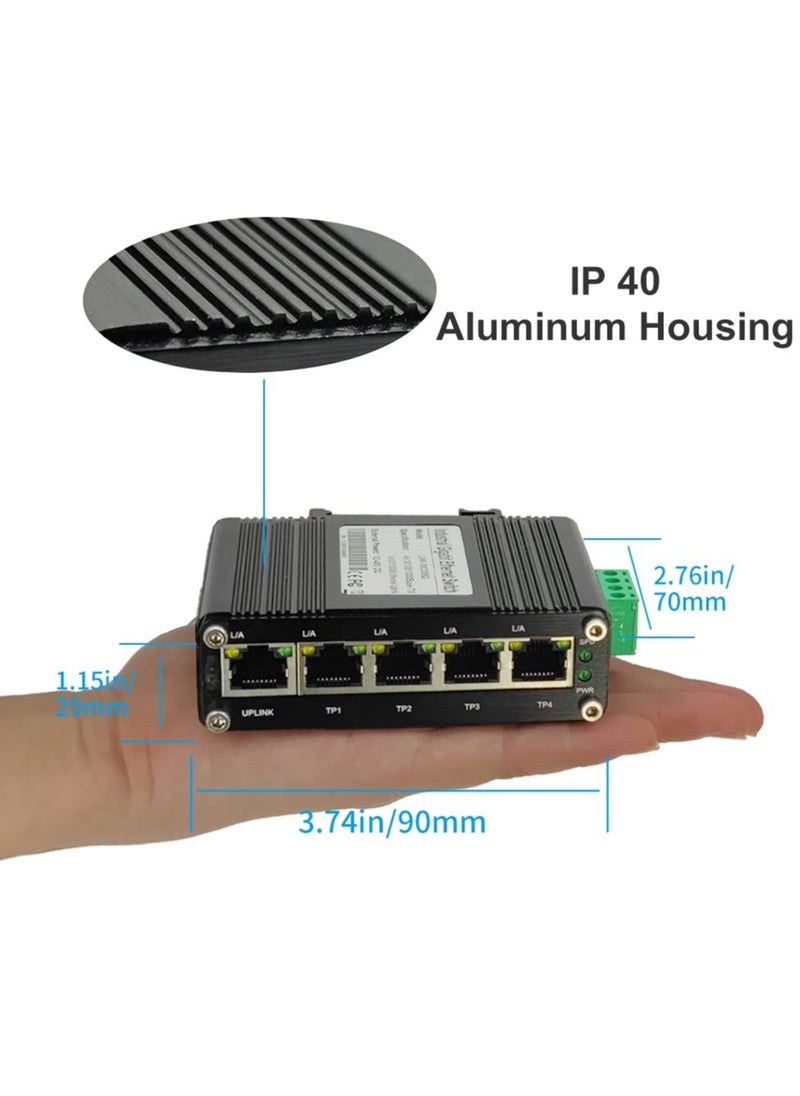

Compact Size:

Mini switch is 20% smaller than other switches

Only need small space to install

Casing Material:

Industrial grade components and aluminum housing

(Waterproof grade: IP40)

Voltage Range:

12~48V DC power input

It's better to adapt unstable working voltage

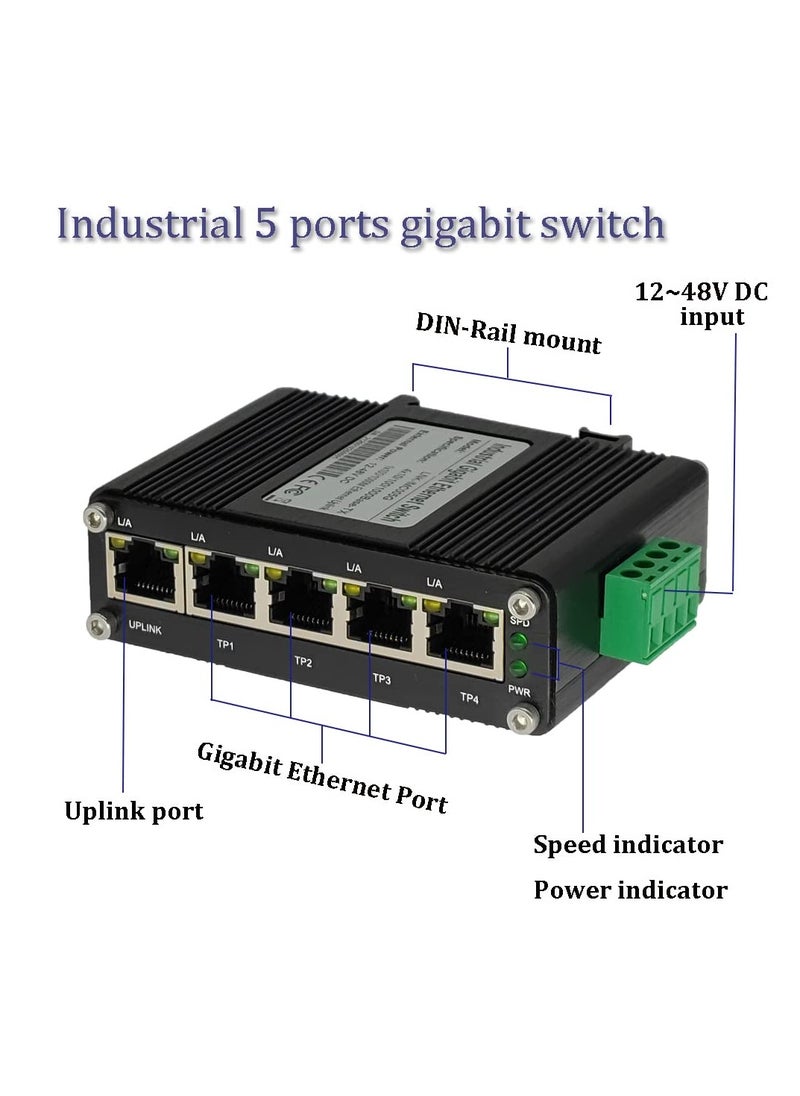

Installation Method:

Din-Rail & Wall Mount

Easy to install switch on the din-rail rack mount and wall

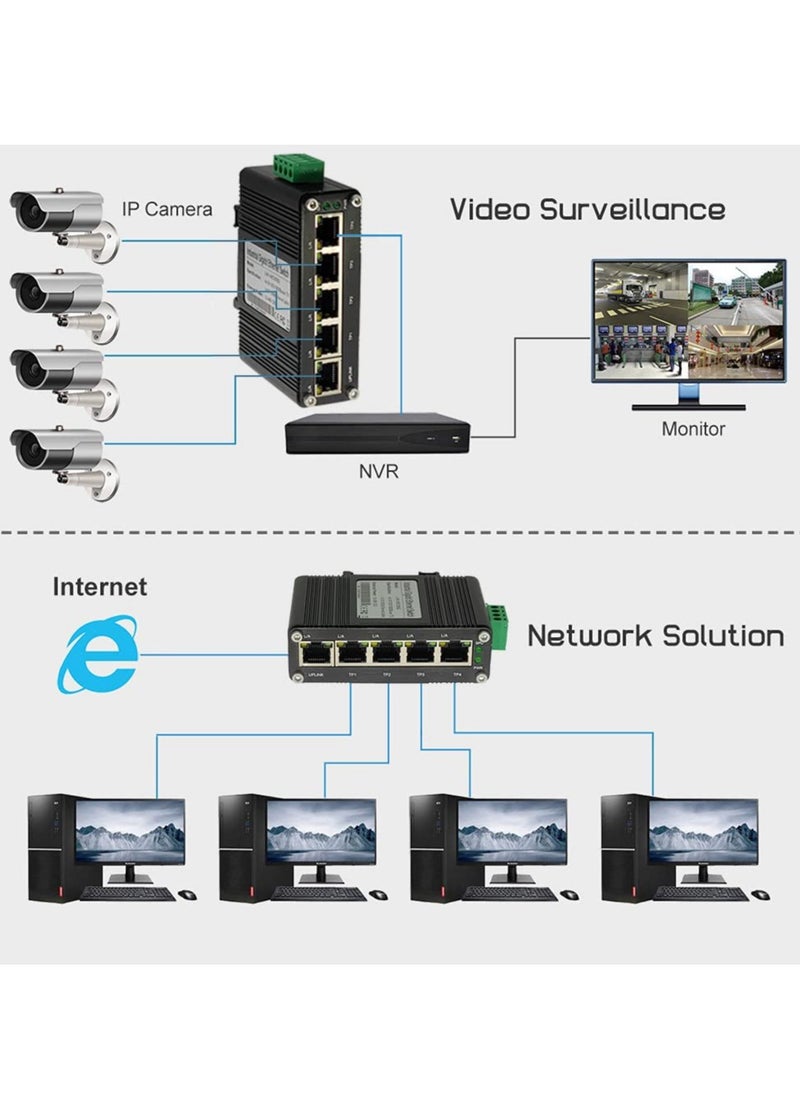

Mini industrial 5 ports gigabit ethernet switch can be used in the field of video surveillance and network solution

Package:

5-Port Mini Industrial Ethernet Switch x1

Wall Mounting Kit x1

Gigabit Ethernet Switch User Manual
