5pcs Weighing Sensor Human Scale Load Sensor Postal Scale Sensor Weight Scales Sensor Body Scale Sensor Half-bridge Sensor Mini Sensors Weighing Pressure Sensor

Description

When measuring, the outer side is correctly applied with external force. The strain beam part of the E- shaped sensor ( that is, the beam arm with the white rubber in the middle of the strain gauge ) and the outer side are to form a shearing force in the opposite direction, that is, the middle The strain beam must be able to undergo a bending change under the force, and there should be no obstruction on the other side of the strain beam.

Features

- Material: Plastic and metal
- Color: As Shown

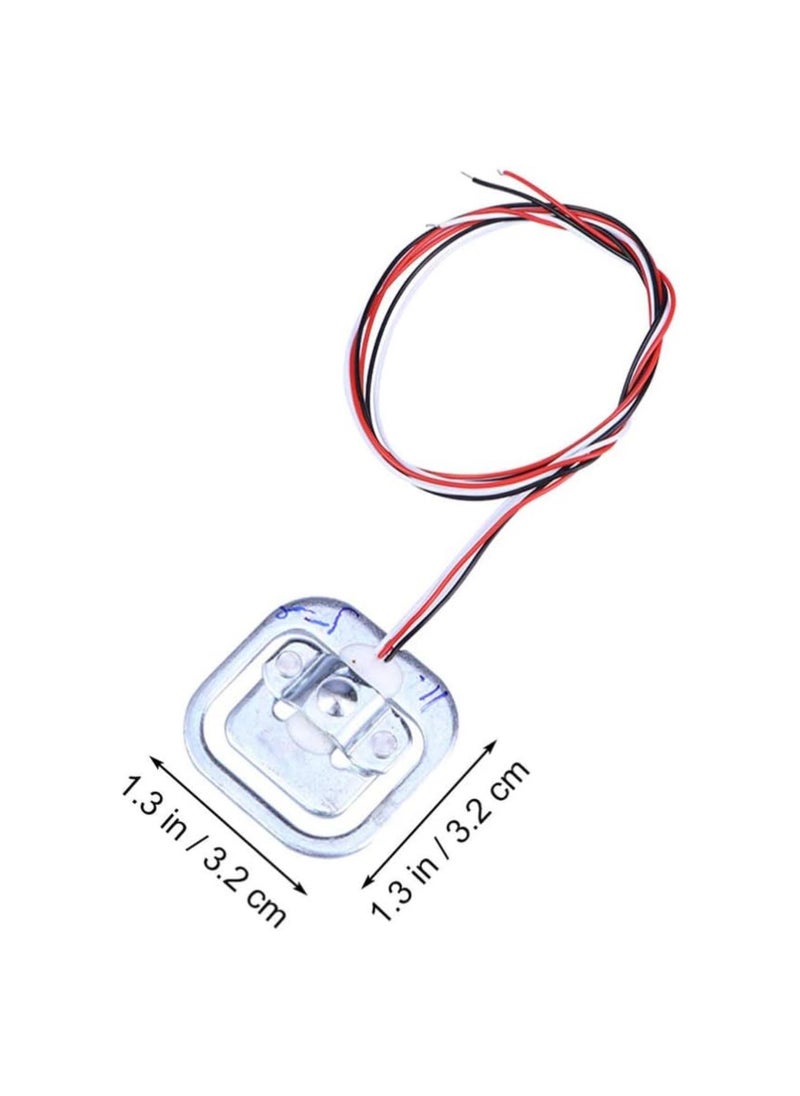

- Size: About 3. 20X3. 20X0. 20cm 1. 26X1. 26X0. 08in
- Capacity: 50kg
- Output Resistance: 1000 ± 10 Î
- Comprehensive: 0. 1% F. S
- Input Resistance: 1000 ± 10 Î
- Insulation Resistance: ≥2000M
- Overload Capacity: 150% F. S
- Repeatability: 0. 05% F. S
- Hysteresis: 0. 05% F. S
- Nonlinearity: 0. 05% F. S
- Zero Output: ±0. 3% mv/ v
- It is made of good quality materials for durability.
- Two sensors can be used to form a full bridge measurement with a range of the sum of the two sensors: 50kg x 2 = 100kg.
- Four sensors can be used to form a full bridge measurement with a range of four sensors: 50kg x 4 = 200kg.
- Replace your or broken weighing sensor
- Ideal for palm scale, fishing scale, scale, human scales, and etc.

Package Including
5 x weighing sensors
