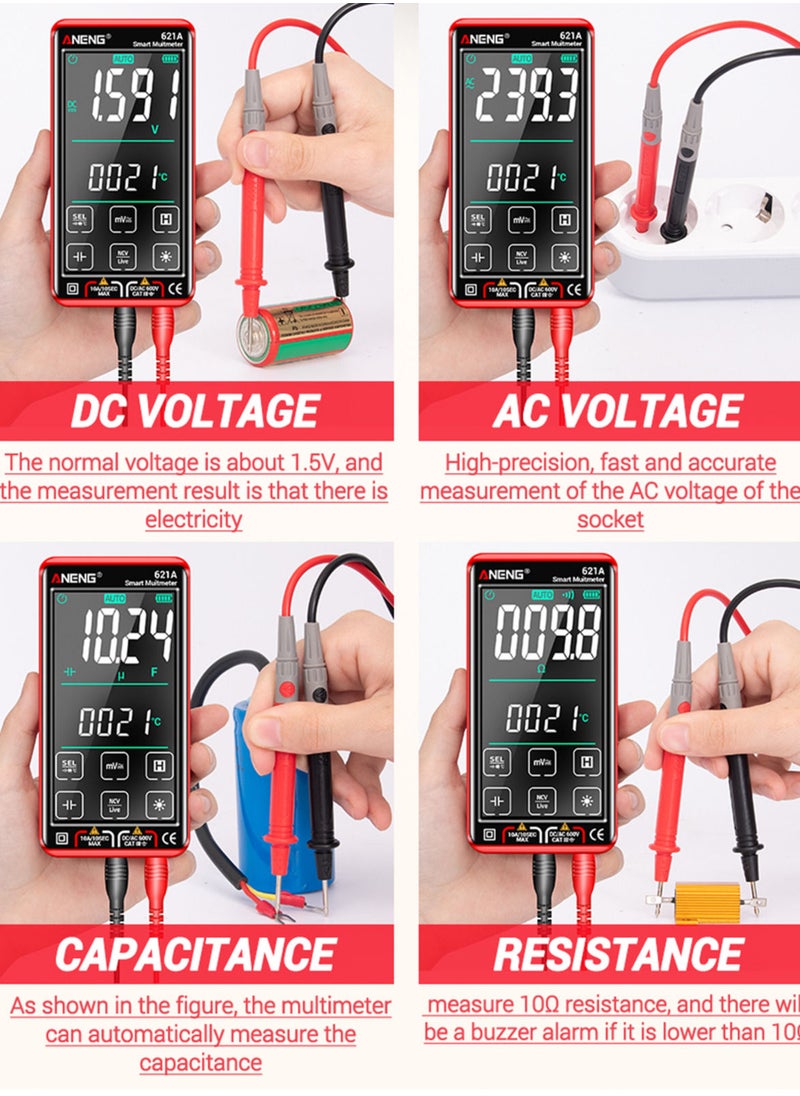

Highlights- Intelligent Multimeter with Multiple Functions: it can measure AC/DC current, AC/DC voltage, resistance, capacitance, temperature, frequency, continuity and diode test, fire wire detection.

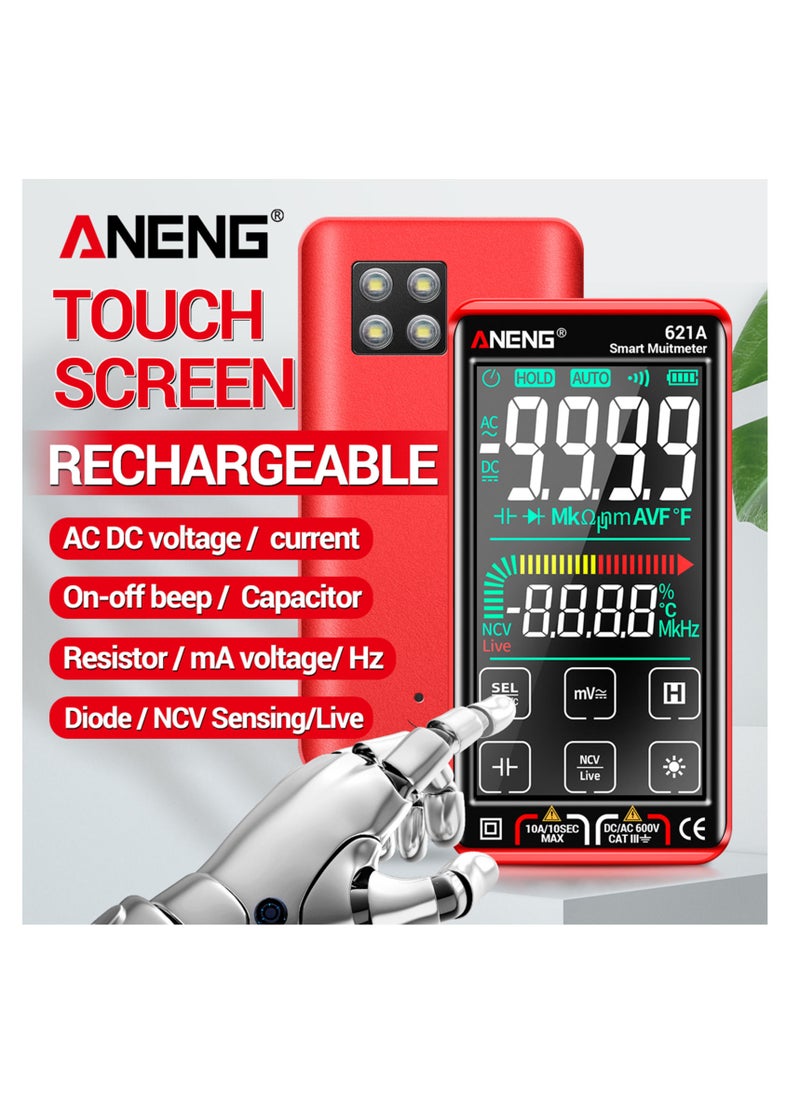

- Flashlight Function: auxiliary lighting up the working area in the low lit or dark environment, and it will automatically turned off after about 1 minutes.

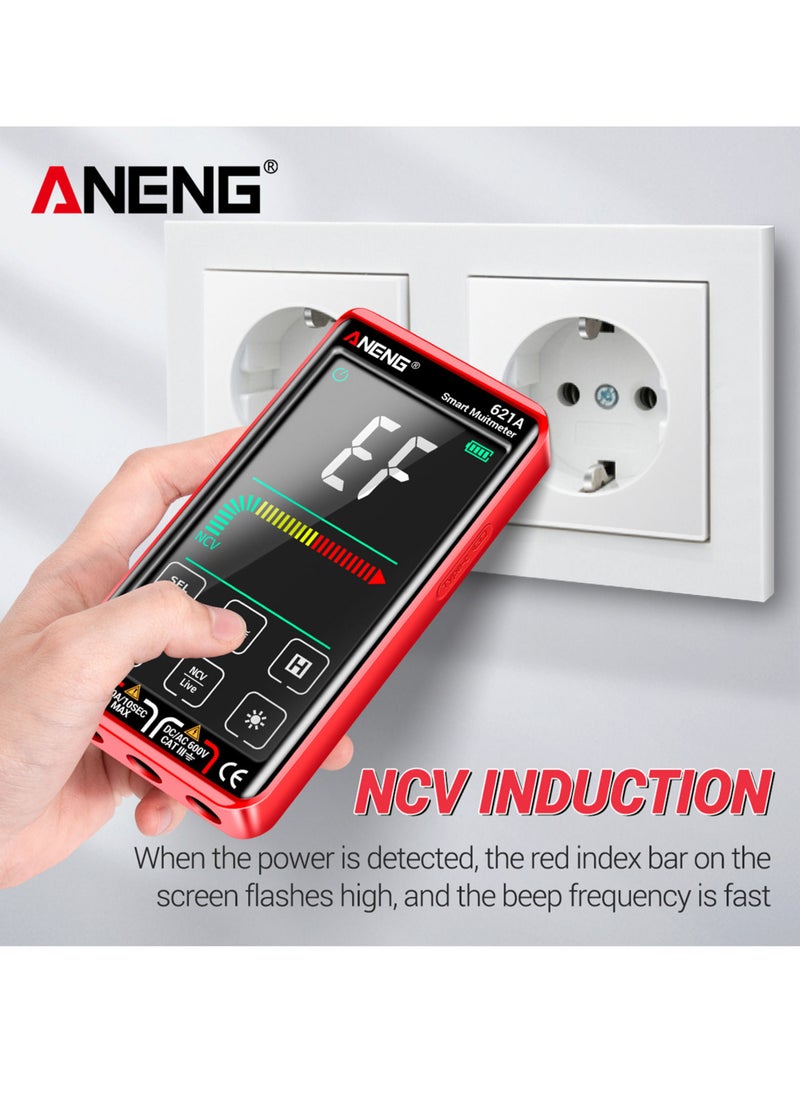

- NCV Non-contact Voltage Detection: place the NCV sensor closer to the measured cable, and the multimeter can detect whether the voltage is greater than 90ACV.
- When the AC voltage being detected, the meter buzzer alarms and the LCD analog bar displays the induction intensity.
- Safety Operation: built-in overload protection fuse, smart anti-burn. Meet the DC/AC 600V CAT III overvoltage standard, and double insulation protection.

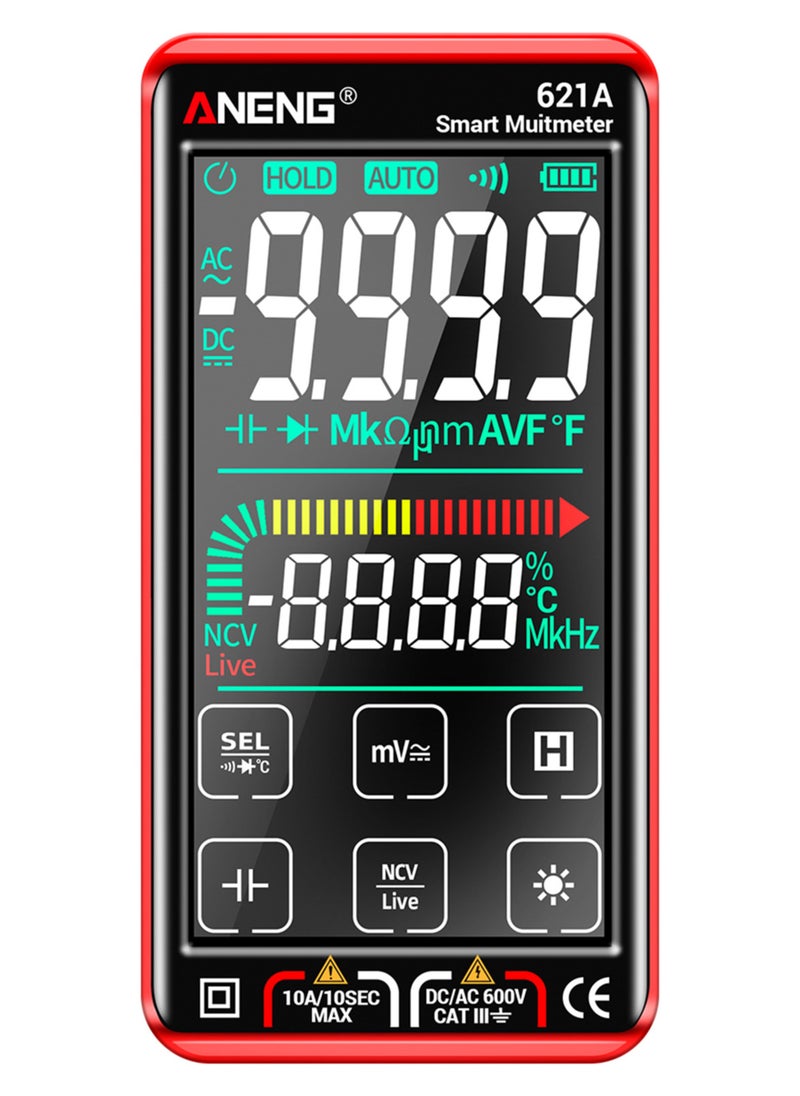

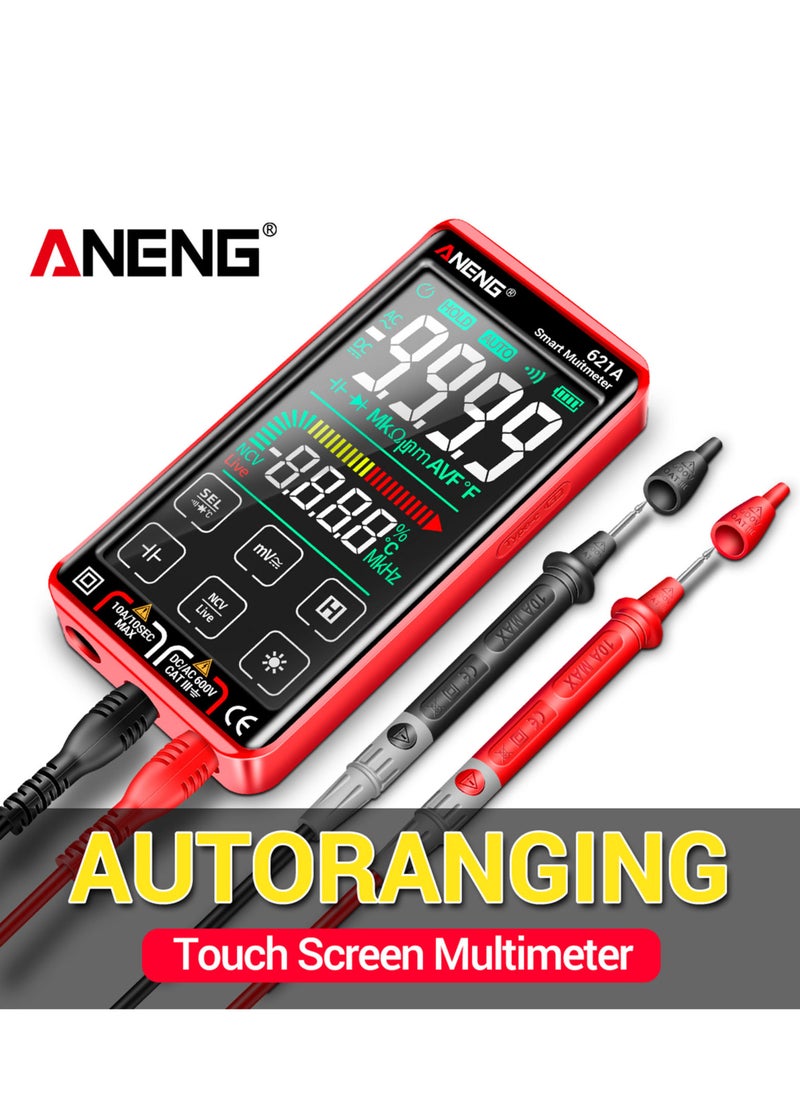

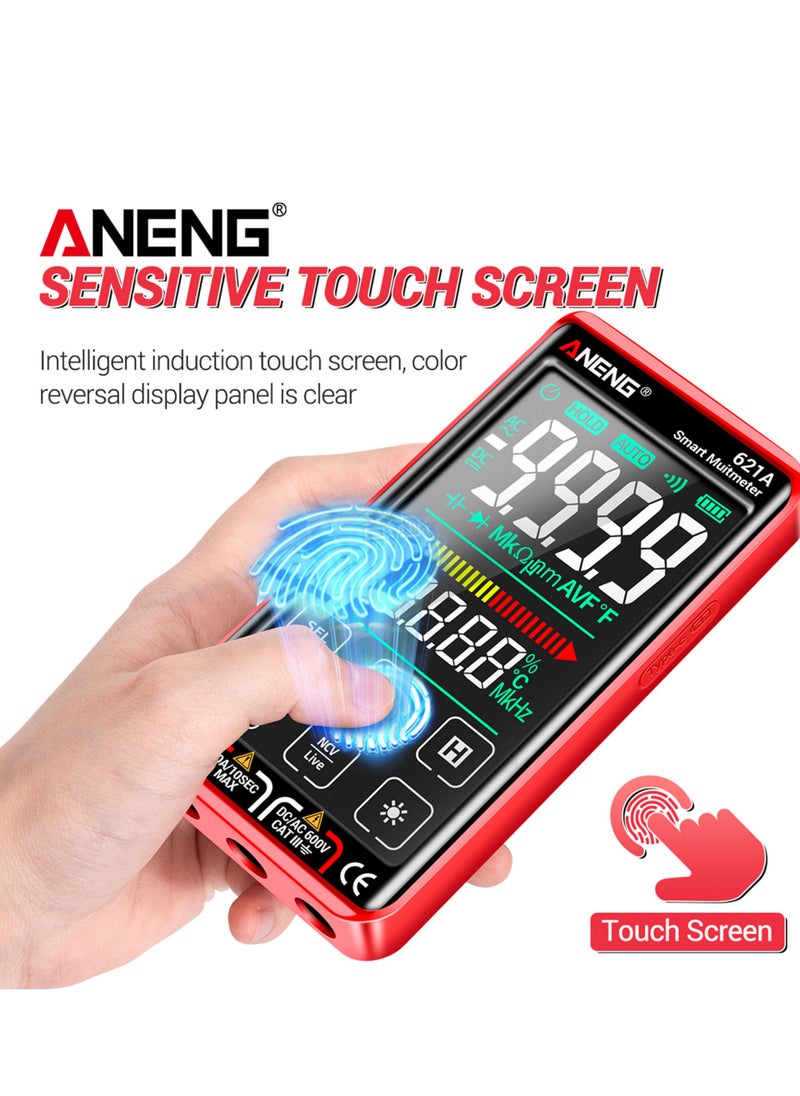

- Smart Touch Screen Control: easy to operate, with large VA color reverse LCD display screen, convenient to check the measured data at a glance.
- Silicone Protective Case: protected with a silica gel case, you can use the meter at various condition without worrying it from falling down or scratch by hardware.
OverviewSpecifications:
AC Current: 999.9mA/10A
DC Current: 999.9mA/10A
AC Voltage: 999.9mV/9.999V/99.99V/999.9V
DC Voltage: 999.9mV/9.999V/99.99V/999.9V
Resistance: 999.9Ω/9.999KΩ/99.99KΩ/999.9KΩ/9.999MΩ/99.99MΩ

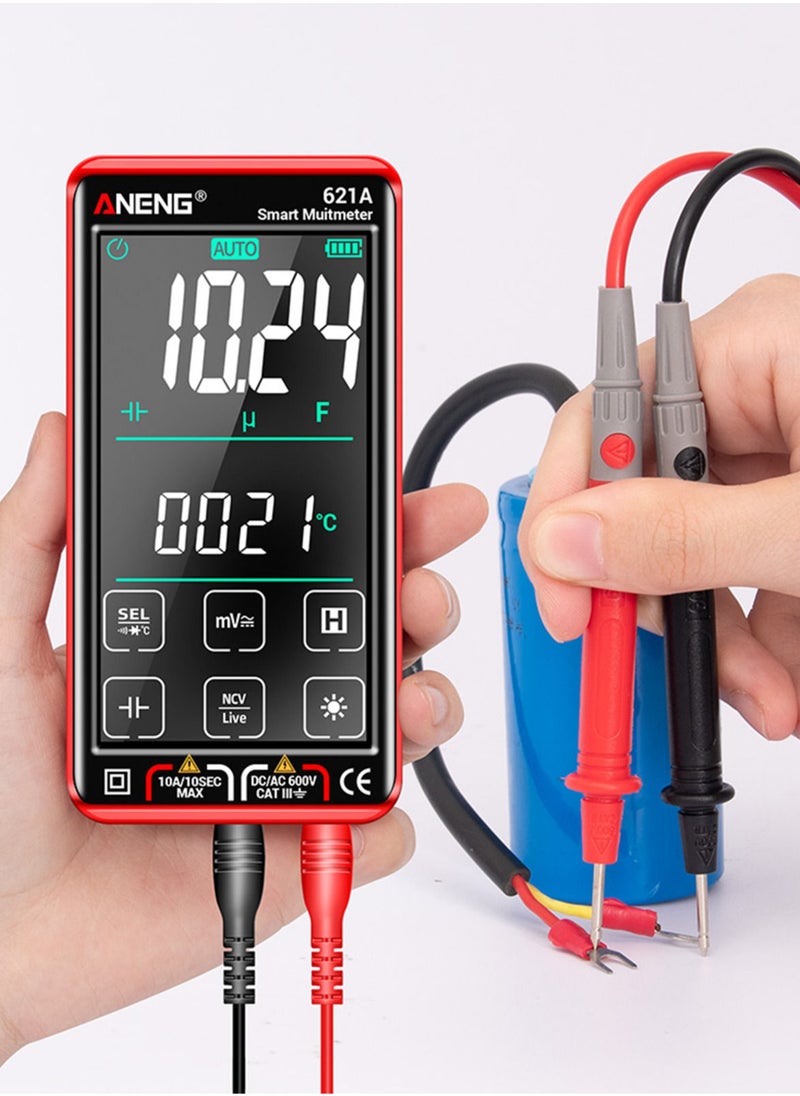

Capacitance: 9.999nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF
Temperature: -40~1000℃(-40~1832℉)
Frequency: 100Hz/1000Hz
Material: ABS
Working Altitude: Maximum 2000m
Display: LCD
Maximum Display Value: 9999 digits
Polarity Indication: Automatic indication, "-" indicates negative
Overrange Display: "OL" or "-OL"
Sampling Time: About 3 times/second
Automatic Shutdown Time: 15 minutes
Battery Undervoltage Indicator: Yes
Temperature Coefficient: <0.1X accuracy/℃
Operating Temperature: 0~40°C
Storage Temperature: -10~50℃
Power Supply: Built-in 3.7V 600mAh polymer lithium battery

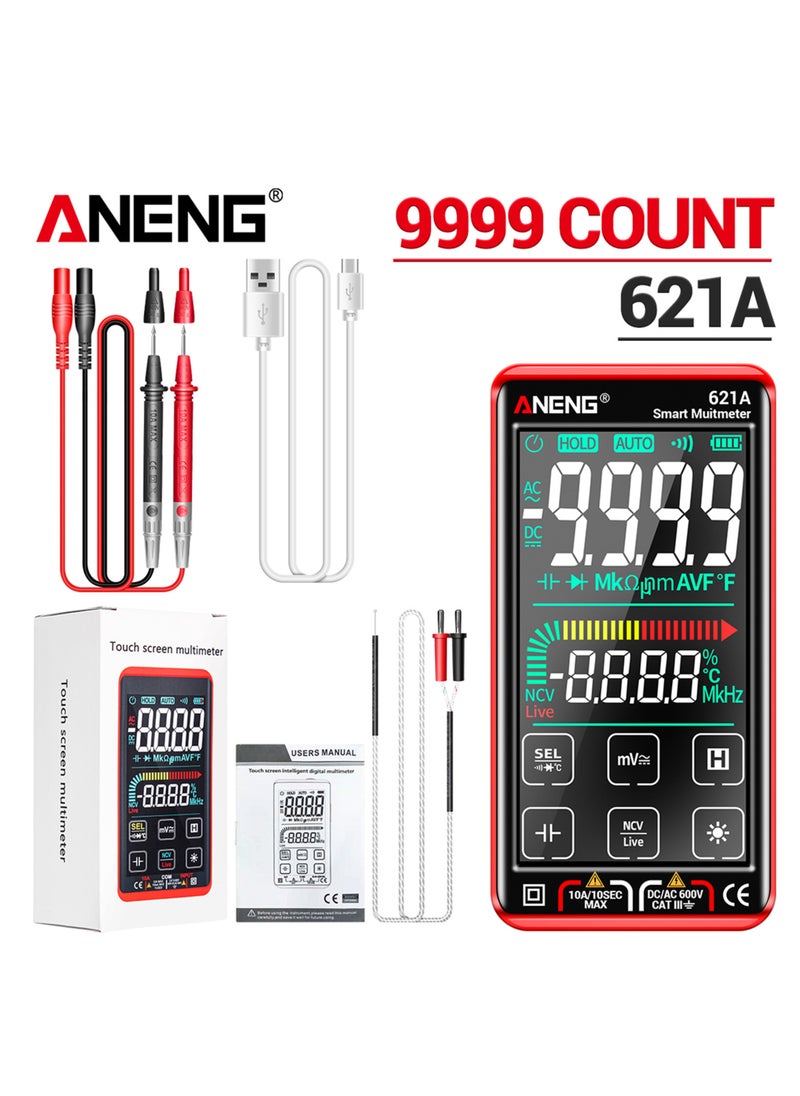

Packing List:
1 * Multimeter
1 * Pair of Test Lead
1 * Thermocouple
1 * USB Type-C Cable
1 * Manual (English)
