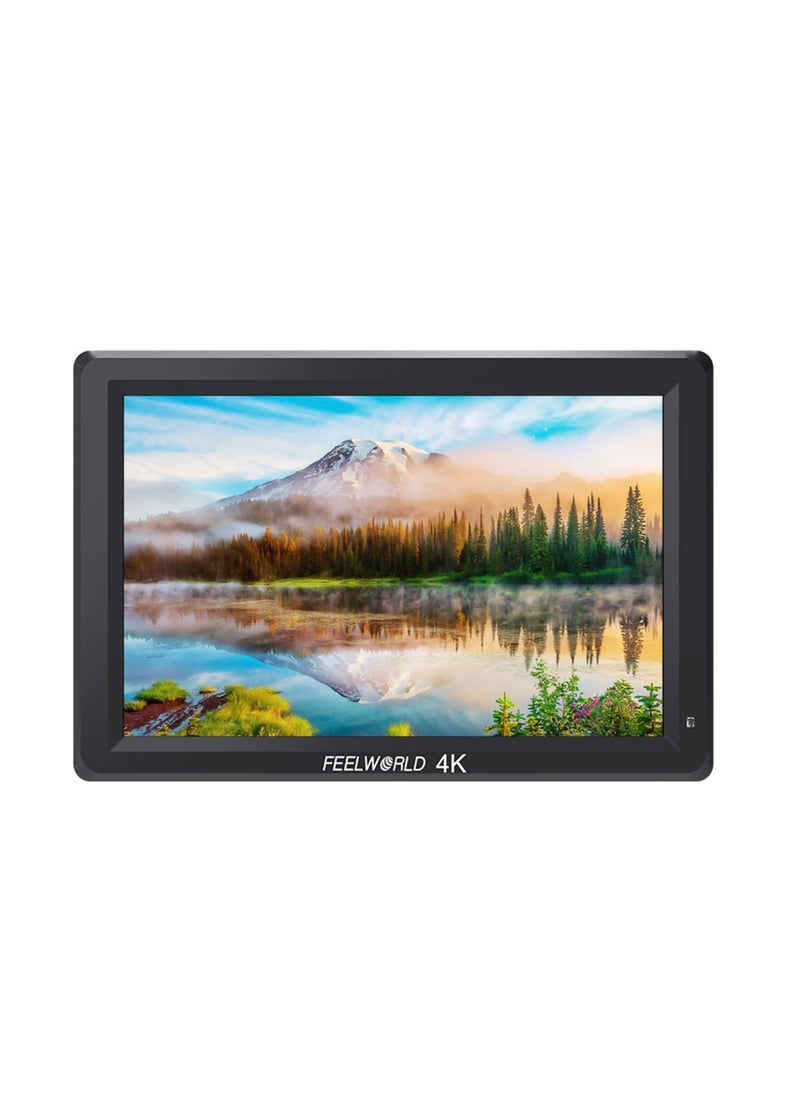

Feelworld - 7 Inch IPS Full HD 4K On-Camera Monitor 1920 * 1200 Resolution Support 4K Signal HD Input/ Output with Histogram Focus Assist Check Field Pixel to Pixel - Image 1

Available Soon

Feelworld

7 Inch IPS Full HD 4K On-Camera Monitor 1920 * 1200 Resolution Support 4K Signal HD Input/ Output with Histogram Focus Assist Check Field Pixel to Pixel

Sorry! This product is not available.

Product Overview

Highlights

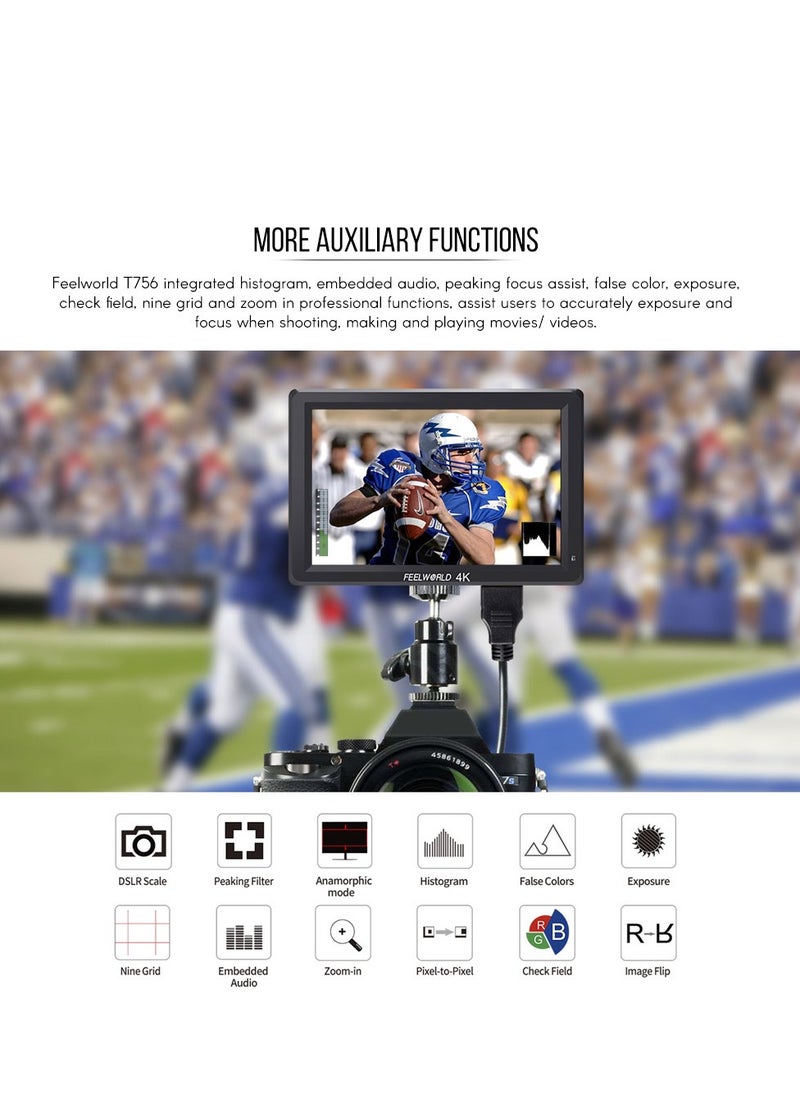

More Auxiliary Functions:Feelworld T756 integrated histogram, embedded audio, peaking focus assist, false color, exposure, check field, nine grid and zoom in professional functions

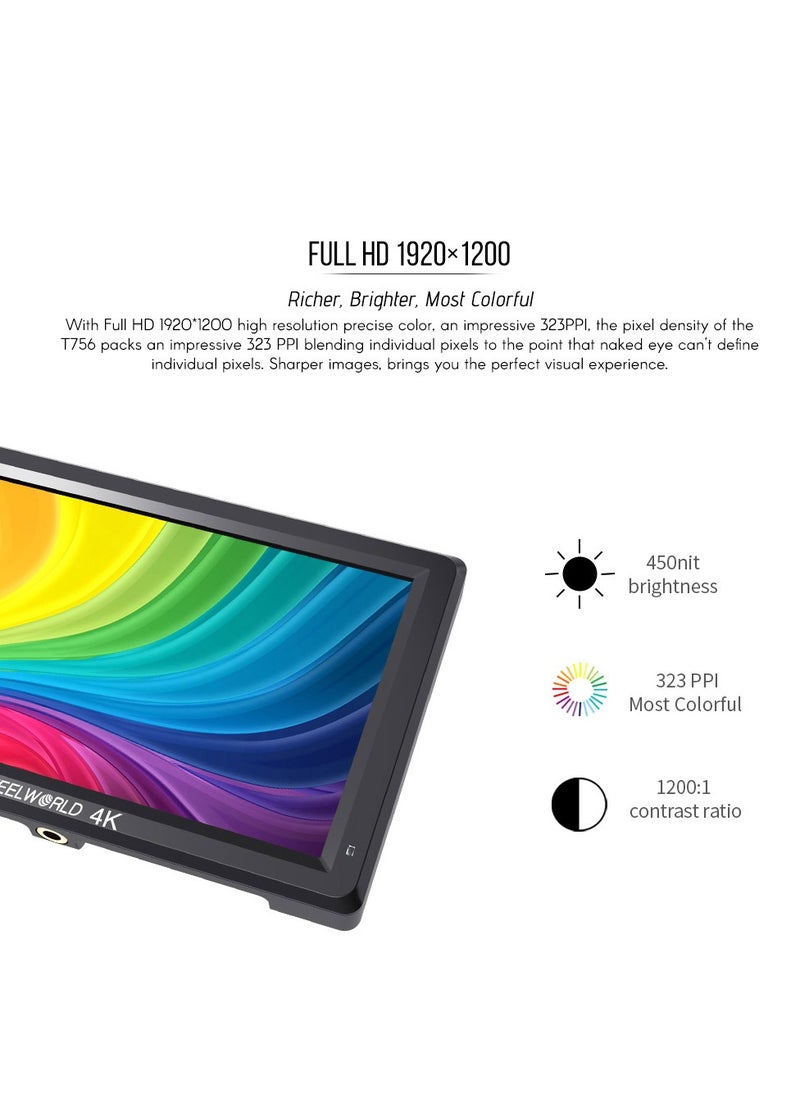

Full HD 1920*1200:With Full HD 1920*1200 high resolution precise color, an impressive 323PPI, the pixel density of the T756 packs an impressive 323 PPI blending individual pixels to the point that naked eye can't define individual pixels.

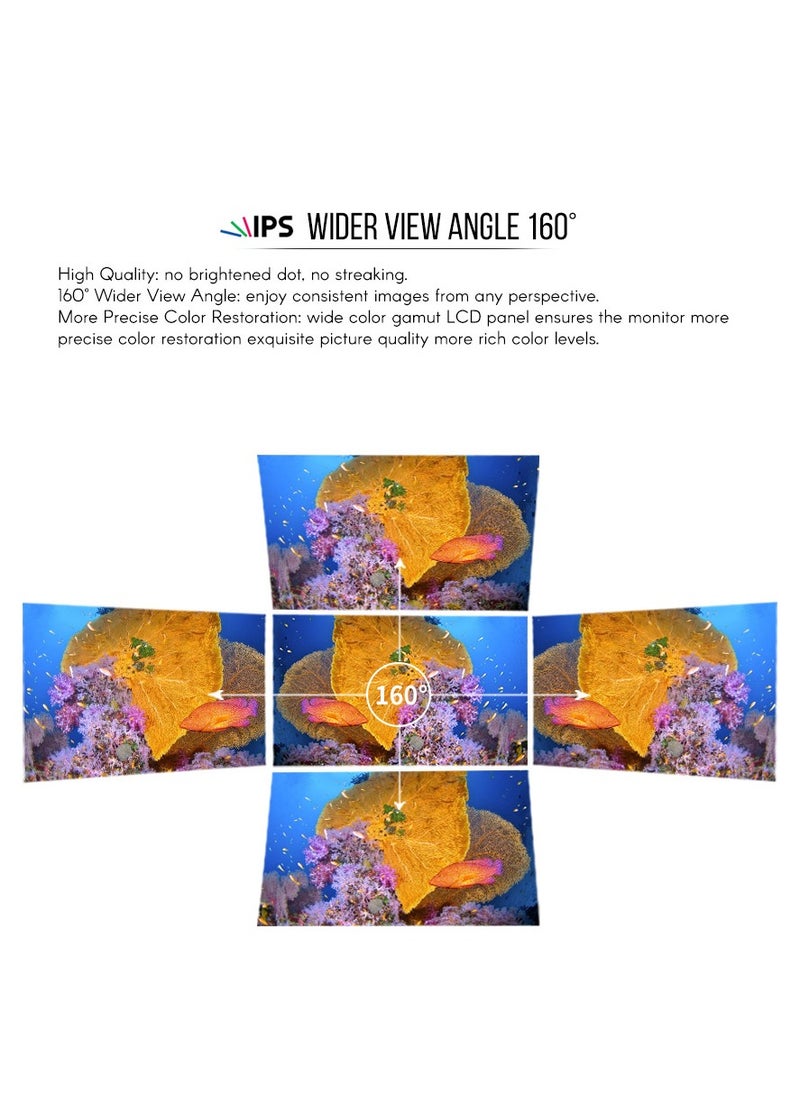

IPS Wider View Angle 160°:High Quality: no brightened dot, no streaking. 160° Wider View Angle: enjoy consistent images from any perspective.
True Color & Professional Color Calibration:T756 uses professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory
Accurate Color Reproduction:The monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural

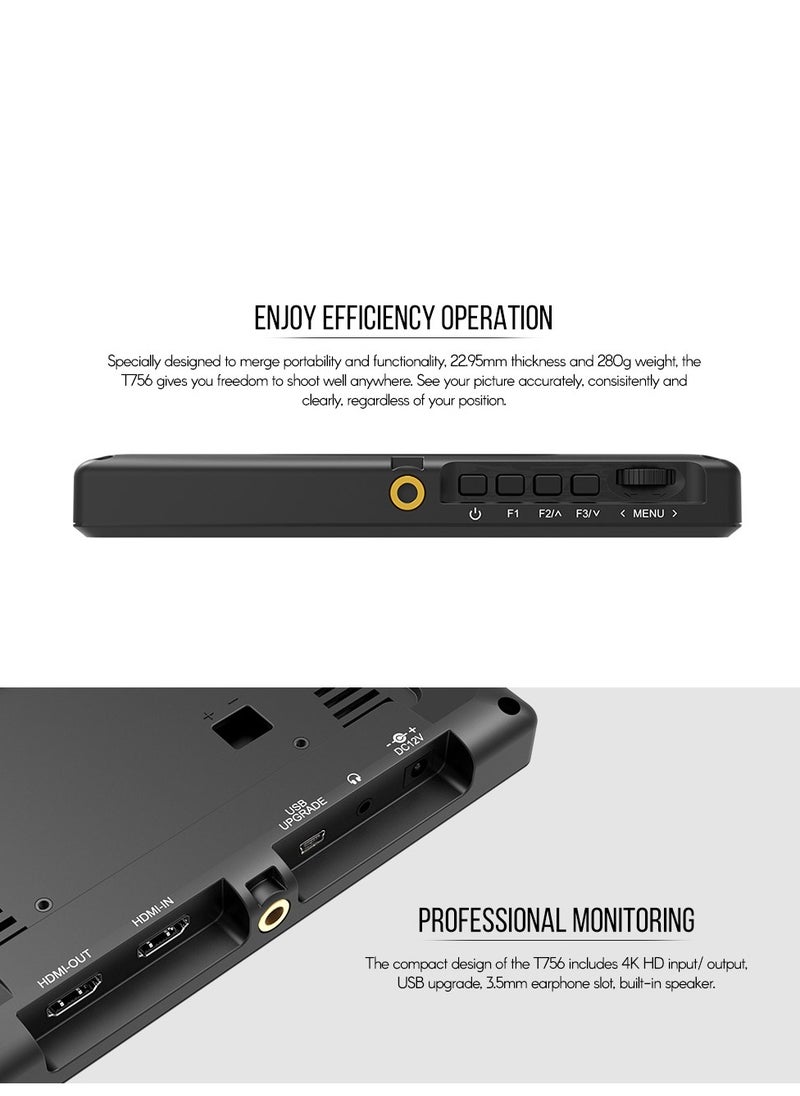

Ultra-thin Lightweight Design:Specially designed to merge portability and functionality, 22.95mm thickness and 280g weight, the T756 gives you freedom to shoot well anywhere.
Enjoy Efficiency Operation:Easy operate knob design, allowing you immediately to improve the shooting efficiency. F1, F2, F3 custom shortcut function keys, can fast access to the functions you needs, focus assist, false color, exposure, embedded audio, etc.

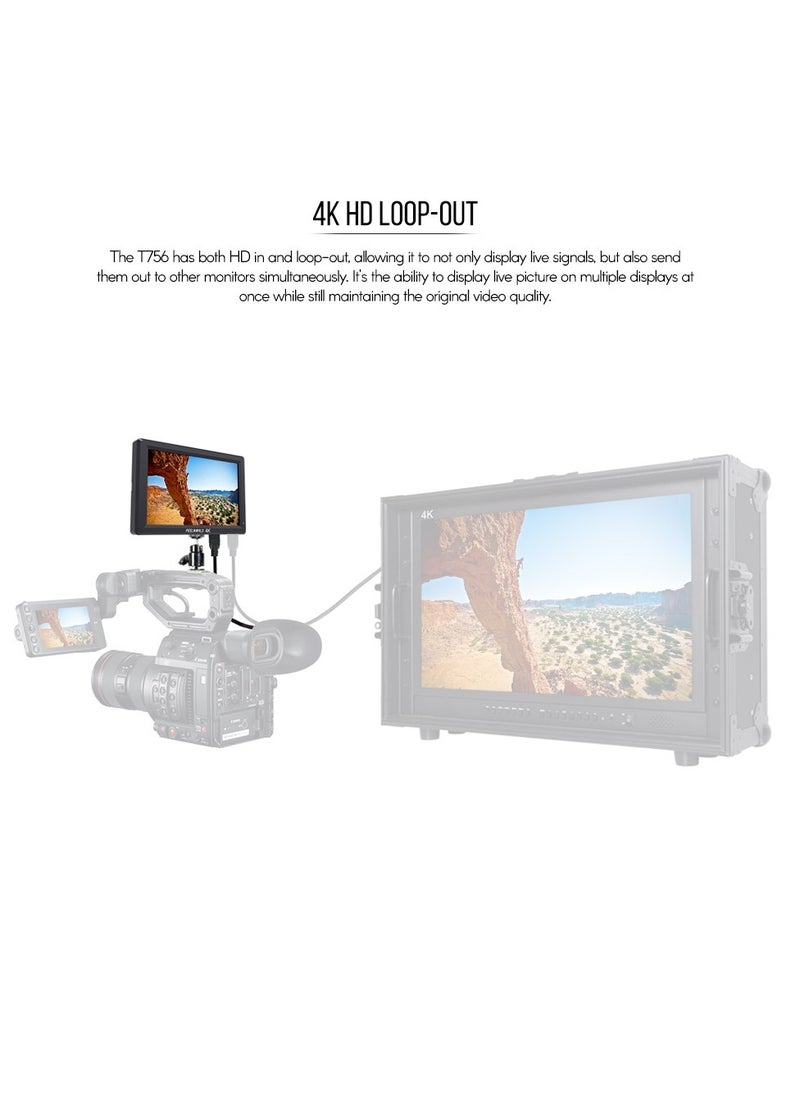

4K HD Loop-out:The T756 has both HD in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously.

Overview

Panel Size: 7 inch IPS

Display Colors: 16.7M (8 bit)

Resolution: 1920*1200 pixels

Dot Pitch: 0.07875 * 0.07875mm (H * W)

Aspect Ratio: 16:10

Brightness: 450cd/㎡

Contrast: 1200:1

Viewing Angle: 80°/80°(L/R), 80°/80°(U/D)

Input & Output: HD

Audio: Stereo Headphone, Speaker(built-in)

HD Input & Output Support Format:

---480i/480p/576i/576p;

---1080i (60/59.94/50)

---720p (60/59.94/50/30/29/25/24/23.98)

---1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)

---4K UHD 3840*2160p (30/29.97/25/24/23.98Hz), 4096*2160p (24Hz)

Input Voltage: DC7-24V

Power Consumption: ≤8W

Power Connector: DC

Battery Plate: F970 (Standard); D28S/D54, LP-E6, U60 (Optional)

Operating Temperature: -20℃~55℃

Storage Temperature: -30℃~65℃

Install Way: 1/4"-20 Thread Socket(top, bottom)

Specifications

Product Weight	11 oz
Product Length	7.1 in
Product Height	4.7 in
Product Width	0.9 in
Set Includes	Note: Battery and power adapter are not included.

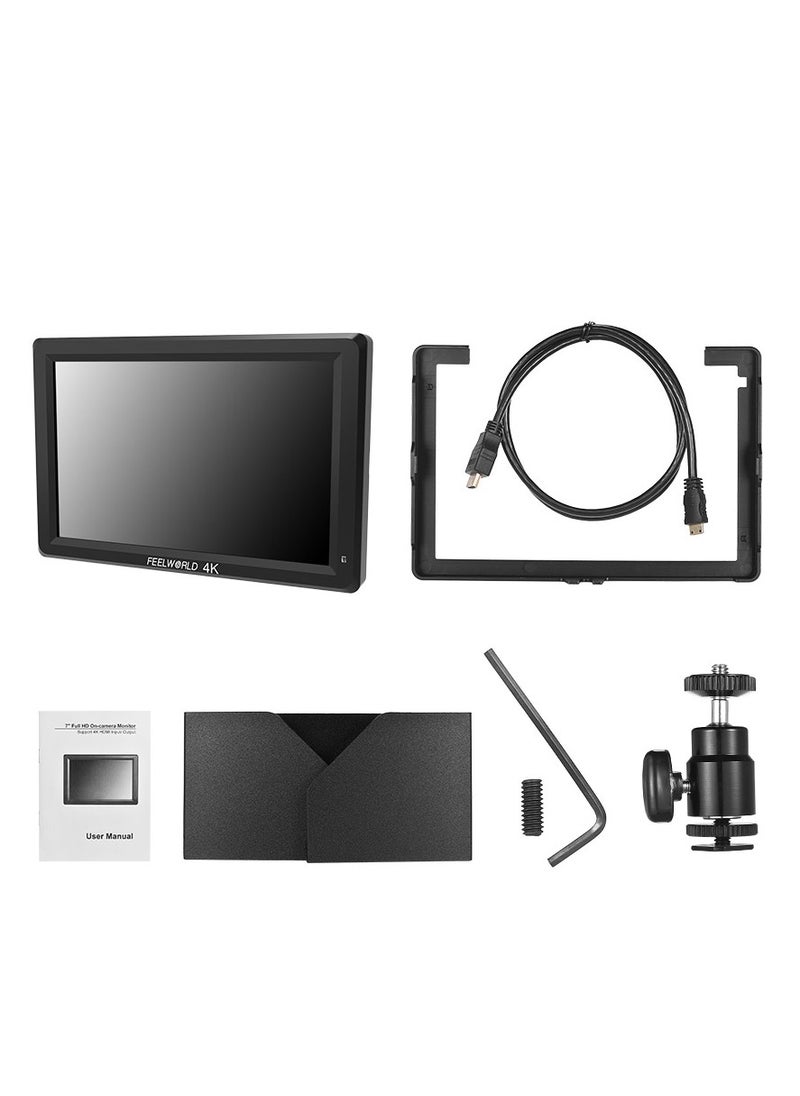

What's In The Box	1 * T756 Monitor 1 * Sunshade 1 * F970 Battery Plate (Have mounted on the back of the monitor) 1 * Hot Shoe Mount 1 * HD to Mini HD Cable 1 * User Manual (English)
Model Number	T756
Model Name	T756

7 Inch IPS Full HD 4K On-Camera Monitor 1920 * 1200 Resolution Support 4K Signal HD Input/ Output with Histogram Focus Assist Check Field Pixel to Pixel
