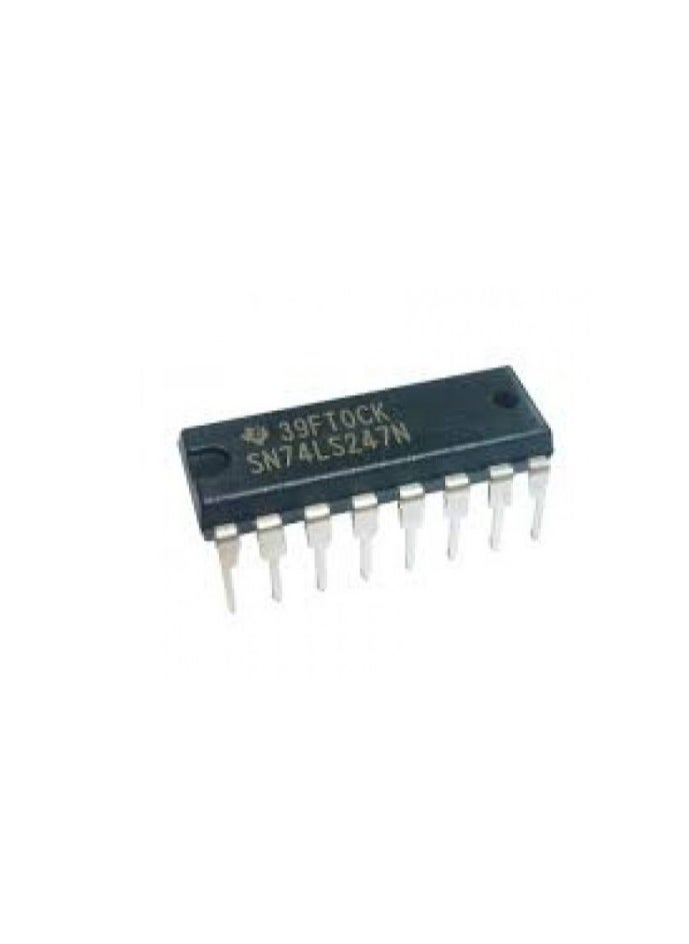

74LS247 BCD to 7-Segment Decoder Driver IC, 16-Pin DIP Package

OverviewThe 74LS247 IC is a sophisticated BCD to 7-segment decoder/driver integrated circuit, essential for digital display applications. This 16-pin DIP package component efficiently converts 4-bit binary-coded decimal inputs into seven-segment display outputs. Perfect for engineering projects, hobbyist electronics, and industrial control panels, this IC can directly drive common-anode LED displays. The chip operates with standard TTL voltage levels, making it compatible with most digital logic systems. Its reliable performance and straightforward implementation make it a popular choice for numerical display applications, from basic counters to complex digital instruments. The 74LS247 features built-in ripple blanking capability and active-low outputs, offering versatility in display control. Whether you're building a digital clock, counter, or any project requiring numerical display, this IC provides consistent and dependable performance.
