Highlights- Newly upgraded ultra-fine compression laser: The laser adopts 4-fold lens group collimation and focus technology, the optical power is 5.5-6WW, and the laser focus area is reduced to 0.02mm².
- Powerful Engraving Performance: The real 5.5W-6W laser can easily cut through 15mm thick wood and 12mm acrylic, and engraver large areas of metal and wood. The metal engraving speed boost 200% and the engraving effects obviously improved.
- Modular Design: Easy to replace or upgrade the partss and achieve more functions. Spiral button is more convenient for height adjustmen.
- Eye-protection flame-retardant filter panoramic glass: The flame-retardant filter panoramic glass can filter 97% of the ultraviolet light, which plays a very good role in protecting your eyes.
- You and the people around you do not need to wear goggles, you can also clearly Watch laser engraving. Reduce the cost of your goggles and the inconvenience of wearing goggles. The glass is flame retardant and safer to use.
OverviewFeatures:
Newly upgraded ultra-fine compression laser: The laser adopts 4-fold lens group collimation and focus technology, the optical power is 5.5W-6W, and the laser focus area is reduced to 0.02mm². The high-density laser can easily cut 15mm thick wooden boards, 12mm black acrylic; can directly engrave mirror stainless steel metal and ceramics.
Powerful Engraving Performance: The real 5.5W-6W laser can easily cut through 15mm thick wood and 12mm acrylic, and engraver large areas of metal and wood. The metal engraving speed boost 200% and the engraving effects obviously improved.
Modular Design: Easy to replace or upgrade the parts and achieve more functions. Spiral button is more convenient for height adjustment.
Specifications:
Model: ATOMSTACK A5 PRO Upgrade
Working Area: 410*400mm

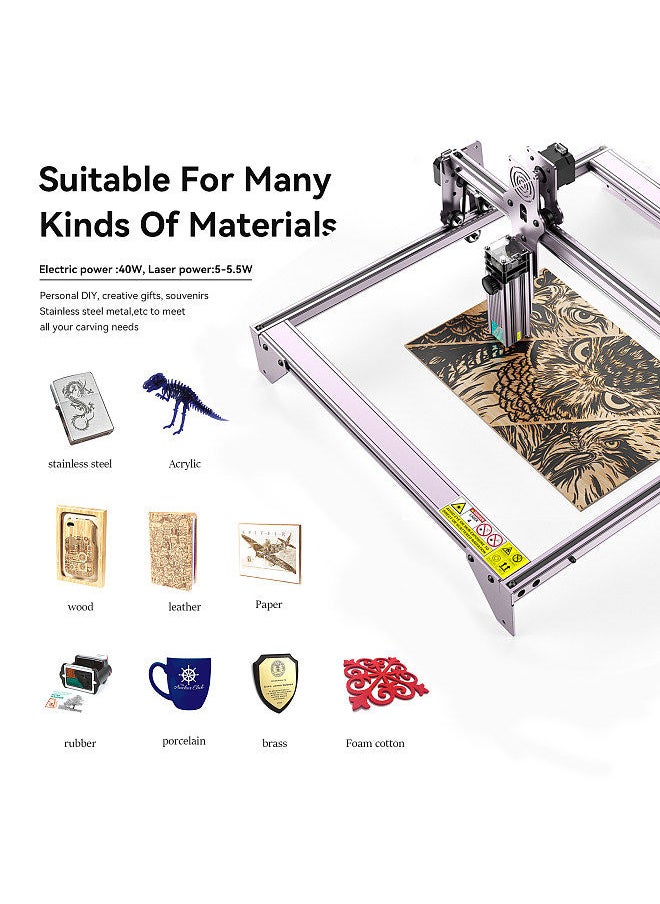

Support Carving Objects: Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;
Support Cutting Objects: Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge;
Machine Working Power: 40W

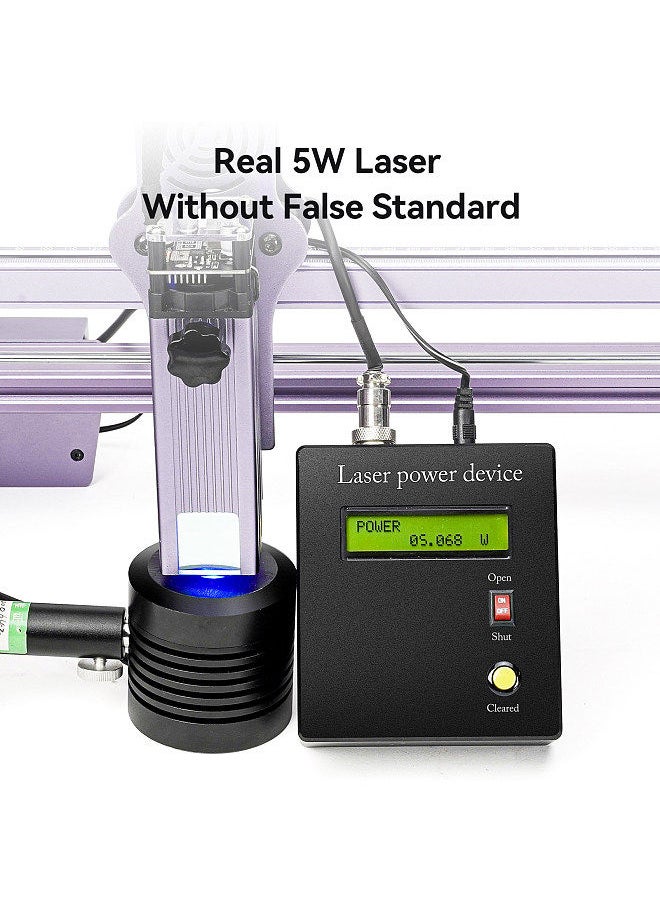

Laser Output Power: 5.5-6W
Wave Length: 455 ± 5nm
Engraving Accuracy: 0.01mm
Focusing Method: Fixed focus laser, no need to focus
Laser Protective Cover: Panoramic filter glass

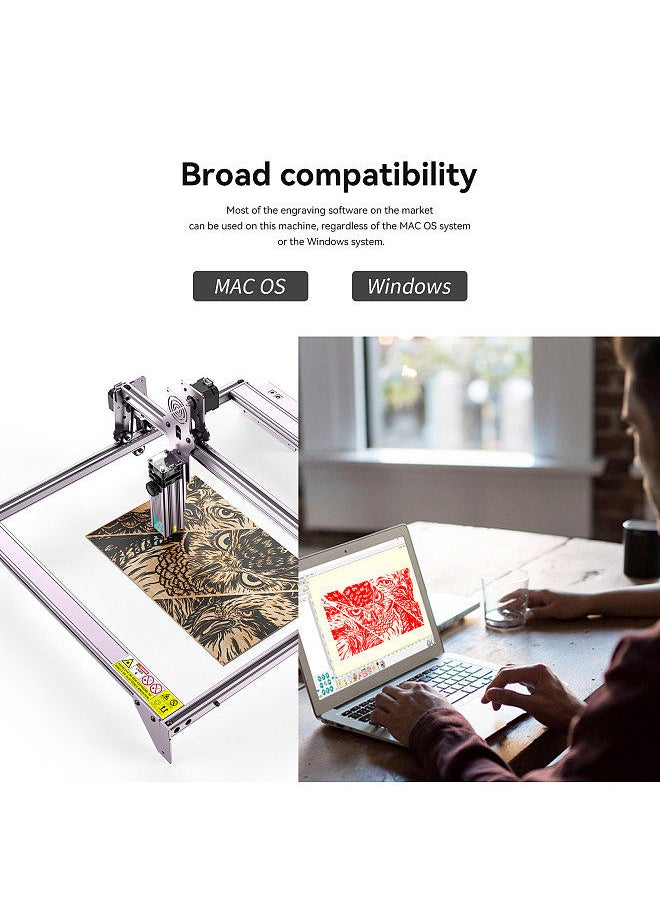

Operating Software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 / Win 11 system.
Input Format: NC, BMP, JPG, PNG, DXF, etc.
Data Transmission Method: USB connection.
Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC12V, 3A
Machine Weight: 3.5kg/ 7.7lbs
Machine Size: 57*60*27cm/ 22*23.6*10.6in
Package Weight: 5667g.12.5lb
Package Size: 59.5*35*13cm/ 23*13.8*5.1in
Note:
- When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
- Please do not touch the laser emitter with your hand, or it may burn your hand.
- Please avoid strong impact on the machine.
- Children under 14 are not allowed to use this product and children over 14 need adult supervision.
- The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.

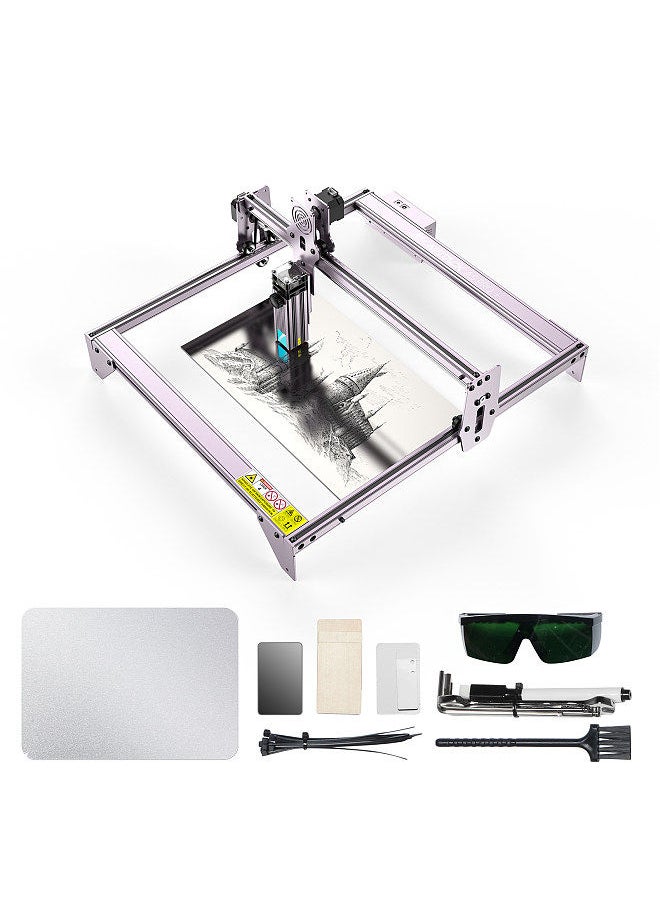

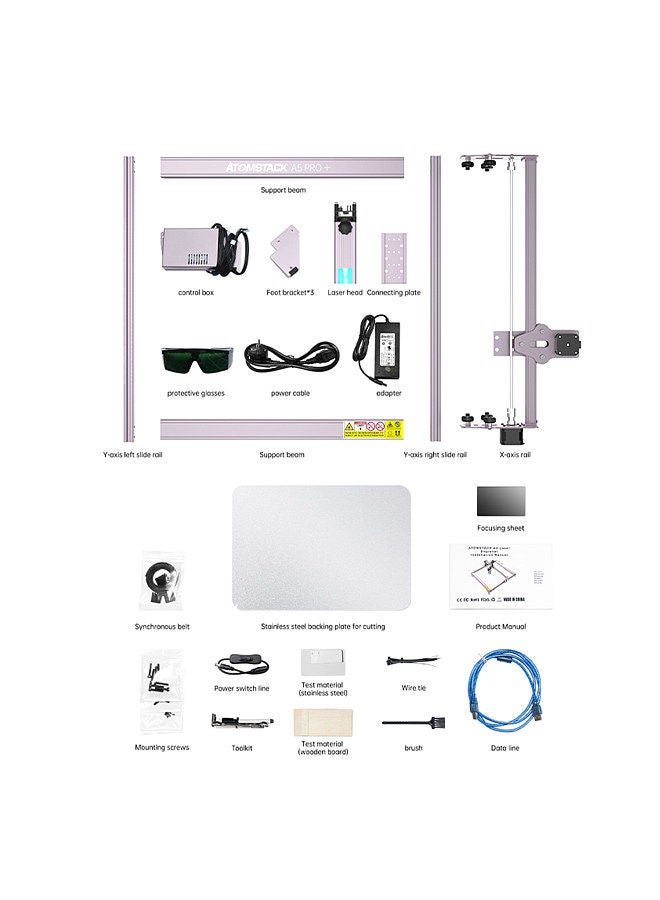

Packing List:
1* Machine Kit
1 * Control Box
1 * Goggles
1 * Power Supply
1 * USB Cable
