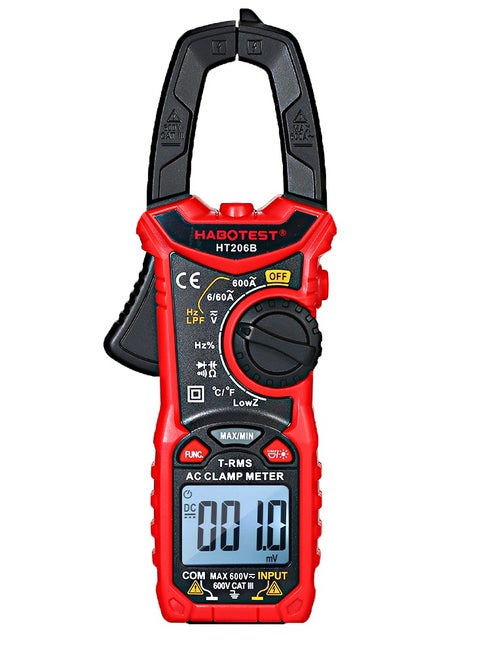

AC/DC Digital Clamp Meter for Measuring AC/DC Voltage , AC/DC Current, Frequency, Duty Cycle, Diode, Resistance, Continuity, Transistors Test, NCV Clamp Multimeter

Specifications: Brand Name: HABOTEST Color: Red Material: ABS Display: LCD Display Jaw Opening: 25cm DC voltage: 600mV/6V/60V/600V(±0.5%reading+5) AC voltage: 6V/60V/600V(±1.0%reading+5) AC current: 6A/60A/600A(±2.5%reading+8) Resistance: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ(±1.0%reading+5) Capacitance: 10nF/100nF/1μF/10μF/100μF/1mF/10mF/100mF Duty cycle: 1-99% Frequency(Hz):10Hz~10MHZ Maximum count: 6000 Temperature: -40~1000℃ / -40～1832℉ Power Supply: 2* 1.5V AAA Batteries (Not Included) Operating Temperature & Humidity: 0-40℃ (＜80%RH ,＜10℃ non-condensing) Storage Temperature & Humidit: -10-60℃ (＜70%RH,remove the battery) MAX.Voltage between terminals and earth ground: 600V Over range indication: it displays "OL" Continuity: orange backlight on  HT206B Item weight: 191g/0.42lb Item size: 19.3*7.3*3.4cm / 7.6*2.9*1.3in Package weight: 392g/0.86lb Package size: 22.5*11.5*4.5cm/8.86*4.53*1.77in  NOTE: The voltage over 600V can’t be measured; otherwise the instrument may be damaged. Be careful when measuring high voltage to avoid electric shock or personal injury. Test the known voltage with the meter before use, confirm the instrument function is intact. Please allow 1-3cm differences due to manual measurement.  Package list: 1 * Digital clamp meter 1 * User Manual(English) 1 * Pair of Test Leads 1 * Temperature Probe
