Advanced Network With PoE& NCV & Lamp For CAT5e/CAT6/CAT6a, Multifunction Wire Tracker Cable Tester For Tracker Underground Telephone Line Finder Tool Home Repair

☎【Digital Cable Scanning & Cable Types】Three scan modes selectable: Digital mode/ Analog mode/ PoE mode. NF-8209 works on CAT5e, CAT6, CAT6a （STP & UTP）, Telephone, Coaxial Cable, and More!

☎【Fault Distance Location & Hub Blink】 Measure cable length and locate fault distance accurately for lan cable. The range is 200m. Locate network port by the flashing port light on Hub / Switch. Available to 10M/100M Hub/ switch.

☎【PoE Information Testing & Range】 Identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard); Identify the supply voltage, power supply polarity and mode of non-standard PoE devices. Range-Test the current, voltage and power consumed by DC appliances. of the DC5~60V standard / non-standard PoE device.

☎【Cable Continuity Testing】 Test physical status for STP, UTP lan cable; Check the short circuit, crossover and open circuit status in the network cable.

☎【Non-contact Voltage Detecting】 NCV AC voltage presence (50V-1000V). The receiver can be used to detect the AC voltage of household electrical wiring.

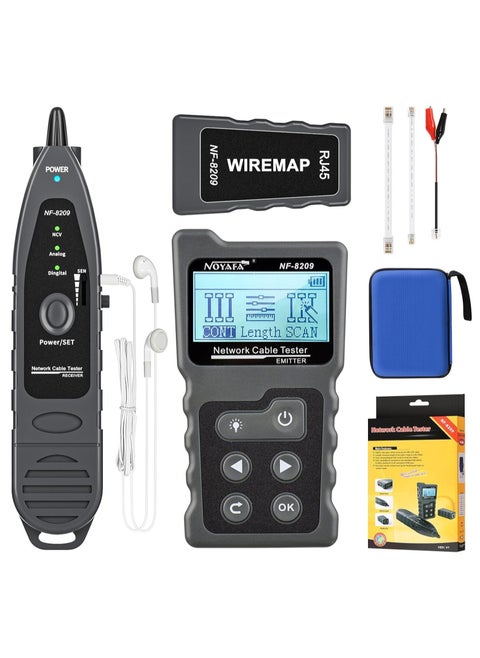

NF-8209 is a new generation to offer AC filter and analog signaling all in one network toner and probe. It has three modes for options to track cable like AC filter mode, analog mode and PoE mode. That means it’s equipped with the most powerful cable location technologies for any work environment. Also, it includes cable length measurement,cable faults testing,PoE testing, hub blink and NCV function,all these makes it a must-tool for cabling engineers.Specification

Transmitter

1.wiremap

1)Cable type: CAT5e, CAT6, CAT6a (STP & UTP)

2)Test with switch directly: Yes

3)Max range: 600m

2.Length

1)Cable type: CAT5e, CAT6, CAT6a (STP & UTP)

2)Test range: 2~200m

3)Accuracy: ±1.6m

4)Breakage location: Yes

3.Scan

1)Cable type: CAT5e, CAT6, CAT6a (STP & UTP)

2)Max. signal voltage: 8Vp-p

3)Frequency: 130KHz

4)AC filter: Yes

5)Max range: 600m

4.POE

1)Test range: DC 5~60V standard / non-standard PoE switch

2)Voltage display: Yes

3)PSE type: IEE​E 802.3af/at

LCD display: 128*64 Dot-matrix with backlight

Power supply: AAA*3

Low battary warning: 2.7V

Auto-off time: 15min、30min、60min、OFF

Max working current: <150mA

Receiver

Sentivity adjustable: Yes

AC Voltage detecting: Yes

Lamp: Yes

Battary type: 9V*1

Low battary warning: 6± 0.5V

Max working current: <100mA

Remote

wiremap Port: RJ45
