Alkatronic 1 kg Weight Measurement Sensor Loadcell HX711 Weighing Scale Arduino

Type	Integrated

1 Kg Weight Measurement Sensor

1kg Loadcell HX711 Weighing Scale Arduino Raspberry Pi  YZC-131

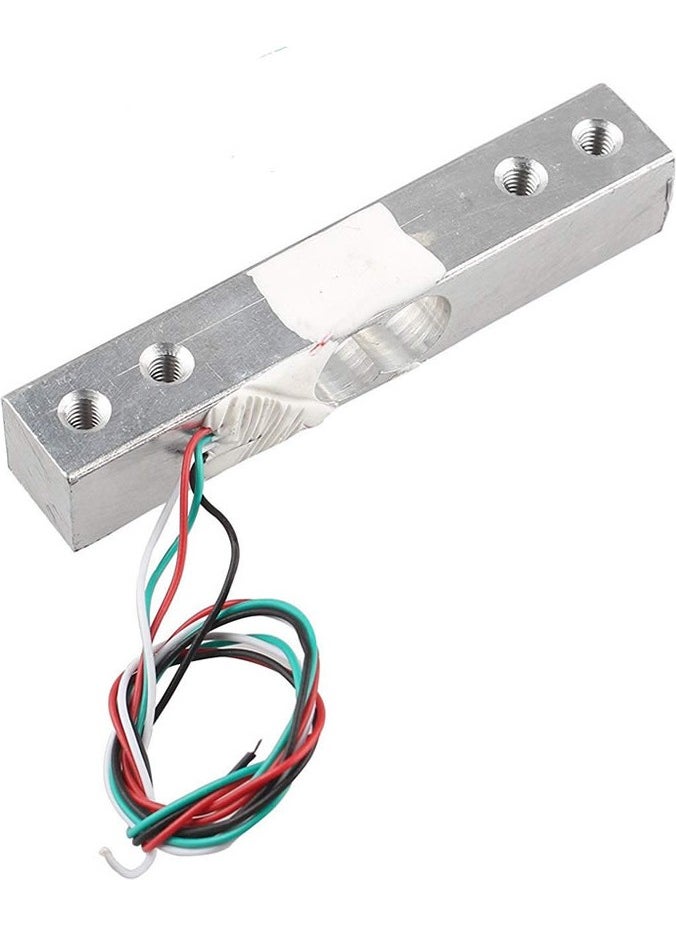

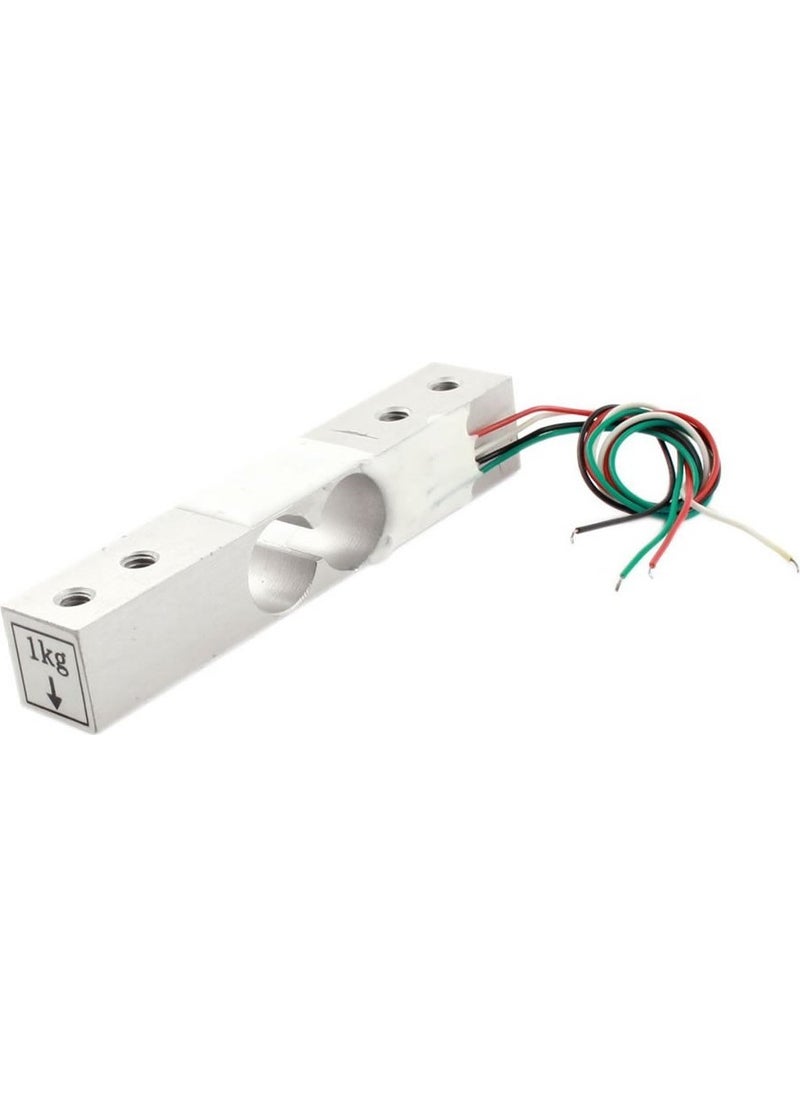

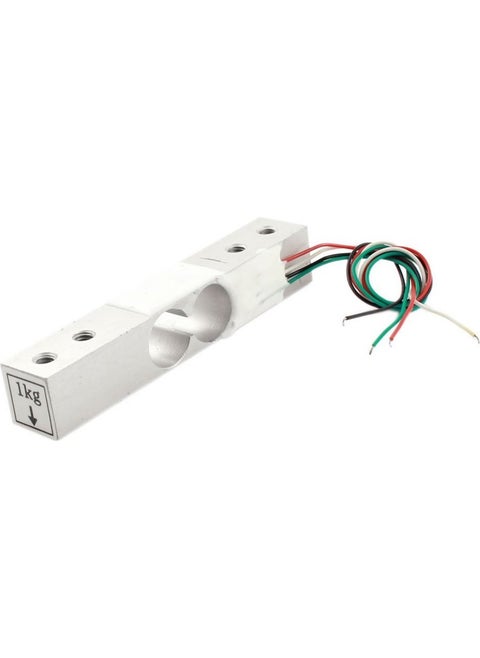

       Load Weight Sensor is used to measure weights up to 1 Kilogram. If you want to increase the measuring weight, you can increase the sensors in parallel. It has a half-bridge structure. 2 kg can be measured with 2 sensors, 4 kg can be measured with 4 sensors. Made of durable aluminum material.

      There are 4 cables on the product. It provides analog output. It can be used with weight sensor modules such as HX711. An example Arduino circuit connection is shown in picture number 8.



Features:

•     Capacity: 1kg
•     Comprehensive error (%F.S): 0.2
•     Output sensitivity (mv / v): 1.1 + 0.15
•     Non-linear (%F.S): 0.2
•     Repeatability (%F.S): 0.1
•     Hysteresis (%F.S): 0.2
•     Creep (%F.S/3min): 0.1
•     Zero Drift (%F.S/1min): 0.1
•     Temp. 0.2: zero (% F.S/10 ° C) Effect
•     Temp. Output Effect (% F.S/10 ° C): ≤ 0.15
•     Zero output (mv / V): ± 0.3
•     Input Resistance (Ω): 1000 ± 50
•     Output resistance (Ω): 1000 ± 50
•     Insulation Resistance (M): ≤ 2000 (100VDC)
•     Excitation voltage (V): 5 ~ 10
•     ÇWorking Temperature Range (° C): -10 ~ +50
•     Overload Capacity (% F.S): 150
•     Wire connection method: red = Sig +, white = Exc -; blue = Exc +
•     Dimensions (mm): 80mm x 13mm x 13mm
•     Weight: 30gr



Package Contents:

• 1 Piece 1 Kg Weight Sensor
