Alkatronic PN532 13.56Mhz RFID Reader Module V3 IIC SPI Uart Mini NFC Magnetic Wireless Card Tag Reader

13.56Mhz RFID Reader Module V3

IIC SPI Uart Mini NFC Magnetic Wireless Card Tag Reader Personnel Tracking Door Entry Control Counter Portable Handheld Device RFID

     It is an NFC RFID reader and writer card operating at a frequency of 13.56Mhz. It can read RFID cards without contact up to 6cm distance. It is widely used in many application areas such as door control, personnel tracking, various meter applications. It is suitable for use in many places with its small structure. It can read and write RFID cards.

     There are 2 pin dip switches on the pcb. Communication type selection can be made with this dip switch. There is also an internal antenna on the pcb. NFC has become widespread with smartphones. You can easily do NFC applications with this product.

Features :

•     Working mode:  NFC / RFID Read Write
•     Working voltage: DC 3.3V/ 5V
•     Communication: IIC / SPI  / HSU (High speed UART)
•     2 Pin communication adjustment dip switch
•     Card reading distance: 4cm / 6cm
•     Working current：150mA
•     Working frequency：13.56MHz
•     internal pcb antenna
•     Working temperature：-20C  /  80C
•     Indicator LED.
•     Color: Red
•     2 mounting holes

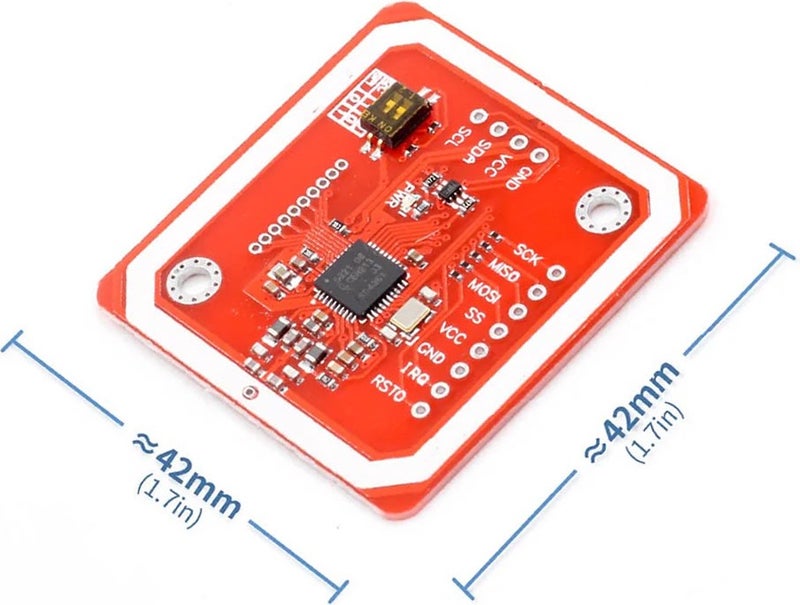

•     Dimensions:  41mmx43mm
•     Weight: 6gr


    Package Content:

•     1 Piece PN532 13.56Mhz RFID Reader
