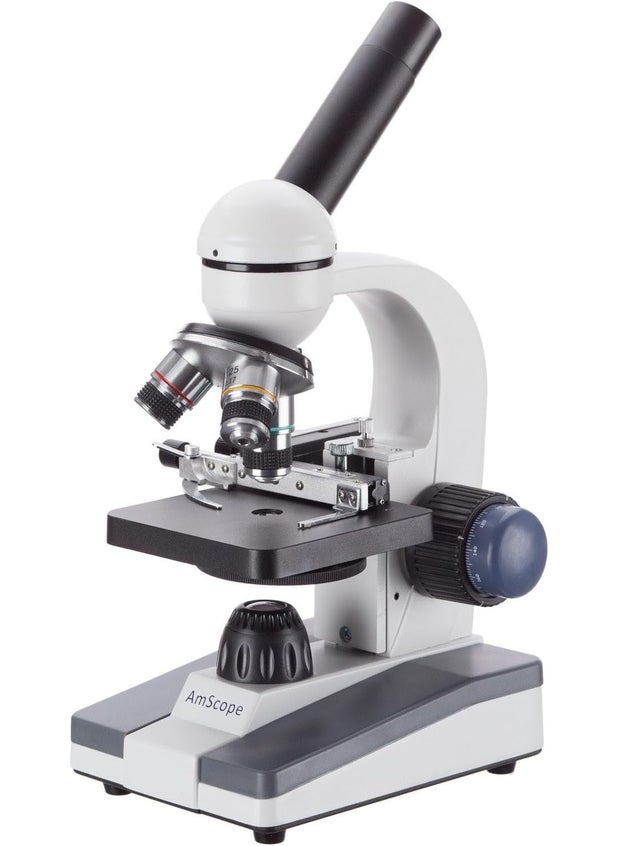

AmScope M150MS Compound Monocular Microscope WF10x Eyepiece 40x400x Magnification LED Illumination Brightfield SingleLens Condenser Coarse and Fine Focus Mechanical Stage 110V

The AmScope M150-MS monocular compound microscope has one 10x widefield eyepiece, a forward-facing nosepiece with three DIN achromatic objectives, LED illumination, coaxial coarse and fine focus, a 0.65 NA single-lens condenser, and a mechanical stage. The forward-facing revolving nosepiece has 4x, 10x, and 40x DIN achromatic full-glass objectives that provide high-resolution color-corrected images. The monocular viewing head has one 10x widefield eyepiece on a fixed 45-degree vertical inclination to reduce eye and neck strain and 360-degree rotation capability to provide a more comprehensive view and enable sharing. A compound microscope is used for inspection and dissection of specimens when two-dimensional images are desired. The microscope has lower (diascopic) Brightfield illumination that transmits light up through the specimen for enhanced visibility of translucent and transparent objects. Brightfield (BF) illumination allows the specimen to absorb light, resulting in a dark image on a light background. LED illumination provides bright, cool light for working with temperature-sensitive or live specimens. The 0.65 NA single-lens condenser and disc diaphragm control the amount of light illuminating the specimen. The mechanical stage locks the slide into place and provides precise slide manipulation along the X- and Y-axis, an opening for light transmission, and stage clips to secure the slide or specimen in place while viewing. A stage stop prevents the stage or specimen from coming into contact with the objectives. Coaxial coarse and fine focus knobs are nested to speed focusing for left-and right-handed viewers. All mechanical components are constructed of metal for precision and durability, and the solid-metal frame has a stain-resistant enamel finish. The microscope is powered by a 110VAC adapter (included). Specifications HeadCompound monocularEyepiecesWF10xObjectives4X, 10x, 40x achromaticStagePlainLighting configurationTransmitted (lower)CondenserSingle lensDiaphragmDisc diaphragmLight sourceLEDIllumination typeBrightfieldPower110V/60Hz Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries. United Scope manufactures microscopy equipment and accessories under the brand name AmScope. The company, founded in 1996, is headquartered in Irvine, CA. What's in the Box? AmScope M150-MS microscope with mechanical stage WF10x eyepiece 4x DIN achromatic objective 10x DIN achromatic objective 40x DIN achromatic objective (2) Stage clips Dust cover 110V power adapter Instructions
