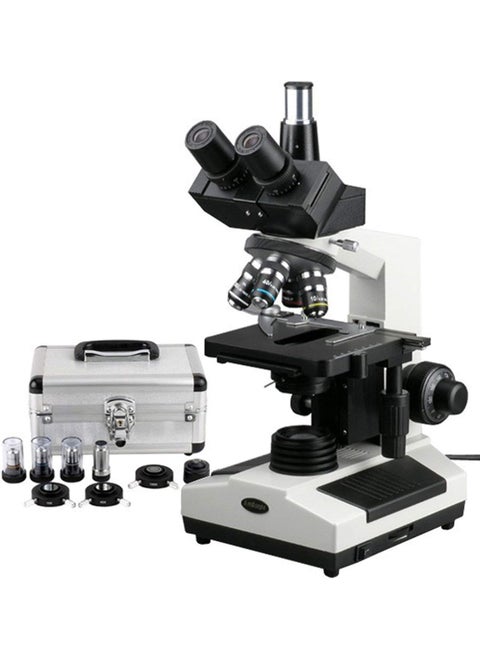

AmScope T390BPCS Professional Compound Trinocular Microscope 40X2000X Magnification WF10x and WF20x Eyepieces Brightfield and PhaseContrast Halogen Illumination Abbe Condenser DoubleLayer Mechanical Stage 110V220V AutoSwitching Includes 3 PhaseContrast Objectives with Rings

The AmScope T390B-PCS professional compound trinocular microscope interchangeable pairs of 10x widefield and 20x widefield eyepieces, a forward-facing nosepiece with four DIN achromatic objectives, three phase-contrast objectives, Brightfield halogen illumination, and a double-layer mechanical stage. The trinocular head has a sliding binocular mount with an adjustable 55 to 75mm interpupillary distance, a fixed 30-degree vertical inclination to reduce eye and neck strain, and a 360-degree rotation capability to provide a more comprehensive view and enable sharing. Dioptric adjustment accommodates individual eye-strength differences. The vertical trinocular port accepts a camera with a 23mm or C-Mount adapter (camera sold separately). The forward-facing nosepiece has 4x, 10x, 40xS (spring), and 100xS (spring, oil) DIN achromatic objectives that combine with the eyepieces to provide color correction of magnified images at eight magnifications. The 40xS objective is spring loaded to prevent slide damage when focusing. The 100xS spring-loaded oil-immersion objective uses oil between the specimen and the objective lens to provide increased resolution over a standard objective. Three phase-contrast plan objectives (PH10x, PH40x, and PH100x) combine with the eyepieces to provide phase-contrast images. Plan objectives provide improved focus over the entire range of the viewing field. A compound microscope is used for inspection and dissection of specimens when two-dimensional images are desired. The microscope has lower (transmitted, diascopic) Brightfield and phase-contrast illumination that transmits light up through the specimen for enhanced visibility of translucent and transparent objects. Brightfield (BF) illumination allows the specimen to absorb light, resulting in a dark image on a light background. Phase-contrast provides high contrast and visibility without the use of stains, allowing specimens to be observed in their natural state without being killed or fixed. Halogen illumination provides bright light in a concentrated path. The 1.25 NA Abbe condenser is mounted on a rack-and-pinion control system, can be adjusted to control the distance of the light from the stage, and has an iris diaphragm to optimize the amount of light illuminating the specimen. The double-layer mechanical stage, with 1mm stage divisions, locks the slide into place and provides precise slide manipulation along the X- and Y-axis to allow coordinates to be recorded, enabling the viewer to return to a specific location on the slide. Graduated coaxial coarse and fine focus enables measurements to be taken. The enamel-coated cast-steel body is durable and resistant to stains and corrosion. Specifications HeadCompound trinocularTrinocular port23mm or C-MountEyepiecesWF10x, WF20xObjectives4X, 10x, 40xS, 100xS (oil), PH10x, PH40x, PH100xStageDouble-layer mechanicalLighting configurationTransmitted (lower)Condenser1.25 NA AbbeDiaphragmIrisLight sourceHalogen, 6V/20WIllumination typeBrightfield and phase-contrastPower110V/220V, auto-switchingWeight10lb./4.5kg Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries. United Scope manufactures microscopy equipment and accessories under the brand name AmScope. The company, founded in 1996, is headquartered in Irvine, CA. What's in the Box? AmScope T390B microscope with phase-contrast condenser and double-layer mechanical stage WF10x eyepiece, one pair WF20x eyepiece, one pair 4x DIN achromatic objective 10x DIN achromatic objective 40xS DIN achromatic objective 100xS (oil) DIN achromatic objective PH10x phase-contrast plan objective PH40x phase-contrast plan objective PH100x phase-contrast plan objective (3) Phase-contrast rings CT lens Immersion oil, one bottle (3) Color filters, blue, green, and yellow Spare halogen bulb Dust cover Power cord (US and Canada standard) Instructions
