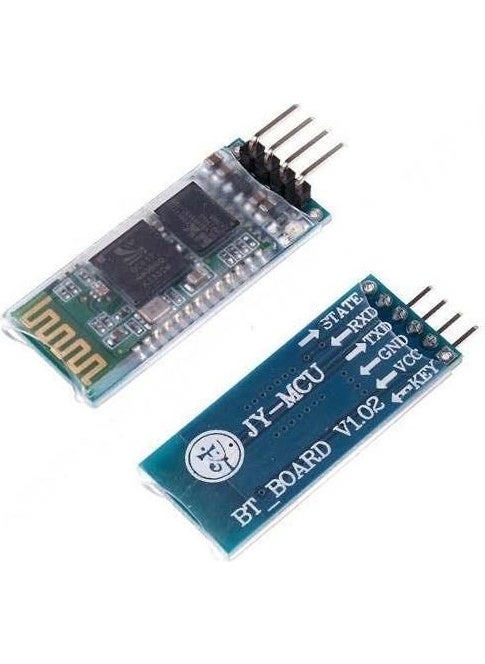

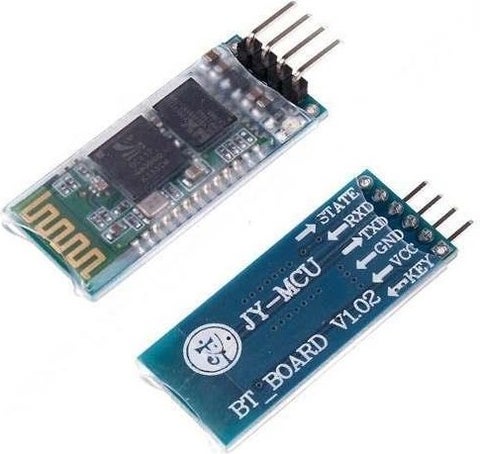

Arduino Hc-06 Bluetooth Module

ALL OUR PRODUCTS ARE AVAILABLE FROM OUR STOCK.

• Works with any USB Bluetooth adapter.
• Default Baud Rate: 9600,8,1, n.
• Internal antenna.
• Coverage up to 30 feet.
• Bluetooth version: V2.0 + EDR
• Working voltage: 3.3V
• Default Baud Rate: 9600,8,1, n.
• Signal coverage: 30ft
• Item Size: 4.3*1.6*0.7cm
• Product weight: 3g
• Packaging dimensions: 9*3*1cm
• Packaging weight: 8g
• Commercial Series: Bluetooth module board Series
• Use 150mA and 3.3V regulation chip, with LED indicator light.
• VCC.GND.TXD.RXD stand for Bluetooth
• "Redial" button (with ON/OFF/WAKE foot for this, external MCU output 'High level' can control the module so you can redial)
• Compatible with 'slave module' or master-slave (whole) module of Bluetooth master module.
• Input voltage: 3.3 - 6V
• Size: 1.55cm*3.98cm
