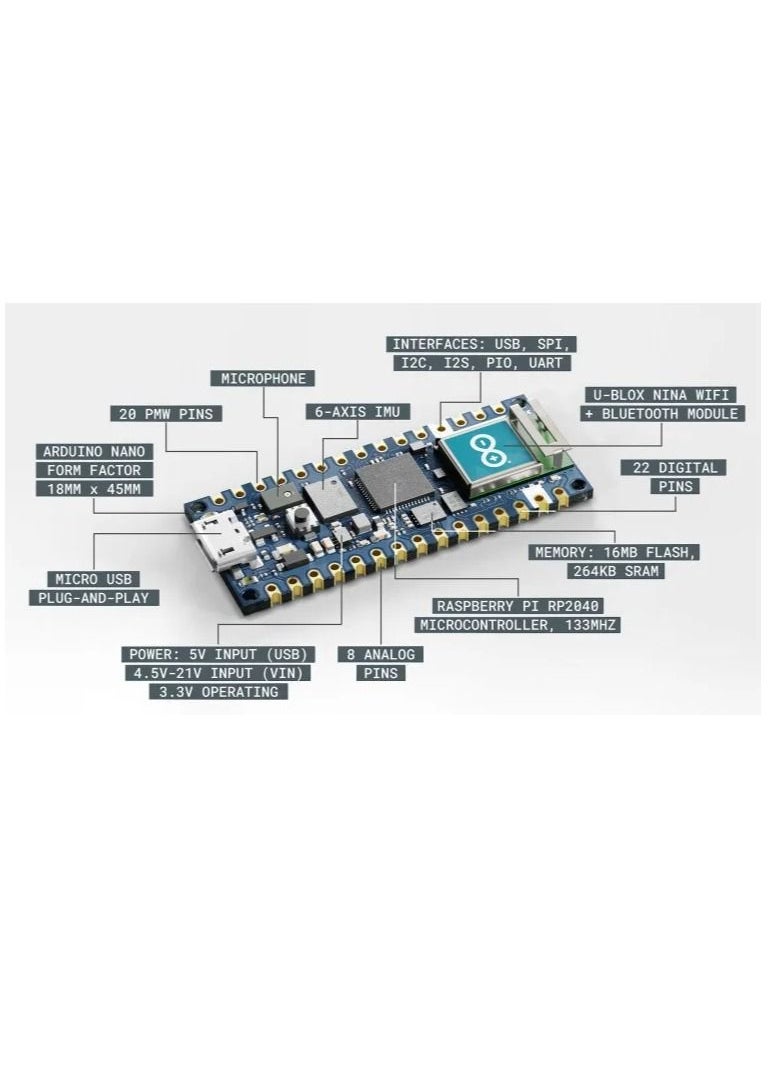

Highlights- Interfaces: USB, SPI, I2C, I2S, UART, PWM
- U-Blox Nina chip for WiFi / Bluetooth wireless communication
- MicroUSB connector for computer connection and 5V power supply
- Built-in microphone, RGB LED and 6-axis IMU
- Based on Raspberry Pi RP2040 microcontroller clocked at 133 MHz
- Built-in 16MB Flash memory and 264kB SRAM
- 20 PWM pins, 8 analog pins and 22 digital pins
- Standard dimensions for Nano series – 45 x 18 mm
- Power supply voltage 4.5 V to 21 V

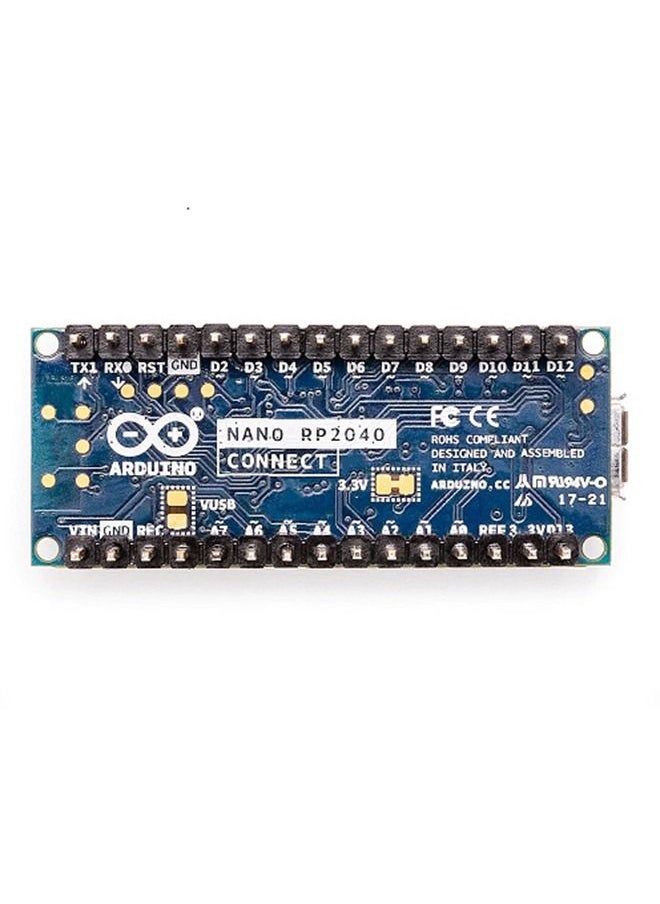

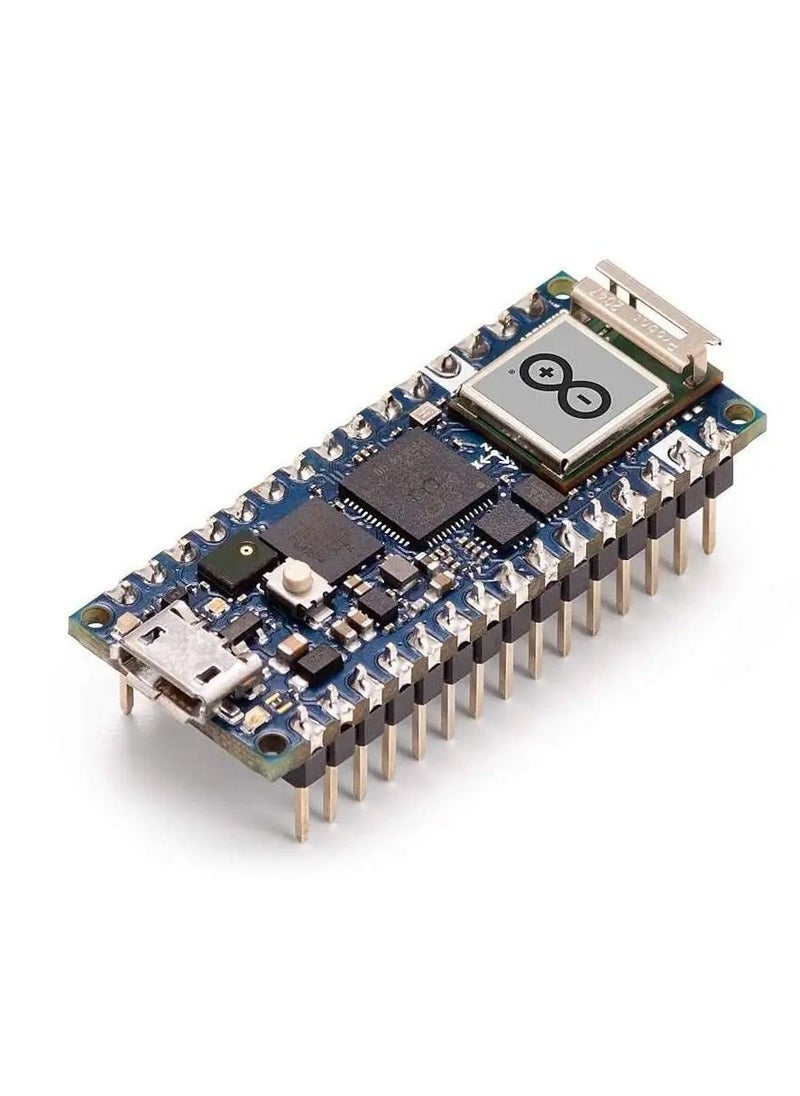

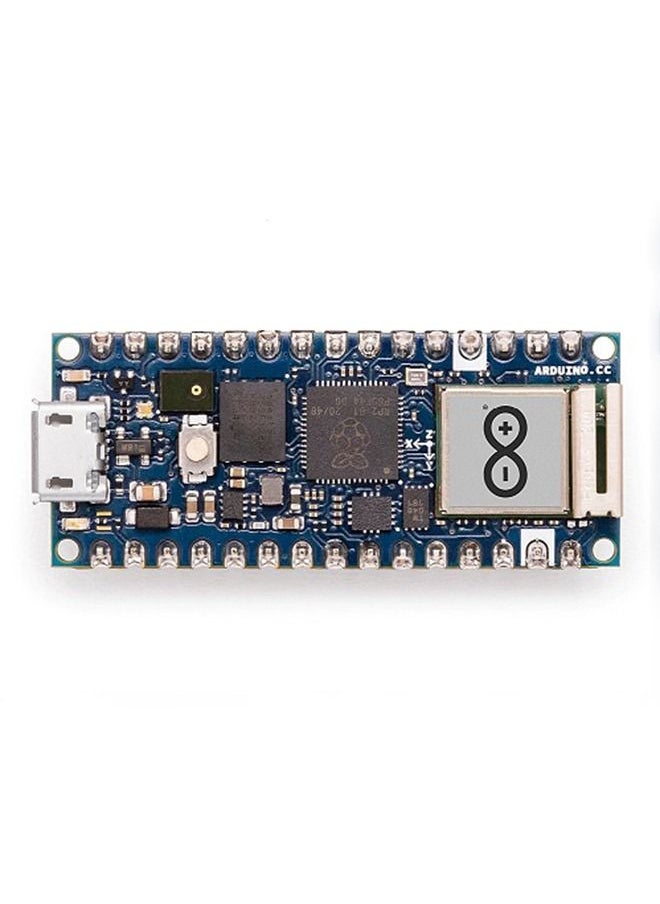

OverviewAnother module from the series Arduino Nano This is the first Arduino board created in cooperation with Raspberry Pi. Arduino Nano RP2040 Connect module is based on the chip Raspberry Pi RP2040 and it’s the first module that combines this chip with additional sensors and connectivity on one PCB. The board houses the aforementioned RP2040 chip, a 6-axis sensor IMU, a U-Blox Nina chip for wifi and Bluetooth communication, as well as a microphone and an RGB LED. The IMU chip has machine learning capability, so additional sensing algorithms are available. The terminals of the Arduino Nano RP2040 Connect module operate at 3.3V. This version has soldered pins.
