AS33-IPCX 7 SCREEN IPC-ONVIF-AHD-CVI-TVI-HDMI-ANALOG INPUT CCTV CAMERA TESTER

ALPSAT IPCX33 7 Screen IPC-ONVIF-AHD-CVI-TVI-HDMI-Analog Input CCTV Camera Tester Features

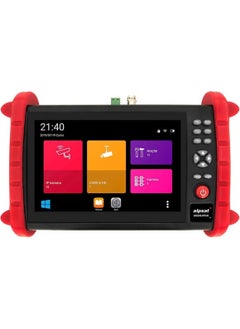

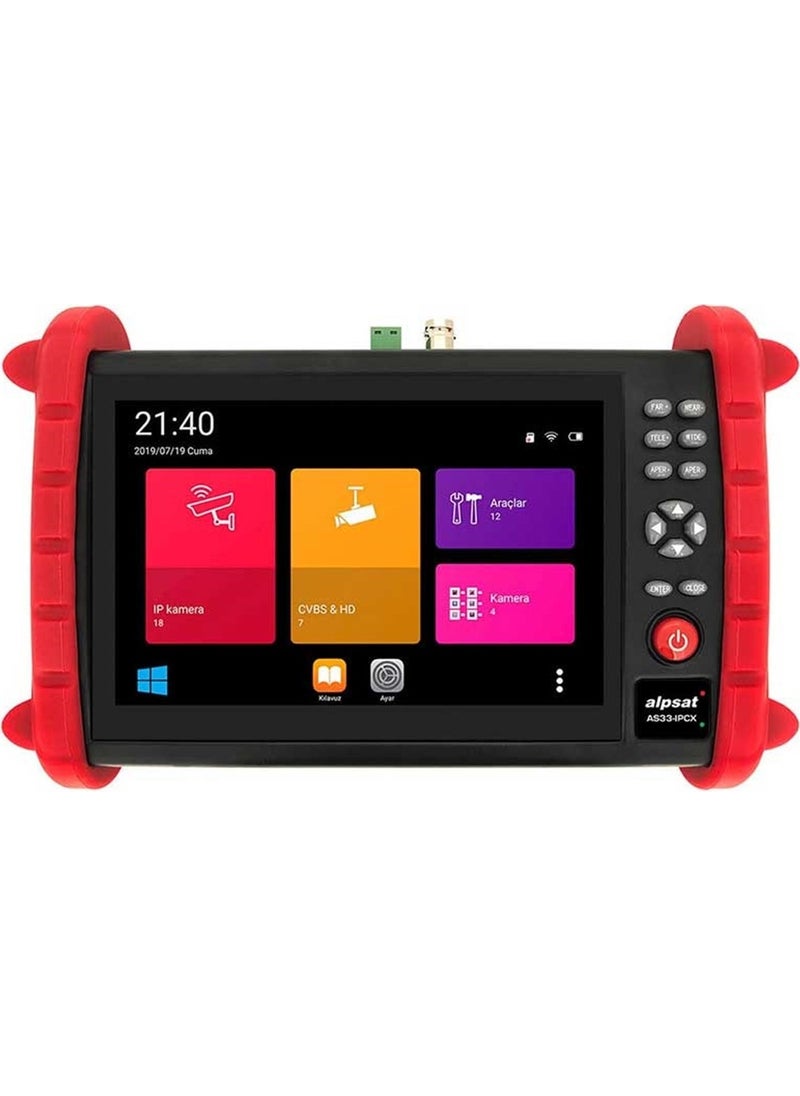

• Description: ALPSAT IPCX33 7" Screen CCTV Camera Tester
• Touch Screen: 7" G-G Capacitive Touch Screen
• LCD Screen: 7" 1920*1200 Resolution IPS HD
• Ethernet Port: 10/100/1000M Adaptive
• Wifi: Built-in Wireless Wifi, 150M
• IP Camera Test: 4K H.265 IP Camera Test, Real-time Image Without Delay, Video Image, Recording and Playback Support
• Onvif: Onvif tool can support Dahua, Hikvision, Acti, Samsung and more than 30 manufacturers' private protocols and can be customized, support camera mobile client installation.
• PTZ Control: Support more than 30 types of portocol, such as Pelco-D/P, Samsung, Panasonic etc.
• CVBS Analog Camera: 1 Channel CVBS Analog Signal Input, Supports PAL/NTSC Format.
• HD Camera Test: HD TVI 8MP, CVI 8MP, AHD 5MP Support
• Video Image Zoom: Real-time Zoom Motion HD Video Image, Maximum 8 Times Magnification
• Audio Test: One Channel Audio Signal Input for Testing, One Channel Audio Output for Connecting Headphones, Can Be Recorded and Stored.
• DC12V Power Output: DC12V Power Output, Maximum Current 2A, Provides Power for Cameras.
• DC24V Power Output: DC24V Power Output, Maximum Current 1A, Provides Power for Cameras.
• PoE Power Output: 48V Standard PoE Output Provides PoE Power for Cameras.
• DC5V Power Output: Provides Temporary Power for USB-powered Cameras or Emergency Power for Mobile Phones, Maximum Current 2A.
• PSE Current Test: Displays the Voltage and Circuit Status of the PoE Power Supply Device.
• HDMI Video Input Test: Input HD Video Image to Device to Test Video Recorder.
• RS485 Serial Port Device: Can Send or Receive Any Data or Hexadecimal Data.
• Charger: DC 12V/2A
• Battery: Built-in 7.4V Polymer Lithium Battery, Capacity 7000mAh, Can Work Continuously for 6-8 Hours.
• Language: 13 Languages Like Turkish, English, Germany, Spanish, Portuguese, Russian, French, Polish, Korean, Japanese and Italian
• Internal SD Storage: 8G
• Working Frequency: -10°C ~ +50°C
• Working Humidity: 30% - 90%
• External Size: 23cm14cm4.5cm
• Weight: 0.9kg
• Model: AS33-IPCX

Package Included

• 1X ALPSAT IPCX33 7" Screen CCTV Camera Tester
• 1X 12V-2A Charging Adapter
• 1X User Manual (Turkish)
• 1X Carrying Bag
• 1X Bag Hanger
• 2x Neck Straps
• 1X Hand Strap
• 1X Camera Supply Cable
• 1X RS485 Cable
• 1X Bnc Video Cable
• 1X RJ45 Lan Cable Tester
• 1X 7.4V-700mAh Battery (Built-in)
