Automatic Drain Valve, Air Compressor Drain Valve for Air Compressor Condensate Management G1/2 DN15 Automatic Electronic Timed Drain Valve(:AC110V)

Overview

Features:

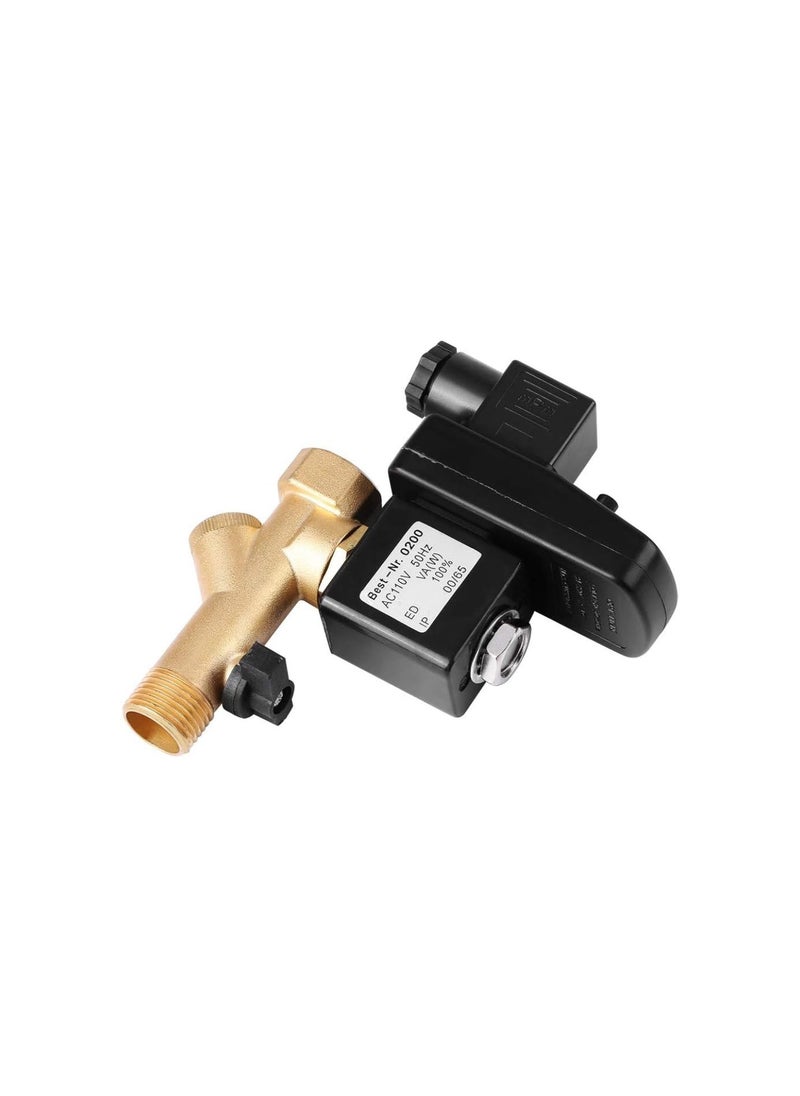

This is a reliable, high quality condensate drain valve to keep compressed air treatment equipment running optimally.

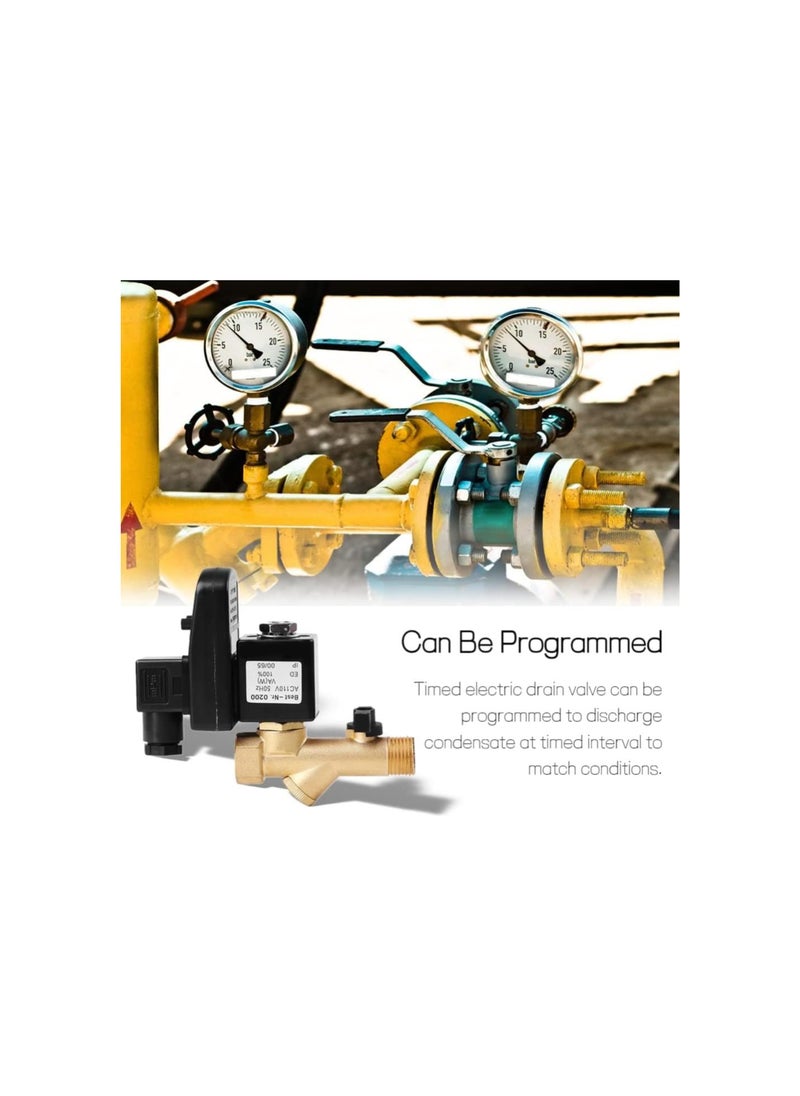

Timed electric drain valve can be programmed to discharge condensate at timed interval to match conditions. Valve open time is adjustable from 0.5 to 10 seconds, and close time is from 0.5 to 45 minutes.
It operate automatically and waste less compressed air when discharging condensate. G1/2 thread is widely used and can fit for most air compressors.

Specifications:

Voltage: AC110V, AC230V (Optional)

Type: Integrated

Valve Material: Brass

Valve Operating Modes: Direct-acting

Interval(OFF): 0.5-45min.

Discharge Time: 0.5-10sec.

Thread: G1/2 (DN15)

Thread Outer Diameter: Approx. 21mm

Pressure: 0-1.6Mpa

Fluid: Air, water

Fluid Temperature: -5℃~80℃
Fluid Direction: One-way

Package Includes:

1 x Drain Valve

Note: The AC230V one can also connect to AC220V.
