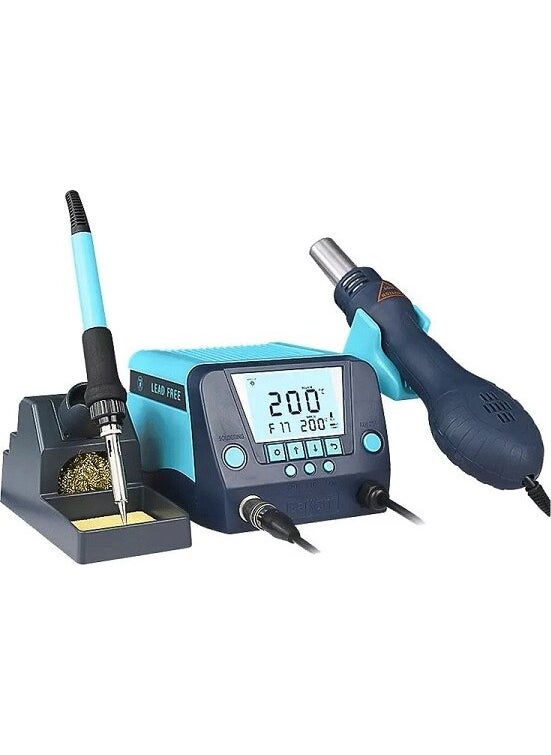

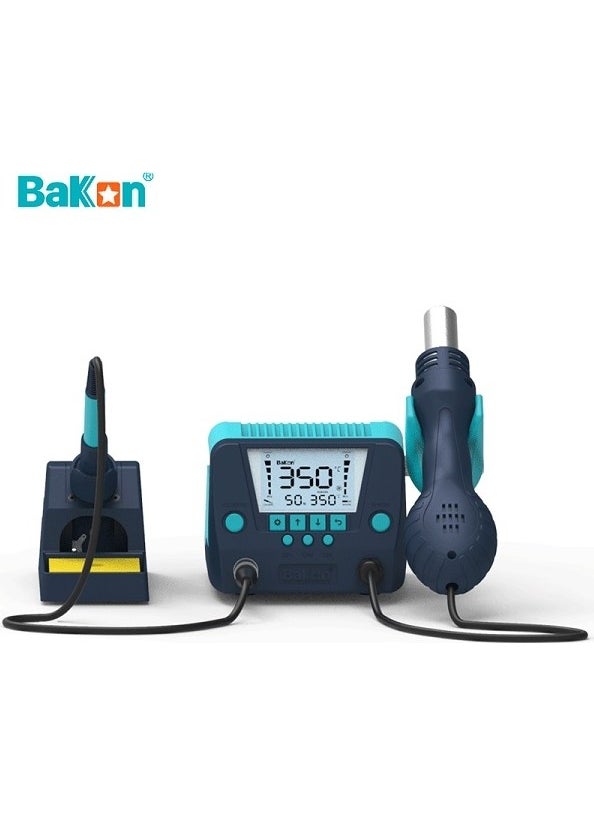

Bakon Bk881 Intelligent 2 In 1 Soldering Iron StationWith Conventional Soldering Station and the Station Required for Soldering and Disassembling Qfp, Sop, Plcc, Soj, Etc. Smd Components It is designed and produced as a single body to save your workspace with its space-saving dimensions.
It Has Excellent Antistatic Design (Esd) For Both Assembly And Disassembly Of Most Components. Both Modules Have Separate Power Switches and Can Be Used Independently or Together.
Bakon Bk881 Intelligent 2 in 1 Soldering Iron Station, which works extremely quietly, allows you to save your workspace with its space-saving dimensions. Very Stylish 2.9'' for Accessing Precise Temperature Data Details It is ideally designed for professionals with its large size LCD digital display.
In addition to having adjustable temperature values, Bakon Bk881 Intelligent 2 in 1 has a unique password locking function that strictly controls every process so that the temperature of the soldering iron station cannot be changed at will. It has the feature of saving temperature settings and air volume settings. Temperature Data at Different Values Related to the Frequently Used Temperature, with a Single Click, as 3 Different Temperature Value Options in Frequent Settings In This Way You Can Save Provides High Efficiency and Energy Saving.When You Take a Break During Operation and Place the Hot Air Arm on the Standby, It Automatically Stops Working and Starts the Cooling Process, Then It Takes the Sleeping Position Thanks to the Automatic Sleep Sensor.
Password Setting and Locking It Can Save Your Temperature Settings With Its Technology You Can Maintain Temperature Stability

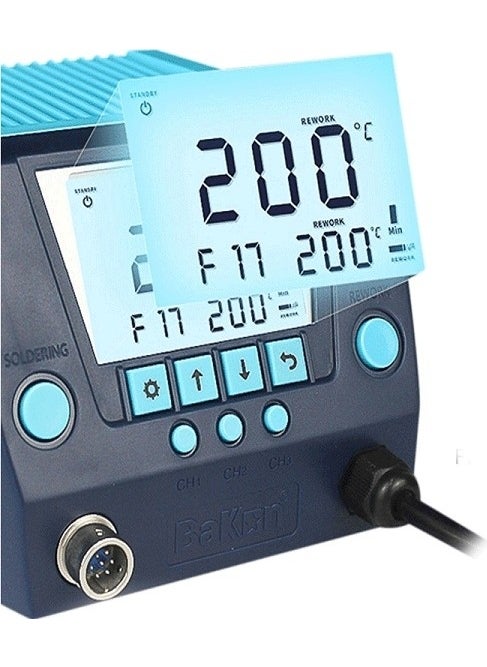

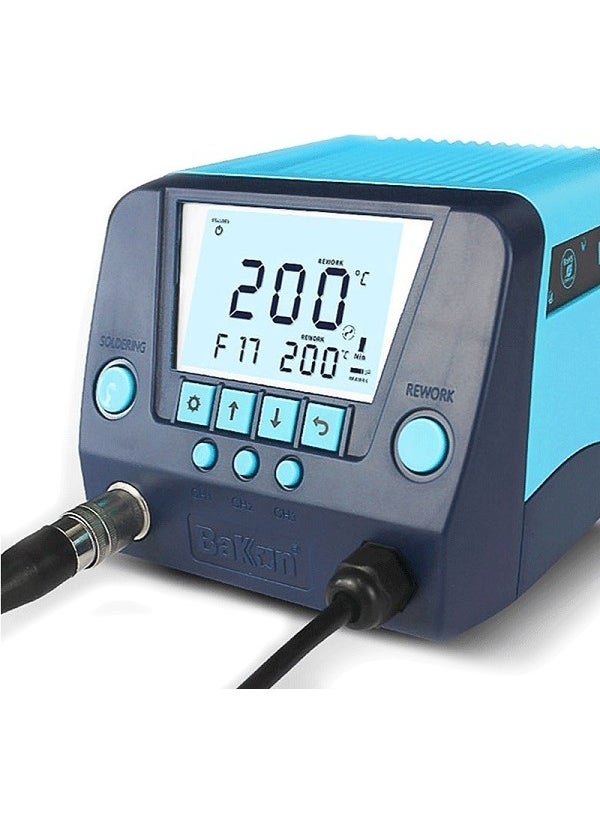

Very Stylish 2.9'' for Accessing Precise Temperature Data Details With its large HD LCD digital screen, all data is clearly readable without tiring your eyes.
Added to the design during the production phase in order to protect your device and personal safety in your work with Bakon Bk881 Intelligent 2 in 1 Soldering Iron Station; You can use your soldering station safely thanks to its many features such as Fault Warning System, Short Circuit, Open Circuit, Over Temperature, Error Detection, and Overload Protection Systems.
Increasing Your Working Efficiency, Bakon Bk881 Intelligent 2 in 1 Soldering Iron Station Takes Only 15 Seconds to Reach the Heat Required for Soldering.
The Soldering Station Fixes the Temperature You Set at the Correct Values Without Deviation, Thanks to the Microcomputer Temperature Control P.I.D with the Latest Technology.
It will surprise you with its performance and technology far beyond your expectations and will be your greatest professional assistant in your work.
Technical Specifications
Brand
Bakon
Model
Bk881
Product code
12.02.08.81
Power Consumption
650w
Hot Air Temperature Range
100℃~500℃
Soldering Soldering Iron Power/ Temperature Range
90w(Max)/180 ℃~480 ℃
Air Volume Range / Maximum Air Volume
120l/Min
Operating Ambient Temperature
0~40 ℃ / 32~104 ℉
Storage Environment/Temperature
-20~80 / -4~176 ℉ / 35%~60%
Display Type
HdLCD Screen
Fan Type
Brushless Vortex Fan
Temperature Calibration
Digital Calibration
Temperature ControlMethod
Microcomputer P.I.D. Temperature Control
Quick Settings
Ch1 / Ch2 / Ch3
Programmable Sleep
There is
Fan Failure Warning
There is
Celsius/FahrenheitConversion
There is
Low Temperature / High Temperature Warning
Yes
HeatingResistance/Sensor/Fault Protection
There is
Voltage (Grounding)
&Le;2mv
Grounding Resistance
&Le;2Ω
Password Password Protection
Yes
Size
150&Times;130&Times;99 Mm
Weight
&Asymp;2.7kg/&Asymp;3.0Kg

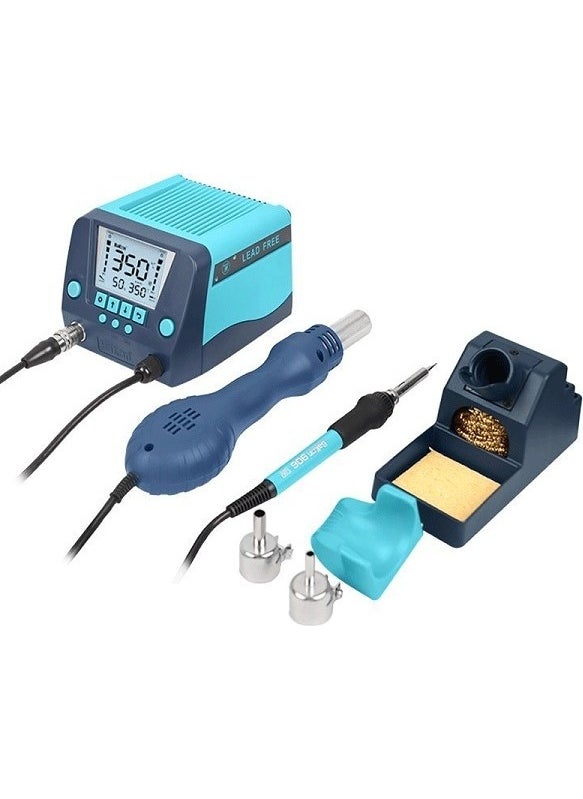

Box contents
[1] Quantity
Bk881 Main Unit
[1] Quantity
Bk906 SolderHandle
[1] Quantity
Bk512 Soldering Arm Stand
[1] Quantity
Hot Air Handle
[1] Quantity
Hot Air Arm Stand
[2] Quantity
Cross Screws
[2] Quantity
NozzleWarranty
&Ndash;The Warranty Period Starts from the Delivery Date of the Goods and the Warranty Period is 3 Years
&Ndash;The entire product, including all its parts, is within the scope of our company's warranty (against malfunctions that may occur due to production and assembly errors and/or defective parts).
&Ndash;If the product malfunctions within the warranty period, the time spent in repair is added to the warranty period. The repair time of the goods is a maximum of 20 working days. This Period Starts When Your Product Reaches Our Central Technical Service.
Application Areas
– Electronic Product Assembly
– Product Development and Scientific Research Laboratories
– Electronic Maintenance Products
– Electric Soldering Process
– Institutions, Organizations, Schools, etc. Providing Skill Training and Performing All Kinds of Electronic Manufacturing and Repair.
– Mobile Phone, PC Repair, Maintenance and Repair Works
– University, Technical Laboratory and R&D Laboratory
