BM800 Car Battery Tester with Printer, 6V/12V/24V Battery Analyzer Cranking Test & Charging Test & Max Load Test PK BT760

OverviewBM800 Battery Tester Main Function:
1. Startup test
* The walking system is good if the starting voltage reading is greater than 9.6v ( for a 24V system, the reading is greater than 16V).
* If the starting voltage reading is less than 9.6V ( for a 24V system, the reading is less than 16V ), there is a problem with the starting system.
* Please check related parts such as connection points, wires and starters, and battery terminals for corrosion.
2. Charging Test
* If the voltage reading is greater than 15.0V ( for a 24V system, the reading is greater than 30.00V), please check the voltage regulator.
* if the voltage reading is less than 13.3V ( for a 24V system, the reading is less than 26.60V), please check the connection points, wires, and engine.
3. Battery Test
it is recommended to replace the Battery when the Battery life is less than 45%.
4. Loading Test
Check whether the battery has enough load capacity to run all electrical equipment such as playing car music etc.
This handy auto battery analyzer makes sure your summer road trips won’t end on a flat.

BM800 has the advantage of print Function:

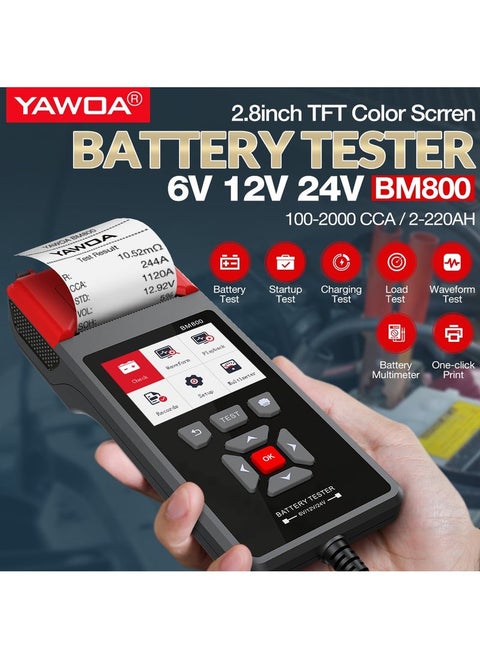

1. BM800 Built-in Integrated Thermal Printer, it allows you to see battery information at a glance. Free three rolls of thermal paper. Simple operation, data visualization.
2. BM800 support 6V Motorcycle,12V Car & 24V Duty Truck Battery Multiple vehicle applications – passenger motorcycles, cars, and duty trucks
3. For example, a car mechanic can enter the license plate number on the device, and then print the test results. There will be license plate number information on the printed paper to prevent the test results of different vehicles from being mixed.

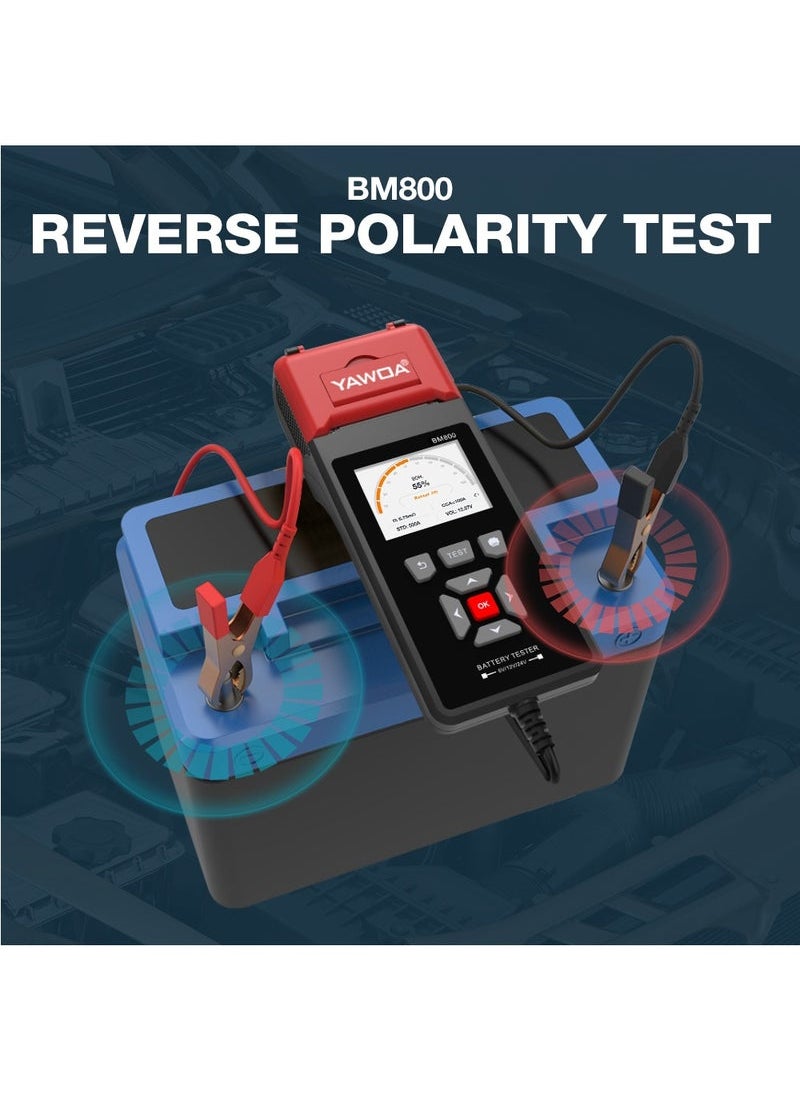

4. BM800 supports the Reverse Polarity Test -- BM800 does not distinguish between positive and negative poles. Even if the positive and negative poles are connected incorrectly, the diagnosis can be carried out normally, and the battery and equipment will not be damaged.

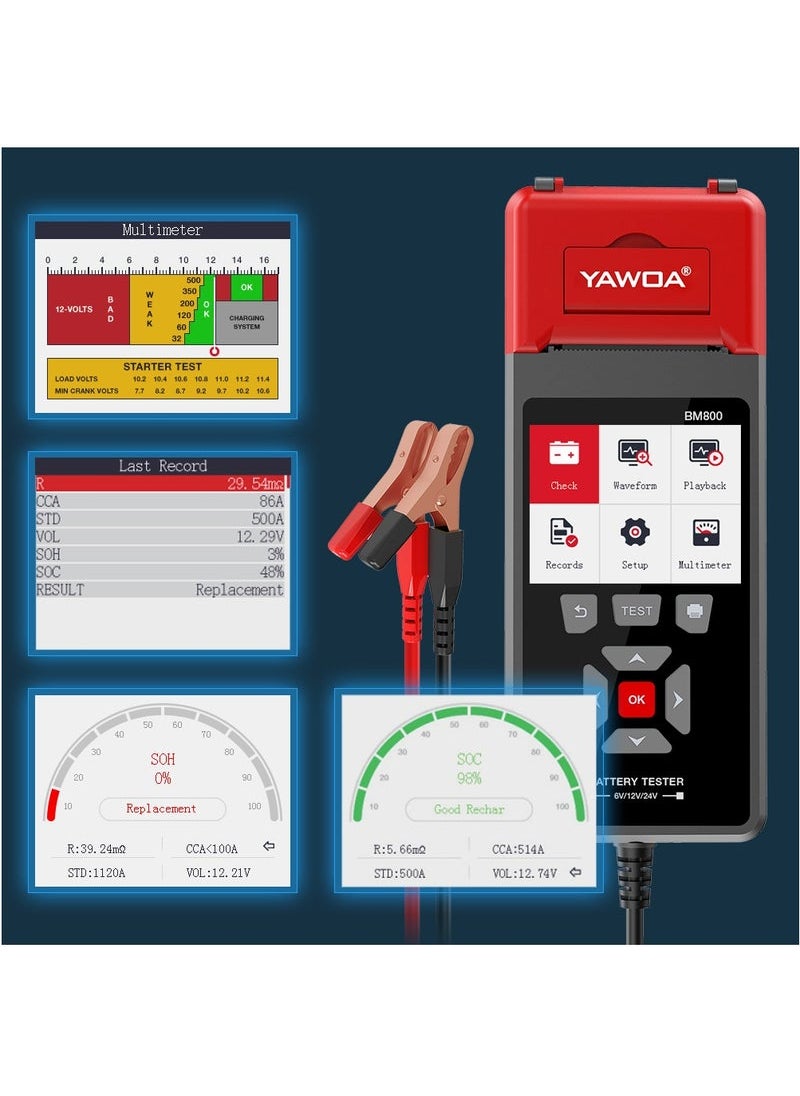

5. BM800 supports Real-time Waveform Monitoring -- Real-time display of voltage fluctuations, you can view the current, minimum, and maximum voltages.

BM800 Support 5 Battery Types:
* Tests batteries rated from 100 to 2000CCA.
* BM800 Battery Analyzer is dedicatedly developed to test 6V & 12V& 24V regular flooded, AGM flat plate, AGM spiral and gel batteries, and 12V & 24V starting and charging systems. It provides a quick, easy, and affordable solution for technicians to check battery health and detect faults in the starting and charging systems.

1. Automatic Storage: Can store 10 waveform monitoring records.
2. Waveform Feedback: Can view saved waveform data.
3. One-click clear: Delete all saved waveform data.

Function:
1. One-Click print Function
2. One-Click Test Function
3. Supports one-click back to Main menu Functions ( Long press 3s the back button )
4. supports One-Click Screenshot ( Long press 3s the up and down keys )

Specifications
Product Size: 8.86*3.54*1.69 inch
Screen Size: 2.8inch TFT Color Screen
Connection Method: Alligator clips regardless of polarity
Test Range: 6V 12V 24V
Operating Voltage: 4.9-32V
Operating Temperature: -20℃-50℃
Product Material: PVC Industrial Material

Packing List
1 x Battery Analyzer BM800 Main Unit
1 x User's Manual
1 x Carton Box
1 x USB Cable
3 x Thermal Paper (Noted: One of the volumes has been installed in the BM800 mainframe.)
