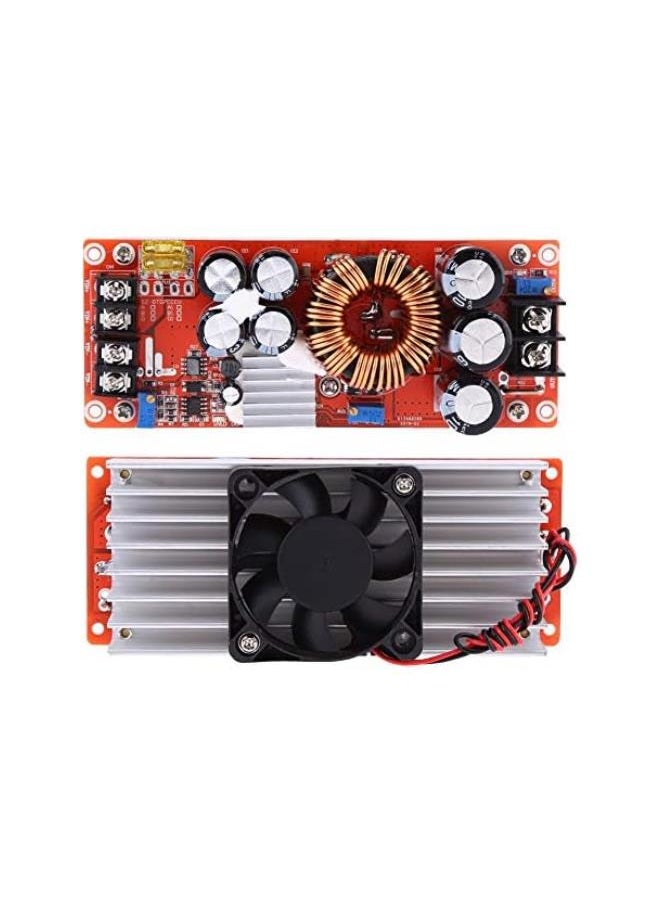

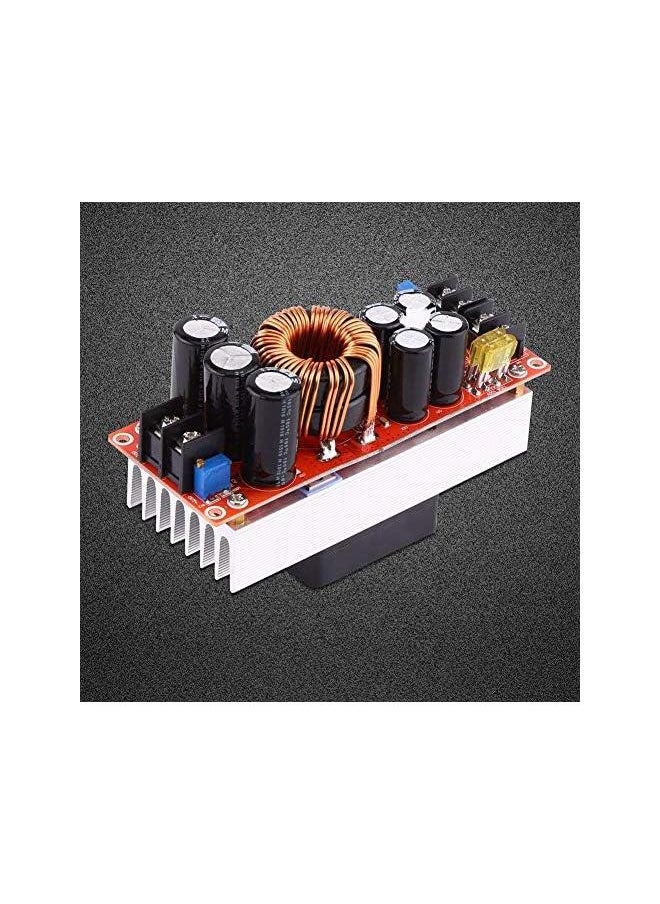

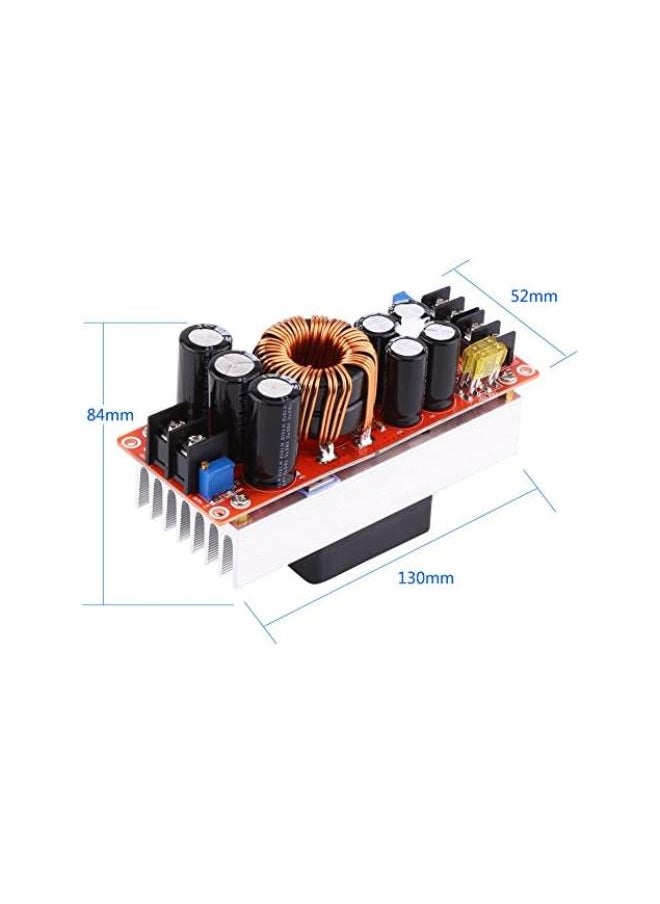

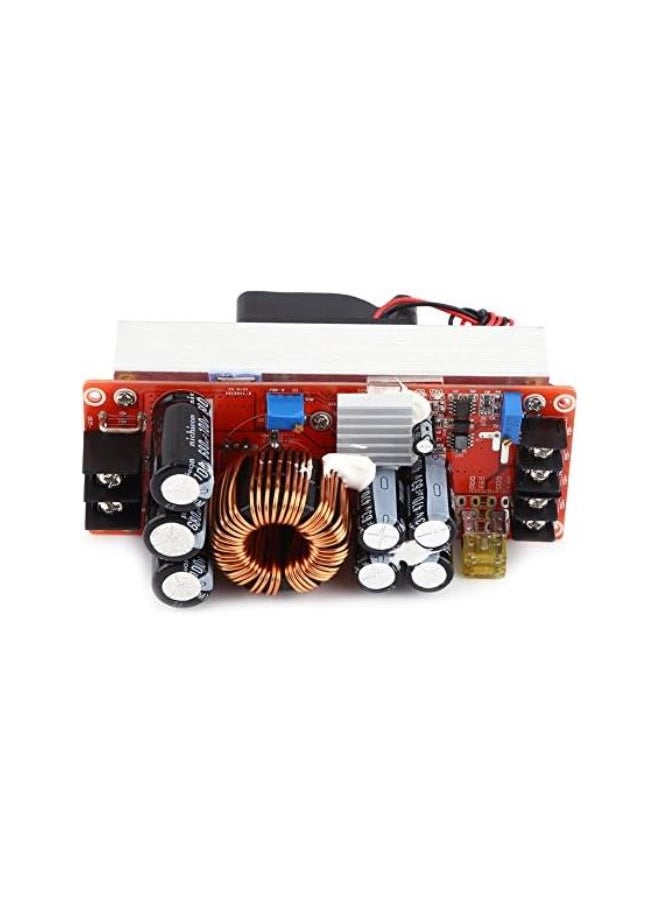

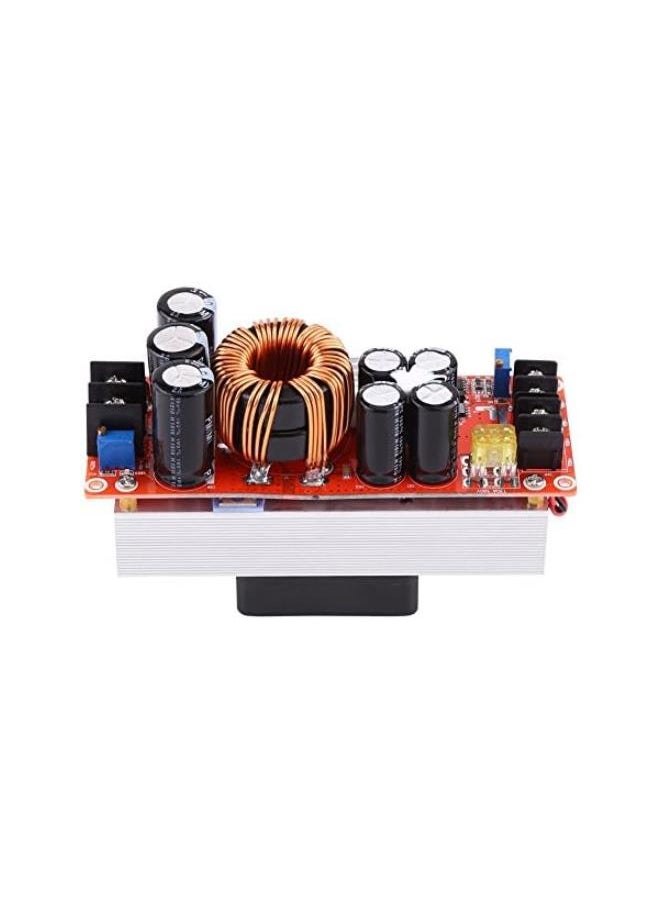

Boost Voltage Converter, 1500W Voltage Regulator Booster DC 10-60V Step Up to 12-90V 30A DC-DC Input Power Supply Module Volt Transformer Circuit Board

Features:

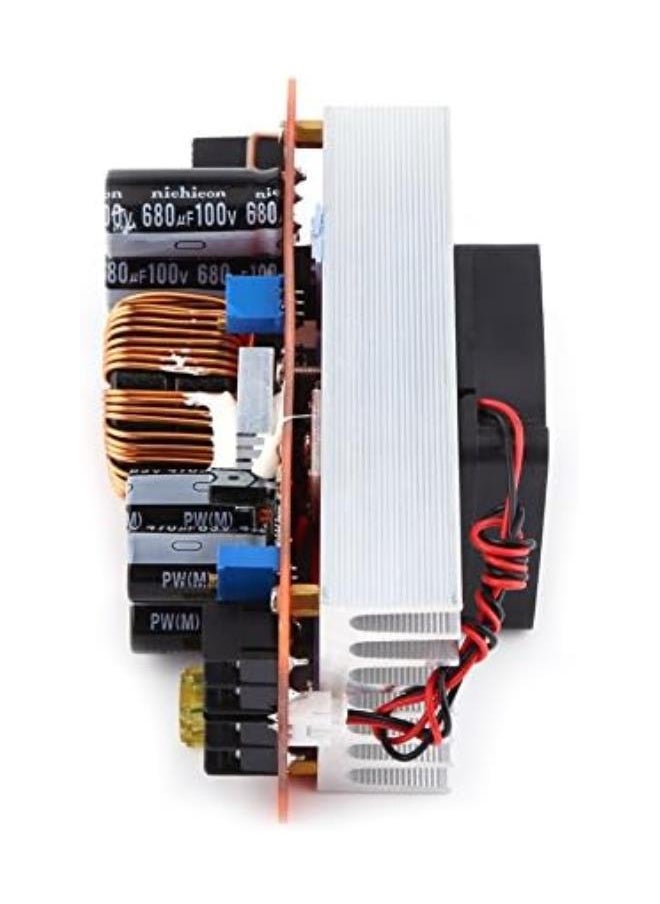

The power supply module uses double sendust magnets winded with 1.2mm copper wires.100V/210A low resistance MOS with big power and current input, suitable for big power LED, motors.Support reverse input protection with MOS so there is no worry about wrong input wire and burn out power supply.Low voltage protection will protect module and battery against damage from over-discharge when use a storage battery as input.Thickened heatsink and intelligent temperature control cooling fan dissipate heat better.
Specifications:
Type: Non-isolated step-up module (BOOST)
Input Voltage: DC10V to 60V
Max. Input Current: 30A(input voltage 10V to 30V)
25A(input voltage 31V to 60V)
Quiescent Current: 15mA(will increase when convert 12V to 20V)
Output Voltage: 12V to 90V (adjustable, default is 19V)
Max. Output Current: 20A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 15A)
Constant Current Range: 0.8A to 20A(+/-0.3A)
Reverse Input Protection: Yes (150A MOS)
Lower Voltage Protection: Yes (V8 to 50V adjustable, self-recovery)
Operating Temperature: - 40 to +85 (if temperature is too high, please enhance heat dissipation)
Instruction:
Voltage Adjustment:
Power on module while not connect to load, then adjust "V-ADJ" potentiometer clockwise to increase, counterclockwise to decrease. Due to large output capacitance capacity, response will be slow when adjust high voltage to low voltage.
Package Includes:
1 x Module
