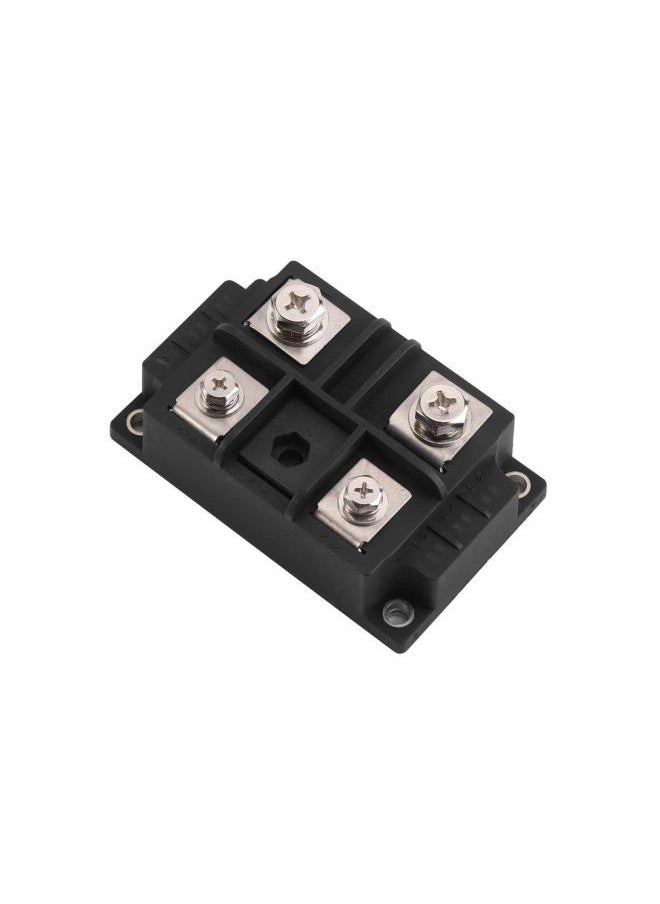

Bridge Rectifier, 1pc Single-Phase Diode Bridge Rectifier 400A 1600V High Power 4 Terminals MDQ Full Wave Diode Module

Description:
This high power bridge rectifier can be widely used for power supply in many situations. It has been designed for single phase rectification, output DC current is 400A. It has a large over-current capacity, good heat dissipation and low voltage drop. This High quality bridge rectifiers used for conversion of an alternating current input into a direct current output

Specifications:
Output Current: 400A
Three Phase Input Positive Average Current: 135A
Repetitive Peak Reverse Voltage(VRRM): 1600V
Repetitive Peak Inverse Current(IRRM): 10mA
Isolation Voltage(Viso): 2500VAC
VTM: 1.5V
ITM: 400A
Phase: Single Phase
Terminals: 4
Max. Junction Temperature: 150
Size: 110 x 68 x 34mm / 4.33 x 2.67 x 1.33"
Quantity: 1

Package Includes:
1 x Bridge Rectifier
