C5 Thermal Imaging Camera with WiFi - Handheld, High Resolution

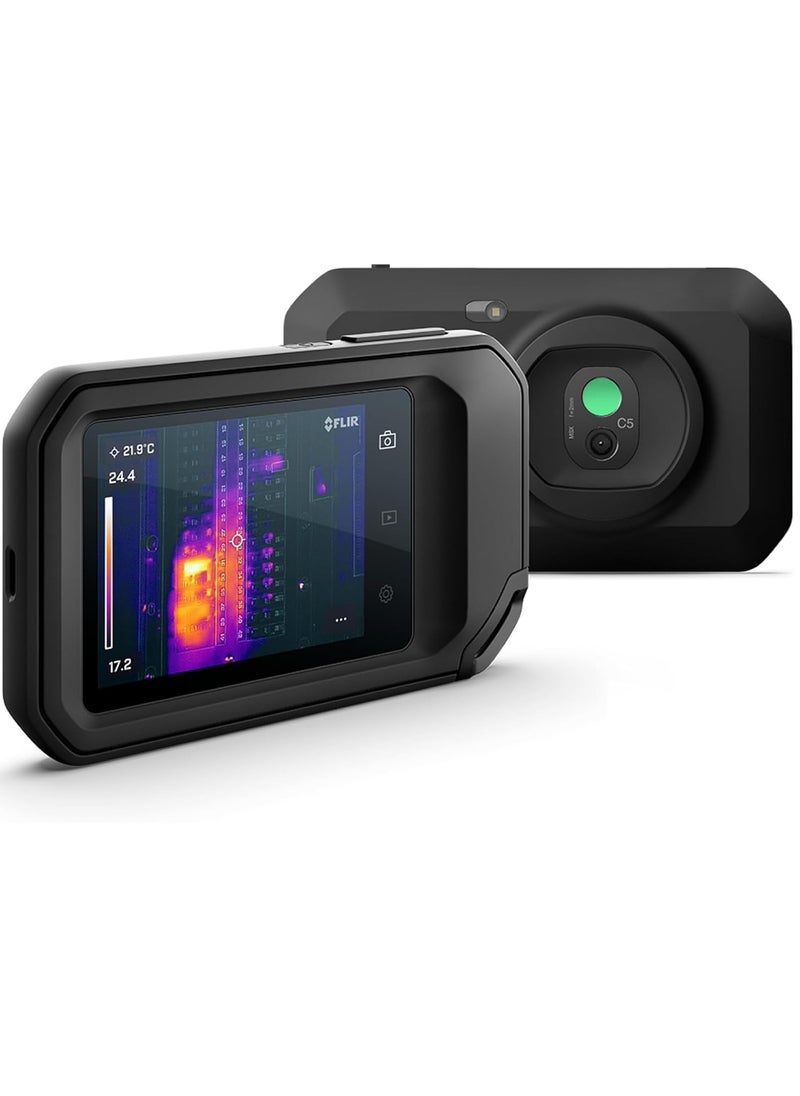

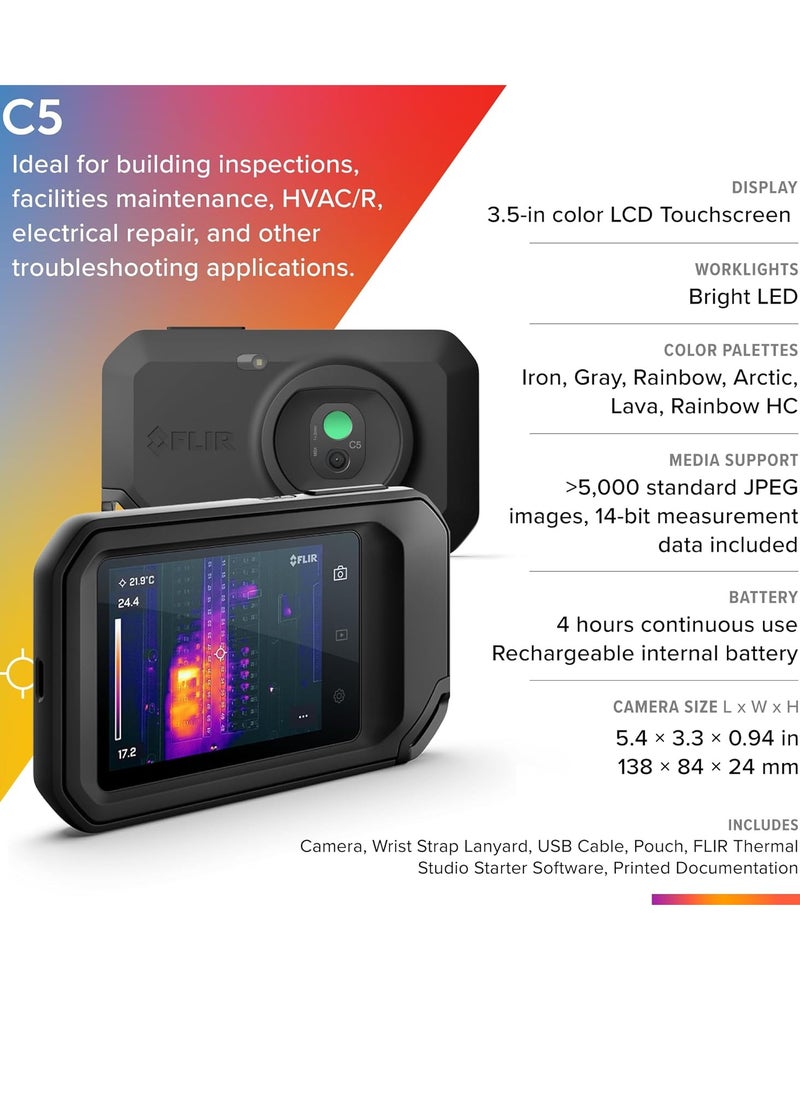

The FLIR C5 compact thermal camera is your go-to tool for building inspections, facilities maintenance, HVAC/R, electrical repair, and other troubleshooting applications. Featuring a thermal camera, visual inspection camera, and LED flashlight, the powerful FLIR C5 makes it easy to identify hidden problems. Built-in FLIR IgniteTM cloud connectivity allows direct data transfer, storage, and backup, so images are always available on all your devices. The 3. 5 inch integrated touchscreen is simple to use, so you can quickly inspect, document repairs, and share evidence with customers. With the FLIR C5 in your pocket, you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more.

Technical parameters:

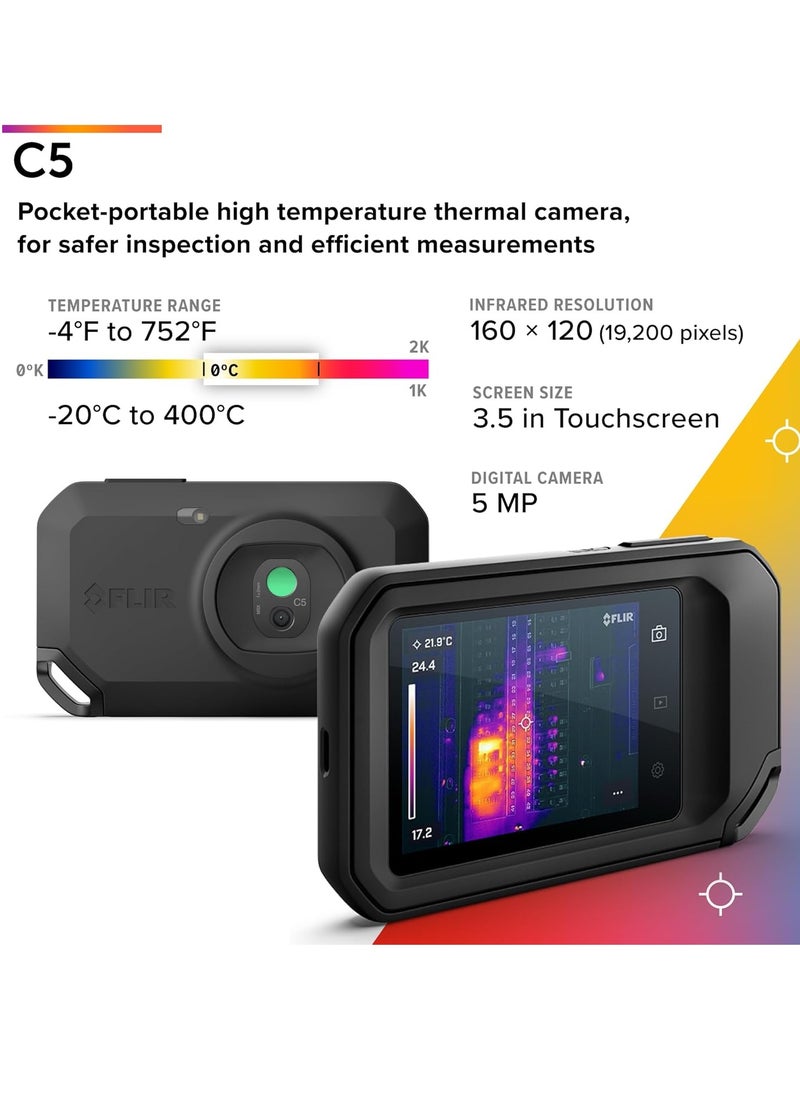

Infrared resolution: 160 × 120 (19.200 pixels)

Thermal sensitivity/NETD:< 70mK

Field of View (FOV): 54 °× 42 °

Minimum focal length: 0.1m for thermal imaging, MSX: 0.3 m

Image frequency: 8.7Hz

Focusing: No focusing required

Wavelength range: 8-14 μ m

Screen size: 3.5 inches

Visible light camera: 5 million pixels

Digital camera focal length: fixed

image display

Image adjustment:

·Automatic level and span

·Manual level and span

One click level and span

Image mode

·Infrared image

·Visible light image

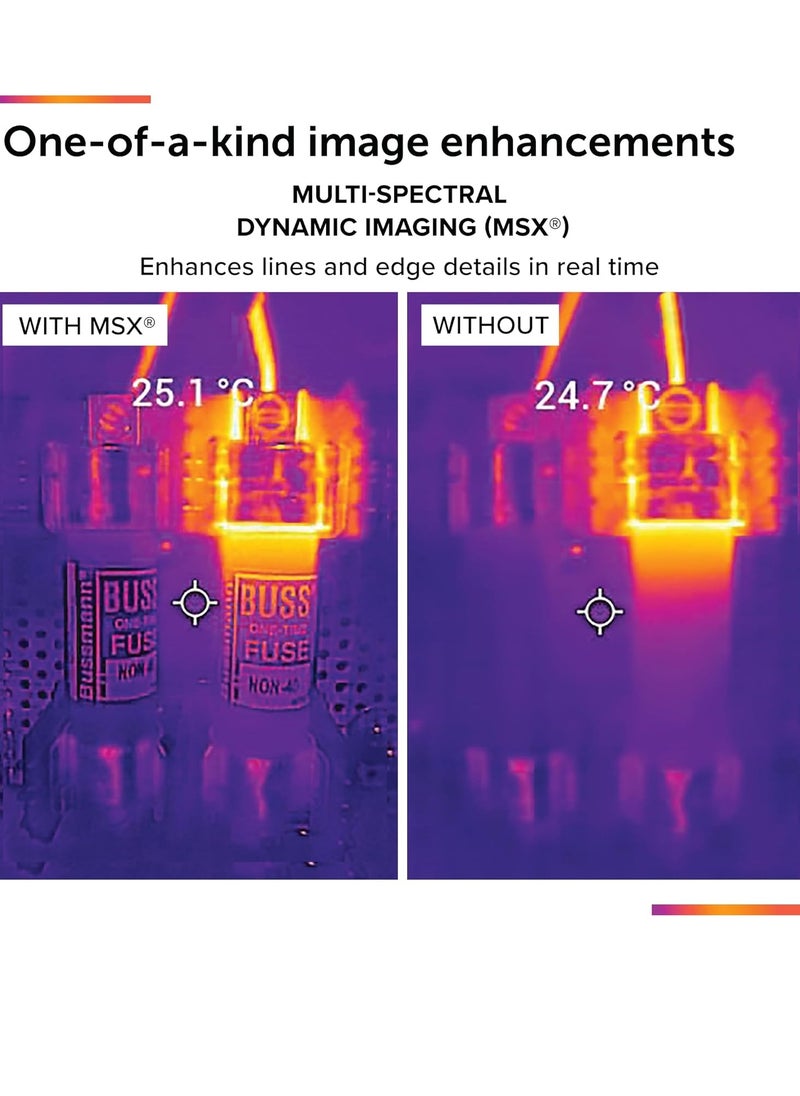

·MSX (overlaying visible light image details onto infrared images)

·Picture in picture (infrared region on visible light image)

Image Library: Thumbnails and Custom Folder Structure

Color palette:

·Iron red

·grey

·Rainbow color

·Arctic White

·Lava color

·High contrast rainbow color

Screen rotation: supported

Touch screen: capacitive touch screen

analysis

Temperature measurement range:- 20-400C

Accuracy: Environmental temperature: 15-35C; Target temperature: above 0C

0-100C:±3C

100-400C:±3%

Measurement function

·Point temperature measurement

·Temperature measurement box (including maximum/minimum values)

Measurement value correction

·Emissivity; Matte/Semi Matte/Semi Gloss+Custom Values

·Surface reflection temperature

·Temperature measurement frame atmospheric compensation

Image storage and transmission

Storage media: internal storage and onboard FLIIRIgnite cloud connection (with Wi Fi)

Image storage capacity:>5000 images

Image format: Standard JPEG, containing 14 bit temperature measurement data

Communication and Connection

Wi-Fi ：802.11 a/ac/b/g/n(2.4 &5 GHz)

USB: USB 2.0, Type-C connector

Bluetooth: PAN

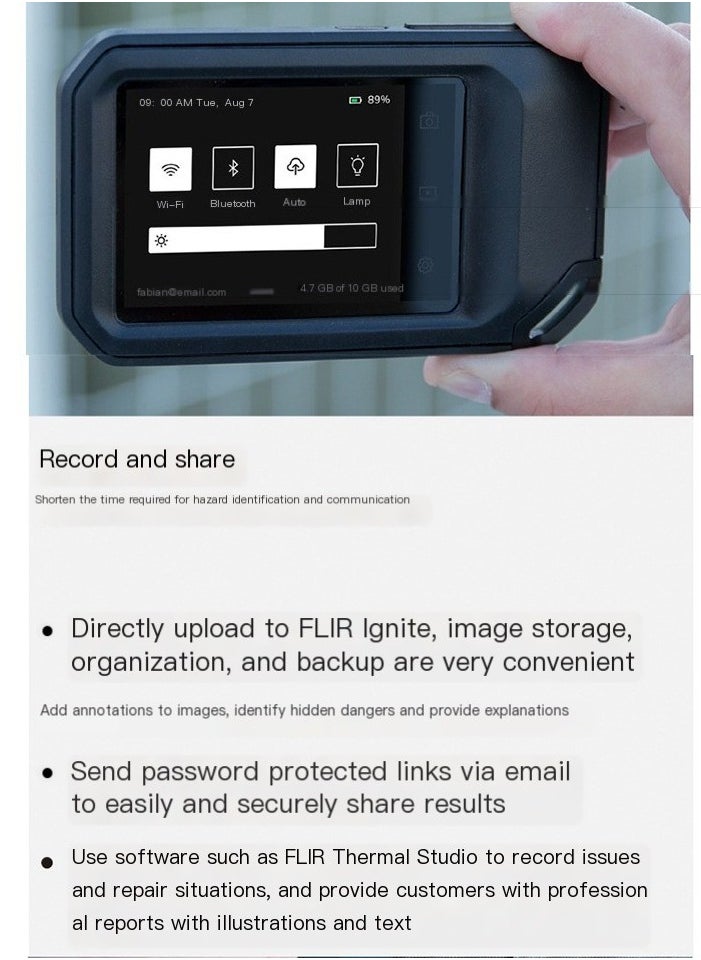

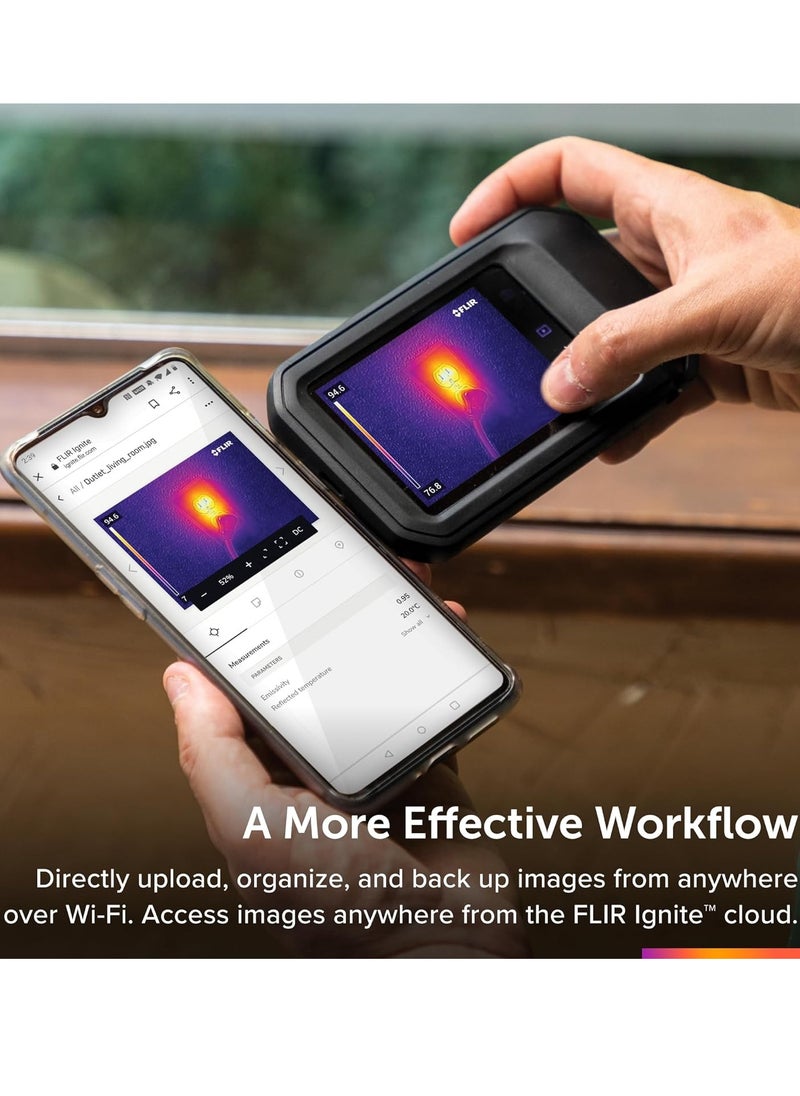

Image upload: Directly upload images to FLIRgnite cloud database and server

Other information

Battery type: Built in rechargeable lithium-ion battery

Continuous working time of battery: 4 hours

Charging system: USB-C(1 A)

Charging time: 2 hours

External power supply: 5V USB-C

Working temperature range:- 10-50C

Storage temperature range:- 40-70C:

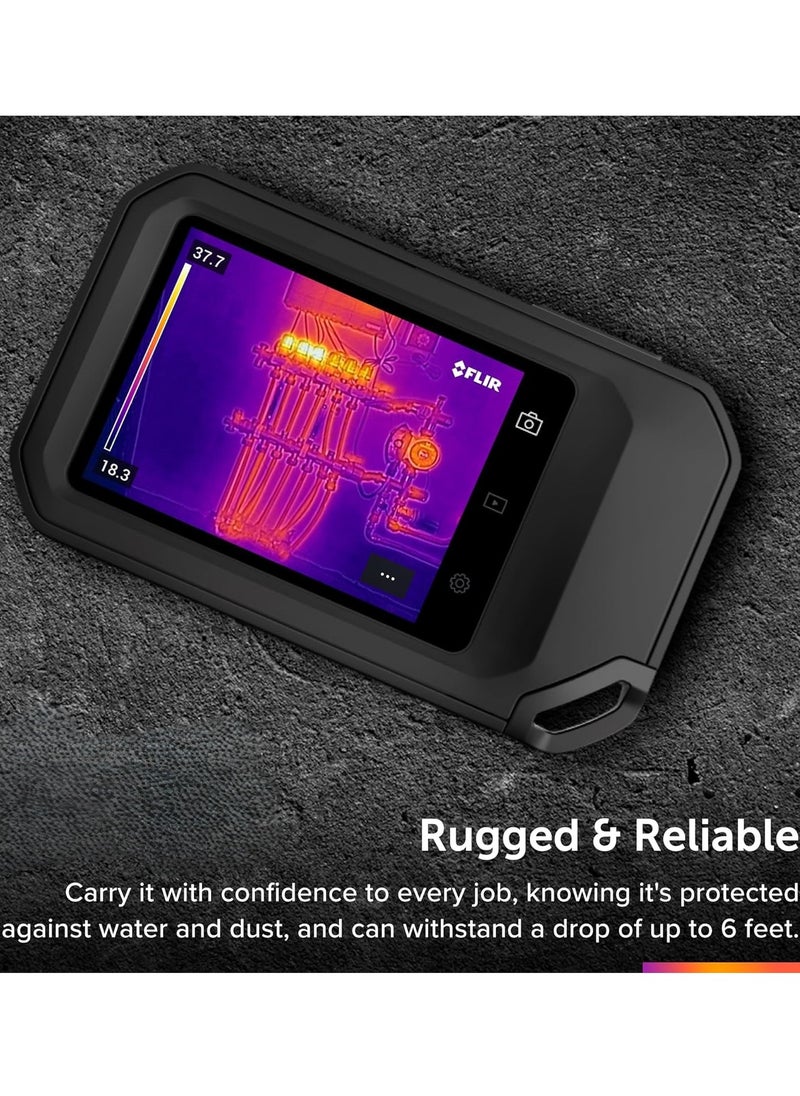

Packaging: Thermal imager casing and lens: IP54(IEC60529)

Drop test: designed for 2m

Weight (including battery): 0.19 kg

Dimensions (length x width x height): 138 x 84 x 24mm

Tripod mount (built-in): UNC14-20
