Highlights- 【Accurate Automatic Readings】For measuring coating thickness on ferrous and non-ferrous materials. UT343A Coating Thickness Gauge can measure the thickness of coatings on concave, curved, smooth and thin surfaces, compact and lightweight, so it will be perfect for your car inspection needs.
- 【Clear and Easy to Read Data】UT343A Paint Thickness Gauge is equipped with an EBTN color display, large font for all values, and one-touch forward and reverse display switching to improve the user experience and usability of the device.
- 【Upper and Lower Limit Alarm】One great feature on UT343A Coating Thickness Gauge is that you can set an upper and lower limit. LED warning light for quick judgement: --- Green: Qualified. Red: Below the limit. Yellow: Above the limit. This gauge will be perfect for those who want to check for rust, repairs or other bodywork problems on used cars.
- 【UT343A Main Parameters】Resolution: 0.1um/0.01mils; Measuring range: 0~1750um (0~68.9mils); Accuracy: ± 3%; Probe mode: AUTO/FE/NFE; Measurement methods: Single/Continuous; Data storage: 199 readings; Measurement mode: Max/Min/Avg; 5min Automatic shutdown function.
- 【Multi-purpose and Practical】Measuring coating thickness can be essential for quality control, material testing, paint inspection, shop work, used car markets, industrial lacquering, and so forth. UT343A Coating Thickness Gauge, your overwhelming choice.

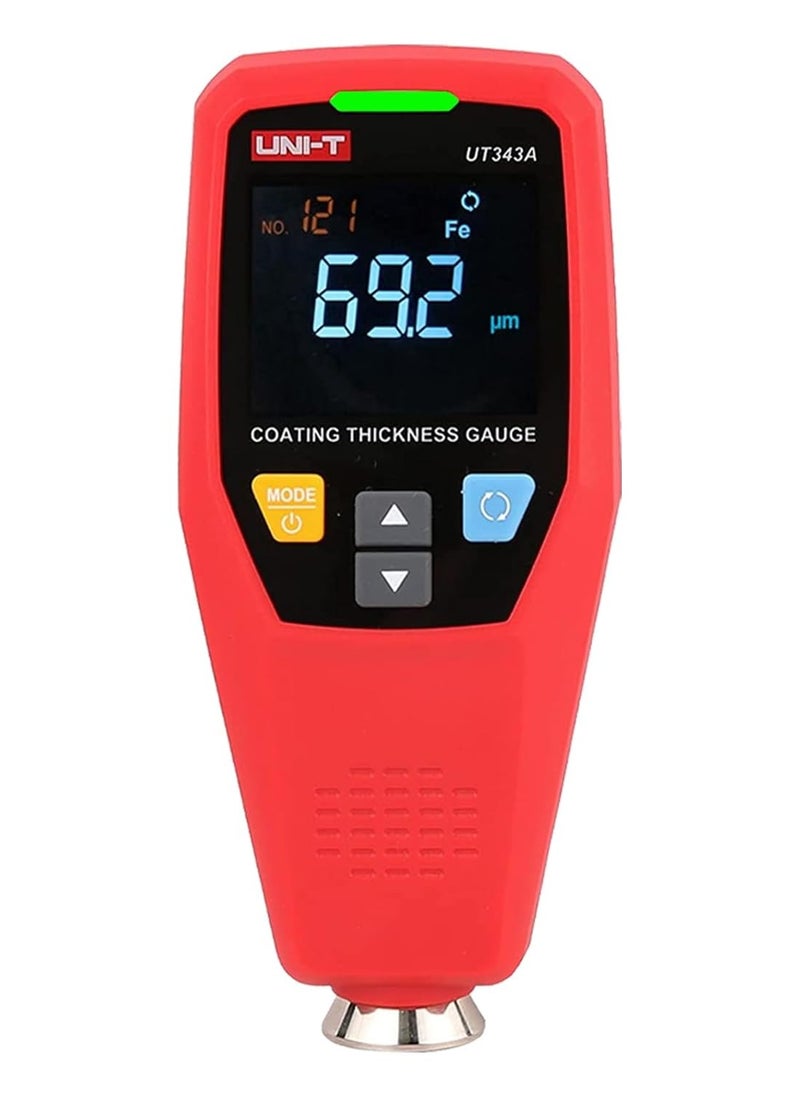

OverviewUT343A Coating Thickness Gauge
Technical indicators
Probe mode: Auto/FE/NFE
Measuring range: 0~1750um / 0~68.9mil
Measurement error: ±(3%+1um) / ±(3%+0.04mil)
Measurement method: Single/Continuous
Measurement mode: Max/Min/Avg
Data storage: 199 groups
Display screen: EBTN

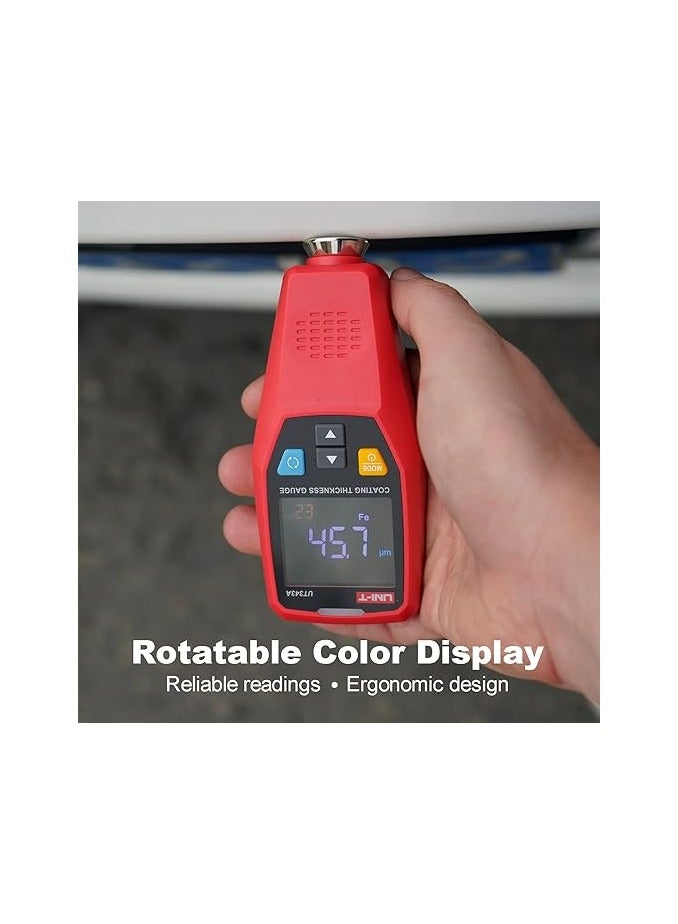

Rotatable screen
LED/Buzzer alarm
5min Auto power off
General specifications
Refresh rate: 0.5 seconds
Sensor type: magnetic induction and eddy current composite sensor
Impact resistance: 1 meter
Power: 2 x 1.5V alkaline batteries
Dimension: 117x53x37mm
Weight: about 111 grams (Battery included)
Applications
Widely used in automotive, car sales, manufacturing, metal processing, aerospace, marine mechanics, rail transport, scientific research, quality supervision, chemical industry, commodity inspection area and more. Work steadily in workshop and outdoor.
