Digital AC Clamp Meter 2000 Counts Auto Range True RMS Portable Handheld Multimeter Measuring AC/DC Voltage AC Current Resistance Continuity Diode Temperature Tester w/ Back Clip and Backlight
Want to own one professional clamp meter to test AC/DC voltage AC current? You should try this clamp meter. This LCD Digital clamp multimeter is a portable and professional clamp meter for testing AC/DC voltage AC current, resistance, diode, NCV(non-contact voltage) and temperature. It is widely used for field, laboratory, shop and home applications.

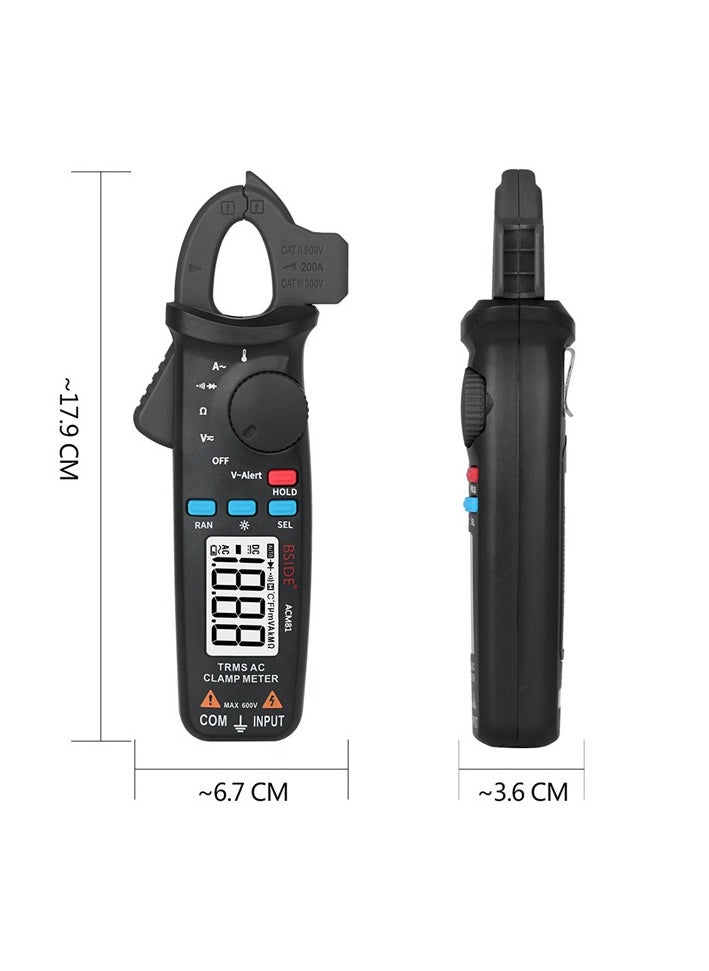

Specifications: Material: ABS Display: LCD Display with Backlight, 2000 counts(3 1/2) Range Control: Auto Range Sampling Speed: 3 times / second DC Voltage Range: 200mV/2V/20V/200V/600V DC Voltage Resolution: 0.1mV/0.001V/0.01V/0.1V/1V AC Voltage Range: 200mV/2V/20V/200V/600V AC Voltage Resolution: 0.1mV/0.001V/0.01V/0.1V/1V Resistance Range: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ Resistance Resolution: 0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ/0.001MΩ/0.1MΩ AC Current Range: 2A/20A/200A AC Current Resolution: 0.001A/0.01A/0.1A Diode Resolution: 0.001V Continuity Buzzer Resolution: 0.1Ω Temperature Range: -20 500℃ / -4 932℉ Temperature Resolution: 1℃/2℉ Max Clamp Opening Size: 26mm / 1.0in LCD Screen Size: 38 * 22mm / 1.5 * 0.9in Diode/Continuity: YES Data Hold: YES LCD Backlight: YES Overload Indication: Shows OL on the LCD Auto Power Off: YES Continuity Buzzer: YES Low Battery Indication: YES Input Protection: YES Input Impedance for DCV: 10MΩ Power: 2 * 1.5V AAA Batteries Not Included Operating Environment: Temperature 0℃ to 40℃, Humidity ≤ 75%RH Storage Environment: Temperature -10℃ to 50℃, Humidity ≤ 80%RH Product Net Weight: 124g / 4.4oz Product Size: 180 * 70 * 35mm / 7.1 * 2.81 * 1.4in
Package Size: 20.5 * 8.5 * 6cm / 8.1 * 3.3 * 2.4in Package Weight: 313g / 11.0oz

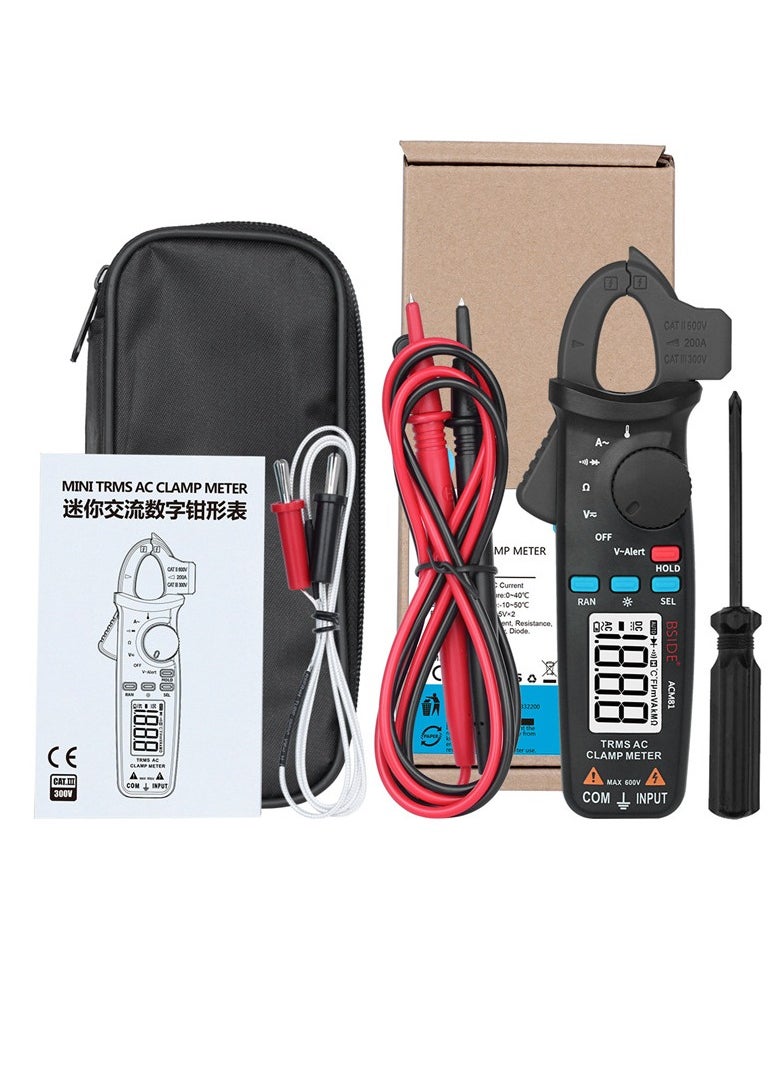

Package List: 1 * Clamp Meter 2 * Test Lead 1 * Thermocouple 1 * Screwdriver 1 * Storage Bag 1 * User Manual(English)
Highlights
MULTI-PURPOSE CLAMP METER WITH AUTO RANGE: Accurate AC/DC Voltage, AC Current, Diode, Resistance, NCV, Temperature and Continuity Test with Backlight. V~Alert Function Conveniently & Quickly Identifies Existing Voltage.
WITH CONTINUITY TEST & DATA HOLD FUNCTION: Continuity Test, Data Hold & Diode Test. Auto Power off Function, Low Battery Indication. Maximum Display Value: 2000 Counts.
CONTINUITY TEST & OVERLOAD PROTECTION: Designed to Safely and Accurately Confirm the Circuit Conducts Electricity with Overload Protection. Shows "OL" on the LCD If Overload.
EASY TO USE AND READ: Small and Portable to Carry and Use. High Resolution, Widely Used in Your Life. Suitable for Electrical Equipment Testing and Maintenance. Temperature unit of ℃ and ℉.
ENERGY SAVING DESIGN: Low Energy-consuming and Powered by 2*1.5V AAA Battery (Not Included). Auto Power off Mode for Saving Power. LCD Display with Switchable Backlight, Convenient to Operate and Read.
Specifications
Model Number
ACM81
