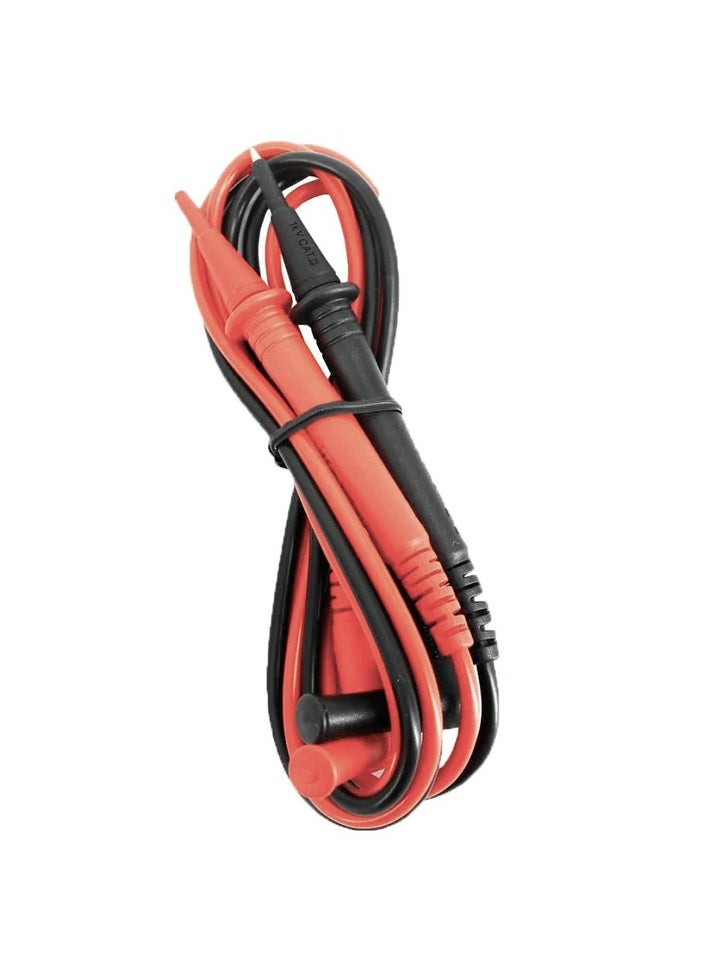

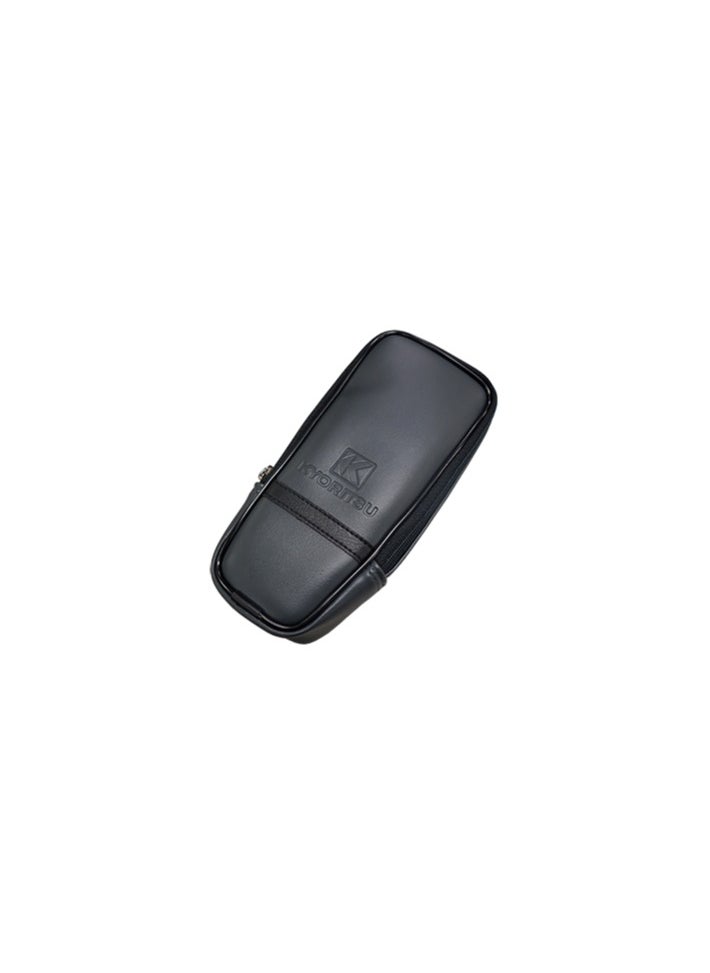

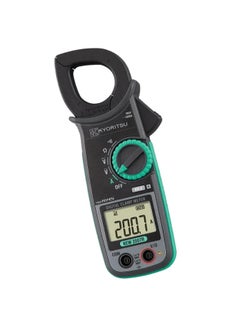

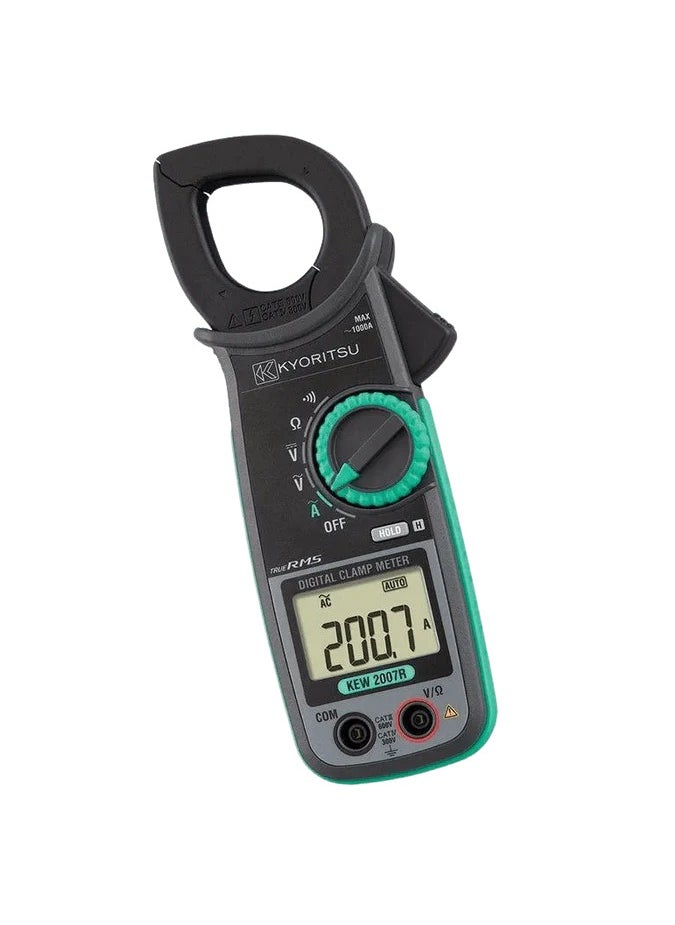

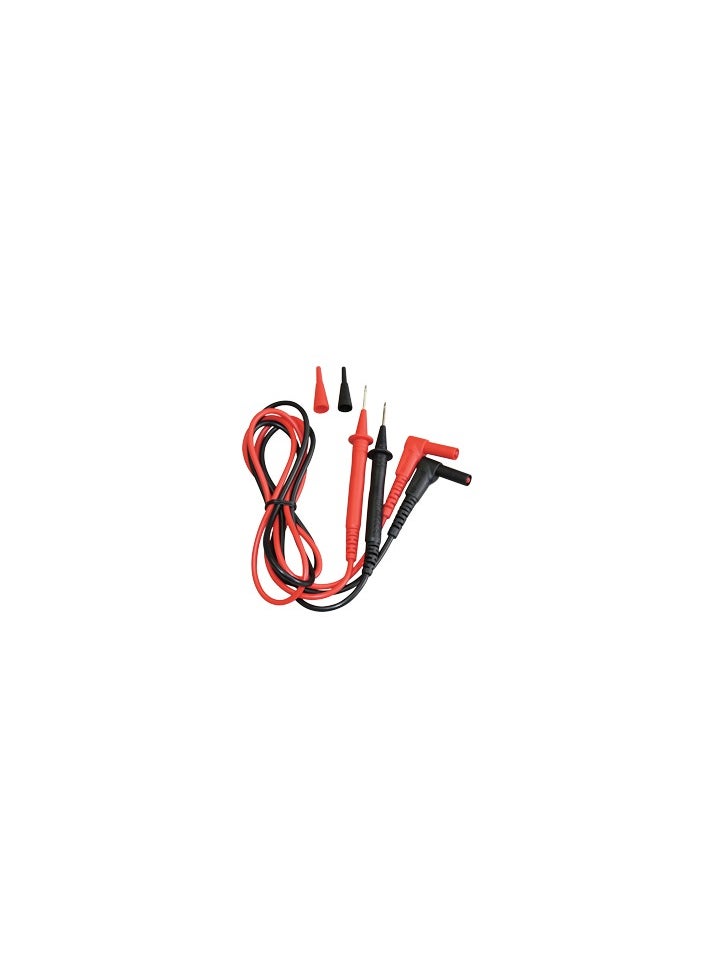

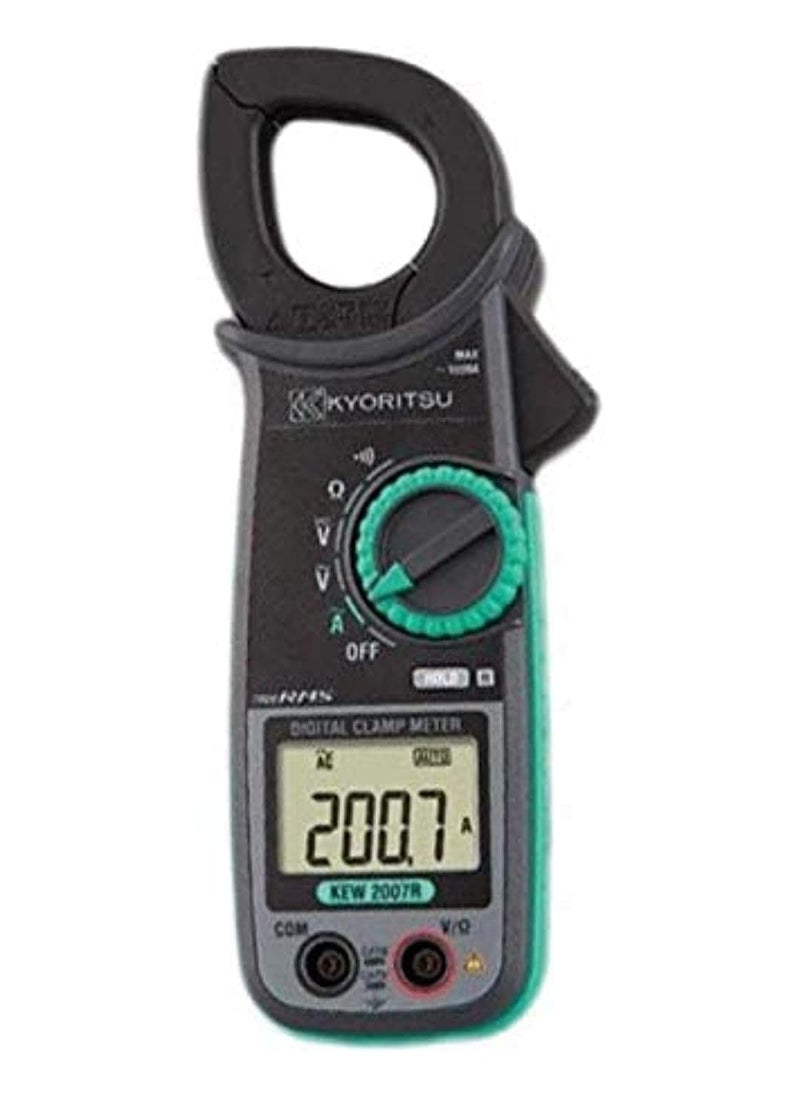

Specifications AC A: 600.0/1000A (Auto-ranging) AC V: 600.0V DC V: 600.0V Ω: 600.0Ω/6.000kΩ (Auto-ranging) Continuity buzzer: 600Ω (Buzzer sounds below 90Ω) Conductor size: φ33mm max. Applicable standards: IEC 61010-1 CAT IV 300V, CAT III 600V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033, IEC 61326-2-2(EMC), IEC 60529 IP40, EN 50581(RoHS) Power source: R03/LR03 (AAA) (1.5V) × 2 Continuous measuring time: Approx.170 hours (when R03 is used) (Auto power save : approx. 10 minutes) Dimensions: 204(L) × 81(W) × 36(D)mm Weight: 220g Approx. (including batteries) Included Accessories: 7066A (Test leads) 9079 (Carrying case) R03 (AAA) × 2, Instruction Manual AC DIGITAL CLAMP METER AC A:400/600A; AC V:400/750V; OHMS:4k Safety Std.: IEC61010-1, Power: R03/LR03 (AAA) (1.5V) × 2, Approx.170 hours (when R03 is used), Wt.: 220 gm.approx., Conductor size dia.: 33mm max.
Product Weight | 600 g |
Country of Origin | Taiwan |
Product Length | 20 cm |
Product Height | 8 cm |
Product Width | 4 cm |
What's In The Box | Test leads 7066A, Carrying case 9079,AAA R03 × 2, Instruction Manual |
Model Number | KEW-2007R |
Model Name | KEW-2007R |
Number of pieces | 1 |
HS Code | 90303390 |
