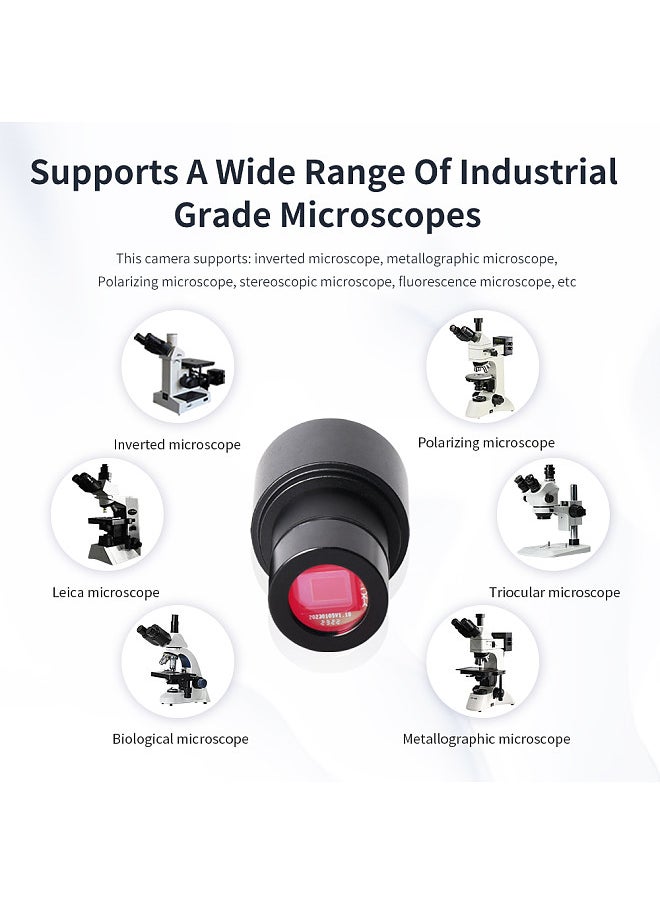

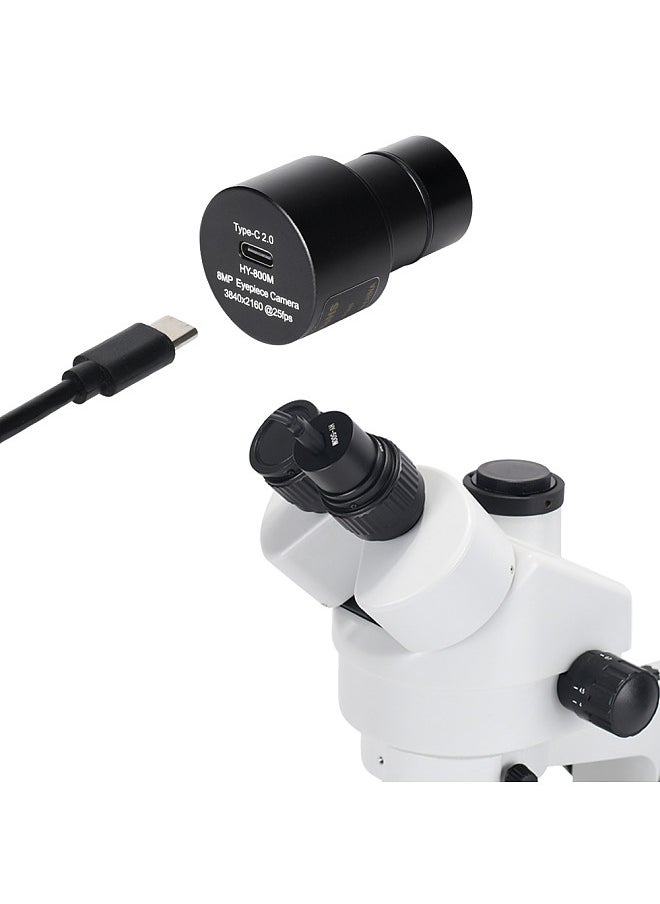

Highlights- Easy Connection: Eyepiece interface (adapter), designed for the microscope. The under mouth is the 23.2mm, 30mm and 30.5mm or 31.7mm straight inserted, can be installed directly in the biological or stereo eyepiece camera.
- Computer Imaging Capture & Video Recording: Captures still imagings and live video on your computer
- Multiple Measurement: Support performs measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc
- More Features: Support adding layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; adds notes, measurements, text, arrows, labels, and etc
- Compact Size: The color of the machine body is black with light outlook design
OverviewSpecifications:
Name: Digital Electronic Eyepiece
Material: plastics
Name: 4K USB2.0 color 8MP Digital Camera
Imaging Sensor: 1/2.3" Color IMX377 Imaging sensor
Pixel Size: 1.55μm(H)x1.55μm (V)

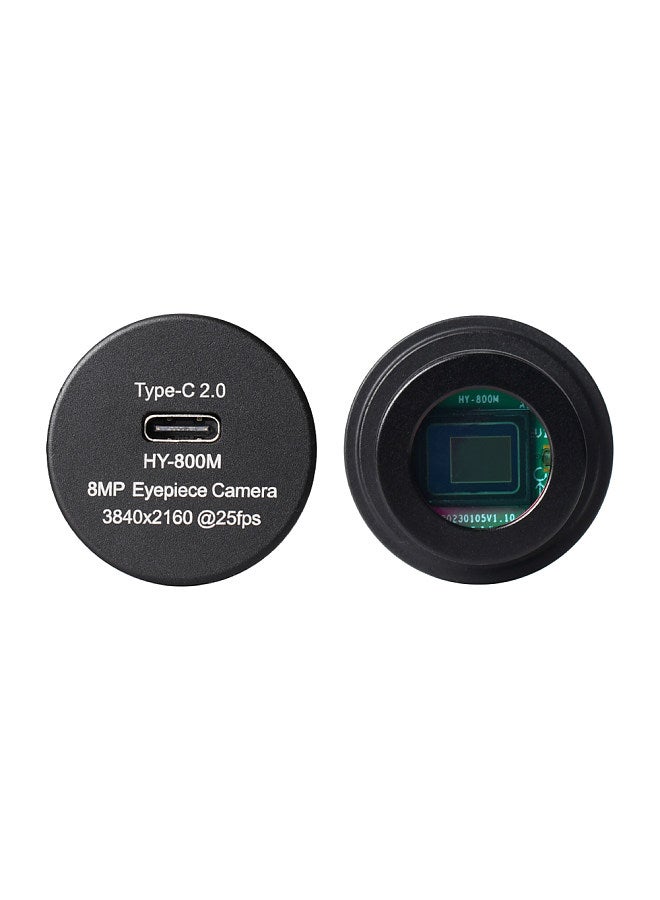

USB output: Type-C 2.0,480Mb/s
Resolution: 3840*2160; 2592*1944; 2084*1536; 1920*1080; 1280*720; 640*480
Frame rate: @25FPS Spectral response: 400nm-700nm
Scanning method: line by line scanning, real 8 megapixel imaging sensor, no interpolation
Savable parameter: Brightness; Contrast; Color Saturation; Tint; Sharpness; Gamma; Gain; White Balance; Backlight Contrast; Exposure
Dynamic Range: 74 dB (Linear) to 85 dB (HDR)
Sensitivity: 2400 mV/Lux-sec SNR: 39dB
UVC protocol: USB Video Class (UVC)

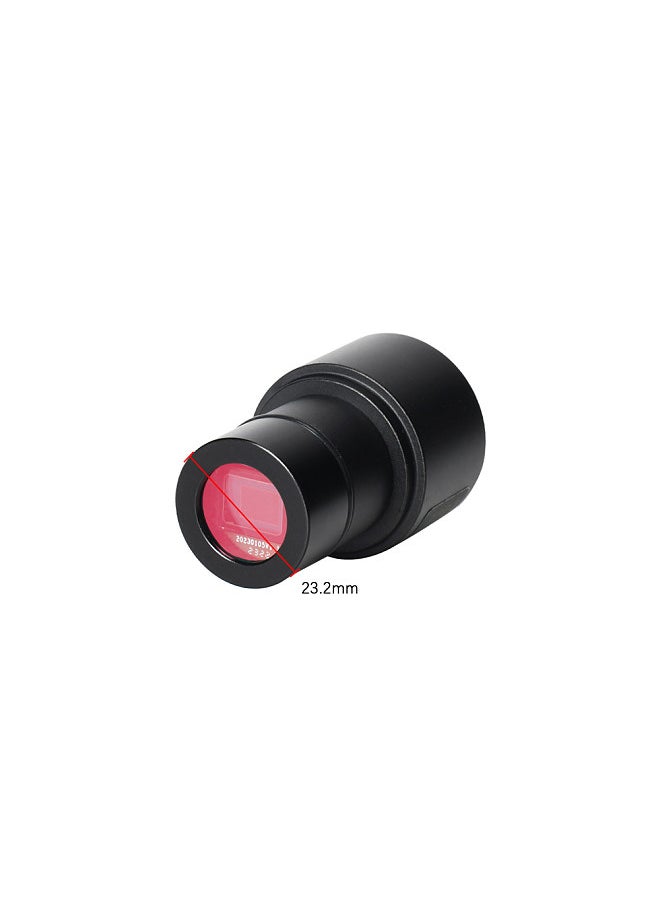

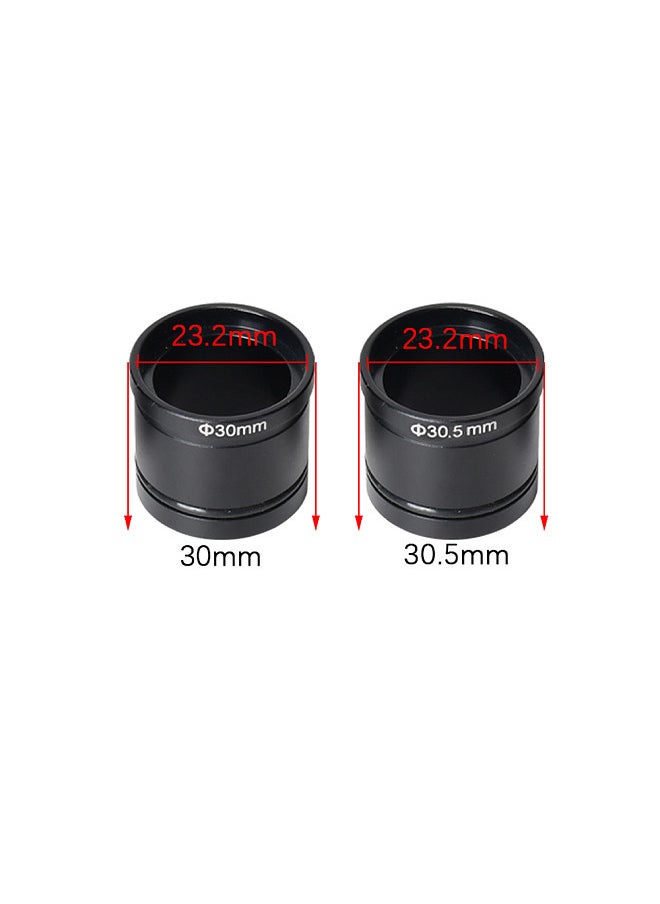

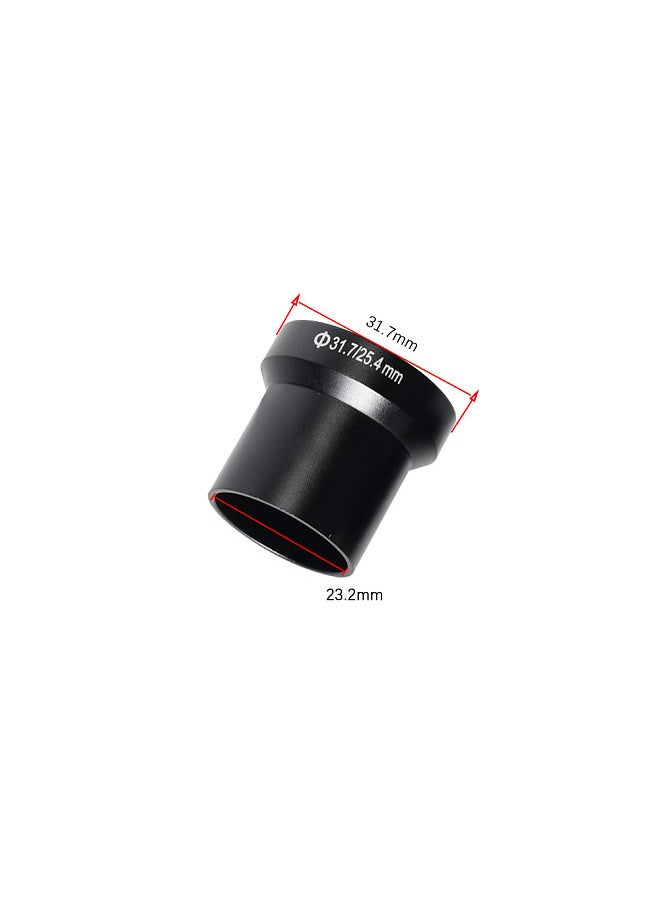

Eyepiece: Support 23.2mm/ 30.0mm/30.5mm/31.7mm diameter
White balance: Auto/Manual One-click white balance:Support
Support System: WinXP/Win7/Win10/win11; Linux / Android (UVC); MACOS X10.4.8 or later (UVC)
Support OTG protocol: USB2.0 OTG
Supports output formats: 12-/10-bit RGB; ISP clock up to 240MHz; supports 2*2 binning
Package size: 160 * 100 * 80mm / 6.30 * 3.94 * 3.15in
Package weight: 650g / 1.43lb
