Digital Multimeter TRMS 6000 Counts Ohmmeter Auto-Ranging Fast Accurately Measures Voltage Current Amp Resistance Diodes Continuity Duty-Cycle Capacitance Temperature for Automotive (HT118A)

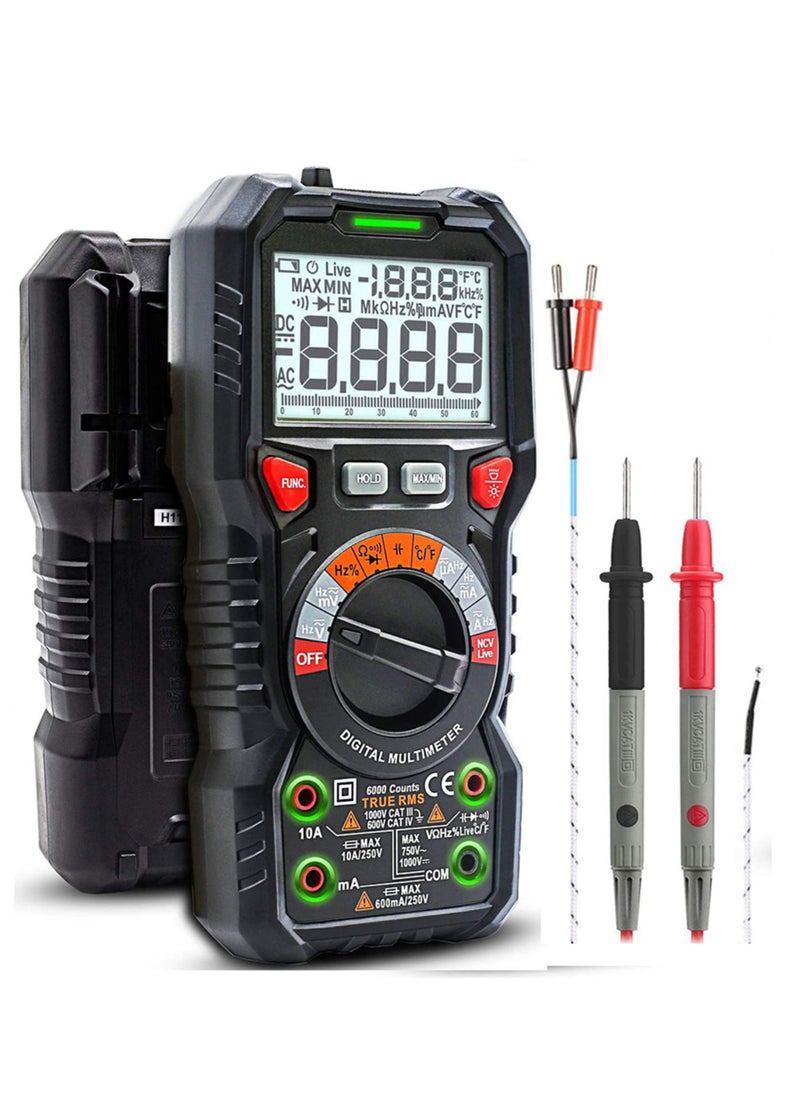

HT118A Digital Multimeter

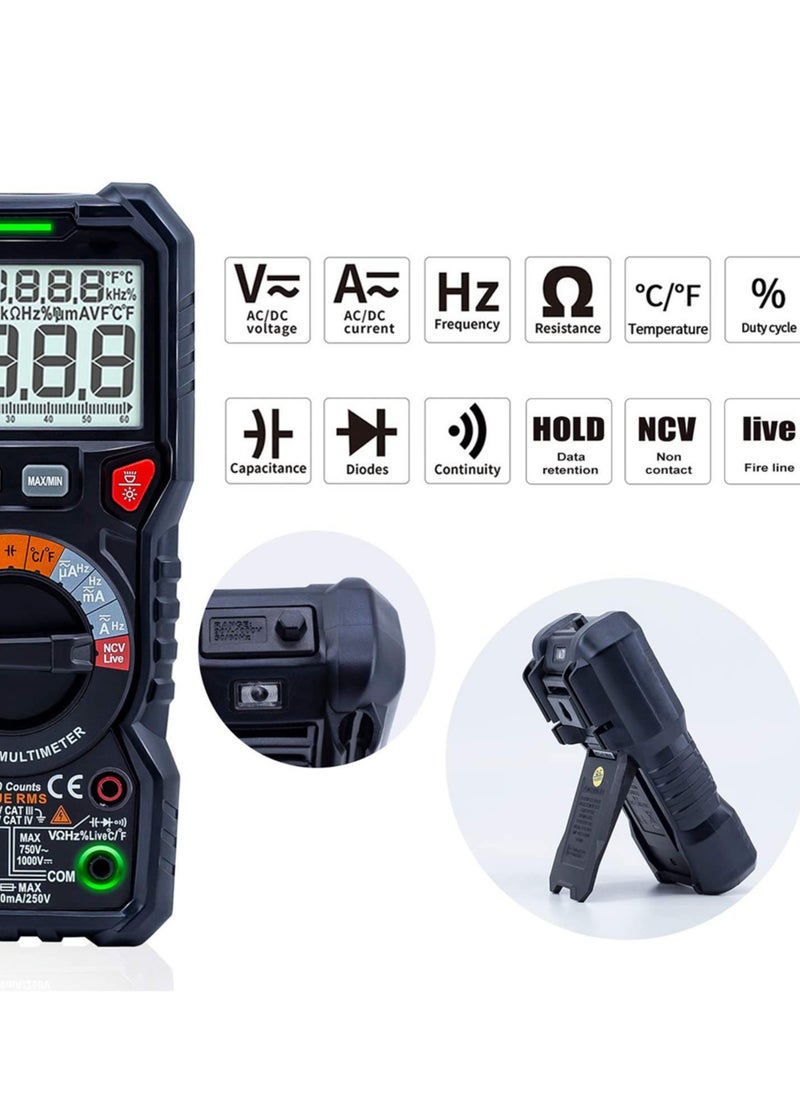

Main functions:

AutoRange/Analog Bar Display/True RMS/NCV/Data hold/Back light/LED lamp/Diode test/Triode test/Continuity/Over load protection/Low Battery Indication/Auto Power Off/Short-circuit protection.

NCV:

Place the multimeter close to the AC voltage source (no wire is required) and the multimeter will display the voltage and give a corresponding prompt.

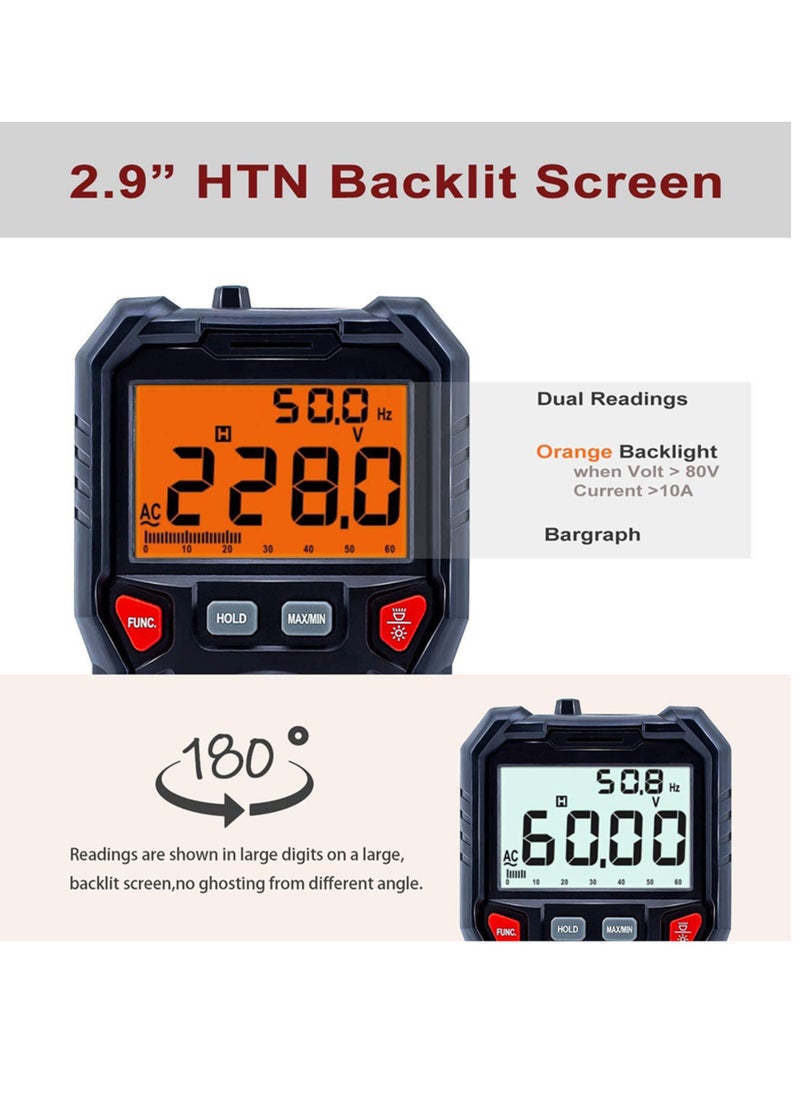

HTN full-viewing angle screen, 180 degree viewing angle:

Has two LED backlights, Display is brighter than other sellers'. When the measured voltage exceeds 80V or current exceeds 1A, the white backlight will turn orange as a danger warning.

Wide range of applications:

car repair, industrial circuit inspection, home circuit check.

Specification:

☞Safety Level/Certification: IEC-61010-1 CATⅢ 1000V, CAT IV 600V, double insulation

☞Display: True RMS, 6000 counts, 3 5/6 digits

☞Overload Display: Display OL

☞DC Voltage: 600mV/6V/60V/600V±(0.5%+3), 1000V ±(0.5%+3)

☞AC Voltage: 600mV/6V/60V/600V/750V±(0.8%+5)

☞DC Current: 600μA/6000μA/60mA/600mA/10A±(1.2%+3)

☞AC Current: 600μA/6000μA/60mA/600mA/10A±(1.5%+3)

☞Resistance: 600Ω/6KΩ/60KΩ/600KΩ/±(1.0%+3),6MΩ/60MΩ ±(1.5%+3)

☞Capacitance: 10nf/100nf/1000nf/10uf/100uf/1000uf±(4.0%+5), 10MF/100MF±(5.0%+5)

☞Frequency/Duty:10Hz/100Hz/1000Hz/10kHz/100kHz/1000kHz ±(1.0%+3),10MHz/±(3.0%+3)

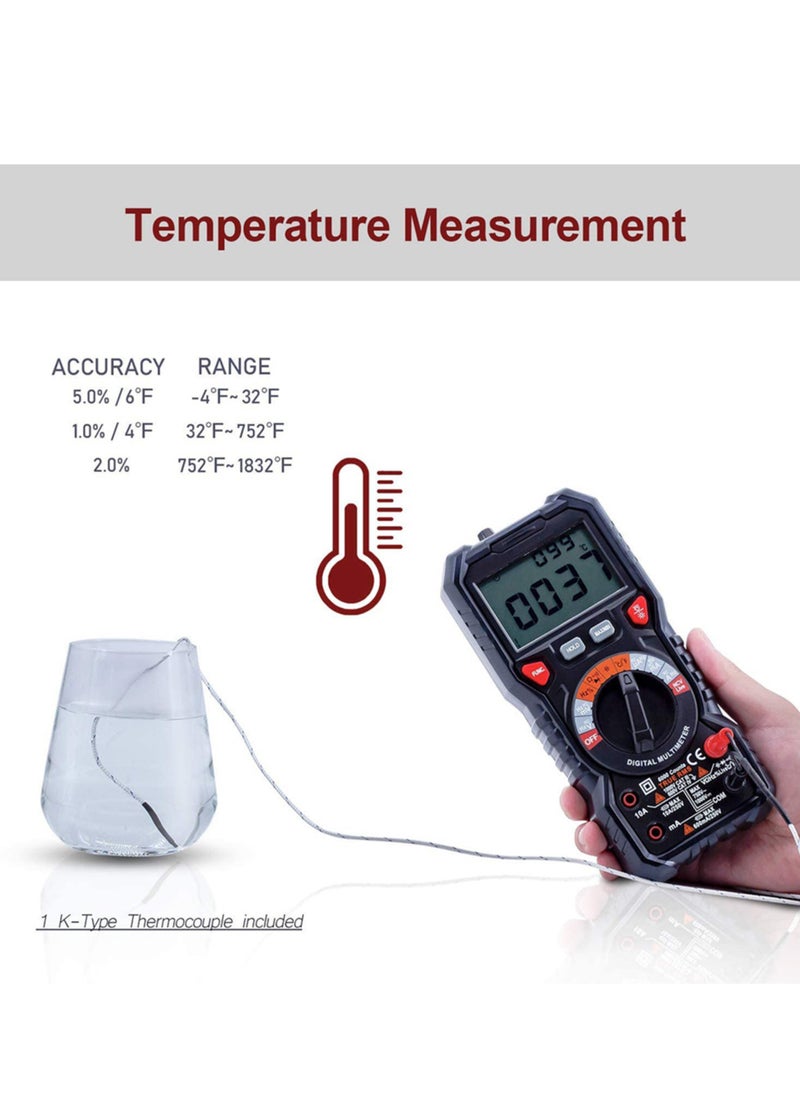

☞Temperature: -20℃~1000℃(2.0% reading +2 digits)，-4~1832°F(2.0% reading +4 digits)

☞Diode:0.15V-2.5V（Forward DC: about 1mA; Open circuit Voltage: about 2.5V）

☞Continuity: 0~100Ω（Open circuit Voltage: about 2.5V）

Package Content:

1 x HT118A Multimeter

1 x Test Leads

2 x AA Battery

1 x User Manual

1 x Thermocouple
