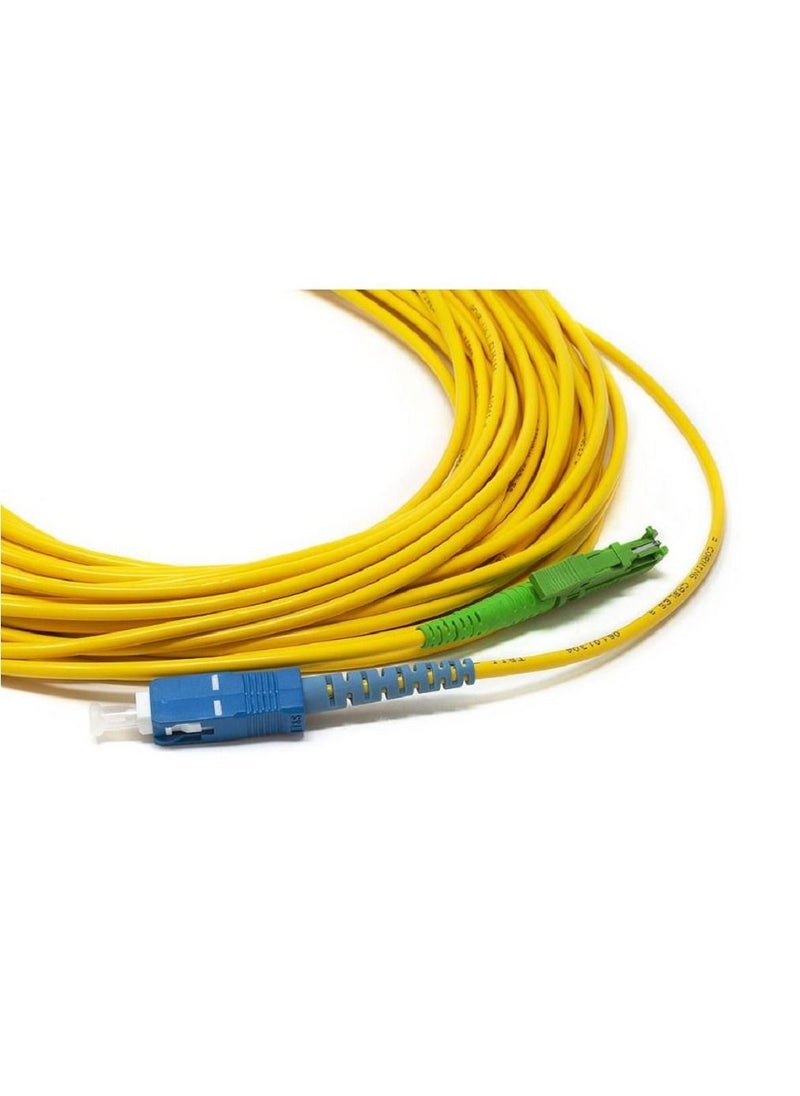

E2000/APC-SC/PC Fiber Patch Cord Simplex SM 5m

OverviewThe E2000/APC-SC/PC Fiber Patch Cord Simplex SM 5m is a Simplex patch cord with E2000/APC connector at one side and a SC/PC connector at the other one. Fiber patch cords are a type of cables that have two connectors on both ends. Optic patch cords can come in simplex (1 fiber), duplex (2 fibers) or in MPO (12 fibers). The connectors on both sides of the patch cord, allow it to be quickly connected to another device such as an optical switch or other telecommunications/computer device. Configuration - Simplex A Simplex configuration is a type of cabling arrangement commonly used in data centers and telecommunication networks. It consists of a single cable , terminated with a connector at each end. It is normally used in Half Duplex or Full Duplex data transmitions. FO Connector Type 1 - E2000 The E2000 FO Connector or LSH is a type of fiber optic connector that uses a 2.5mm ceramic ferrule to align and connect optical fibers. Used in high-speed data communication networks. Provides low insertion loss and high return loss. The push-pull latching mechanism allows for easy and secure connections, while the dust cap protects the connector from contamination and laser beam protection. The E2000 FO Connector is commonly used in telecommunications, data centers, and other high-performance and high power applications. FO Polish Connector 1 - APC APC (Angled Physical Contact) FO Polish Connector Type 1 is a fiber optic connector that uses an angled endface to achieve low back reflection and insertion loss. It features a 1.25mm ceramic ferrule and is commonly used in telecommunications and data networking applications where low back reflection is critical. The APC connector offers high precision and reliability, making it suitable for use in single-mode fiber networks. However, the angled endface of the APC connector requires special polishing techniques, making it more expensive than other connector types. Fiber Mode - Single Mode (SM) Single mode fiber uses a LASER light source, is a type of optical fiber with a small core diameter that allows only one mode of light to propagate. It is used in telecommunications and data transmission systems to transmit signals over long distances with low attenuation and high bandwidth. Single mode fiber is ideal for high-speed and long-distance applications, such as internet backbone networks, cable television networks, and fiber-to-the-home (FTTH) services. Its narrow core reduces the dispersion of light, allowing signals to travel further and faster than with multimode fiber.
