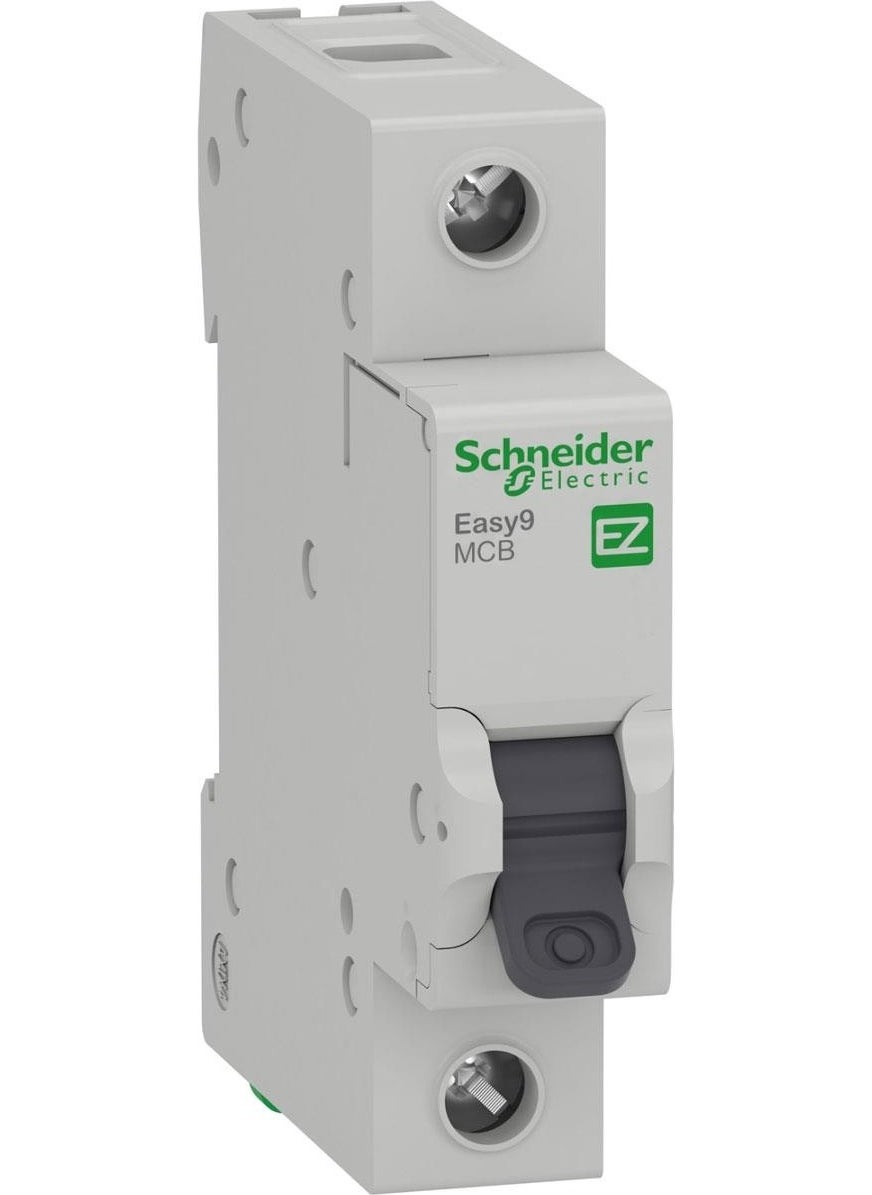

Easy9 3 kA C Curve 1 Pole 32A Circuit Breaker

SCHNEIDER ELECTRIC EASY9 MCB AUTOMATIC FUSES



Schneider Electric EASY9 MCB series automatic fuses safely cut off the connected current in case of a short circuit or when your system is overloaded, so your electrical systems are reliably protected against the damage caused by high current. Automatic fuses are devices that protect us from high currents and limit excessive current in our homes or workplaces. You can find the most accurate auto insurance for different infrastructures from our diverse range. They are current limiting overcurrent protection devices.



SCHNEIDER EASY9 MCB EZ9F43132 32A FUSE (1P, 3kA, C ​​CURVE)





TECHNICAL SPECIFICATIONS:

- Miniature Circuit Breaker,

- 1P Polarity Definition,

- Number of 1 Protected Poles,

-32A[In] Nominal Current,

- AC Mains Type,

- Thermal Magnetic Opening Unit Technology,

- “C” Type Slope Code,

- 50/60Hz Network Frequency,

- 230V AC 50/60Hz[Ue] Nominal Operating Voltage,

- 5…10 x In Magnetic Opening Limit,

- 3kA [Ue] Nominal Service Interrupting Capacity,

- 500V AC 50/60Hz[Ui] Nominal Insulation Voltage,

- 4kV [Uimp] Nominal Impulse Withstand Voltage,

- Contact Position Indicator,

- Access Control Type,

- Opening Indicator On-Device Signaling,

- DIN Rail Fixed Mounting Type,

- Dimensions 81mm (H) x 18mm (W) x 66.5mm (D),

- 10,000 Cycles Mechanical Durability,

- 4,000 Cycles Electrical Durability,

- IEC 60529 Protection Degree Compliant with IP20,

- (-25°C…. 60°

- (-40°C…. 85°

- EN/IEC 60898-1 and 60947-2 Standards,

- Under 18 Months Manufacturer's Warranty.

C) Ambient Temperature for Operation,C) Ambient Temperature for Storage,
