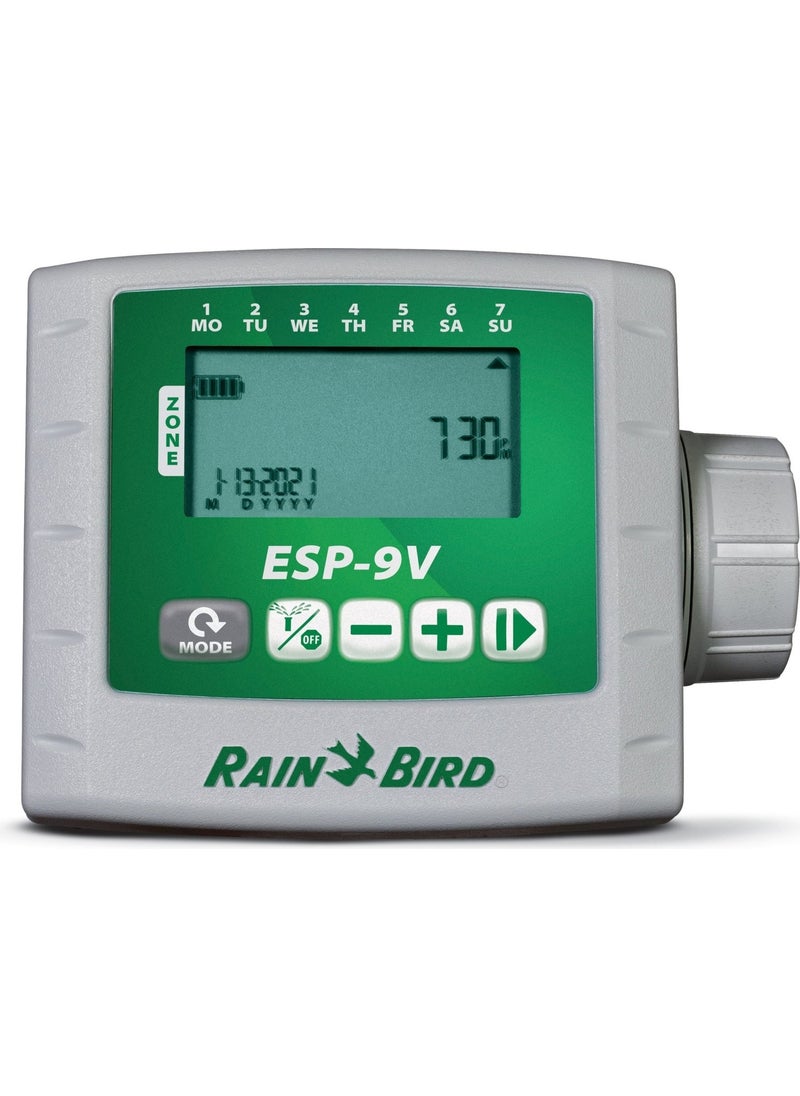

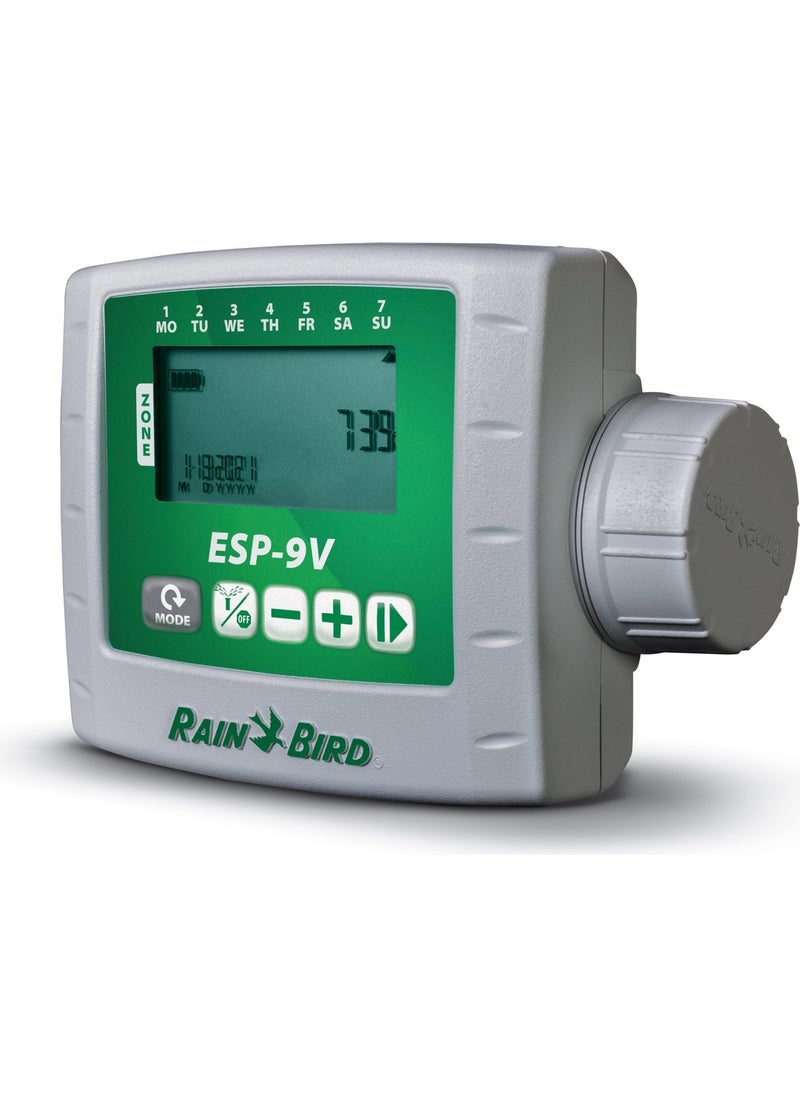

Esp9vi4 Battery Controller 9v. 4 Stations

Color

Colored

Esp-9v - 4 Station Model

Reliable Automatic Irrigation Control When You Don't Have AC Power

Controls 4 Irrigation Zones

Works for 1 Year on One 9-Volt Battery or More than 2 Years on Two 9-Volt Batteries

Waterproof Case and Double-Sealed Battery Slot for Long Life Even in Wet and Muddy Conditions

Rubber Cover Protects Controller Face

Easier to Program from a Single Screen, Large LCD Display

One-Touch Manual Watering

6 Independent Start Times Per Zone, 4 Watering Day Options Per Zone

Seasonal Adjustment from 10% to 200%

Note: Esp-9v Only Operates Valves Using a 9-Volt Shielded Latching Solenoid (Sold Separately)

Harder, Easier and Longer Lasting

Get Reliable Automatic Irrigation Control When You Don't Have AC Power with the Esp-9v Series Battery-Operated Controller. The Esp-9v's Waterproof Case and Dual-Sealed Battery Chamber Ensure Long Life, Even When Installed in a Wet, Muddy Valve Box. Esp-9v Outperformed Its Competitors by 70% in Harsh Environment Tests. After Immersion in Alternating Extremes of Hot and Cold Temperatures, the Esp-9v Was Still Strong, Even Though the Challenge Failed in Less Than Two Days.

Common Programming Features are Easily Accessed from a Single Screen, Making Programming Fast and Easy. The LCD Display is 85% Larger Than the Hunter® Node, and Programming Icons Are Large and Easy to Understand. Manual watering is easy with a dedicated button.

Esp-9v Works for One Year on One 9-Volt Alkaline Battery or More than Two Years on Two 9-Volt Alkaline Batteries.

Controller Features

Waterproof Case Ensures Long Life Even When Installed in a Valve Box

Double-Sealed Battery Compartment with Rubber Piece and O-Ring Keeps Water Out

IP68 Certified for Protection Against Dust and Water Ingress

Large LCD Display with Easy to Navigate User Interface (85% Larger than Hunter® Node)

Permanent (100-Year) Program Memory Keeps Your Program Safe Even If Batteries Are Dead

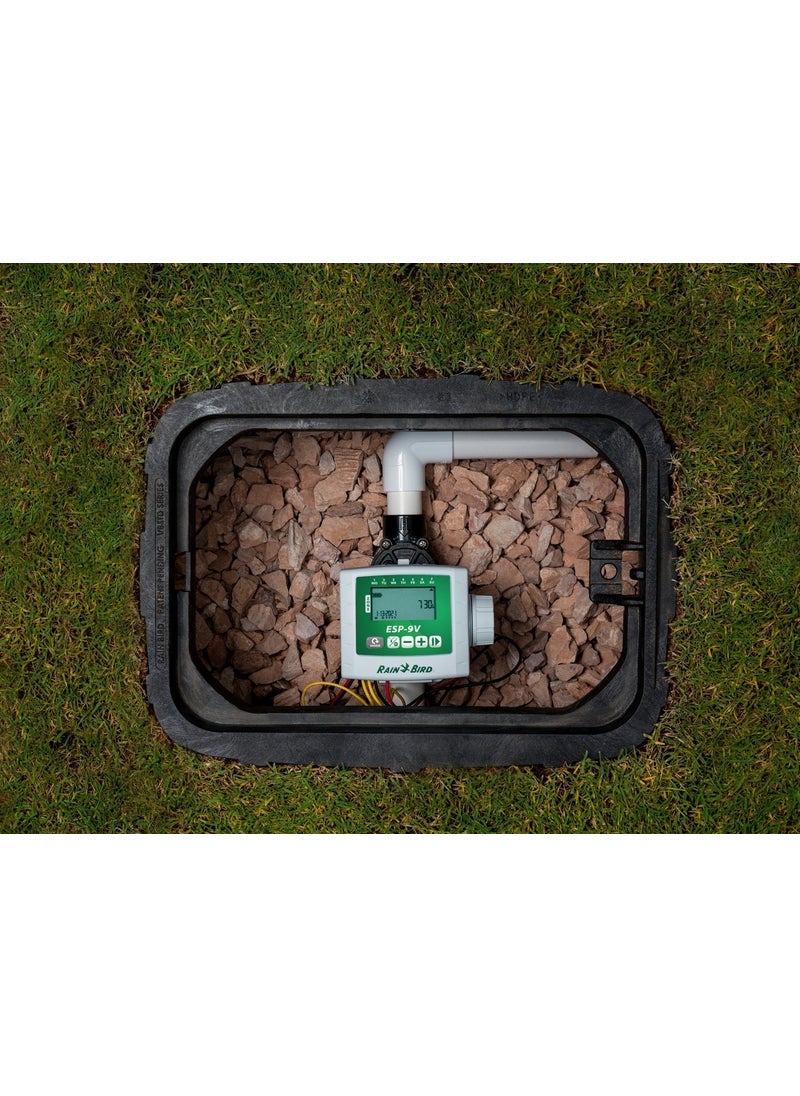

Mounts to the Valve Box Using the Solenoid Mounting Bracket, Mounts to the Wall Using Two Screws Adhered to the Valve Box, or Using the Optional Wall Mounting Kit

Plastic Controller Case Has Exceptional Resistance to Weathering, Yellowing, and Aging

Sensor Input with Bypass Override

Main Valve/Pump Start Circuit

Rain Sensor Bypass for All Regions

Controller Powered by One or Two 9-Volt Alkaline Batteries

Planning Features

Common Programming Features are Easily Accessed from a Single Screen, Making Programming Fast and Easy

At-a-Glance Scheduling Eliminates Confusion by Showing Run Times, Start Times, and Watering Days for Each Zone

Automatic Zone Stacking Allows Only One Valve to Water at a Time. If Zones Are Planned to Be Watered at the Same Time, Esp-9v Will Automatically Water the Lower Numbered Zone First.

Special Manual Watering Button for Easy Manual Watering

Optionally Water All Zones or a Single Zone Manually

One-Touch Manual Start Lets You Start a Fully Programmed Watering Cycle with the Touch of a Button

Contractor Quick Scheduling™ Automatically Copies Start Times and Watering Days from Zone 1 to All Remaining Zones on Initial Setup

Run Times, Start Times and Watering Days Can Be Customized by Region

Contractor Default™ Allows User to Save and Restore Irrigation Schedule

More information

Model Esp9v4

Zones/Stations 4

Indoor/Outdoor Indoor/Outdoor

Controller Type Battery Operated, Fixed Station

Dimensions

Width: 5.35" (13.59cm)

Height: 4.04"(10.26cm)

Depth: 2.42" (6.15 Cm)

LCD Screen Size

Width: 2.25" (5.72cm)

Height: 1.25" (3.18cm)

Features Battery Backup, Battery Programmable, Manual Watering, Master Valve/Pump Start, Permanent Memory, Rain Delay, Seasonal Adjustment

Programs 1

Schedule Day Cycles Special Days of the Week, Odd Days, Even Days, Cyclic (Water Every X Days)

Start Times Per Region/Program 6

Electrical Specifications Works for One Year on One 9-Volt Alkaline Battery or More than Two Years on Two 9-Volt Alkaline Batteries

Certificates Culus, Fcc, Ic, Ce, Rcm (Uncle), IP68, Rohs
