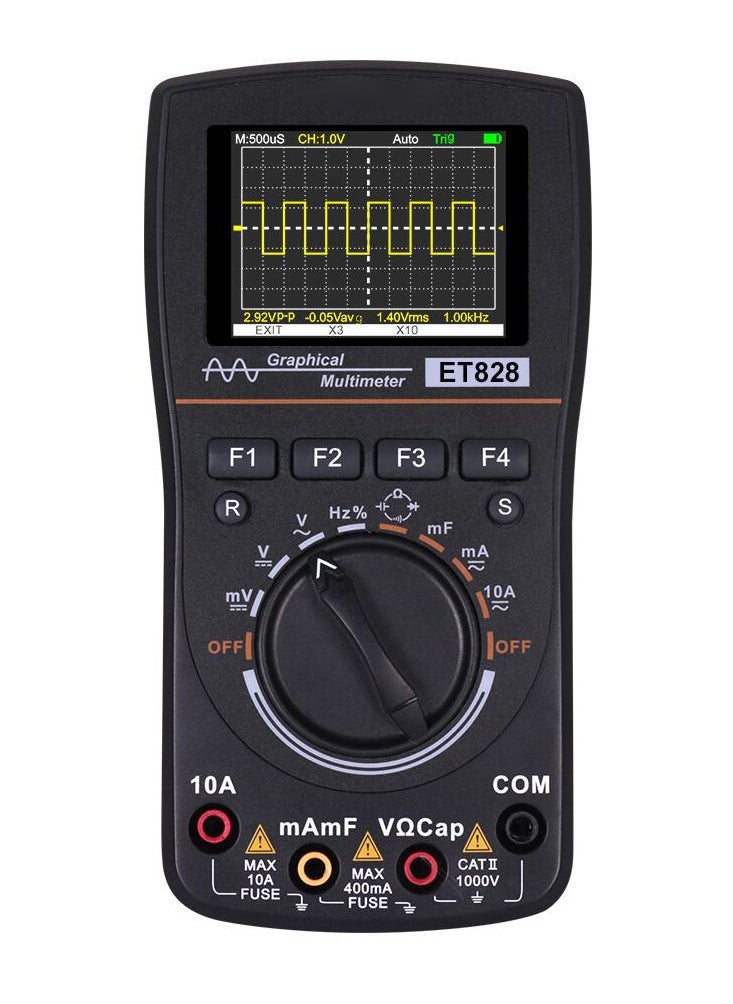

Generic - ET828 Intelligent Graphical Digital Oscilloscope Multimeter 2 in 1 with 2.4 Inches Color Screen 1MHz Bandwidth 2.5Msps Sampling Rate for DIY and Electronic Test - Image 1

Generic

ET828 Intelligent Graphical Digital Oscilloscope Multimeter 2 in 1 with 2.4 Inches Color Screen 1MHz Bandwidth 2.5Msps Sampling Rate for DIY and Electronic Test

268.00

 496.25

Inclusive of VAT

Saving:

 228.25

45% Off

Deal

Free Delivery

Only 4 left in stock

Free Delivery

Get it by 3 June

Order in 18 h 19 m

Coupons

Delivery by noon

High Rated Seller

Cash on Delivery

Secure Transaction

BANK OFFERS

SELLER

Item as shown

Partner since

Free delivery on Lockers & Pickup Points

This item is eligible for free returns

Product Overview

Highlights

Oscilloscope multimeter 2 in 1, improve your work efficiency.

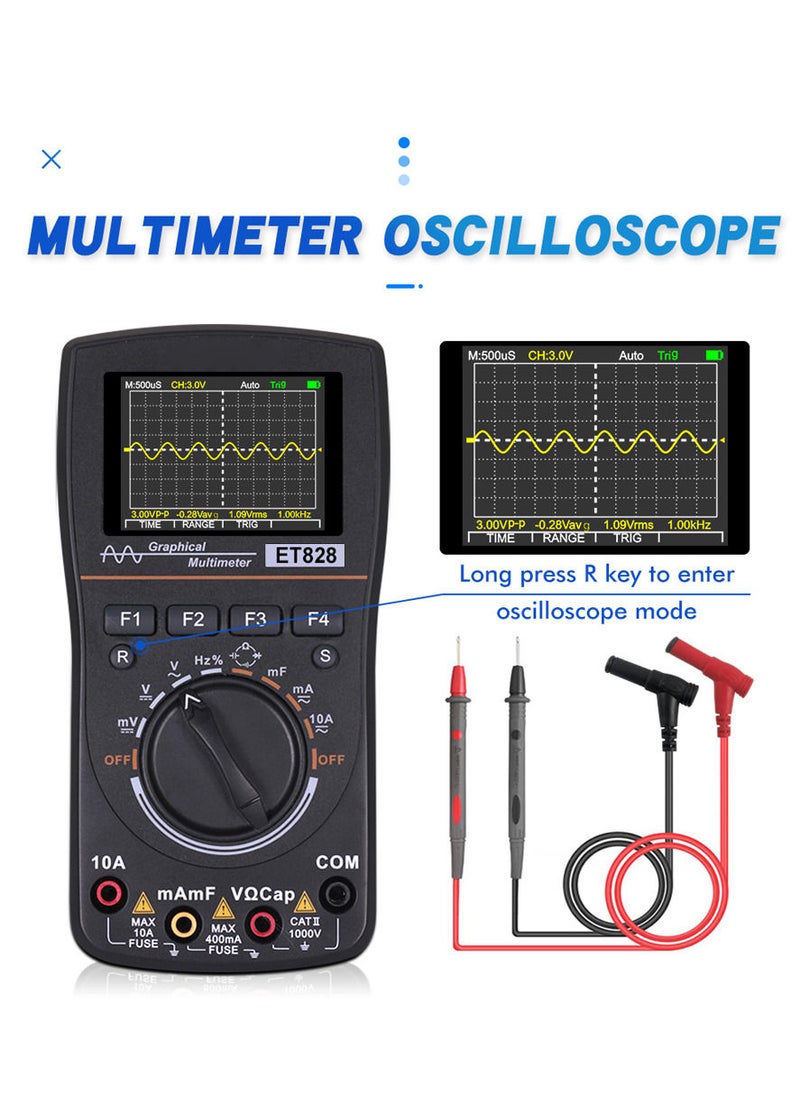

One-button oscilloscope: no need oscilloscope probe, measuring waveform directly. Fast and accurate measurement, clear waveform display.

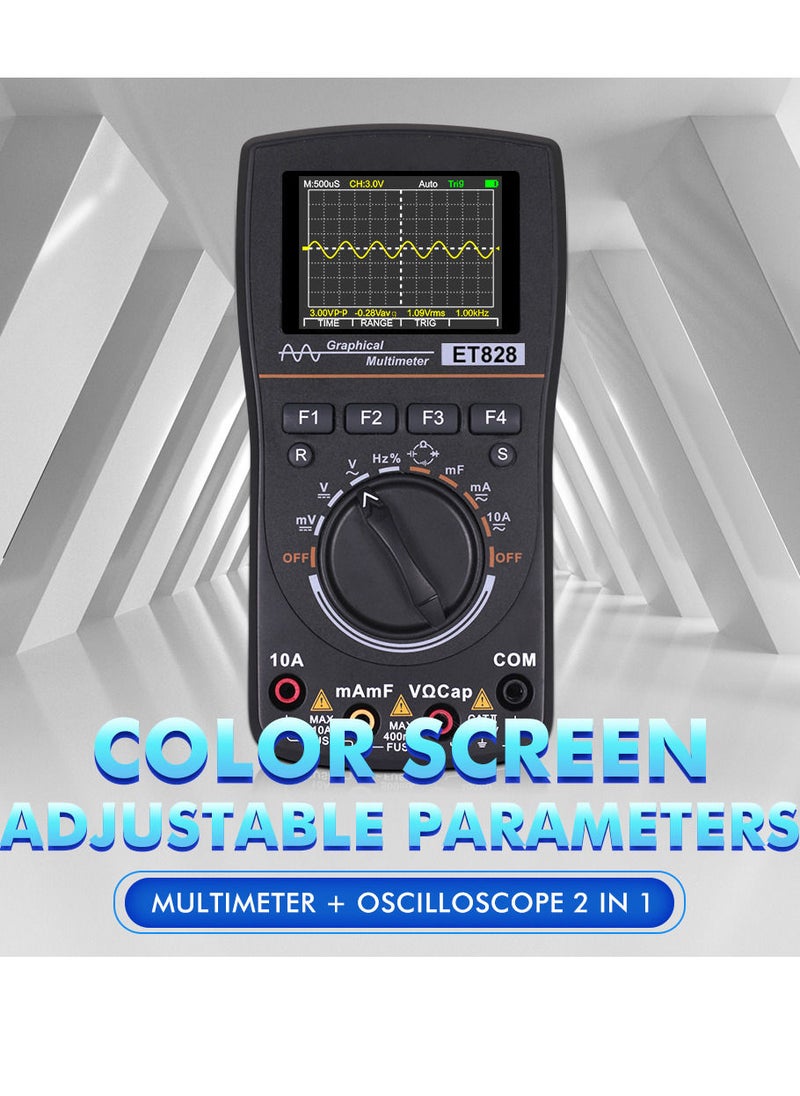

240*320 color screen: the color display is clearer, and the secondary display at the bottom provides more function menus.
Multimeter measurement functions: AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode test, continuity test.

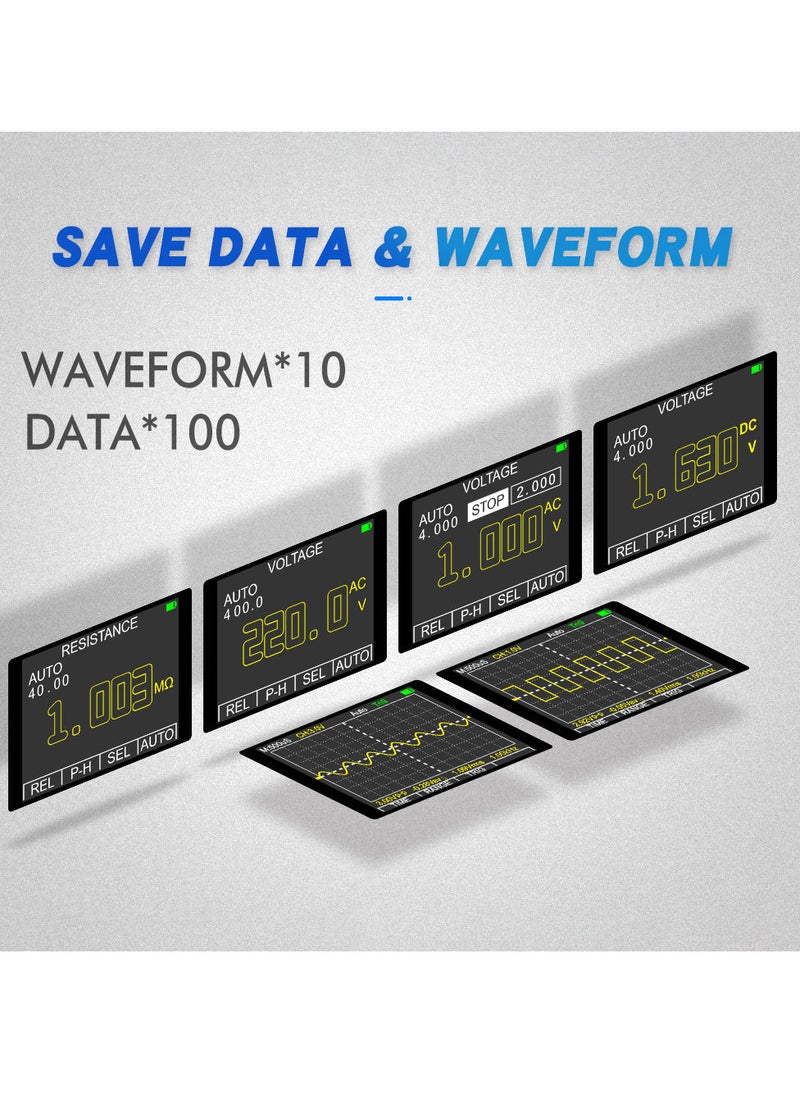

Storage: mass storage, 100 data/10 waveforms.
Triple safety: double insurance tube, 500mA/250V, 10A/250V. Input voltage is greater than 24V, beep warning once. Input over range, beep warning.

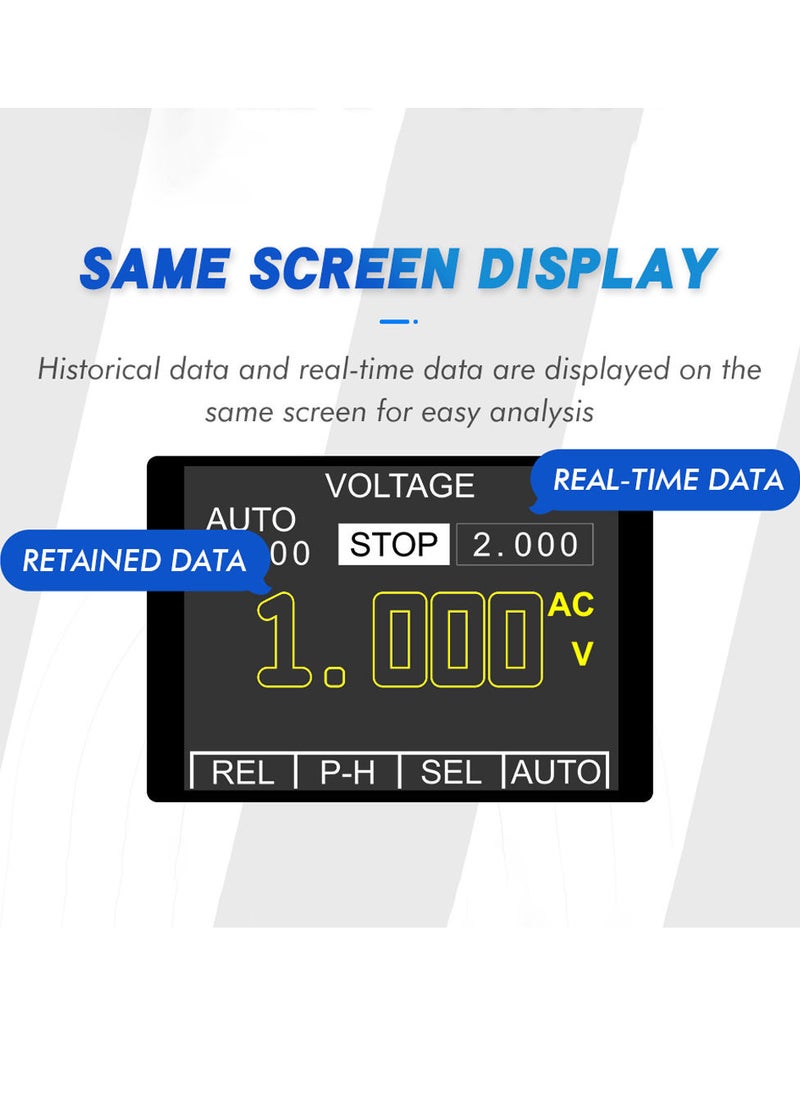

Same screen display: historical records and real-time data are displayed on the same screen for easy comparison and analysis of data.

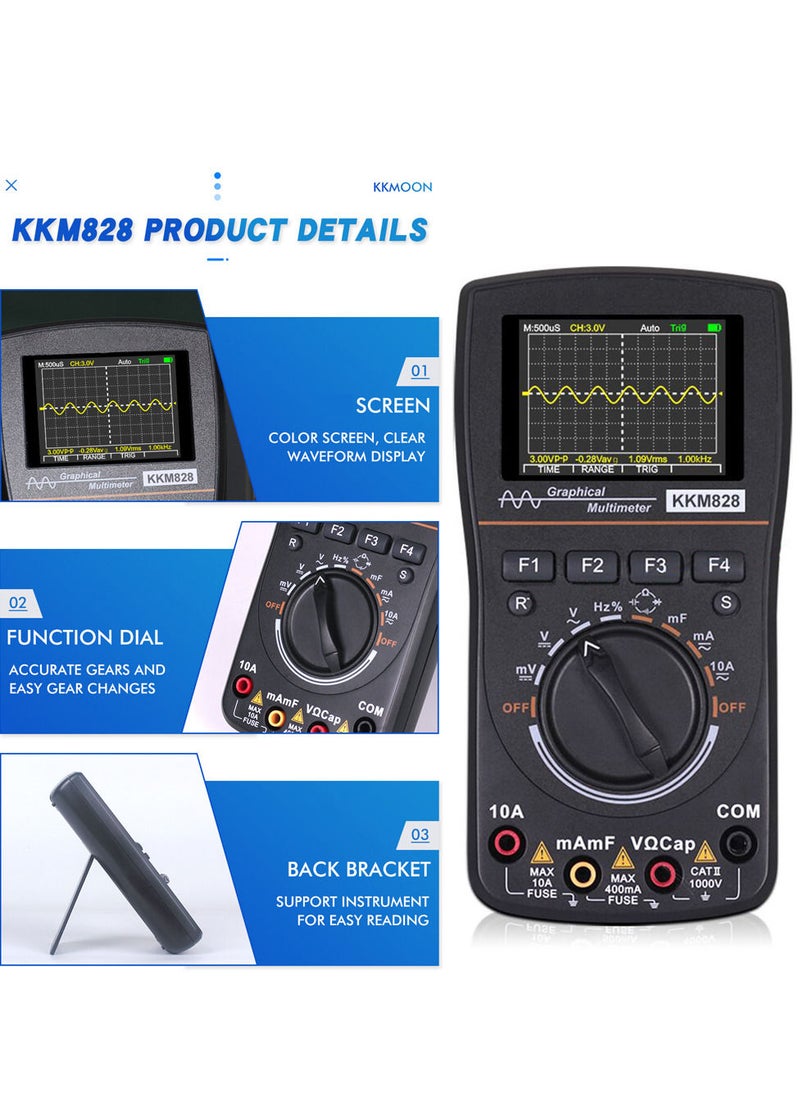

Buttons and dial: silicone button, sensitive pressing function dial, accurate gear.

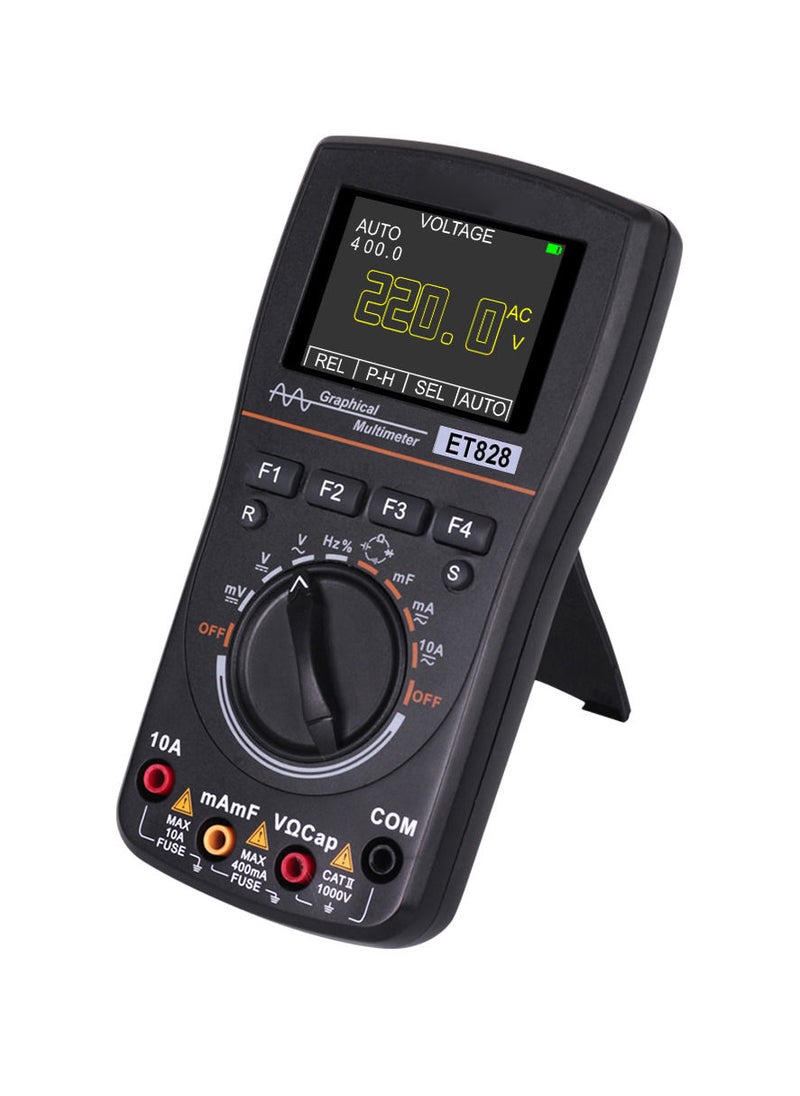

Back bracket: the back bracket is tilted at 60° for easy viewing.

OverviewSpecifications: Material: ABS Display: 320*240 LCM Display area: about 2.4 inches Backlit: white Input resistance: 10MΩ Battery: 3 * AA battery (not included) Power consumption: about 80mA Use time: low light about 5 hours Storage: 100 data/10 waveforms Use environment: 0~40℃, ＜75%RH Storage environment: -10~60℃, ＜90%RH Bandwidth: ACV/1MHz ACA/5KHz Max. real-time sampling rate: 2.5Msps Multimeter measurement: automatic range + manual range Oscilloscope function secondary display: VP-P, average value, effective value, frequency, time base, amplitude Measurement mode: normal, automatic Multimeter specification: DC voltage: Range: 400mV/4V/40V/400V/1000V Uncertainty: 0.75% rdg+10dgt AC voltage: Range: 400mV/4V/40V/400V/750V Uncertainty: 1.0% rdg+10dgt DC current: Range: 40mA/400mA/4A/10A Uncertainty: 1.2% rdg+10dgt AC current: Range: 40mA/400mA/4A/10A Uncertainty: 1.5% rdg+10dgt Resistance: Range: 400.0Ω~40.00MΩ Uncertainty: 1.0% rdg+5dgt Capacitance: Range: 0.1nF~100, 10.00mF Uncertainty: 2.0% rdg+10dgt Frequency: Range: 5Hz~10MHz Uncertainty: 1.0% rdg+5dgt Duty cycle: Range: 0.1%~99.9% Uncertainty: 1.0% rdg+5dgt Diode test: voltage is about 5V, test current is about 1.5mA Continuity test: judgment resistance about:<50Ω beep Fuse specifications: 500mA/250V, 10A/250V

Specifications

Colour Name	Black
Model Number	ET828
Model Name	ET828
