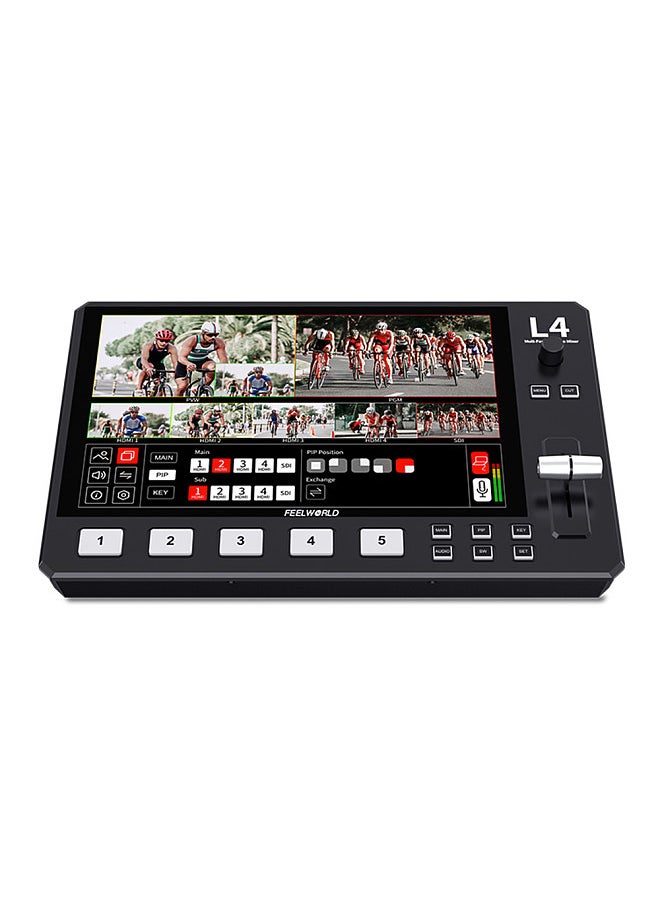

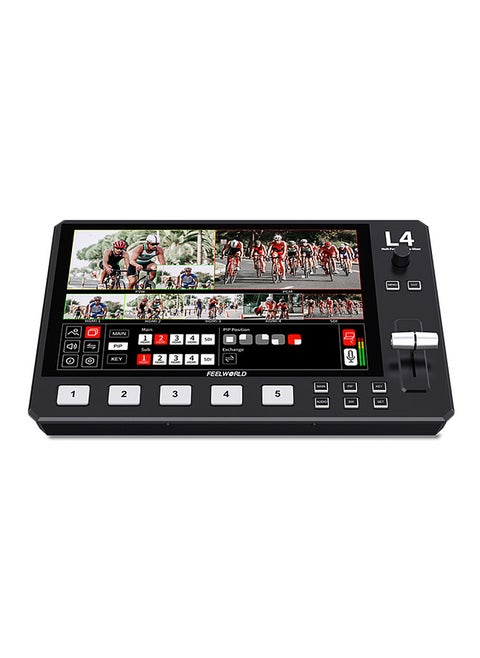

Highlights- 4 HDMI Inputs & 1 HDMI OutputEquipped with 4 HDMI inputs, this device allows seamless connection of cameras, computers, and laptops. Additionally, it features 1 HDMI output for convenient external 1080P video transmission
- 10.1 Inch Large TouchscreenExperience the enhanced usability of our upgraded, larger touchscreen. With its highly clear LCD screen, you can now preview pictures with greater clarity and operate the device more effortlessly.
- Audio EmbeddingEffortlessly embed analog audio into a HDMI signal for recording or live streaming purposes. Moreover, you can extract the audio and transmit it to a larger dedicated audio mixer, ensuring optimal sound quality.
- Broad CompatibilityWith its fast USB 3.0 live stream capability, this device is compatible with a wide range of mainstream video apps
- Strong Heat DissipationWith a built-in fan cooler, the video mixer can operate in a long time without being overheated for the cooler would start up automatically immedietely when the video mixer turned on.
OverviewScreen: 10.1-inch (touch)
Input: 4 x HMDI/ 1 x 3G-SDI
Output: 1 x HDMI/ 1 x 3G-SDI/ 1 x USB3.0
Audio: 3.5mm MIC/3.5mm LINE

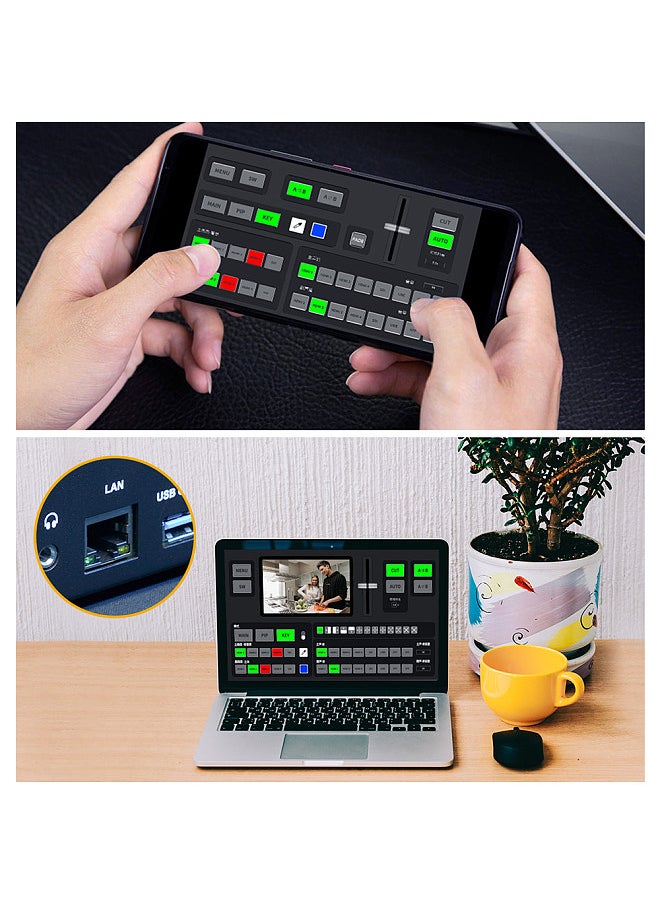

Communication LAN: 1 x RJ45
Connection Power: 1 x DC Jack
HDMI Input Resolutions: SMPTE:720p@50/60; 1080i@50/60; 1080p@24/30/50/60; 2160p@30; VESA:1024*768@60; 1280*720@60; 1280*768@60; 1280*800@60; 1280*1024@60; 1360*768@60; 1366*768@60; 1440*900@60; 1600*1200@60; 1680*1050@60; 1920*1080@60; 1920*1200@60; 3840*2160@23.97/24/25/30
SDI Input Resolutions: 720p(60/59.94/50/30/29.97/25); 1080p(60/59.94/50); 1080p(60/59.94/50/30/29.97/25/24/23.98)
HDMI Output Resolutions: SMPTE:720p@50/60; 1080p@25/30/50/60; VESA:1024*768@60; 1280*720@50/60; 1280*768@60; 1280*1024@60; 1360*768@60; 1920*1080@25/30/50/60
SDI Output Resolutions: 720p(60/59.94/50/30/29.97/25); 1080i(60/59.94/50); 1080p(60/59.94/50/30/29.97/25/24/23.98)
USB Output Resolutions: 720p(50/60); 1080p(25/30/50/60)
HDMI: 1.4
USB: 3.0
Input Voltage: DC 12V/3A
Max Power: ≤27W
Working Temperature: 0℃~60℃
Working Humidity: 10%~85%
Weight: 1.48kg
Dimension: 290.2 * 189.5 * 55.7mm
