Generic - FNIRSI FNB48S 1.77 Inch Display Screen Voltmeter Ammeter Current Multifunction Mobilephone Quick Recharging Tester With BT Function 9 Languange Changing Protocol Capacity Test Tool - Image 1

Available Soon

Generic

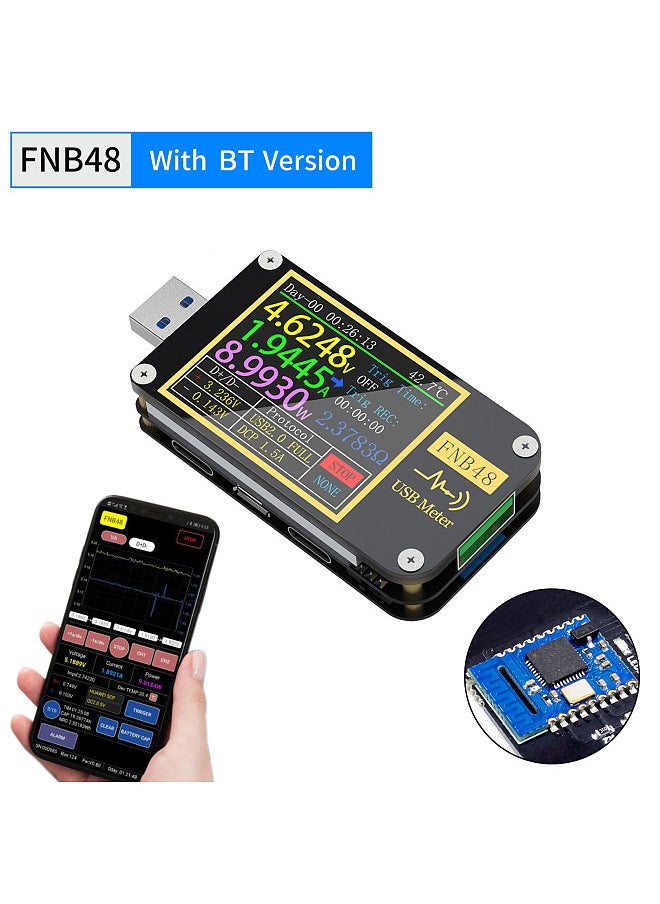

FNIRSI FNB48S 1.77 Inch Display Screen Voltmeter Ammeter Current Multifunction Mobilephone Quick Recharging Tester With BT Function 9 Languange Changing Protocol Capacity Test Tool

Sorry! This product is not available.

Product Overview

Highlights

Five-bit or six-bit display can be switched by oneon , with the maximum resolution of 0.00001, which can real time monitoring of the subtle changes in voltage, current and power during recharging.
This product uses USB3.0 interface, 9 pin design, downward compatible with USB2.0,+ times the transmission rate of USB2.0.There is no need to match the original data cable, it can also directly test the recharger agreement of some mobile phones.
It is in small size, so you can take it with you to anywhere you want to use it, or you can take it and share it with your friends.
This product can record 10 sets of measurement data, you can use the data you get to calculate the capacity of battery.
This product directly add the calculate formula on this product, the result multiply 1000 to get the capacity of battery.

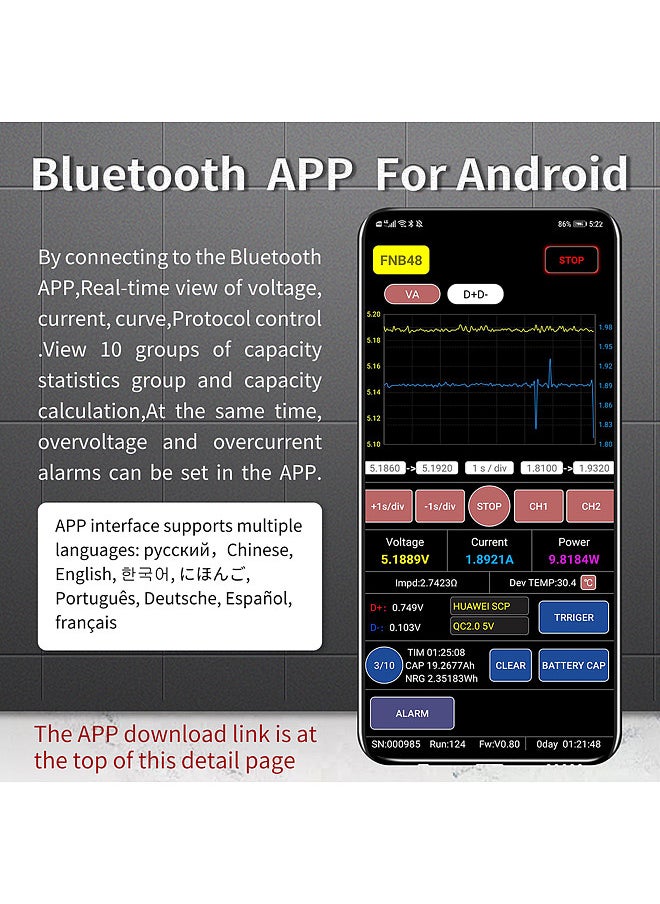

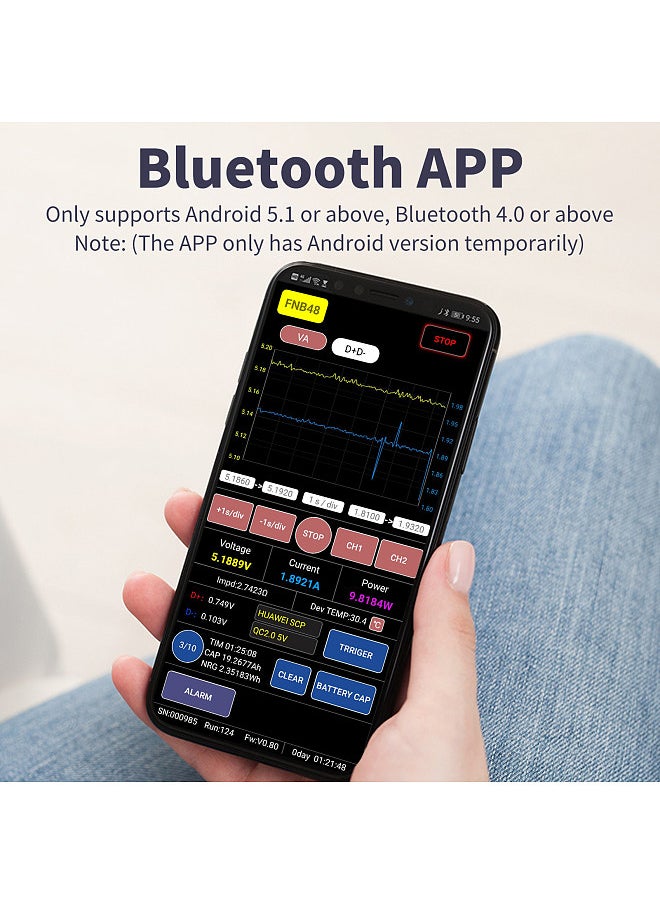

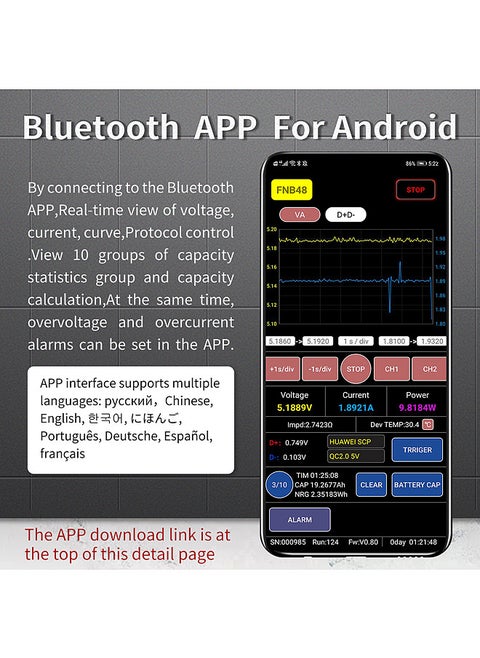

OverviewSpecifications: Material: ABS Monitor voltage: 4~24V Monitor voltage resolution: 0.00001V Monitor voltage accuracy: ±(0.2%+2) Monitor current: 0~6.5A Monitor current resolution: 0.00001A Monitor current accuracy: ±(0.5%+2) Monitor power: 0~156W Monitor current resolution: 0.00001W Monitor current accuracy: ±(0.5%+2) Load equivalent international resistance: 0~9999.9Ω Load equivalent international resistance resolution: 0.0001Ω Load equivalent international resistance accuracy: ±(0.5%+2) Capacity: 0~9999.99Ah Energy used: 0~9999.99Wh Cable resistance: 0~9999.99Ω D+/D- voltage: 0~3.3V D+/D- voltage resolution: 0.001V D+/D- voltage accuracy: ±(1.0%+2) Equipment temperature: ℃/℉ Package size: 91 * 63 * 19mm / 3.6 * 2.5 * 0.7in Package weight: 55g / 1.9ounce Note: This APP only supports Android 5. 1 or above, BT 4.0 or above, and does not support IOS system temporarily. Since the device uses a BLE BT module, So you cannot connect to FNB48 through system settings, you need to search and connect in the APP.

Specifications

What's In The Box

1 * Protocol Capacity Test Tool
